Mazda CX-9 Grand Touring. Manual - part 555





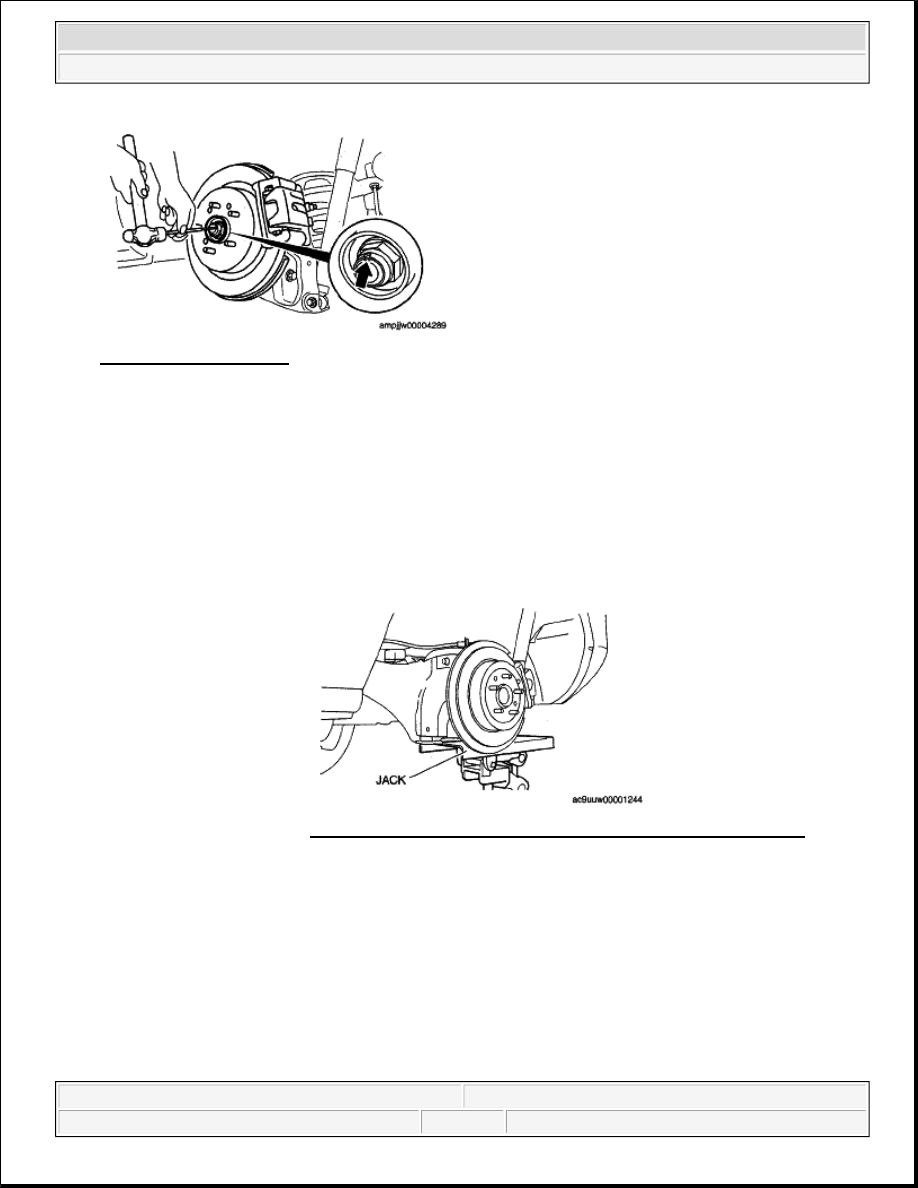

Fig. 8: Tapping Locknut
Courtesy of MAZDA MOTORS CORP.

REAR TRAILING LINK AND REAR WHEEL HUB COMPONENT REMOVAL NOTE

1. Support the rear trailing link and rear wheel hub component using a jack.

2. Separate the rear drive shaft (rear axle side) from the wheel hub.

3. Remove the trailing link and rear wheel hub component.

LOCKNUT INSTALLATION NOTE

1. Install a new locknut and stake it as shown.

CAUTION:

Removing the rear trailing link and rear wheel hub component is
dangerous. The rear trailing link and rear wheel hub component
could fall and cause serious injury or death. Verify that the jack
securely supports the trailing link.

Fig. 9: Supporting Rear Trailing Link And Rear Wheel Hub
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLE Rear Axle - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:54:22 AM

Page 6

© 2005 Mitchell Repair Information Company, LLC.

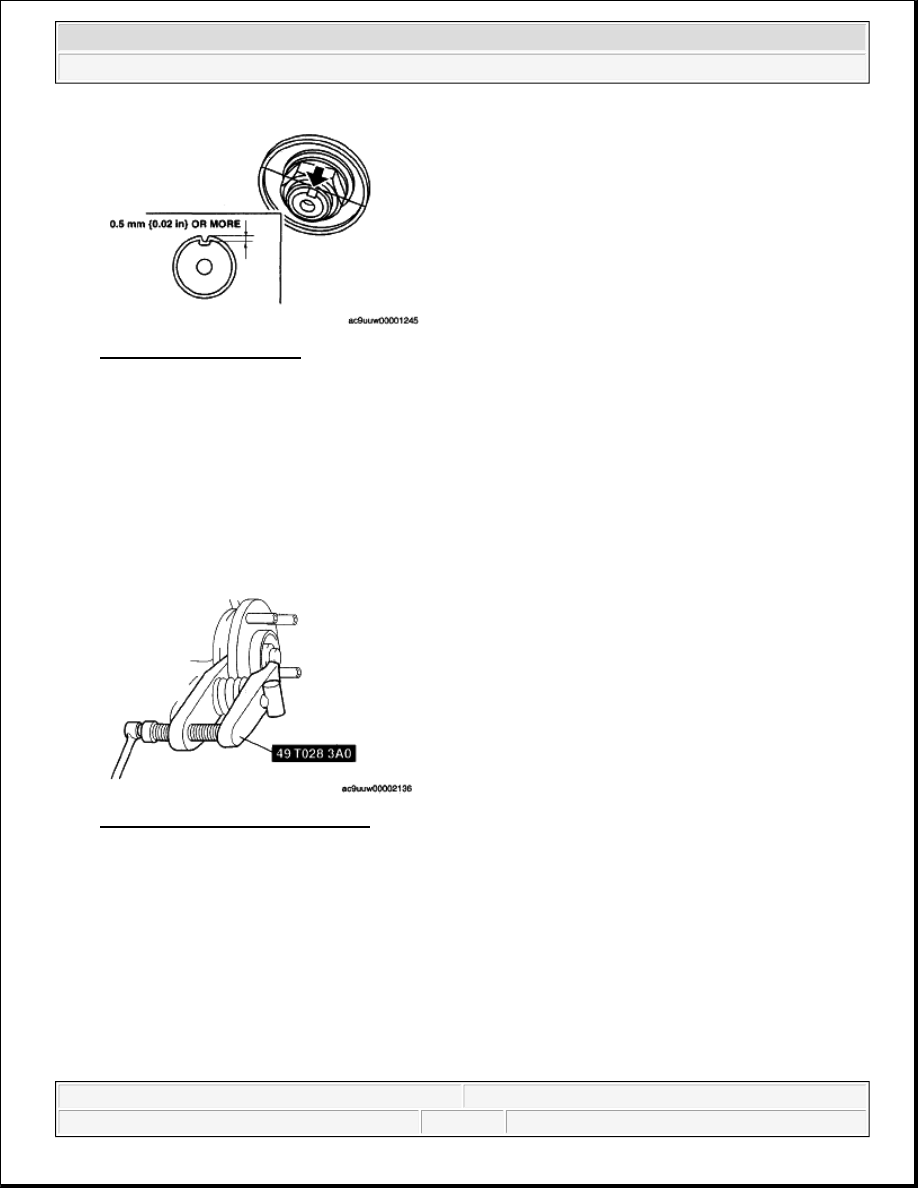

Fig. 10: Locating Locknut
Courtesy of MAZDA MOTORS CORP.

REAR WHEEL HUB BOLT REPLACEMENT

1. Remove the brake calliper component and suspend it out of the way using a cable.

2. Remove the disc plate.

3. Remove the parking brake shoe.

4. Remove the wheel hub bolt using the SST as shown in the figure.

5. Place a new wheel hub bolt in the wheel hub.

Fig. 11: Removing Wheel Hub Bolt
Courtesy of MAZDA MOTORS CORP.

6. Install the wheel hub by placing a proper sized washer on the hub, and tightening the nut as shown in the

figure.



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLE Rear Axle - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:54:22 AM

Page 7

© 2005 Mitchell Repair Information Company, LLC.

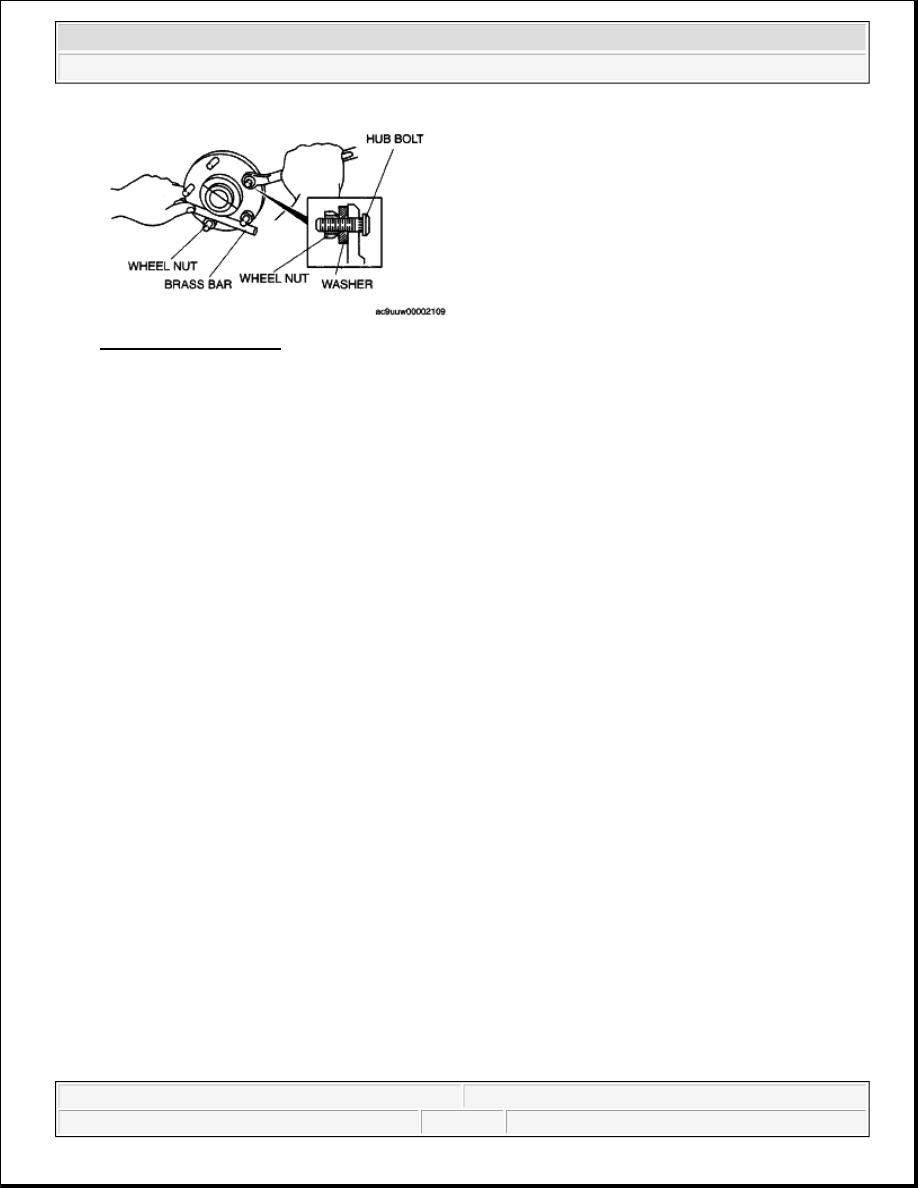

Fig. 12: Tightening Nut
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLE Rear Axle - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:54:22 AM

Page 8

© 2005 Mitchell Repair Information Company, LLC.

2008 SUSPENSION

Rear Suspension - Mazda CX-9

REAR SUSPENSION LOCATION INDEX [2WD]

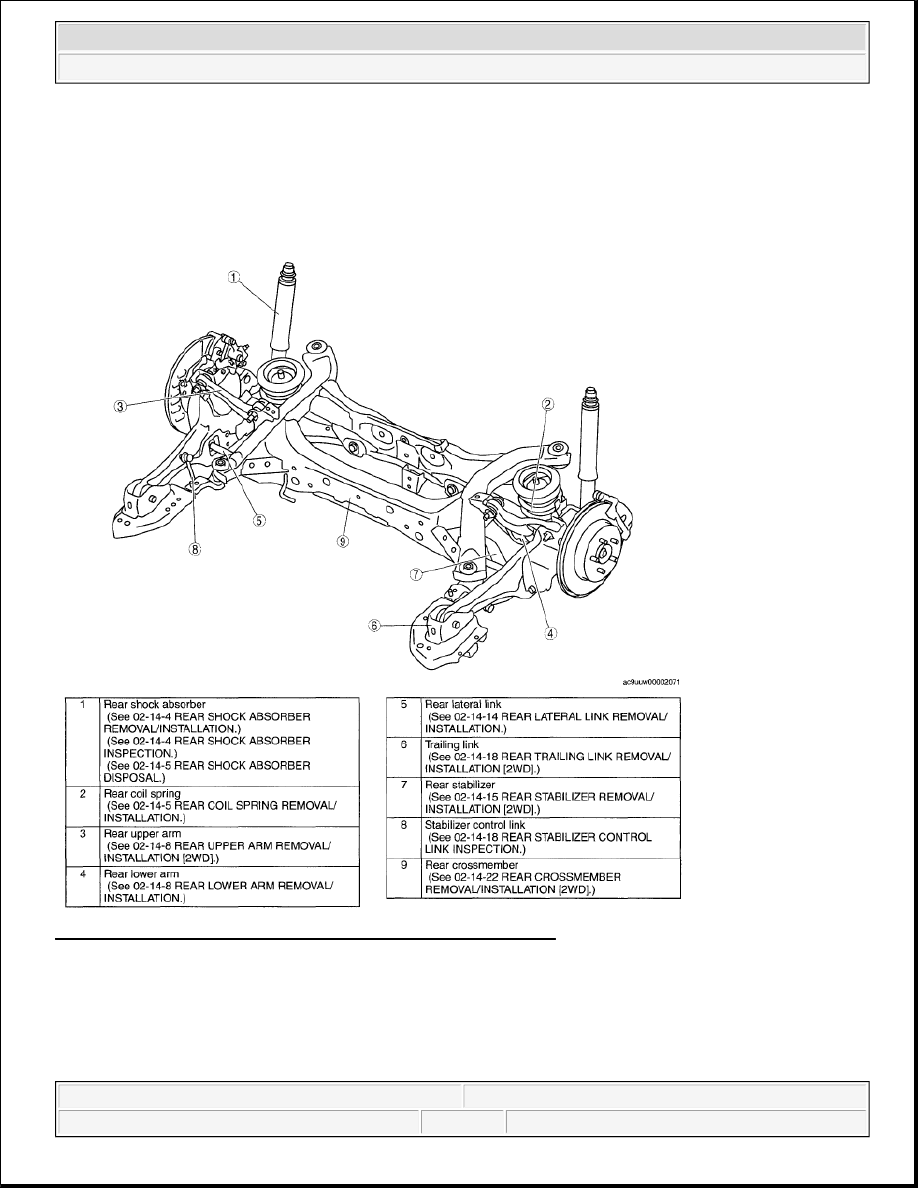

Fig. 1: Identifying Rear Suspension Components Location - 2WD
Courtesy of MAZDA MOTORS CORP.

REAR SUSPENSION LOCATION INDEX [AWD]



2008 Mazda CX-9 Grand Touring

2008 SUSPENSION Rear Suspension - Mazda CX-9





2008 Mazda CX-9 Grand Touring

2008 SUSPENSION Rear Suspension - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:24:01 AM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

Microsoft



Sunday, November 15, 2009 10:24:06 AM

Page 1

© 2005 Mitchell Repair Information Company, LLC.
