Fig. 12: Identifying Relay Terminals (Type A)
Courtesy of MAZDA MOTORS CORP.

TYPE B

1. Verify the continuity between the relay terminals.



If not as indicated in the table, replace the relay.

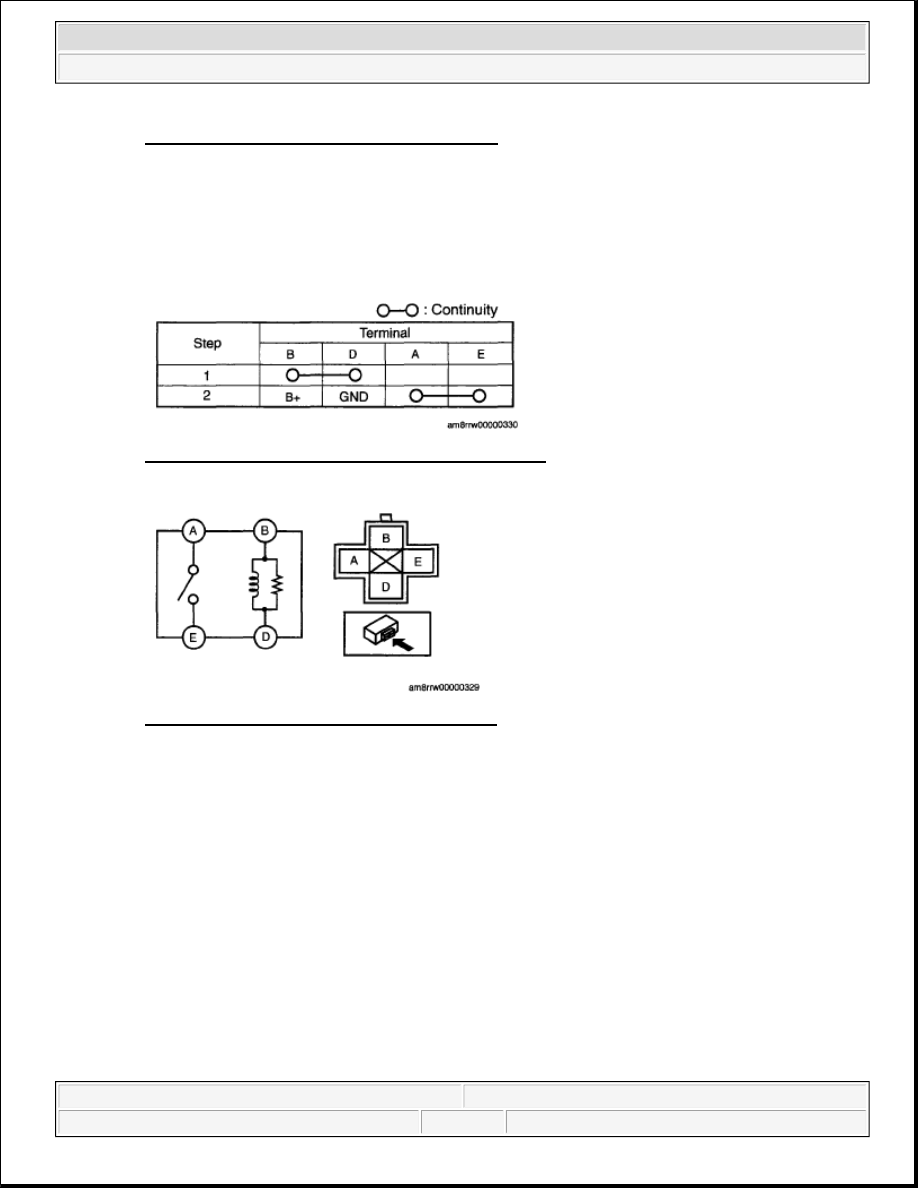

Fig. 13: Relay Terminals Continuity Chart (Type B)
Courtesy of MAZDA MOTORS CORP.

Fig. 14: Identifying Relay Terminals (Type B)
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Power Systems - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:41:28 AM

Page 9

© 2005 Mitchell Repair Information Company, LLC.

2008 DRIVELINE/AXLE

Propeller Shaft - Mazda CX-9

PROPELLER SHAFT LOCATION INDEX

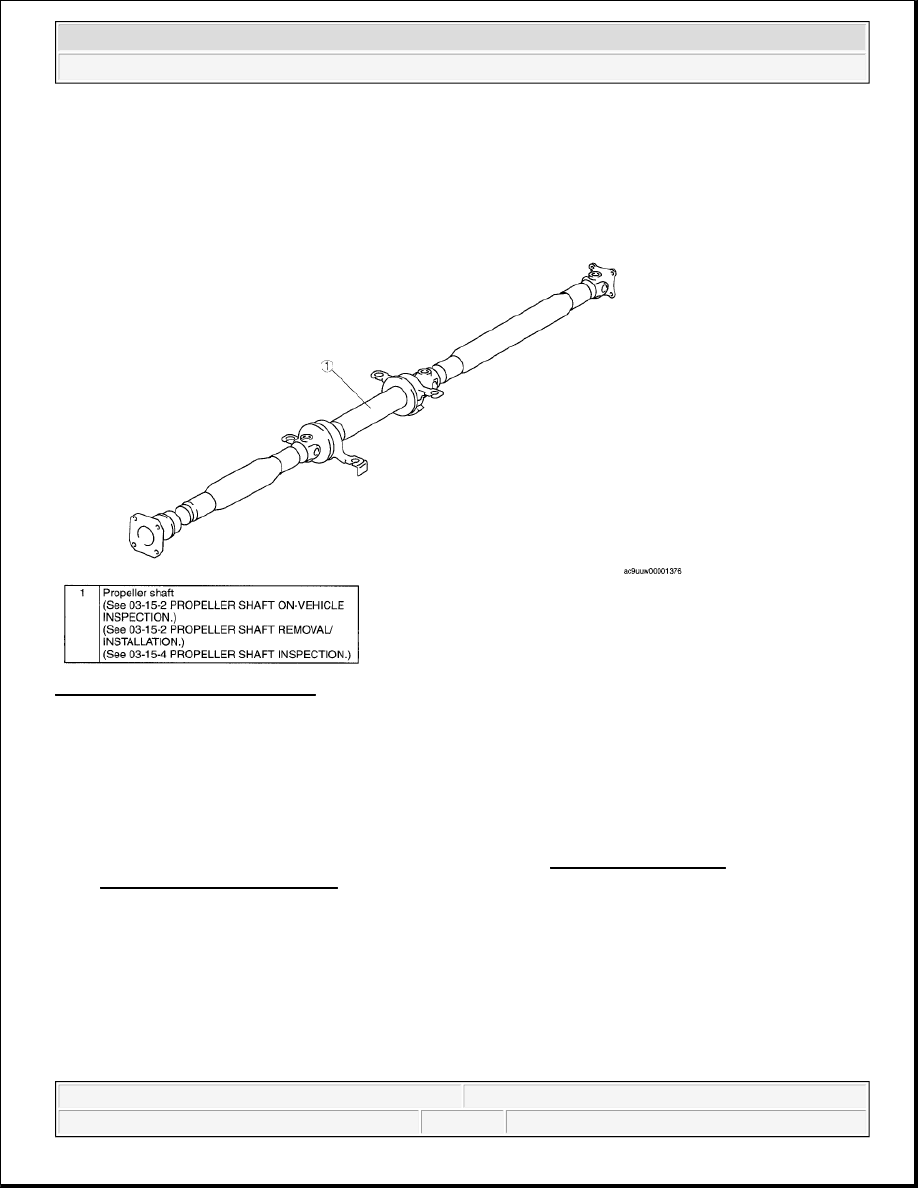

Fig. 1: Identifying Propeller Shaft
Courtesy of MAZDA MOTORS CORP.

PROPELLER SHAFT ON-VEHICLE INSPECTION

JOINT AREA EXCESSIVE PLAY INSPECTION

1. Shake the universal joint by hand and verify that there is no excessive play.

2. If there is any excessive play, replace the propeller shaft. (See PROPELLER SHAFT

REMOVAL/INSTALLATION.)



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLE Propeller Shaft - Mazda CX-9





2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLE Propeller Shaft - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:53:04 AM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

Microsoft



Sunday, November 15, 2009 9:53:10 AM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

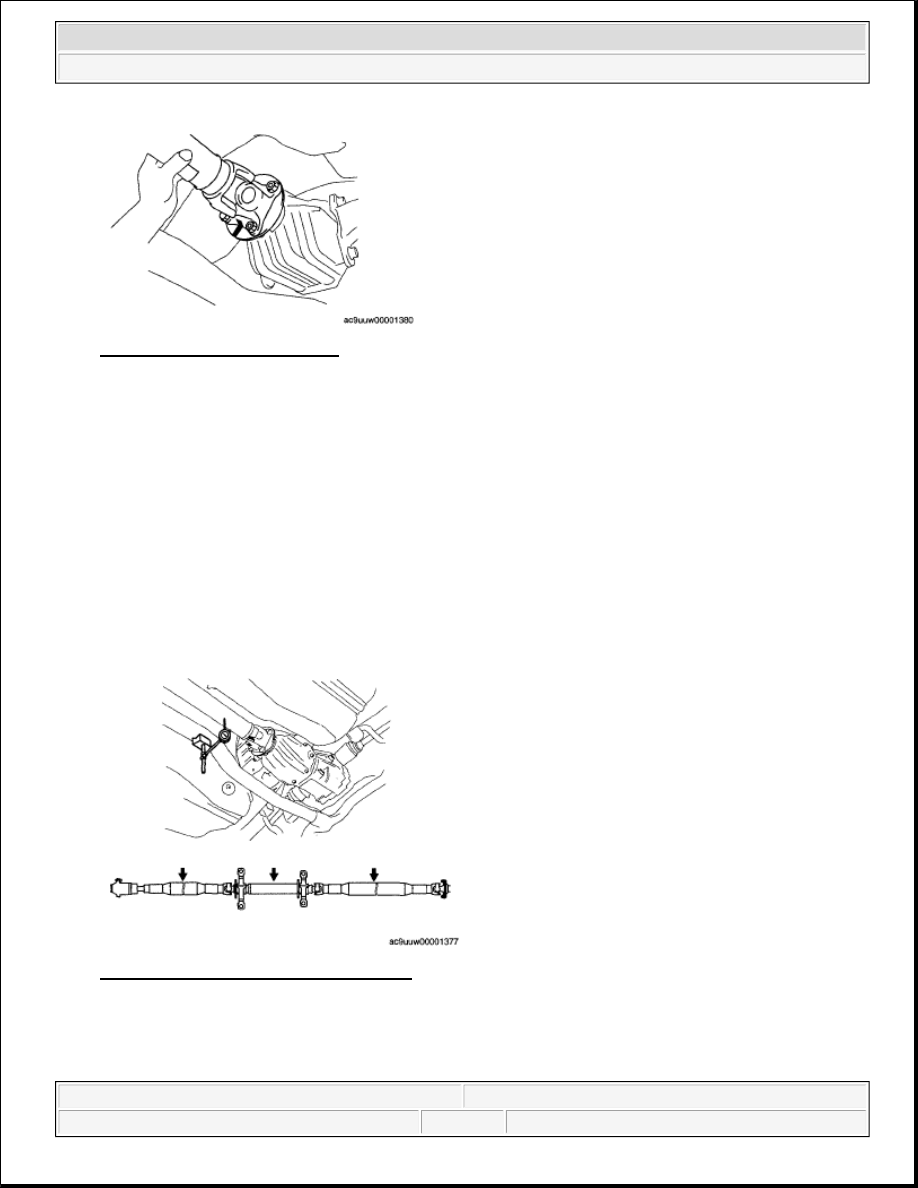

Fig. 2: Shaking Universal Joint
Courtesy of MAZDA MOTORS CORP.

PROPELLER SHAFT RUNOUT INSPECTION

1. Shift to neutral position and release the parking brake.

2. Rotate the rear wheel by hand and inspect the propeller shaft runout at the three locations shown in the

figure.



If it exceeds the standard specification, replace the propeller shaft.

Standard propeller shaft runout (on-vehicle) 0.8 mm {0.031 in}

Fig. 3: Checking Propeller Shaft Runout
Courtesy of MAZDA MOTORS CORP.

PROPELLER SHAFT REMOVAL/INSTALLATION

CAUTION:



Do not rotate the propeller shaft using engine force when inspecting.



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLE Propeller Shaft - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:53:04 AM

Page 2

© 2005 Mitchell Repair Information Company, LLC.

1. Remove the presilencer installation nuts. (Middle pipe side) (See EXHAUST SYSTEM

REMOVAL/INSTALLATION [MZI-3.7] .)

2. Disconnect the hanger rubber as shown in the figure.

3. Suspend the presilencer using a cable.

4. Remove the presilencer insulator.

5. Remove in the order indicated in the figure.

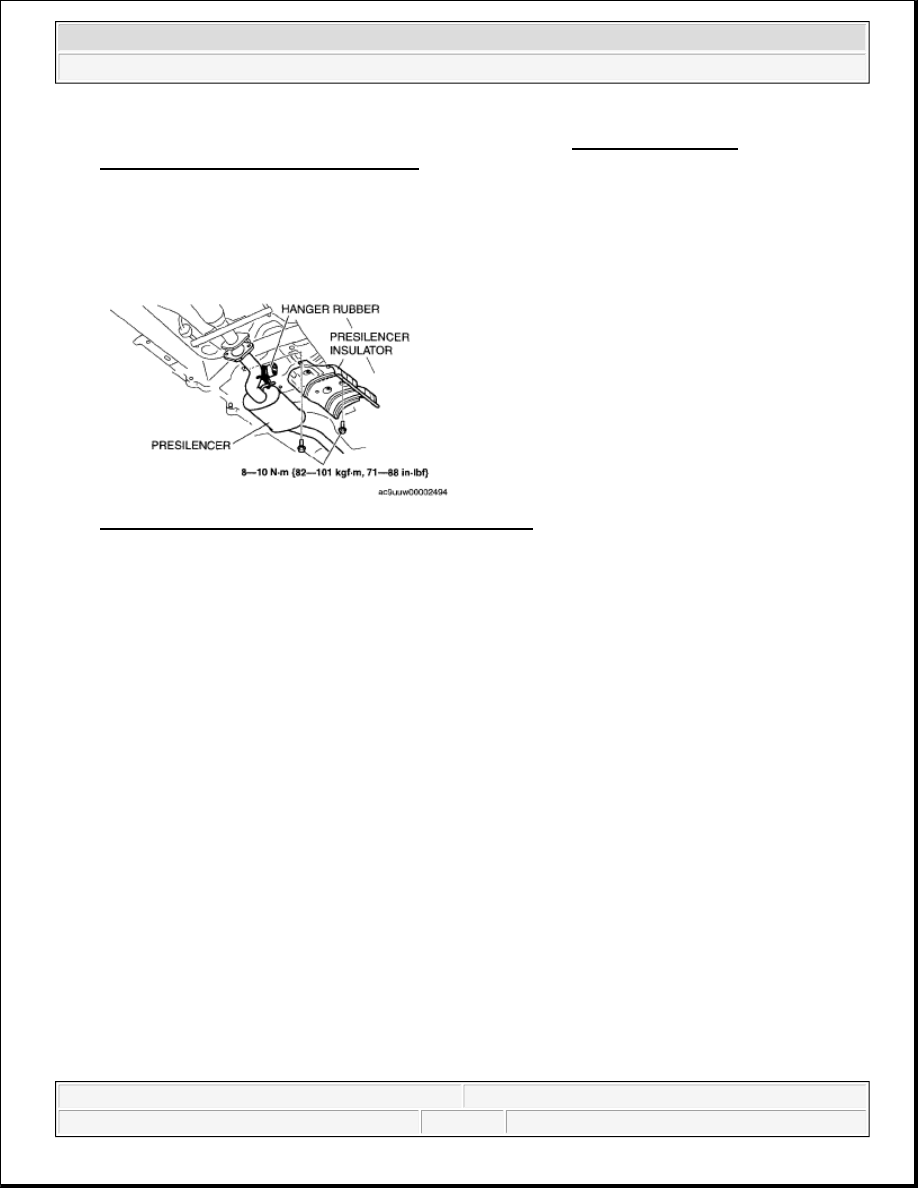

Fig. 4: Identifying Presilencer Insulator And Presilencer
Courtesy of MAZDA MOTORS CORP.

6. Install in the reverse order of removal.
