Fig. 12: Identifying Steering Shaft Nuts And Bolt
Courtesy of MAZDA MOTORS CORP.

STEERING WHEEL INSTALLATION NOTE

1. Make sure the wheels in the straight-ahead position, and install the steering wheel.

STEERING SHAFT INSPECTION

1. Inspect the following.

1. Column bearing for damage

2. Steering shaft length



Replace the steering shaft component as necessary.

Steering shaft length 211.6 mm {8.331 in}

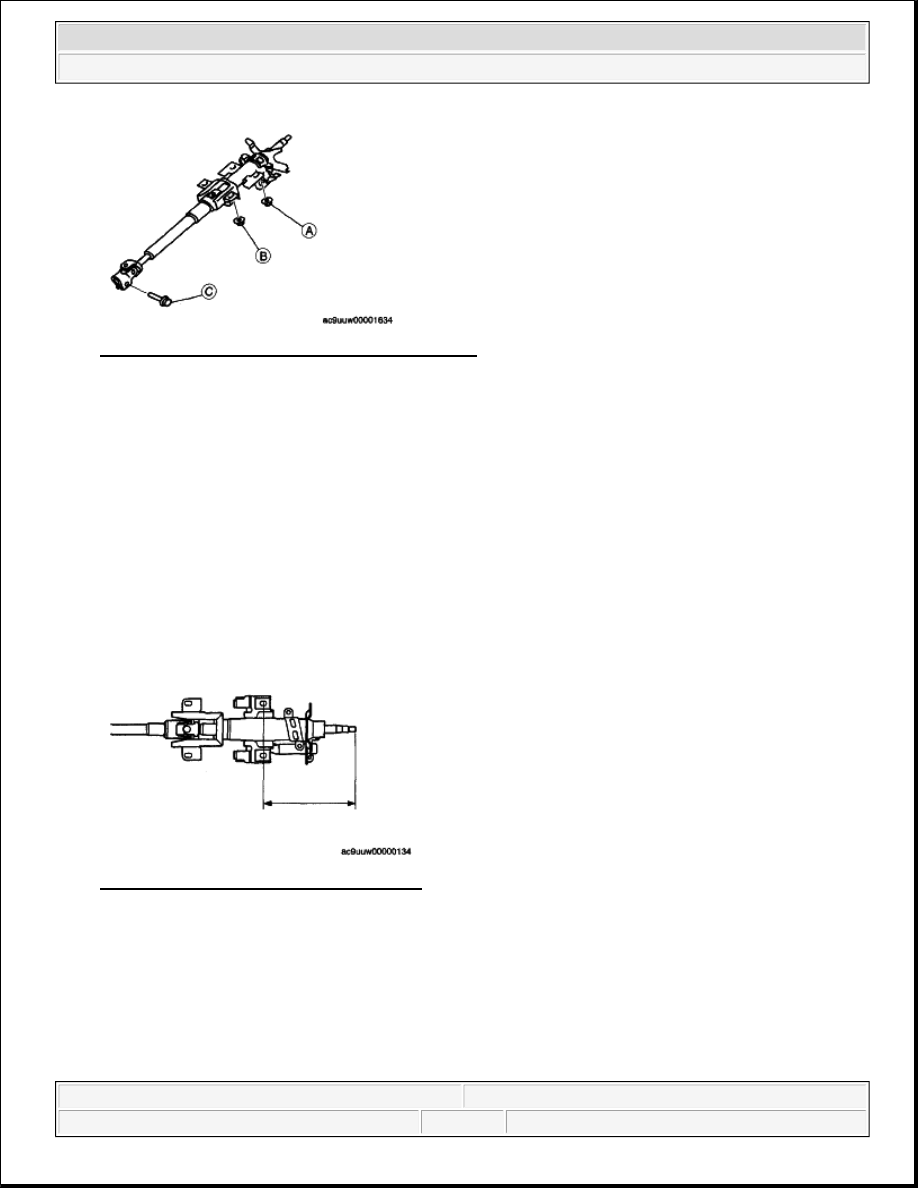

Fig. 13: Identifying Steering Shaft Length
Courtesy of MAZDA MOTORS CORP.

2. Inspect the tilt operation.

1. Verify that the adjusting lever moves smoothly from unlock position to lock position.

2. Verify that the steering shaft is fixed firmly when the adjusting lever is locked.



Replace the steering shaft component as necessary.



2008 Mazda CX-9 Grand Touring

2008 STEERING Power Steering - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:20:34 AM

Page 10

© 2005 Mitchell Repair Information Company, LLC.

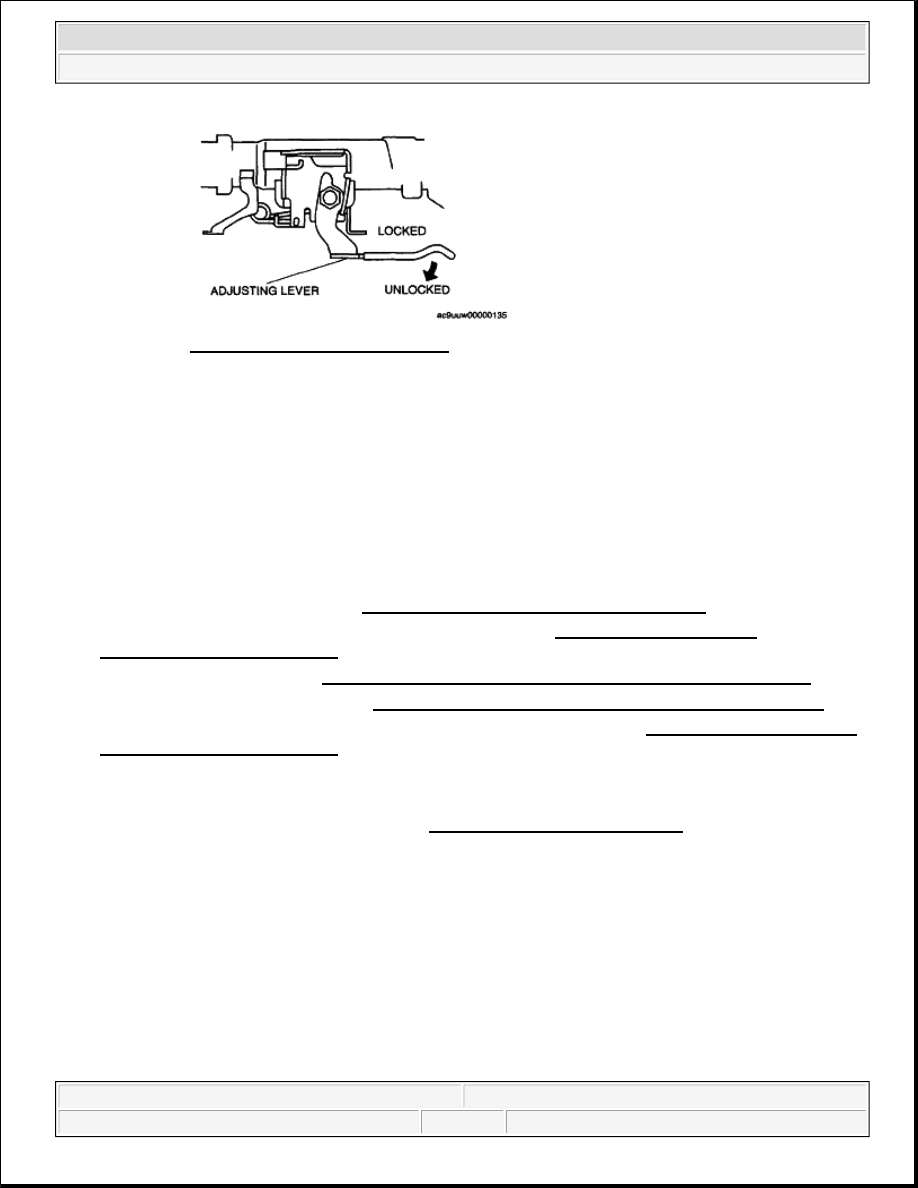

Fig. 14: Inspecting Tilt Operation
Courtesy of MAZDA MOTORS CORP.

STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION

1. Drain the power steering fluid. (See POWER STEERING FLUID INSPECTION.)

2. Remove the front under cover A and front under cover B. (See FRONT UNDER COVER

REMOVAL/INSTALLATION .)

3. Remove the middle pipe. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZI-3.7] .)

4. Remove the transverse member. (See TRANSVERSE MEMBER REMOVAL/INSTALLATION .)

5. Remove the front crossmember, steering gear and linkage component. (See FRONT CROSSMEMBER

REMOVAL/INSTALLATION .)

6. Remove in the order indicated in the table.

7. Install in the reverse order of removal.

8. After installation, adjust the total toe-in. (See FRONT WHEEL ALIGNMENT .)

CAUTION:



Performing the following procedures without first removing the ABS
wheel-speed sensor may possibly cause an open circuit in the
harness if it is pulled by mistake. Before performing the following
procedures, remove the ABS wheel-speed sensor (axle side) and fix it
to an appropriate place where the sensor will not be pulled by
mistake while servicing the vehicle.



2008 Mazda CX-9 Grand Touring

2008 STEERING Power Steering - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:20:34 AM

Page 11

© 2005 Mitchell Repair Information Company, LLC.

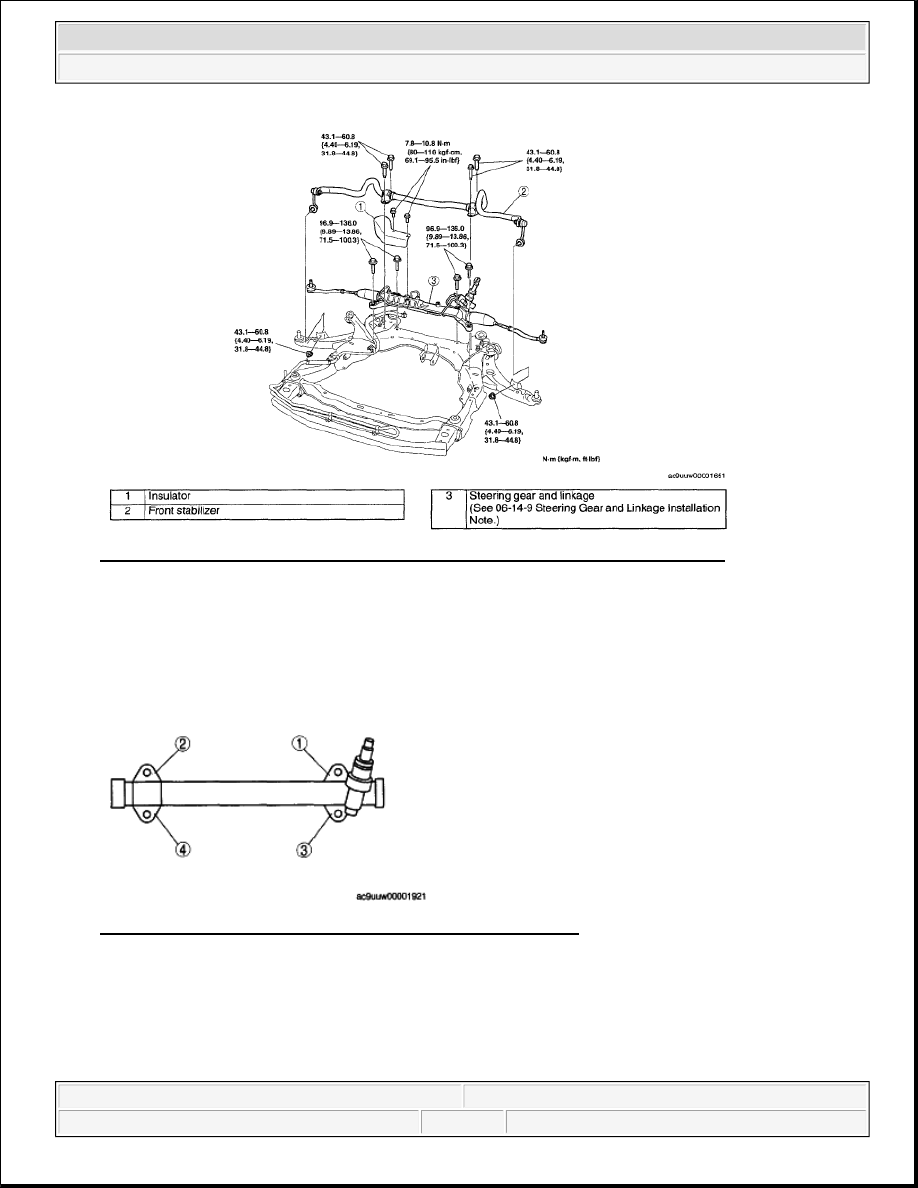

Fig. 15: Identifying Steering Gear, Linkage Components & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

STEERING GEAR AND LINKAGE INSTALLATION NOTE

1. Tighten the mounting bracket bolts to the specified torque in the order shown.

Tightening torque 96.9-136.0 N.m {9.89-13.86 kgf.m, 71.5-100.3 ft.lbf}

Fig. 16: Identifying Mounting Bracket Bolts Tightening Order
Courtesy of MAZDA MOTORS CORP.

BOLT (INTERMEDIATE SHAFT) INSTALLATION NOTE

1. Align the marks and install the intermediate shaft and bolt.

STEERING GEAR AND LINKAGE DISASSEMBLY



2008 Mazda CX-9 Grand Touring

2008 STEERING Power Steering - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:20:34 AM

Page 12

© 2005 Mitchell Repair Information Company, LLC.

1. Disassemble in the order indicated in the table.

CAUTION:



Place copper plates, rag, or similar material in a vise, when securing
the mounting bracket portion of the steering gear.



2008 Mazda CX-9 Grand Touring

2008 STEERING Power Steering - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:20:34 AM

Page 13

© 2005 Mitchell Repair Information Company, LLC.
