Mazda CX-9 Grand Touring. Manual - part 465

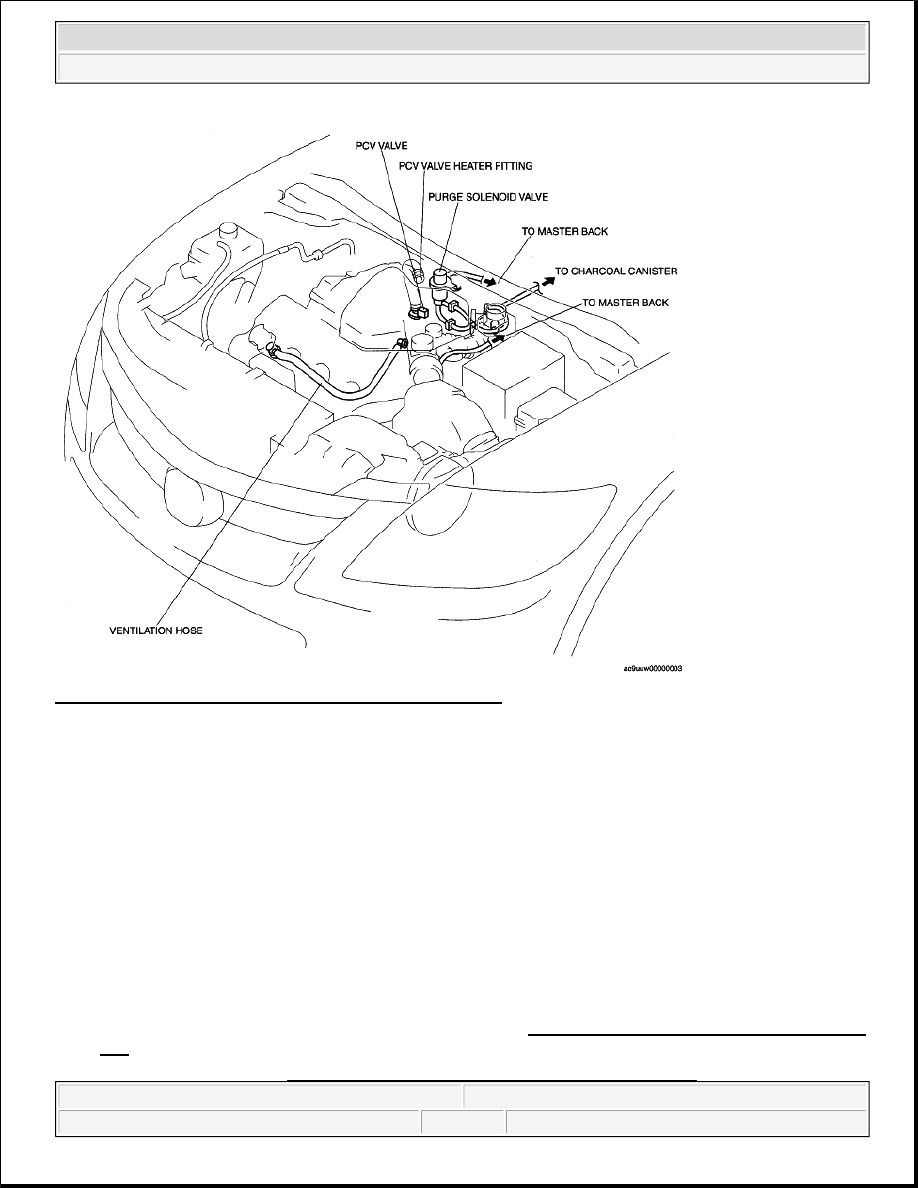

Fig. 3: Intake-Air System Vacuum Hose Routing Diagram
Courtesy of MAZDA MOTORS CORP.

INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZI-3.7]

1. Complete the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION [MZI-

3.7] .)

2. Remove the battery. (See BATTERY REMOVAL/INSTALLATION [MZI-3.7] .)

WARNING:

When the engine and intake-air system are hot, they can badly burn.
Turn off the engine and wait until they are cool before removing the
intake-air system.

Fuel vapor is hazardous. It can easily ignite, causing serious injury
and damage. Always keep sparks and flames away from fuel.

Fuel line spills and leakage are dangerous. Fuel can ignite and cause
serious injuries or death and damage. Fuel can also irritate skin and
eyes. To prevent this, always complete the "Fuel Line Safety
Procedure".



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE Intake-Air System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:05:41 AM

Page 3

© 2005 Mitchell Repair Information Company, LLC.

3. Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [MZI-3.7] .)

4. Remove in the order indicated in the table.

5. Install in the reverse order of removal.

6. Complete the "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION [MZI-

3.7] .)



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE Intake-Air System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:05:41 AM

Page 4

© 2005 Mitchell Repair Information Company, LLC.

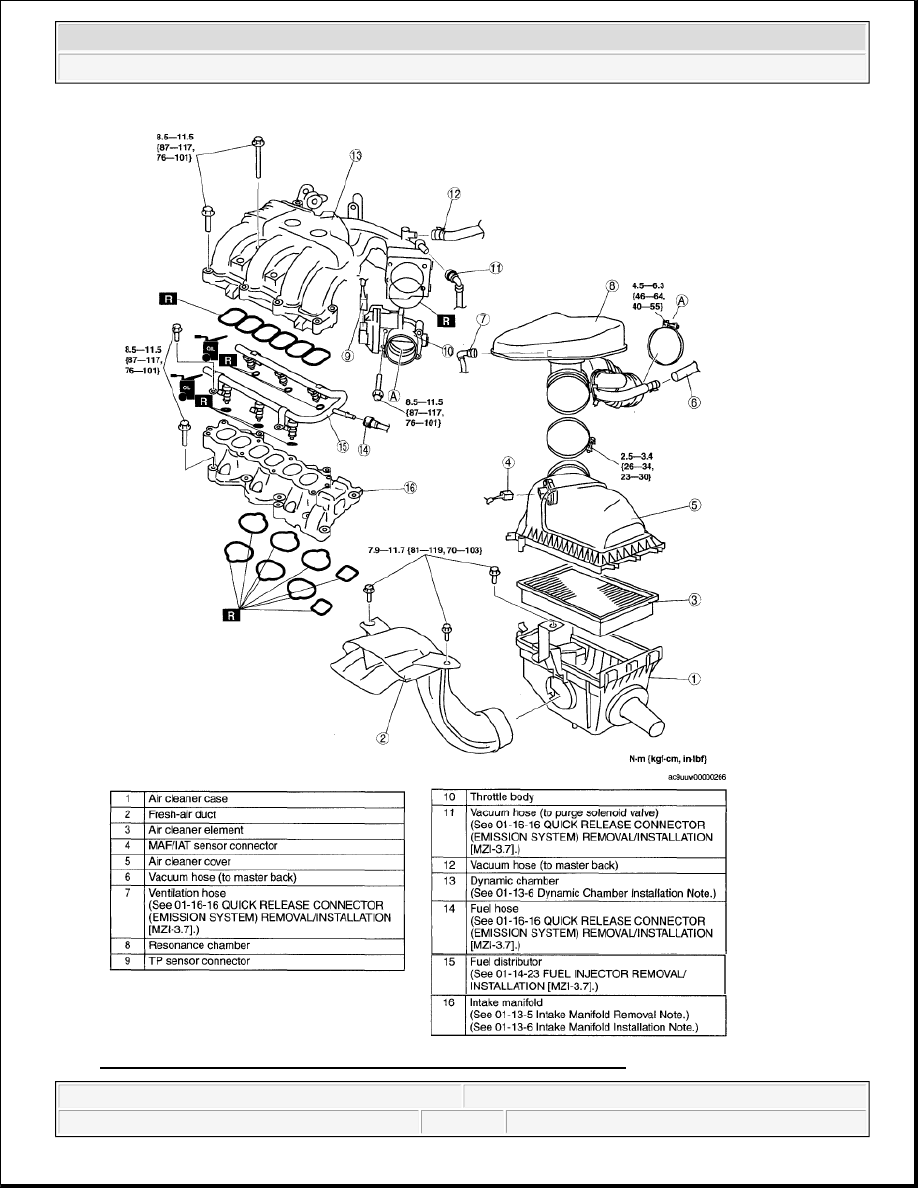

Fig. 4: Exploded View Of Intake-Air System & Torque Specification



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE Intake-Air System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:05:41 AM

Page 5

© 2005 Mitchell Repair Information Company, LLC.

Courtesy of MAZDA MOTORS CORP.

INTAKE MANIFOLD REMOVAL NOTE

1. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [MZI-3.7] .)

2. Disconnect the upper radiator hose.

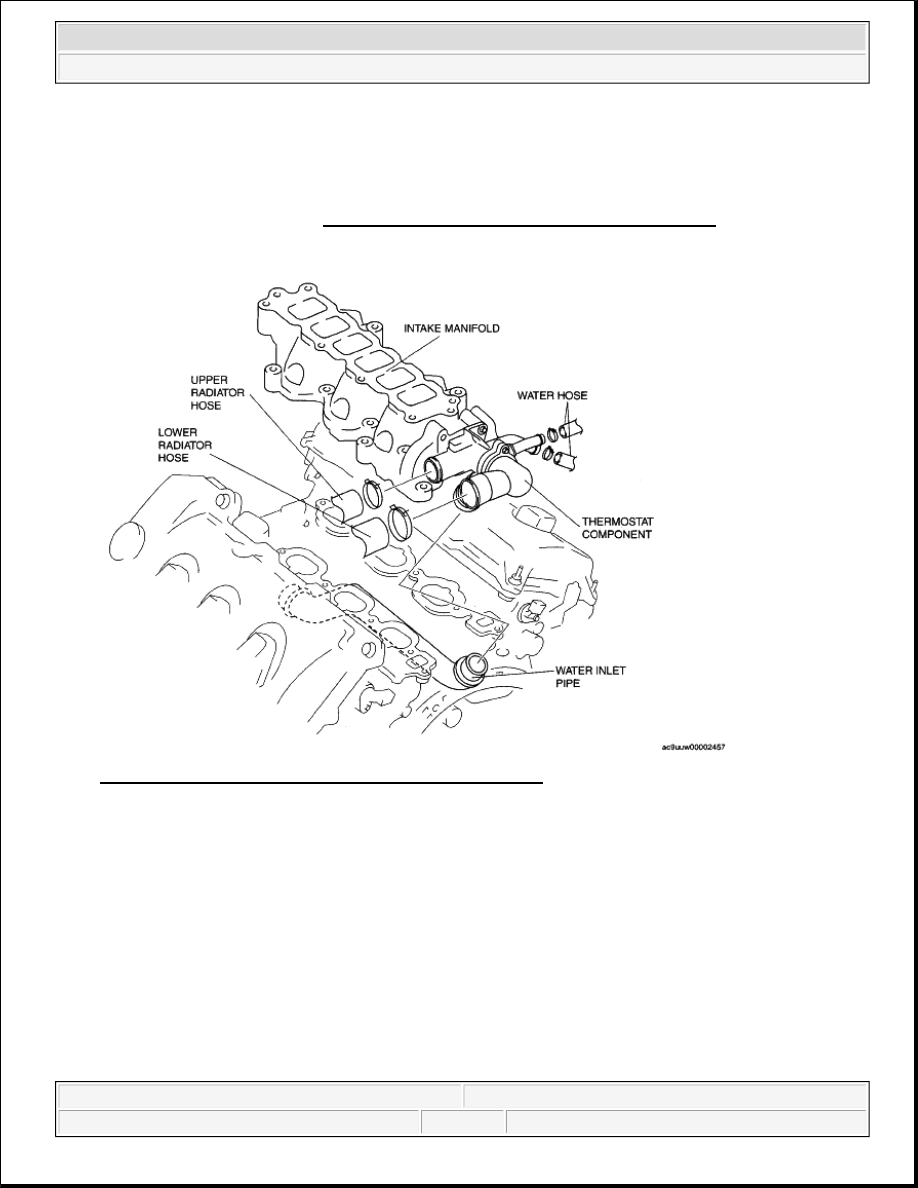

Fig. 5: Identifying Intake Manifold Components Location
Courtesy of MAZDA MOTORS CORP.

3. Disconnect the lower radiator hose.

4. Disconnect the two water hose from the thermostat component.

5. Disconnect the thermostat component side of the water inlet pipe which is under the intake manifold.

6. Remove the intake manifold and thermostat component as a single unit.

7. Remove the thermostat component from the intake manifold.



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE Intake-Air System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:05:41 AM

Page 6

© 2005 Mitchell Repair Information Company, LLC.
