Mazda CX-9 Grand Touring. Manual - part 448





REAR HEAT DUCT NO.2, NO.3 AND NO.4

1. Disconnect the negative battery cable.

2. Remove the following parts:

1. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)

2. Front console box mat (See FRONT CONSOLE BOX MAT REMOVAL/INSTALLATION .)

3. Indicator panel (See INDICATOR PANEL REMOVAL/INSTALLATION .)

4. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)

5. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)

6. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)

7. Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION .)

8. Console cover (See CONSOLE COVER REMOVAL/INSTALLATION .)

9. Console (See CONSOLE REMOVAL/INSTALLATION .)

10. Second-row seat (See SECOND-ROW SEAT REMOVAL/INSTALLATION .)

11. Edge cover (See LONG SLIDER REMOVAL/INSTALLATION .)

12. Long slider cover (See LONG SLIDER REMOVAL/INSTALLATION .)

13. Third-row seat (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)

14. Trunk box (See TRUNK BOX REMOVAL/INSTALLATION .)

15. Seat side box (See SEAT SIDE BOX REMOVAL/INSTALLATION .)

16. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)

17. Third-row seat (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)

18. Rear scuff plate inner (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)

19. Third-row seat belt lower anchor installation bolt (See THIRD-ROW SEAT BELT

REMOVAL/INSTALLATION .)

20. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)

3. Remove the two rear A/C unit retaining bolts on the rear side.

4. Turn floor covering over. (See FLOOR COVERING REMOVAL/INSTALLATION .)

5. Remove the long slider. (See LONG SLIDER REMOVAL/INSTALLATION .)

6. Remove the fasteners.

7. Lift the rear side of the rear A/C unit and remove the rear heater duct No.2.

8. Remove the rear heat duct No.3.

9. Remove the rear heat duct No.4.

10. Install in the reverse order of removal.



2008 Mazda CX-9 Grand Touring

2008 HVAC Basic System - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:11:59 AM

Page 12

© 2005 Mitchell Repair Information Company, LLC.

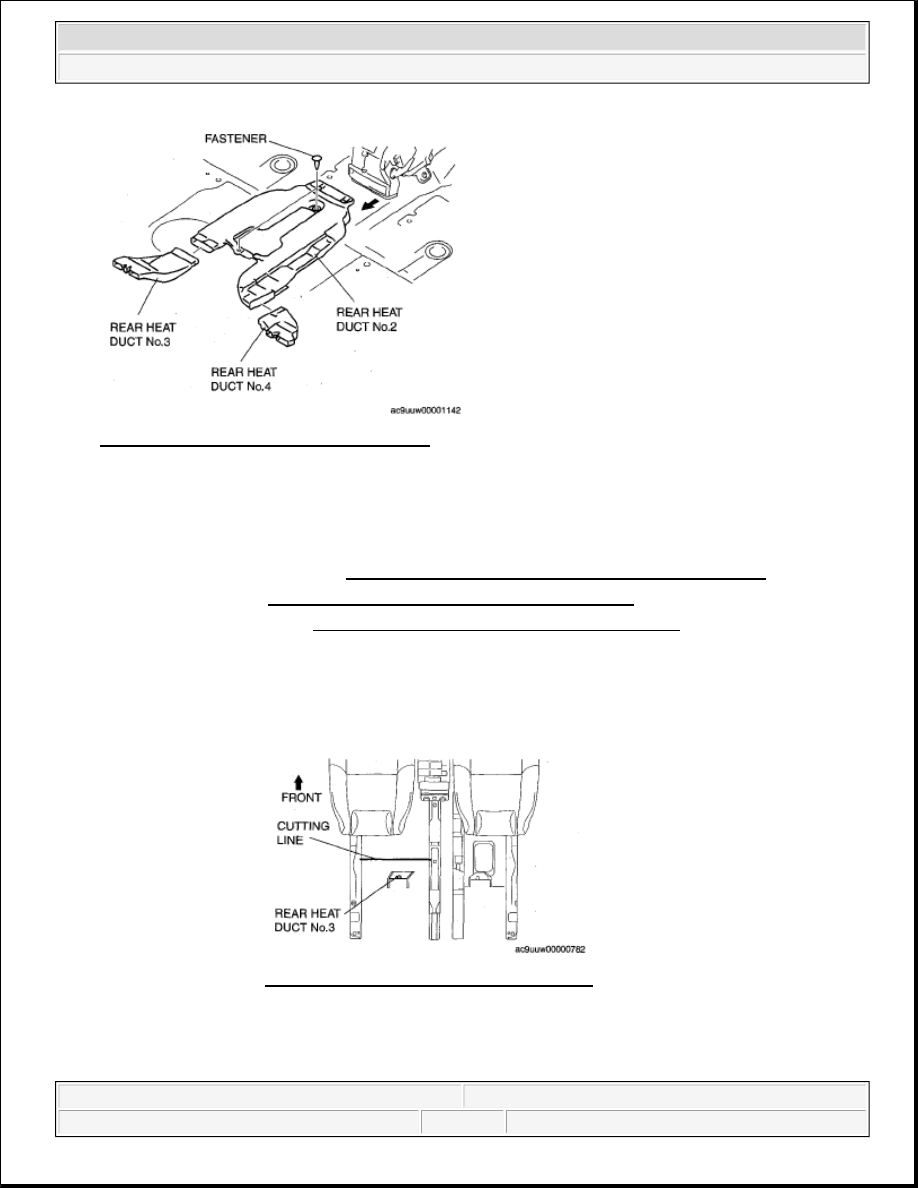

Fig. 14: Identifying Rear Heater Duct No.2

WHEN REMOVING THE REAR HEATER DUCT NO.3 ONLY

1. Disconnect the negative battery cable.

2. Remove the following parts:

1. Second-row seat (LH) (See SECOND-ROW SEAT REMOVAL/INSTALLATION .)

2. Edge cover (See LONG SLIDER REMOVAL/INSTALLATION .)

3. Long slider cover (See LONG SLIDER REMOVAL/INSTALLATION .)

3. Cut away the floor covering as shown in the figure.

4. Turn floor covering over.

5. Remove the rear heat duct No.3.

6. Install in the reverse order of removal.

NOTE:

The cut part does not need to match up when installing the floor
covering.

Fig. 15: Identifying Floor Covering Cut



2008 Mazda CX-9 Grand Touring

2008 HVAC Basic System - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:11:59 AM

Page 13

© 2005 Mitchell Repair Information Company, LLC.

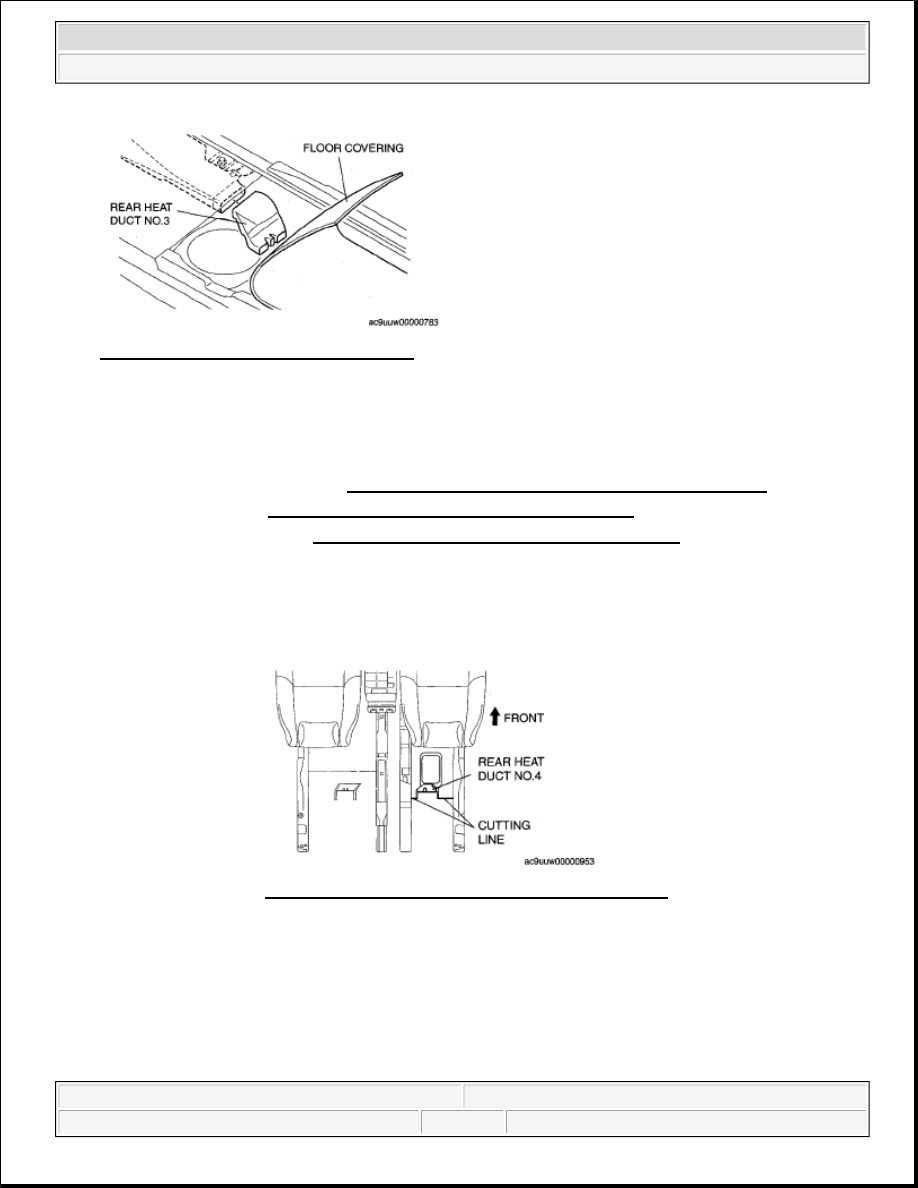

Fig. 16: Identifying Rear Heat Duct No.3

WHEN REMOVING THE REAR HEATER DUCT NO.4 ONLY

1. Disconnect the negative battery cable.

2. Remove the following parts:

1. Second-row seat (RH) (See SECOND-ROW SEAT REMOVAL/INSTALLATION .)

2. Edge cover (See LONG SLIDER REMOVAL/INSTALLATION .)

3. Long slider cover (See LONG SLIDER REMOVAL/INSTALLATION .)

3. Cut away the floor covering as shown in the figure.

4. Turn floor covering over.

5. Remove the rear heat duct No.4.

6. Install in the reverse order of removal.

NOTE:

The cut part does not need to match up when installing the floor
covering.

Fig. 17: Identifying Floor Covering Cutting Line



2008 Mazda CX-9 Grand Touring

2008 HVAC Basic System - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:11:59 AM

Page 14

© 2005 Mitchell Repair Information Company, LLC.

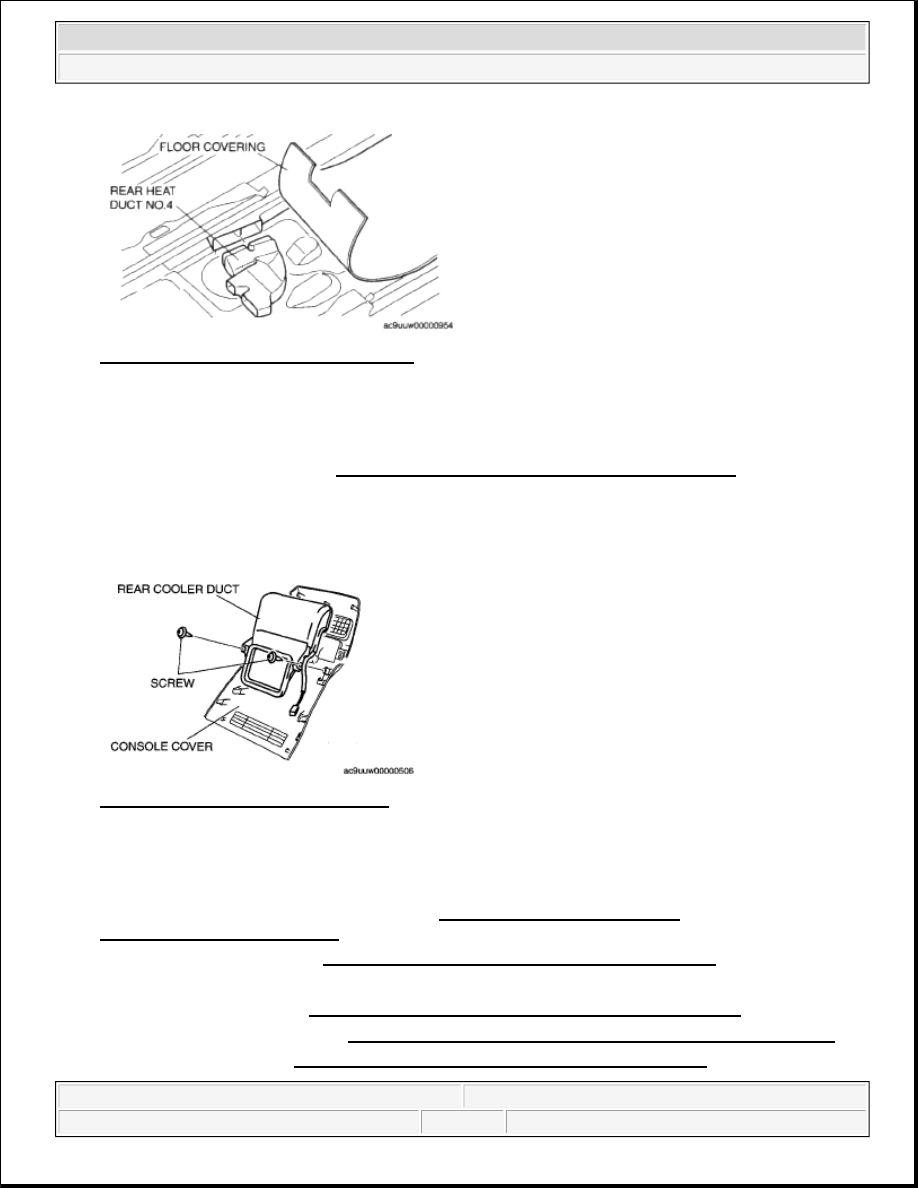

Fig. 18: Identifying Rear Heat Duct No.4

REAR COOLER DUCT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the console cover. (See CONSOLE COVER REMOVAL/INSTALLATION .)

3. Remove the screws.

4. Remove the rear cooler duct.

5. Install in the reverse order of removal.

Fig. 19: Identifying Rear Cooler Duct

REAR A/C UNIT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Evacuate the refrigerant from the system. (See REFRIGERANT RECOVERY .) (See

REFRIGERANT CHARGING .)

3. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [MZI-3.7] .)

4. Remove the following parts:

1. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)

2. Front console box mat (See FRONT CONSOLE BOX MAT REMOVAL/INSTALLATION .)

3. Indicator panel (See INDICATOR PANEL REMOVAL/INSTALLATION .)



2008 Mazda CX-9 Grand Touring

2008 HVAC Basic System - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:11:59 AM

Page 15

© 2005 Mitchell Repair Information Company, LLC.
