Mazda CX-9 Grand Touring. Manual - part 374

2. Secure the engine, transaxle, and crossmember component using a hoist.

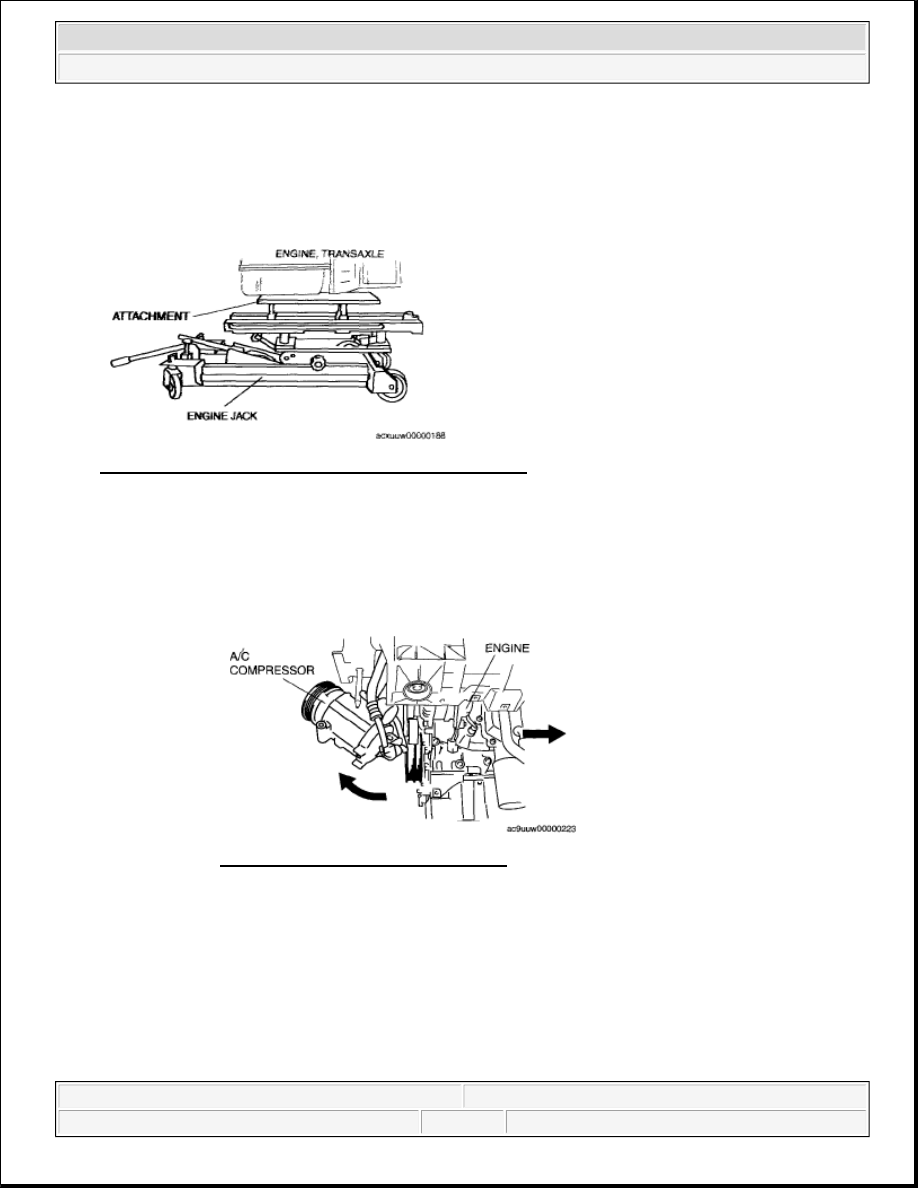

Fig. 132: Lifting Engine & Transaxle With Engine Jack
Courtesy of MAZDA MOTORS CORP.

ENGINE & TRANSAXLE REMOVAL NOTE

ENGINE MOUNT INSTALLATION NOTE

1. Tighten the No.3 engine mount stud bolts.

Tightening torque: 15.7-23.5 N.m {1.61-2.39 kgf.m, 11.6-17.3 ft.lbf}

CAUTION:



Remove the engine and transaxle carefully, holding it steady. If
the transaxle falls it could be damaged or cause injury.

NOTE:



When lowering the engine, slightly move it to the left side of the vehicle to
set the A/C compressor out of the way.

Fig. 133: Setting A/C Compressor
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 ENGINE Mechanical (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:01:58 AM

Page 83

© 2005 Mitchell Repair Information Company, LLC.

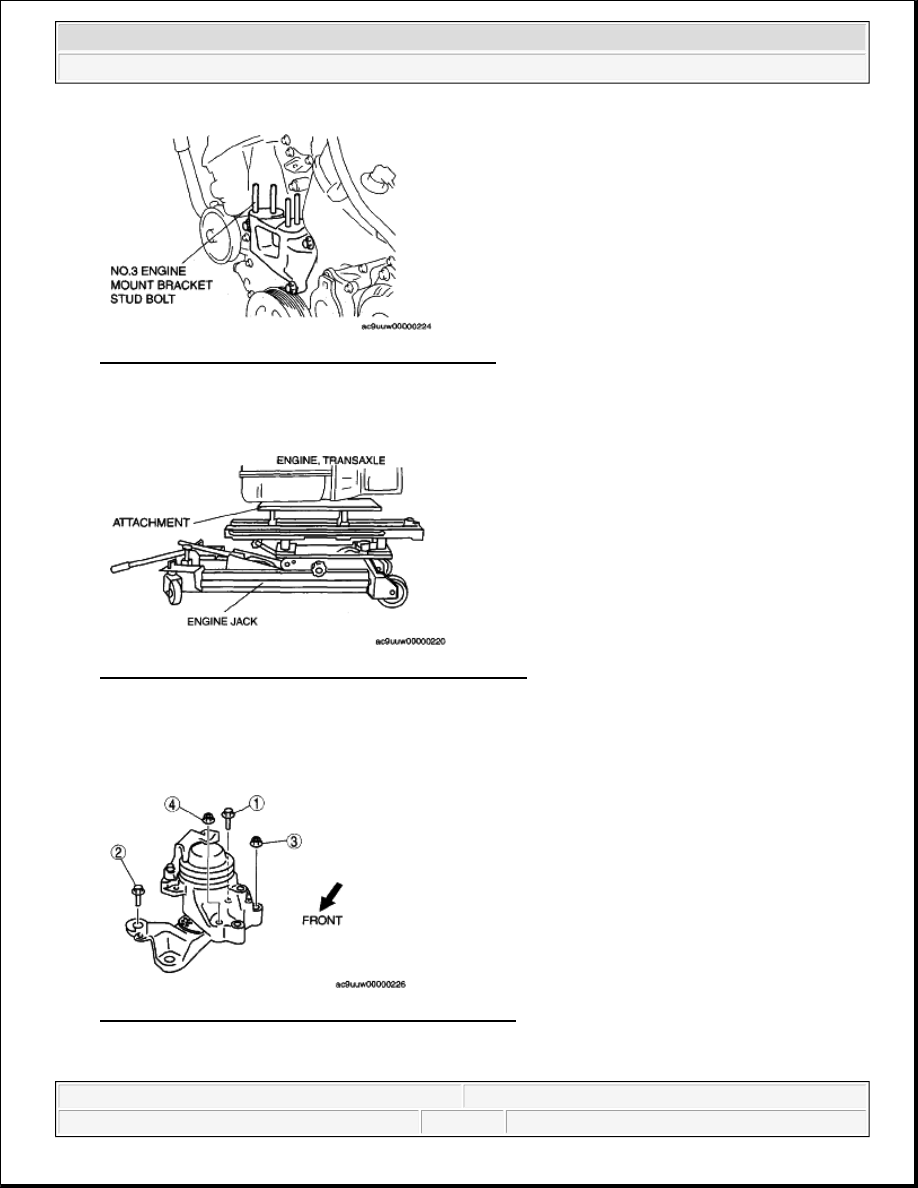

Fig. 134: Identifying No.3 Engine Mount Stud Bolts
Courtesy of MAZDA MOTORS CORP.

2. Secure the engine and the transaxle using an engine jack and attachment as shown.

Fig. 135: Lifting Engine & Transaxle With Engine Jack
Courtesy of MAZDA MOTORS CORP.

3. Temporarily tighten the No.3 engine mount bolts and nuts in the order shown in the figure.

4. Temporarily tighten the No. 4 engine mount bracket in two passes.

Fig. 136: Identifying No.3 Engine Mount Bolts & Nuts
Courtesy of MAZDA MOTORS CORP.

1. Temporarily tighten the No.4 engine mount bracket in the order shown in the figure until the flange



2008 Mazda CX-9 Grand Touring

2008 ENGINE Mechanical (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:01:58 AM

Page 84

© 2005 Mitchell Repair Information Company, LLC.

surface does not adhere.

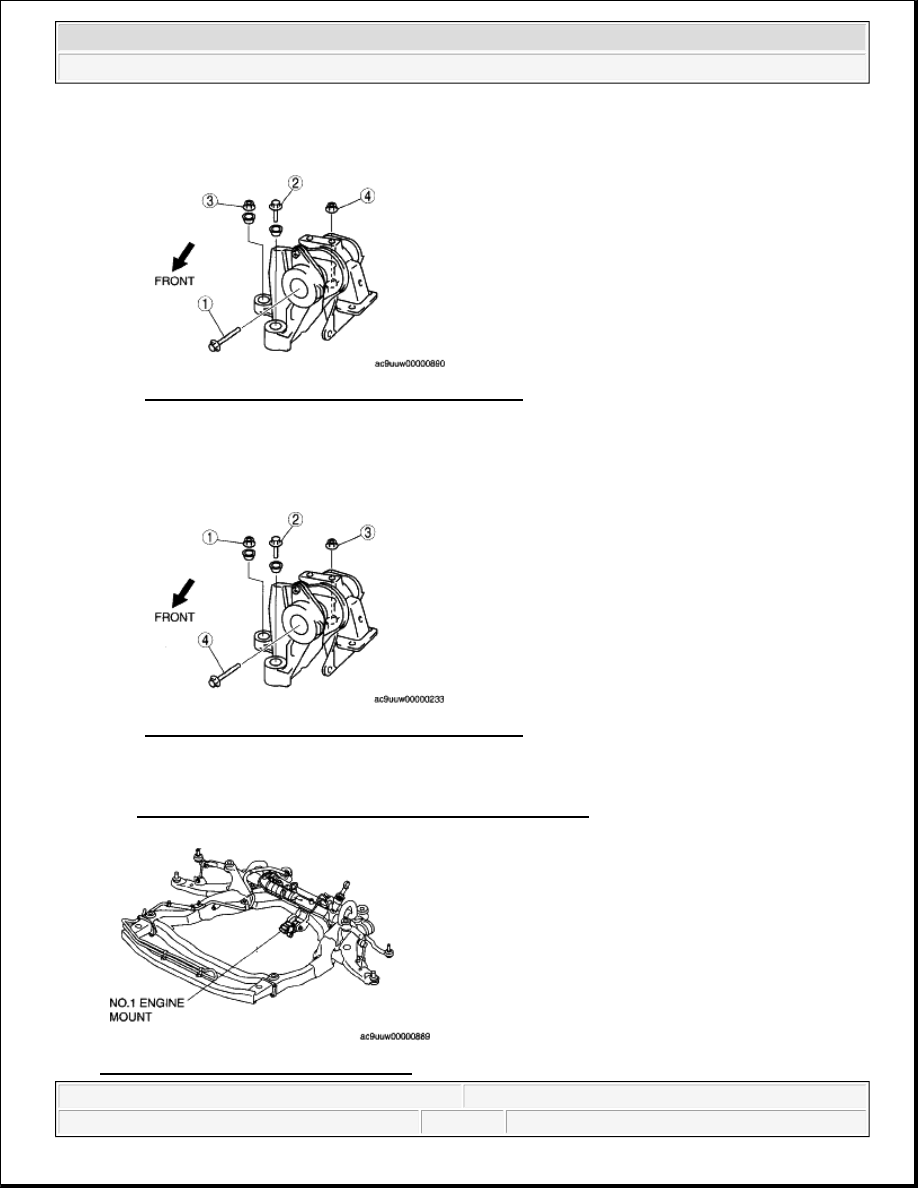

Fig. 137: Identifying No.4 Engine Mount Bracket
Courtesy of MAZDA MOTORS CORP.

2. Temporarily tighten the No.4 engine mount bracket in the order shown in the figure until the flange

surface firmly adheres.

Fig. 138: Identifying No.4 Engine Mount Bracket
Courtesy of MAZDA MOTORS CORP.

5. Install the No.1 engine mount, No.1 engine mount bracket and the front crossmember as a single unit.

(See FRONT CROSSMEMBER REMOVAL/INSTALLATION .)

Fig. 139: Identifying No.1 Engine Mount



2008 Mazda CX-9 Grand Touring

2008 ENGINE Mechanical (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:01:58 AM

Page 85

© 2005 Mitchell Repair Information Company, LLC.

Courtesy of MAZDA MOTORS CORP.

6. Tighten the bolts on the No.1 engine mounting bracket in the order of A, B.

Tightening torque: 93.1-116.6 N.m {9.50-11.8 kgf.m, 68.7-85.9 ft.lbf}

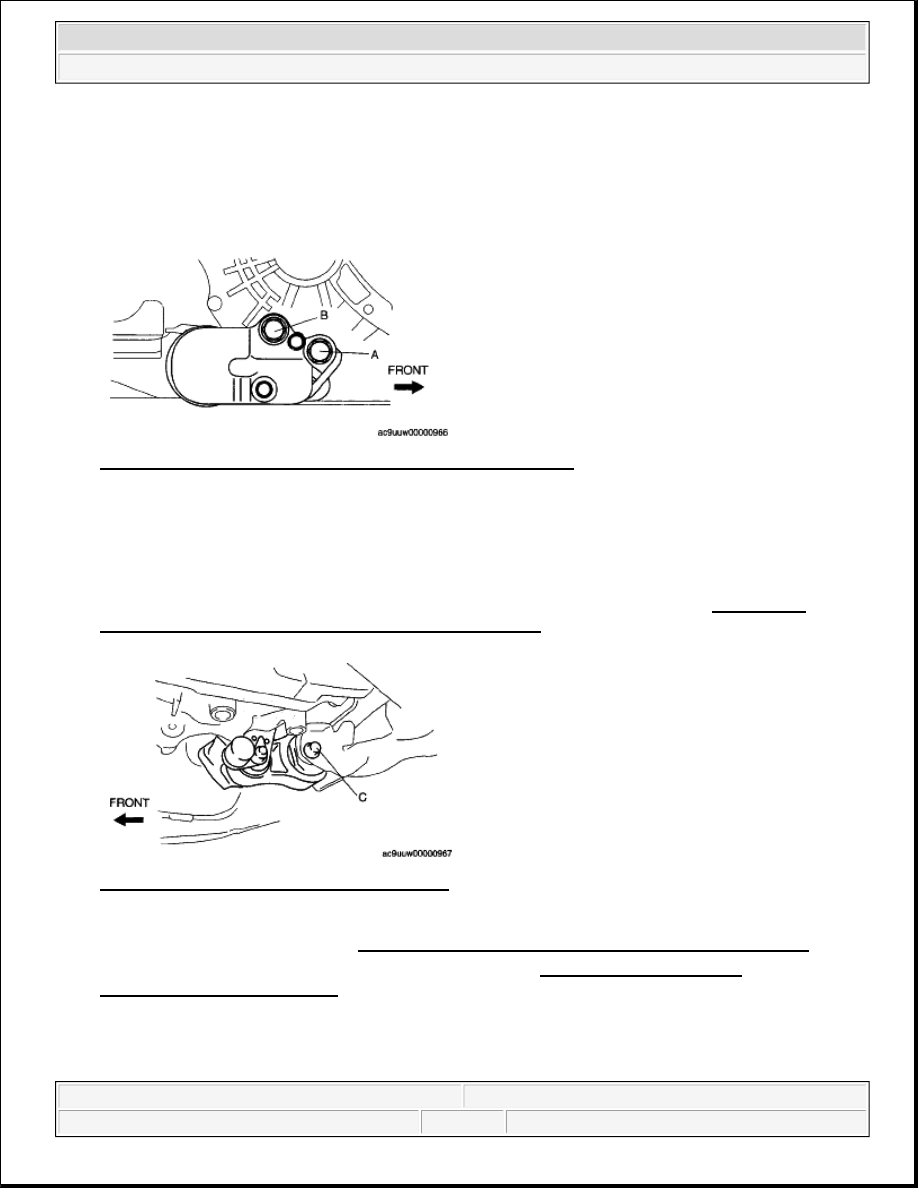

Fig. 140: Identifying Bolts On No.1 Engine Mounting Bracket
Courtesy of MAZDA MOTORS CORP.

7. Teighten the No.1 engine mount bolt C at the specified torque.

Tightening torque: 93.1-116.6 N.m {9.50-11.8 kgf.m, 68.7-85.9 ft.lbf}

8. Install the intermediate shaft installation bolt, and disconnect the steering shaft. (See STEERING

WHEEL AND COLUMN REMOVAL/INSTALLATION .)

Fig. 141: Identifying No.1 Engine Mount Bolt
Courtesy of MAZDA MOTORS CORP.

9. Install the transverse member. (See TRANSVERSE MEMBER REMOVAL/INSTALLATION .)

10. Install the front under cover A and front under cover B. (See FRONT UNDER COVER

REMOVAL/INSTALLATION .)

11. Temporarily tighten the No.3 engine mount bolt and nuts in the order shown in the figure.
