Mazda CX-9 Grand Touring. Manual - part 358





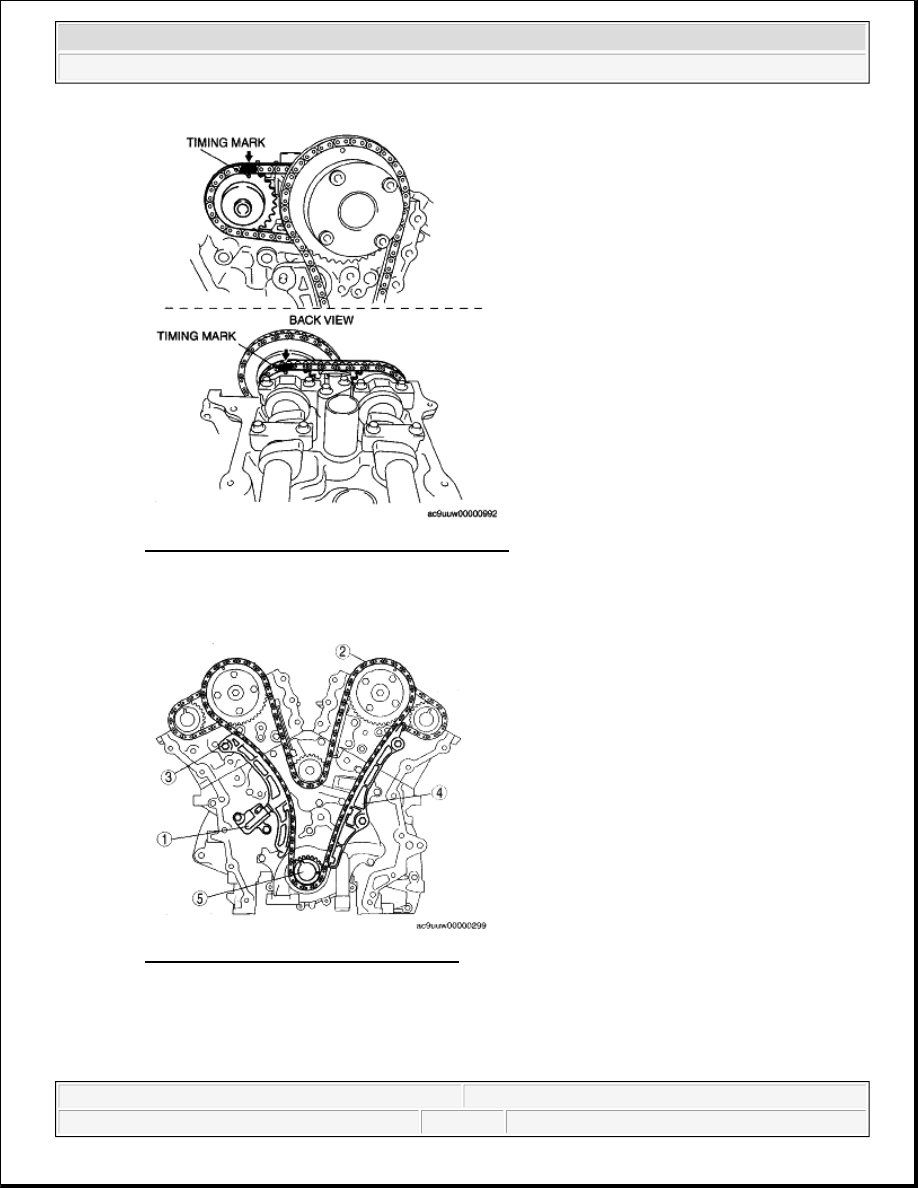

Fig. 21: Locating Timing Chain Mark Location
Courtesy of MAZDA MOTORS CORP.

5. Crankshaft sprocket

Fig. 22: Identifying Crankshaft Sprocket
Courtesy of MAZDA MOTORS CORP.

5. Rotate the crankshaft counterclockwise until the keyway is in the 9 o'clock position.

6. Slowly compress the camshaft timing chain tensioner (LH) piston by hand.



2008 Mazda CX-9 Grand Touring

2008 ENGINE Mechanical (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:01:57 AM

Page 19

© 2005 Mitchell Repair Information Company, LLC.

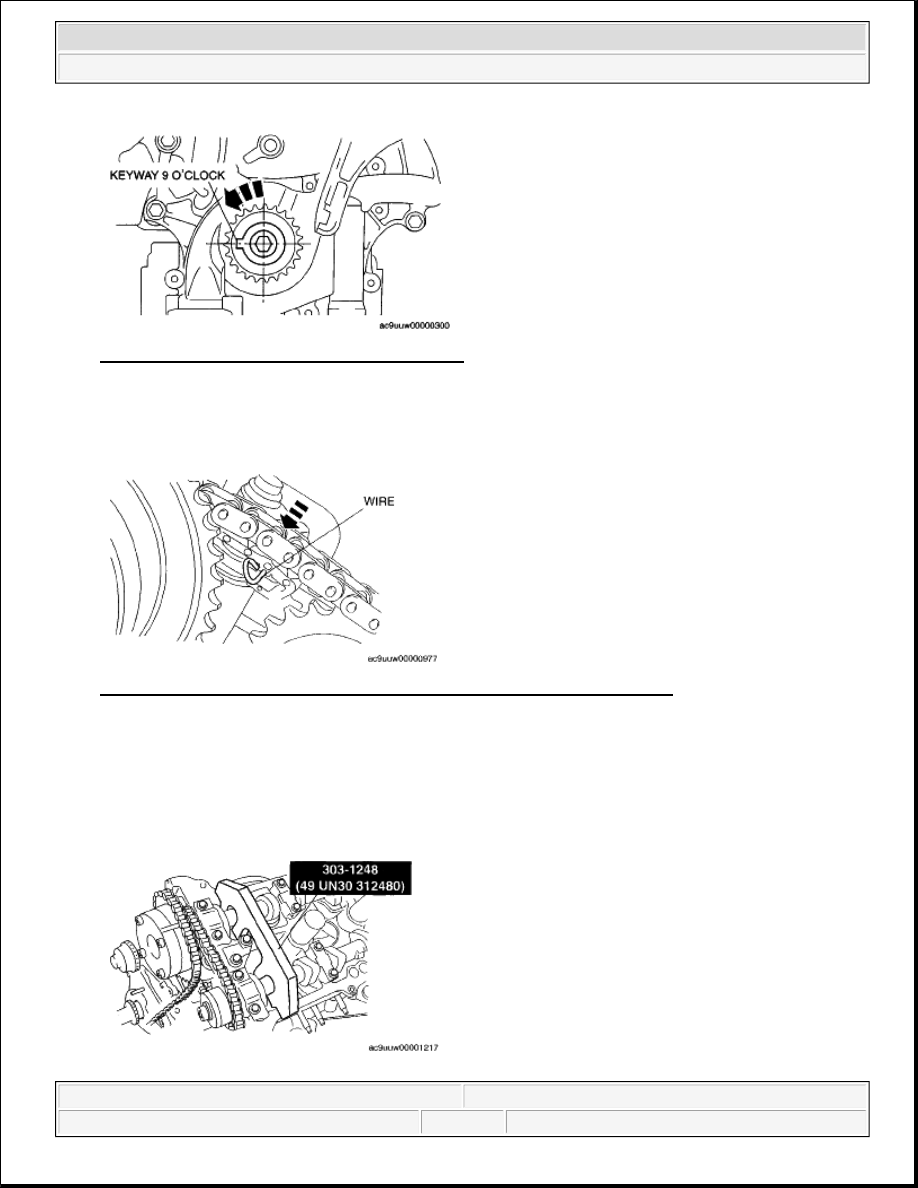

Fig. 23: Rotating Crankshaft Counterclockwise
Courtesy of MAZDA MOTORS CORP.

7. Insert an approx. 1.0 mm {0.039 in} thin wire or paper clip into the camshaft timing chain tensioner

(LH) shown in the figure to hold the tensioner piston.

Fig. 24: Inserting Paper Clip Into Camshaft Timing Chain Tensioner (LH)
Courtesy of MAZDA MOTORS CORP.

8. Install the SST onto the camshafts (LH).

Fig. 25: Identifying SST Onto Camshafts (LH)

NOTE:

The camshaft sprocket is integrated with the variable valve timing
actuator and cannot be disassembled.



2008 Mazda CX-9 Grand Touring

2008 ENGINE Mechanical (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:01:57 AM

Page 20

© 2005 Mitchell Repair Information Company, LLC.

Courtesy of MAZDA MOTORS CORP.

9. Remove the variable valve timing actuator, camshaft timing chain and the exhaust camshaft sprocket of

the LH bank as a single unit.

10. Slowly compress the camshaft timing chain tensioner (RH) piston by hand.

11. Insert an approx. 1.0 mm {0.039 in} thin wire or paper clip into the camshaft timing chain tensioner

(RH) shown in the figure to hold the tensioner piston.

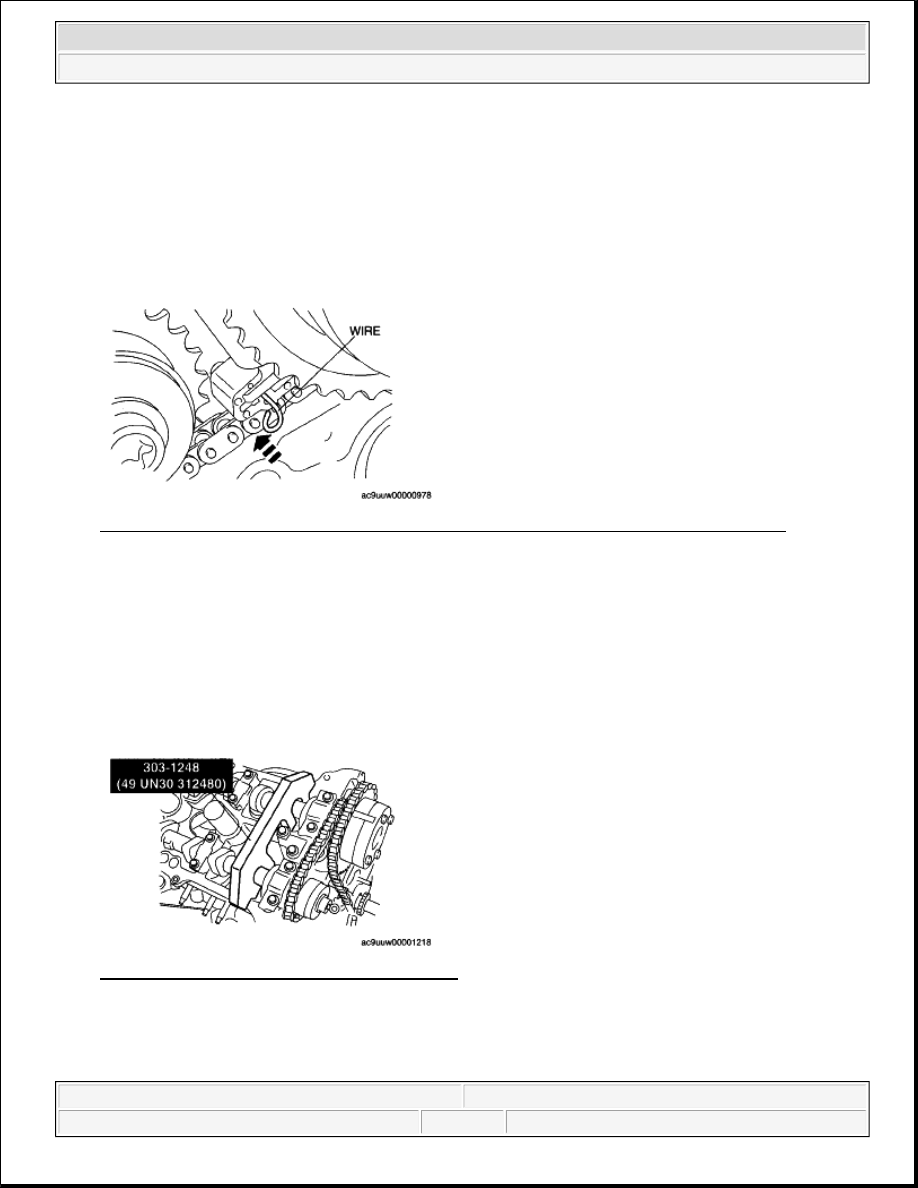

Fig. 26: Inserting Thin Wire Or Paper Clip Into Camshaft Timing Chain Tensioner (RH)
Courtesy of MAZDA MOTORS CORP.

12. Install the SST onto the camshafts (RH).

13. Remove the variable valve timing actuator, camshaft timing chain and the exhaust camshaft sprocket of

the RH bank as a single unit.

Fig. 27: Identifying SST Onto Camshafts (RH)
Courtesy of MAZDA MOTORS CORP.

VARIABLE VALVE TIMING ACTUATOR COMPONENT INSTALLATION NOTE

1. Align the alignment marks on the camshaft timing chain and both intake and exhaust side camshaft

NOTE:

The camshaft sprocket is integrated with the variable valve timing
actuator and cannot be disassembled.



2008 Mazda CX-9 Grand Touring

2008 ENGINE Mechanical (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:01:57 AM

Page 21

© 2005 Mitchell Repair Information Company, LLC.

sprockets of both banks.

RH

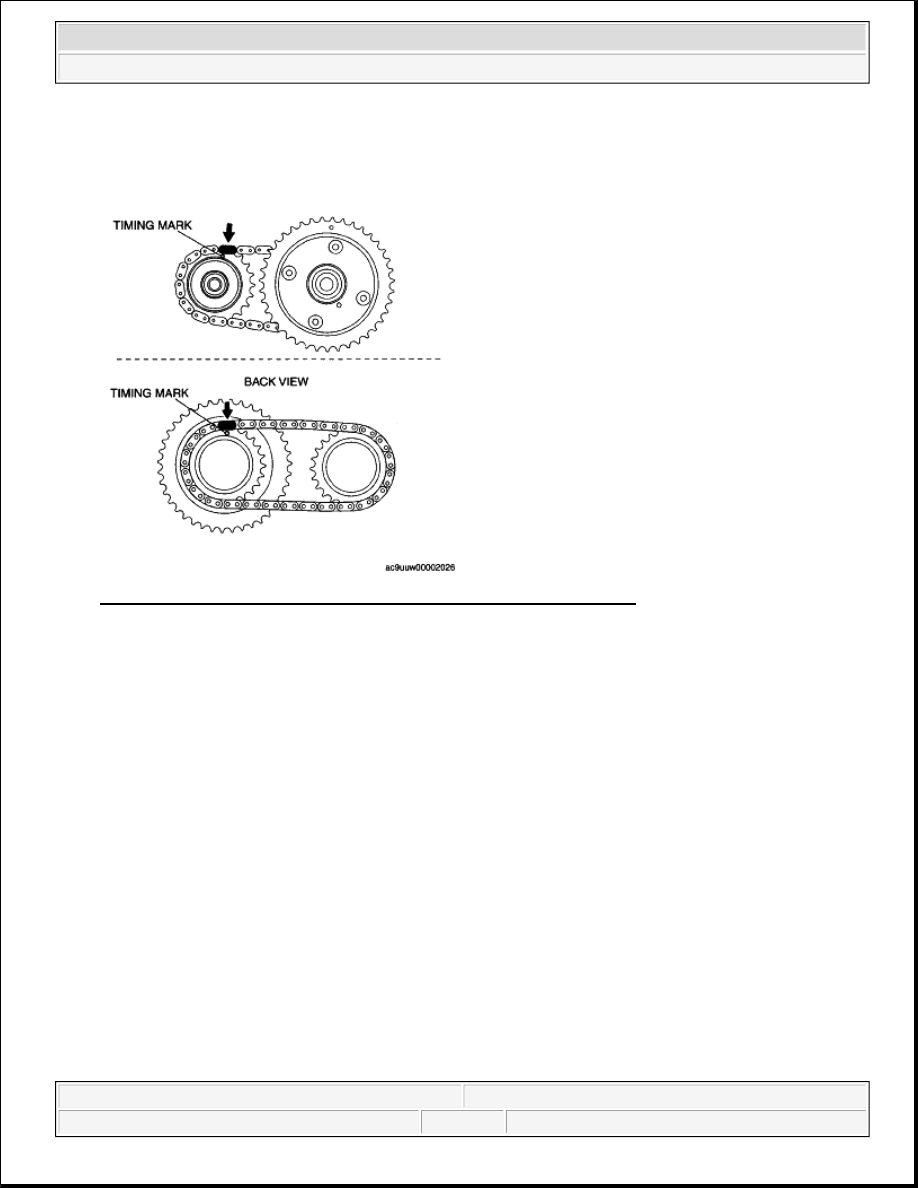

Fig. 28: Locating Alignment Marks On Camshaft Timing Chain (RH)
Courtesy of MAZDA MOTORS CORP.

LH

2. Install the variable valve timing actuator, camshaft timing chain and the exhaust camshaft sprocket of the

RH bank as a single unit.



2008 Mazda CX-9 Grand Touring

2008 ENGINE Mechanical (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:01:57 AM

Page 22

© 2005 Mitchell Repair Information Company, LLC.
