Mazda CX-9 Grand Touring. Manual - part 355





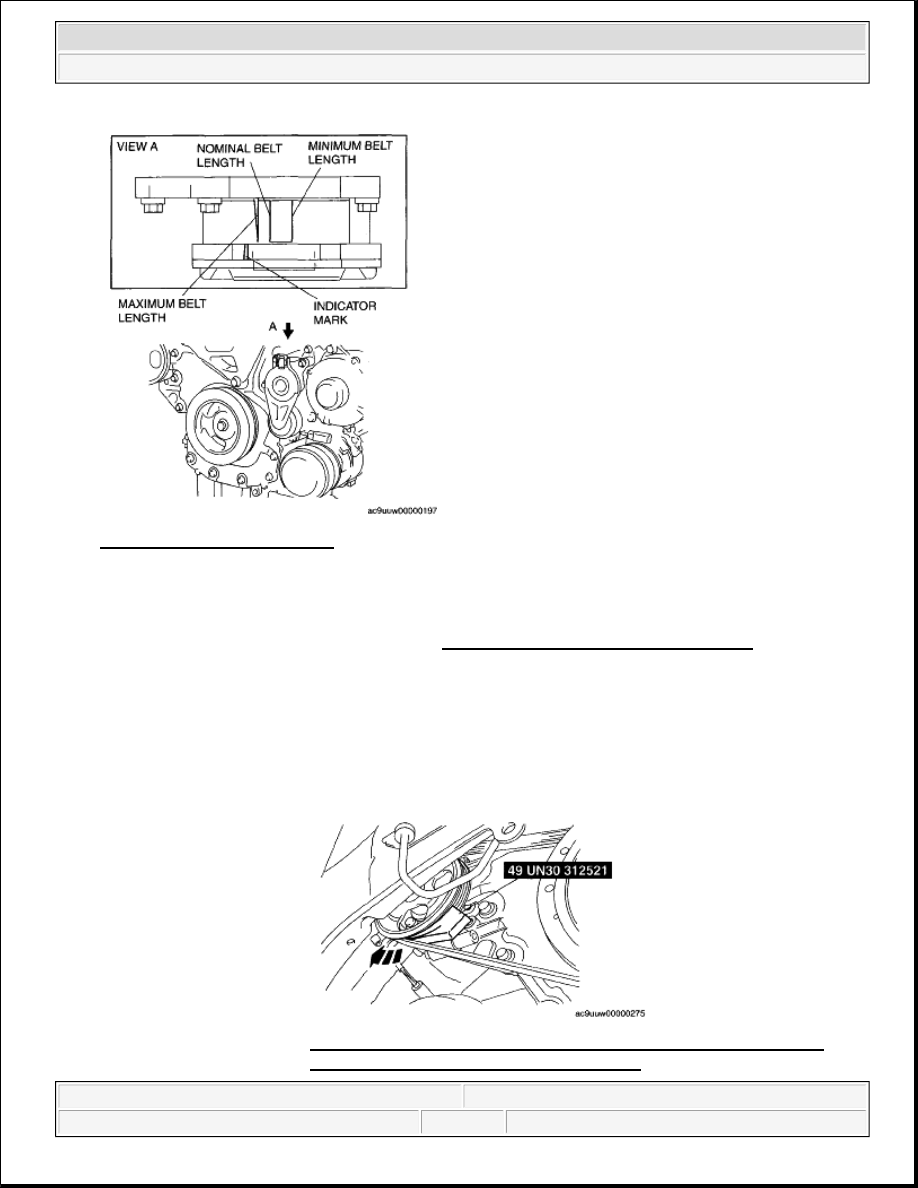

Fig. 5: Identifying Belt Length
Courtesy of MAZDA MOTORS CORP.

POWER STEERING OIL PUMP DRIVE BELT

1. Remove the generator and A/C drive belt. (See GENERATOR AND A/C DRIVE BELT.)

2. Remove the power steering oil pump drive belt.

1. Install the SST between the power steering oil pump drive belt and the power steering oil pump

pulley.

NOTE:

Hold the SST by hand until it is lodges between the power
steering oil pump pulley and power steering oil pump drive belt.

Fig. 6: View Of SST Between Power Steering Oil Pump Drive
Belt & Power Steering Oil Pump Pulley



2008 Mazda CX-9 Grand Touring

2008 ENGINE Mechanical (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:01:56 AM

Page 7

© 2005 Mitchell Repair Information Company, LLC.

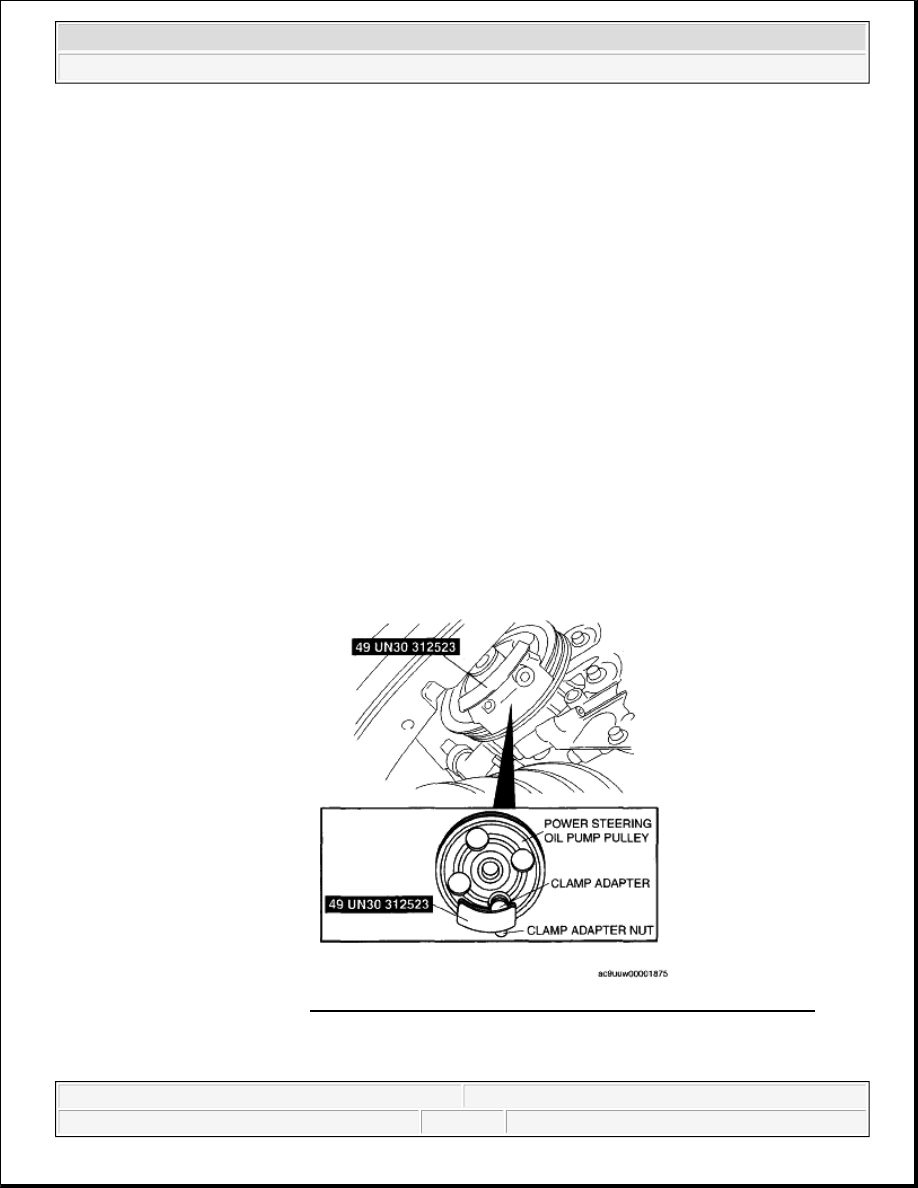

2. Turn the crankshaft clockwise to remove the power steering oil pump drive belt.

3. Install the power steering oil pump drive belt.

1. Install the SST according to the following steps.

1. Loosen the clamp adapter nut of the SST.

2. Position the SST on the power steering oil pump pulley with the clamp adapter in one of the

holes of the pulley.

3. Tighten the clamp adapter nut by hand.

2. Position the power steering oil pump drive belt around the SST and the power steering oil pump

Courtesy of MAZDA MOTORS CORP.

NOTE:

If there is power steering oil pump drive belt damage and
cracks, replace the power steering oil pump drive belt.

NOTE:

There is no need to remove the clamp adapter nut
completely when positioning the SST on the power
steering oil pump pulley.

NOTE:

Hand tightening of the clamp adapter nut is sufficient.

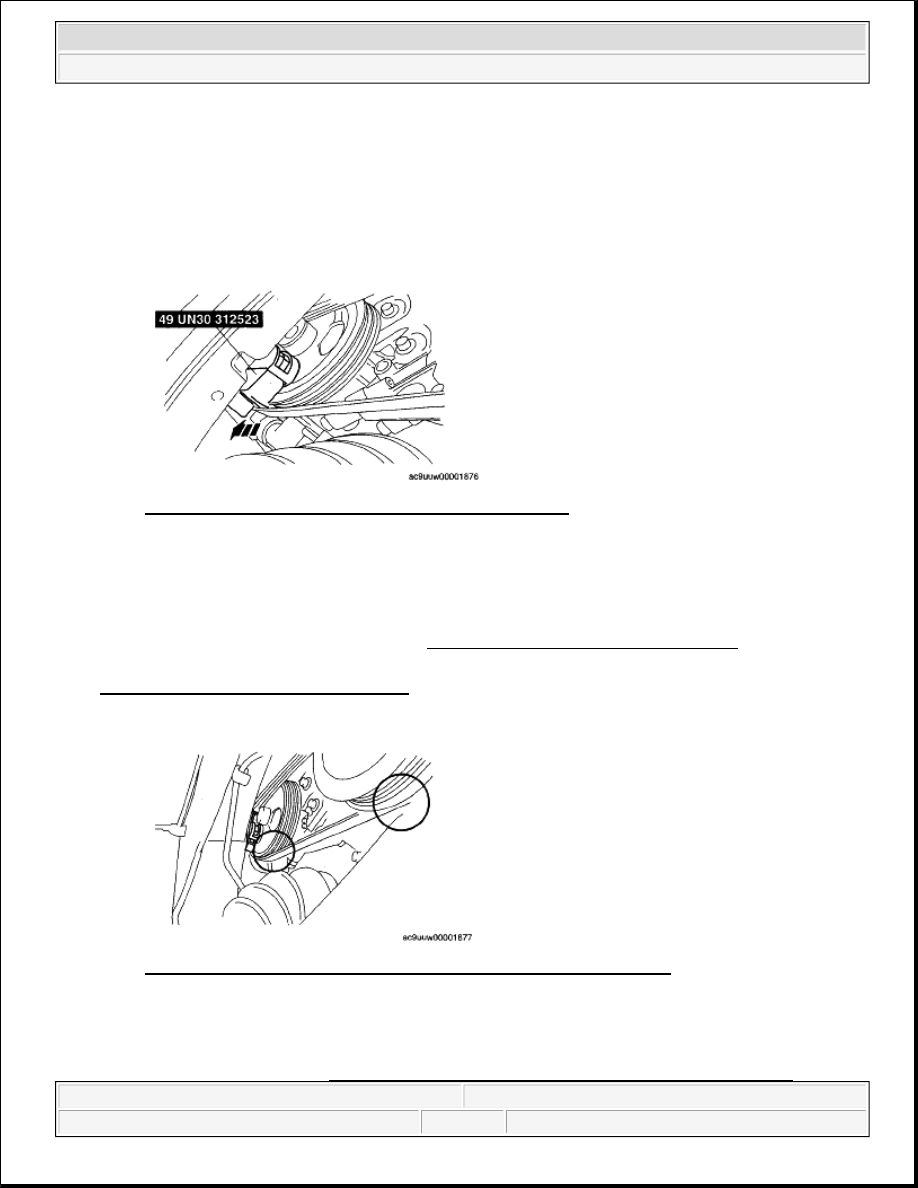

Fig. 7: Positioning SST On Power Steering Oil Pump Pulley
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 ENGINE Mechanical (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:01:56 AM

Page 8

© 2005 Mitchell Repair Information Company, LLC.

pulley.

3. Turn the crankshaft clockwise to install the power steering oil pump drive belt.

Fig. 8: Positioning Power Steering Oil Pump Drive Belt
Courtesy of MAZDA MOTORS CORP.

4. Install the generator and A/C drive belt. (See GENERATOR AND A/C DRIVE BELT.)

5. Verify that the drive belt auto tensioner indicator mark does not exceeds the maximum belt length. (See

DRIVE BELT INSPECTION [MZI-3.7].)

If it exceeds the maximum belt length, replace the generator and A/C drive belt.

Fig. 9: Identifying Power Steering Oil Pump Drive Belt With Pulleys
Courtesy of MAZDA MOTORS CORP.

DRIVE BELT AUTO TENSIONER INSPECTION [MZI-3.7]

1. Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [MZI-3.7].)

NOTE:

Hold the SST and power steering oil pump drive belt by hand
until the power steering oil pump drive belt is properly seated.

NOTE:

Verify that the power steering oil pump drive belt is firmly attached to
the pulleys.



2008 Mazda CX-9 Grand Touring

2008 ENGINE Mechanical (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:01:57 AM

Page 9

© 2005 Mitchell Repair Information Company, LLC.

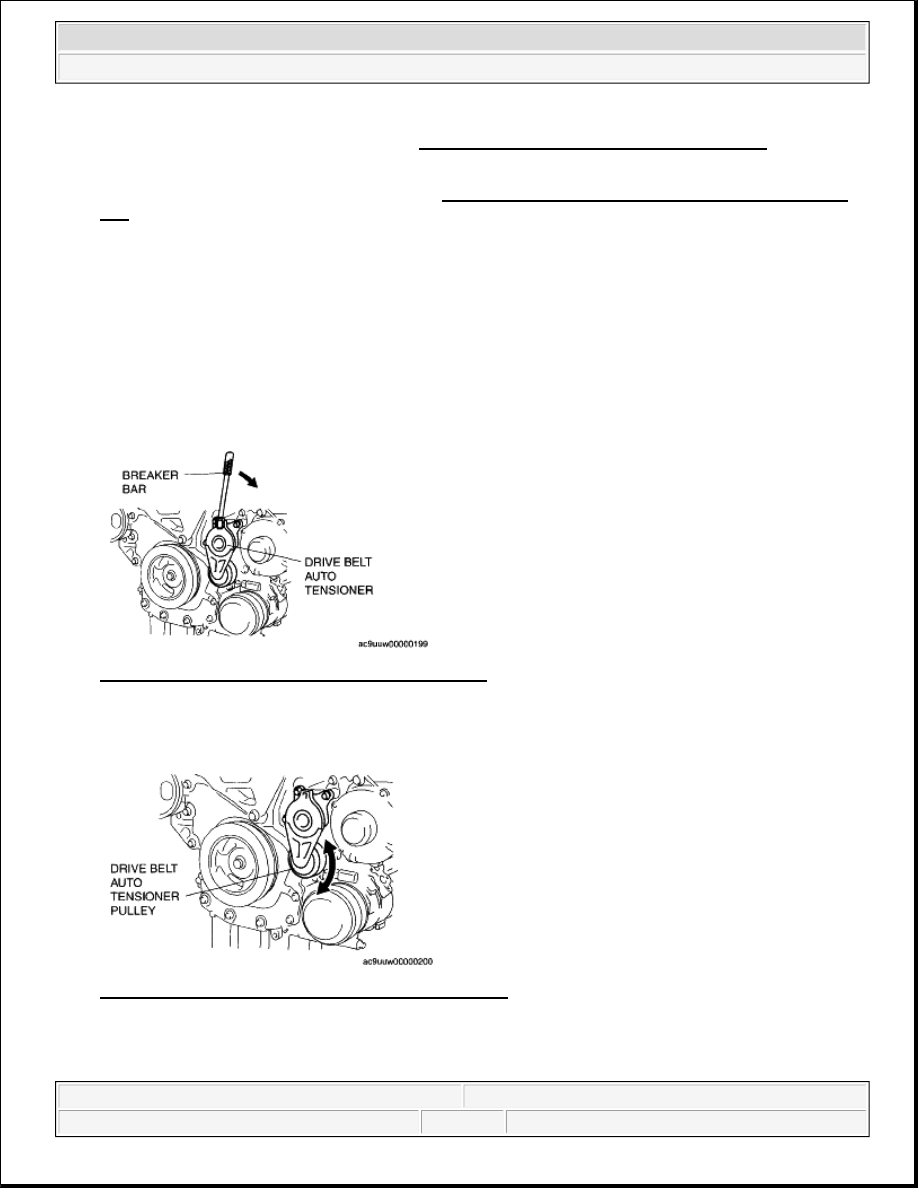

2. Remove the front wheel and tire (RH). (See GENERAL PROCEDURES (SUSPENSION) .)

3. Remove the splash shield (RH).

4. Remove the generator and A/C drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [MZI-

3.7].)

5. Verify that the drive belt auto tensioner moves smoothly in the operational direction.

Replace the drive belt auto tensioner if necessary.

Tightening torque: 8.9-12.1 N.m {91-123 kgf.cm, 79-107 in.lbf}

6. Turn the drive belt auto tensioner pulley by hand and verify that it rotates smoothly.

Replace the drive belt auto tensioner if necessary.

Tightening torque: 8.9-12.1 N.m {91-123 kgf.cm, 79-107 in.lbf}

Fig. 10: Turning Drive Belt Auto Tensioner Pulley
Courtesy of MAZDA MOTORS CORP.

7. Install in the reverse order of removal.

Fig. 11: Identifying Drive Belt Auto Tensioner Pulley
Courtesy of MAZDA MOTORS CORP.

ENGINE COVER REMOVAL/INSTALLATION [MZI-3.7]



2008 Mazda CX-9 Grand Touring

2008 ENGINE Mechanical (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:01:57 AM

Page 10

© 2005 Mitchell Repair Information Company, LLC.
