GND system inspection for variable resistance type 2



Confirm that terminal sensor #4 is at 0 V.



If it is at 0 V , inspect the sensor.



If necessary, replace the sensor.



If not at 0 V , inspect for the following:



Open circuit in wiring harness



Female terminal opening is loose.



Coupler (pin holder) damage



Pin discoloration (blackness)



Harness/pin crimp is loose or disconnected.

Input signal system inspection for variable resistance type 2

1. When an irregular signal is detected, measure the #1 PCM terminal voltage.



If the #1 terminal voltage and the M-MDS monitor voltage are the same, proceed to the next step.



If there is a difference of 0.5 V or more , inspect for the following points concerning the PCM
connector:



Female terminal opening is loose.



Coupler (pin holder) damage



Pin discoloration (blackness)



Harness/pin crimp is loose or disconnected.

2. Measure the #2 sensor terminal voltage.



If there is a 0.5 V or more difference between the sensor and the M-MDS voltages, inspect the
wiring harness for open or short circuits.



If the sensor and the M-MDS voltages are the same, inspect the following points concerning the
sensor connector:



Female terminal opening is loose.



Coupler (pin holder) damage



Pin discoloration (blackness)



Harness/pin crimp is loose or disconnected.



If there are no problems, proceed to next investigation below.

Electrical supply system inspection for variable resistance type 2



Confirm that the sensor #3 terminal is B+.



If the measured voltage on the #3 terminal is B+ , inspect the following points on the sensor
connector.



If there is no problem, inspect for the following:



Female terminal opening is loose.



Coupler (pin holder) damage



2008 Mazda CX-9 Grand Touring

2008 ENGINE Symptom Troubleshooting (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:10:06 AM

Page 102

© 2005 Mitchell Repair Information Company, LLC.



Pin discoloration (blackness)



If the #3 terminal measures other than B+ , inspect the following:



Open or short circuit in wiring harness



Harness/pin crimp is loose or disconnected.

Thermistor type (IAT sensor & CHT sensor)

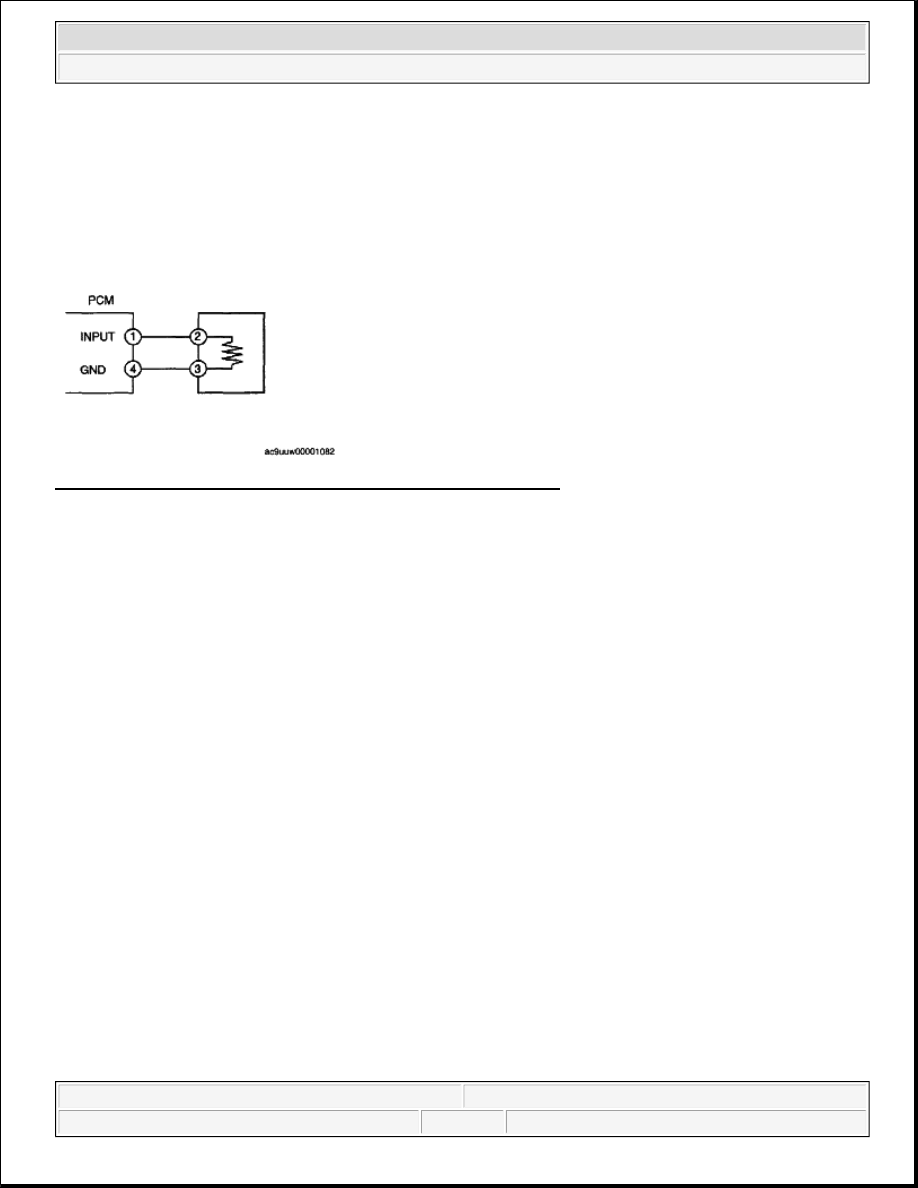

Fig. 15: Thermistor Resistance Type (IAT Sensor & CHT Sensor)
