Mazda CX-9 Grand Touring. Manual - part 326

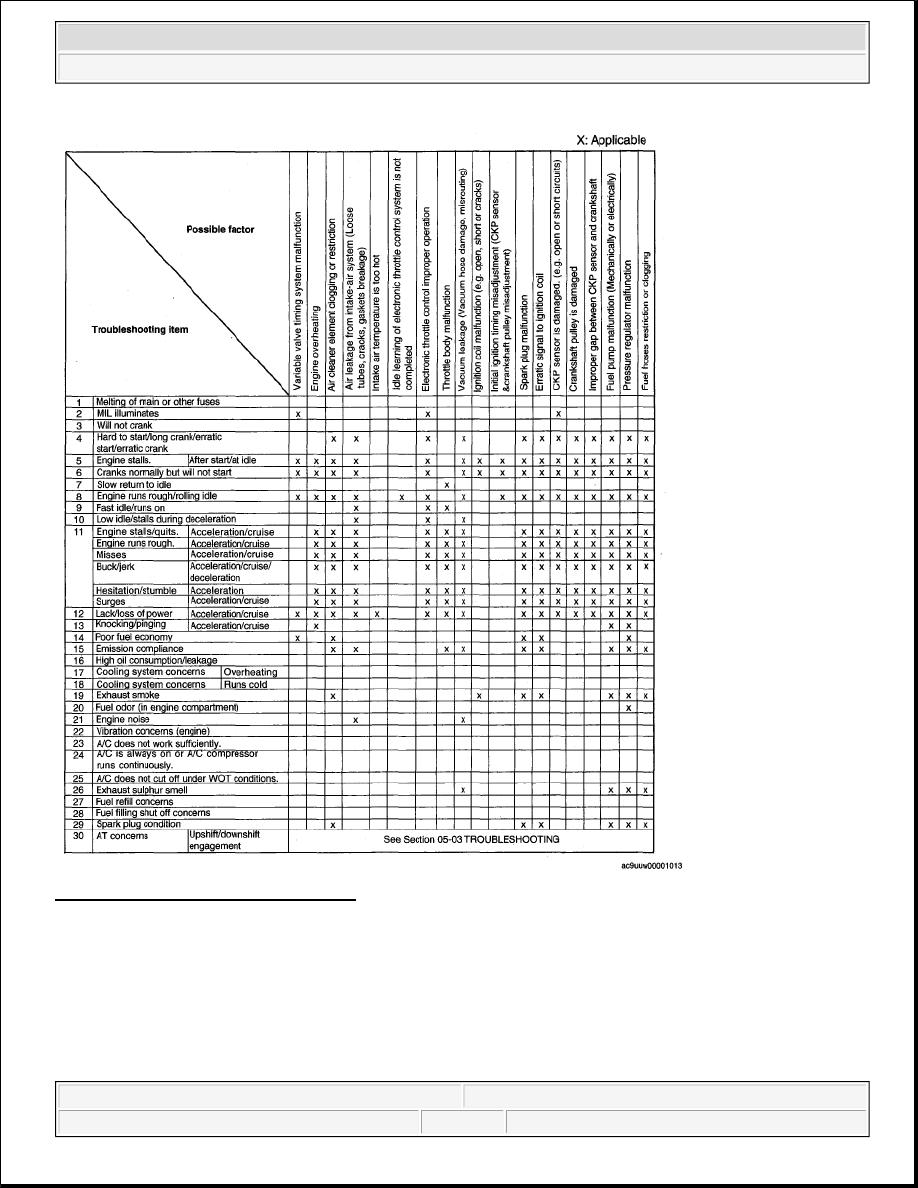

Fig. 6: Quick Diagnostic Chart (2 Of 4)
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 ENGINE Symptom Troubleshooting (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:10:04 AM

Page 10

© 2005 Mitchell Repair Information Company, LLC.

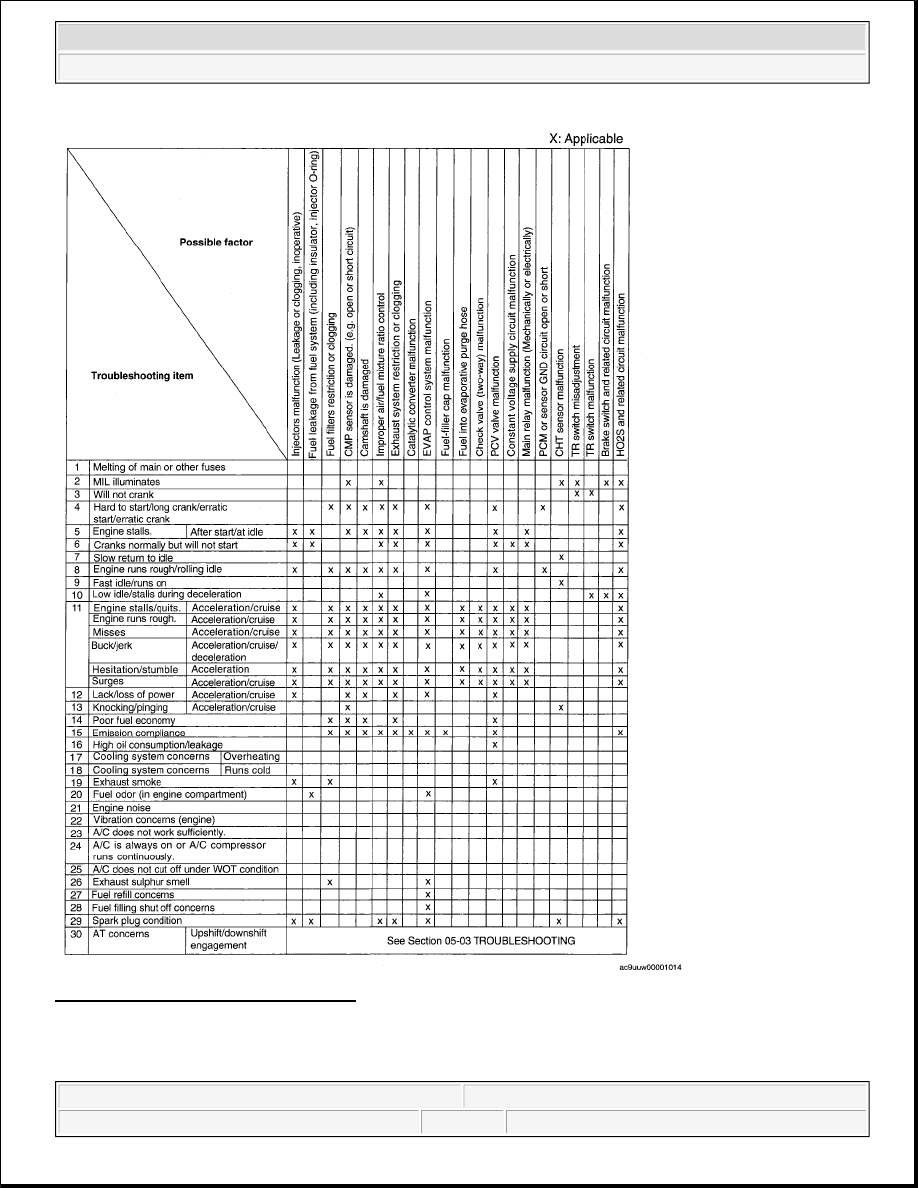

Fig. 7: Quick Diagnostic Chart (3 Of 4)
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 ENGINE Symptom Troubleshooting (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:10:04 AM

Page 11

© 2005 Mitchell Repair Information Company, LLC.

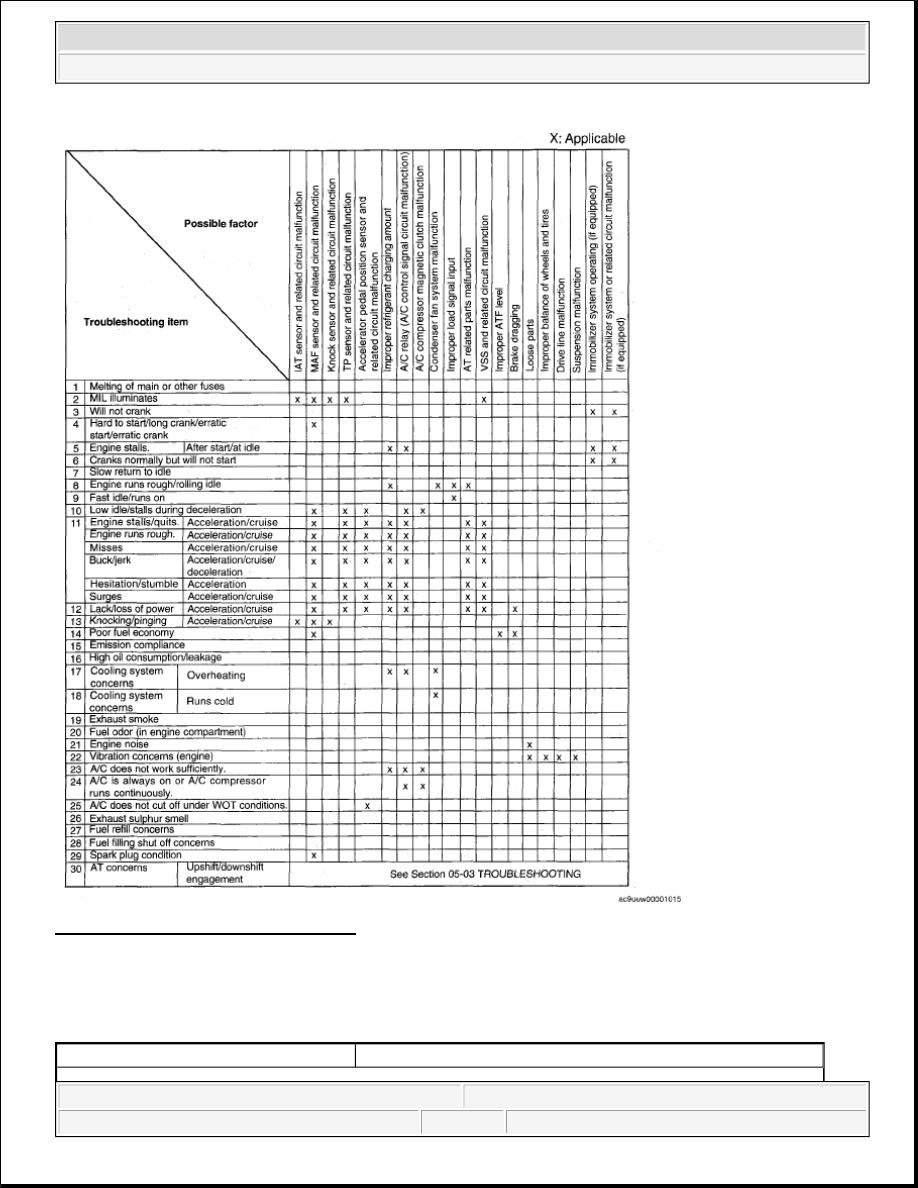

Fig. 8: Quick Diagnostic Chart (4 Of 4)
Courtesy of MAZDA MOTORS CORP.

NO.1 MELTING OF MAIN OR OTHER FUSES [MZI-3.7]

TROUBLESHOOTING HINTS - NO.1 MELTING OF MAIN OR OTHER FUSES

1

MELTING OF MAIN OR OTHER FUSES



2008 Mazda CX-9 Grand Touring

2008 ENGINE Symptom Troubleshooting (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:10:04 AM

Page 12

© 2005 Mitchell Repair Information Company, LLC.

TROUBLESHOOTING HINTS FOR FUSES

[TROUBLESHOOTING HINTS]
Inspect condition of fuse

Damaged fuse

Related wiring harness

MAIN

MAIN fuse

IGKEY2 fuse

Ignition switch

Generator

FUEL PUMP fuse

FAN1 fuse

Cooling fan relay (Single fan control module)

Fan control module (Single fan control module)

Cooling fan relay No.1 (Dual fan control module)

Fan control module No.1 (Dual fan control module)

FAN2 fuse

Cooling fan relay (Single fan control module)

Fan control module (Single fan control module)

Cooling fan relay No.2 (Dual fan control module)

Fan control module No.2 (Dual fan control module)



2008 Mazda CX-9 Grand Touring

2008 ENGINE Symptom Troubleshooting (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:10:04 AM

Page 13

© 2005 Mitchell Repair Information Company, LLC.
