Mazda CX-9 Grand Touring. Manual - part 308





DTC P2104, P2105, P2106, P2110 [MZI-3.7]

DTC P2104, P2105, P2106, P2110 (MZI-3.7) DETECTION CONDITIONS AND POSSIBLE CAUSES

DIAGNOSTIC PROCEDURE

DTC P2104, P2105, P2106, P2110 (MZI-3.7) DIAGNOSTIC PROCEDURE

Is the PENDING CODE for this DTC
present?

6

VERIFY TROUBLESHOOTING OF
DTC P2101 HAS BEEN COMPLETED


Verify that all disconnected
connectors reconnected.

Start the engine.

Clear DTC from PCM memory using
M-MDS.

Perform the "KOEO/KOER Self-
Test". (See KOEO/KOER SELF
TEST [MZI-3.7]
.)

Is same DTC present?

Yes

Replace the PCM, then go to the next step. (See
PCM REMOVAL/INSTALLATION [MZI-
3.7]
 .)

No

Go to the next step.

7

VERIFY AFTER REPAIR
PROCEDURE


Perform the "AFTER REPAIR
PROCEDURE". (See AFTER
REPAIR PROCEDURE [MZI-3.7]
.)

Are any DTCs present?

Yes

Go to the applicable DTC inspection. (See DTC
TABLE [MZI-3.7]
.)

No

Troubleshooting completed.

DTC P2104

P2104: Throttle actuator control system - forced idle

DTC P2105

P2105: Throttle actuator control system - forced engine shutdown

DTC P2110

P2110: Throttle actuator control system - forced limited RPM

DETECTION

CONDITION

The TAC system is in the failure mode effects management (FMEM) mode.

POSSIBLE CAUSE

This DTC is an informational DTC and may be set in combination with a
number of other DTCs which are causing the FMEM. Diagnose other DTCs
first.

STEP

INSPECTION

ACTION

1

VERIFY FREEZE FRAME DATA HAS
BEEN RECORDED


Has FREEZE FRAME DATA been
recorded?

Yes Go to the next step.

No

Record FREEZE FRAME DATA on the

repair order, then go to the next step.



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:42 AM

Page 365

© 2005 Mitchell Repair Information Company, LLC.

2

VERIFY RELATED REPAIR
INFORMATION AVAILABILITY


Verify related Service Bulletins and/or
on-line repair information availability.

Is any related Service Bulletins
available?

Yes

Perform repair or diagnosis according to the
available Service Bulletins.

If the vehicle is not repaired, go to the
next step.

No

Perform the PCM reprogramming procedure.

(See PCM CONFIGURATION [MZI-3.7] .)

Then go to the next step.

3

VERIFY RELATED PENDING CODE OR
STORED DTCs FOR ALL OF VEHICLE
MODULE


Turn the ignition switch off then to the
ON position (Engine off).

Verify related pending code or stored
DTCs.

Is other DTCs present?

Yes

Go to the appropriate DTC troubleshooting.
(See DTC TABLE [MZI-3.7].)

No

Go to the next step.

4

PERFORM VISUAL INSPECTION

Turn the ignition switch off.

Visually inspect the following for
obvious signs of damage:

Throttle body

PCM

Is a concern present?

Yes

Isolate the concern and repair if necessary.
Then go to Step 6.

No

Go to the next step.

5

INSPECT ACCELERATOR PEDAL
POSITION (APP) SENSOR


Perform the APP sensor inspection (See
ACCELERATOR PEDAL POSITION
(APP) SENSOR INSPECTION [MZI-
3.7]
 .)

Is a concern present?

Yes

Repair or replace if necessary. Then go to the
next step.

No

Go to the next step.

6

VERIFY TROUBLESHOOTING OF
MISFIRE DTC HAS BEEN COMPLETED


Verify that all disconnected connectors
are reconnected.

Turn the ignition switch to the ON
position (Engine off).

Clear the DTC from the PCM memory
using the M-MDS.

Perform the KOEO and KOER self test.

Yes

Replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION
[MZI-3.7]
 .)



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:42 AM

Page 366

© 2005 Mitchell Repair Information Company, LLC.

DTC P2107 [MZI-3.7]

DTC P2107 (MZI-3.7) DETECTION CONDITIONS AND POSSIBLE CAUSES

Retrieve DTCs using the M-MDS.

Is the PENDING CODE for this DTC
present?

No

Go to the next step.

7

VERIFY AFTER REPAIR PROCEDURE

Perform "AFTER REPAIR
PROCEDURE". (See AFTER REPAIR
PROCEDURE [MZI-3.7]
.)

Are any DTC present?

Yes

Go to the applicable DTC inspection. (See
DTC TABLE [MZI-3.7].)

No

Troubleshooting completed.

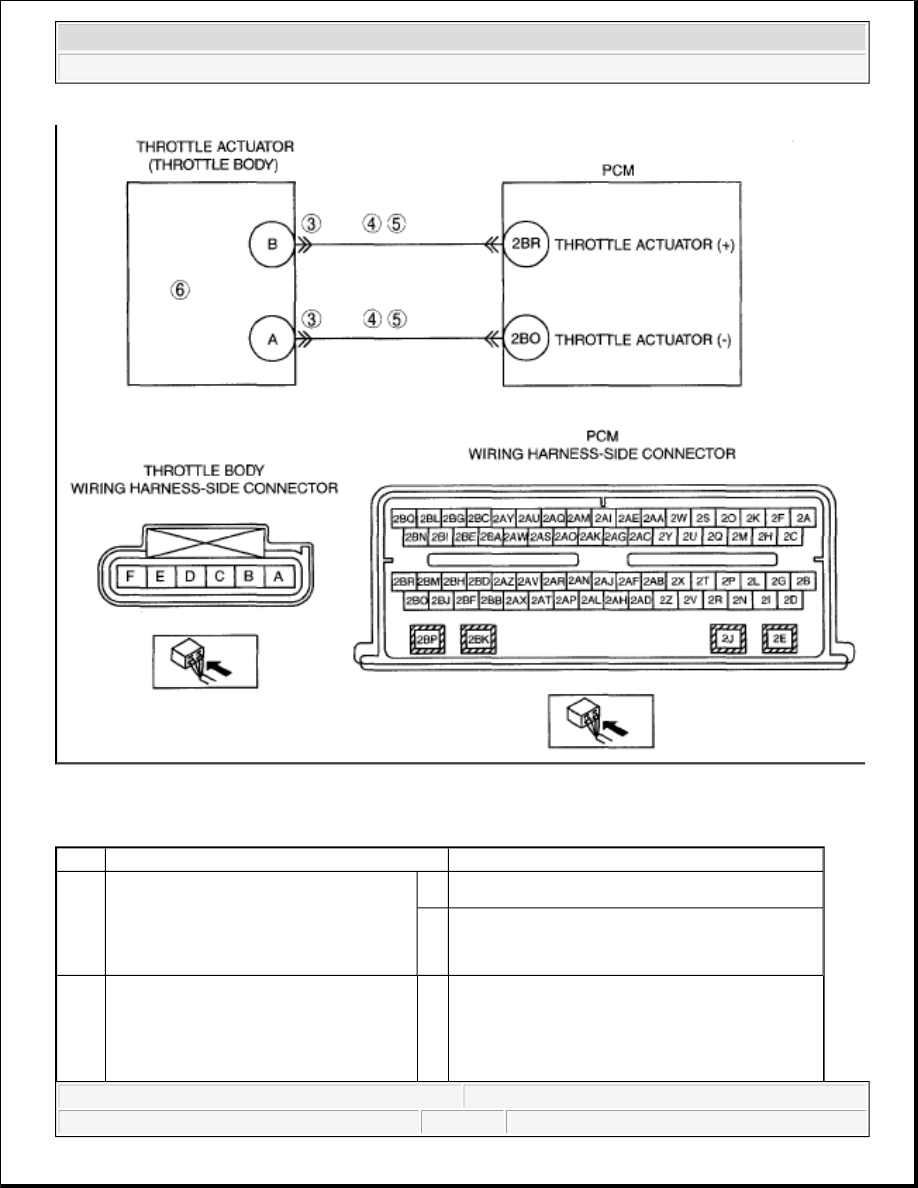

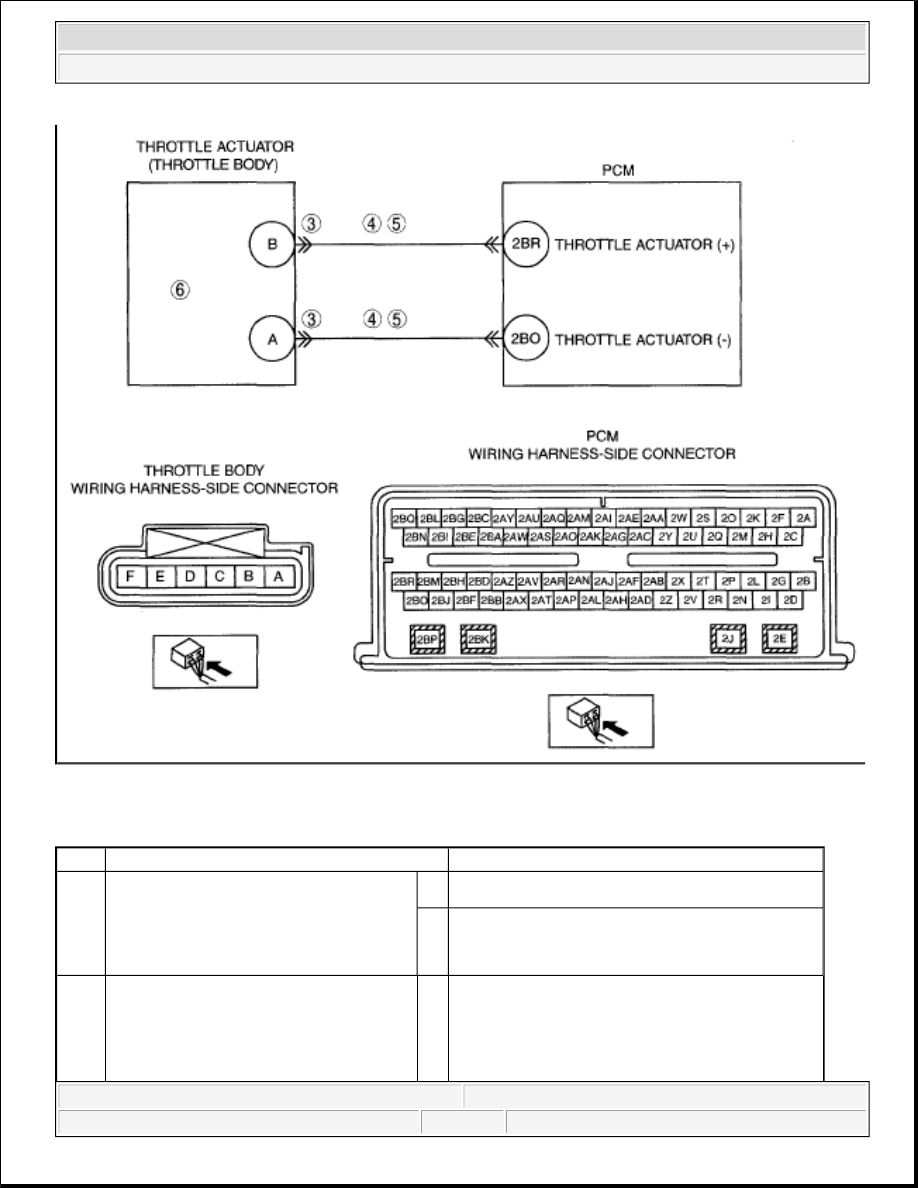

DTC P2107

Throttle actuator control module processor

DETECTION

CONDITION

The throttle actuator control area of the PCM failed the self-test.

POSSIBLE CAUSE

Throttle body malfunction

Throttle actuator control circuits are shorted each other

Short to power supply between throttle actuator terminal A and PCM
terminal 2BO

Short to power supply between throttle actuator terminal B and PCM
terminal 2BR

PCM malfunction



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:42 AM

Page 367

© 2005 Mitchell Repair Information Company, LLC.

DIAGNOSTIC PROCEDURE

DTC P2107 (MZI-3.7) DIAGNOSTIC PROCEDURE

STEP

INSPECTION

ACTION

1

VERIFY FREEZE FRAME DATA
HAS BEEN RECORDED


Has FREEZE FRAME DATA been
recorded?

Yes Go to the next step.

No

Record the FREEZE FRAME DATA on the repair

order, then go to the next step.

2

VERIFY RELATED REPAIR
INFORMATION AVAILABILITY


Verify related Service Bulletins
and/or on-line repair information

Yes

Perform repair or diagnosis according to the
available Service Bulletins.

If the vehicle is not repaired, go to the next



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:42 AM

Page 368

© 2005 Mitchell Repair Information Company, LLC.
