3

INSPECT PSP SWITCH CONNECTOR
FOR POOR CONNECTION



Turn the ignition switch off.



Disconnect the PCM connector.



Inspect for poor connection (such as
damaged/pulled-out pins, corrosion).



Is there any malfunction?

Yes

Repair or replace suspected part, then go to
Step 8.

No

Go to the next step.

4

INSPECT PSP SWITCH CIRCUIT FOR
SHORT TO GROUND



Turn the ignition switch off.



Inspect for continuity between PSP
switch terminal A (wiring harness-side)
and body ground.



Is there continuity?

Yes

Repair or replace suspected part, then go to
Step 8.

No

Go to the next step.

5

INSPECT PCM CONNECTOR FOR
POOR CONNECTION



Turn the ignition switch off.



Disconnect the PCM connector.



Inspect for poor connection (such as
damaged/pulled-out pins, corrosion).



Is there any malfunction?

Yes

Repair or replace suspected part, then go to
Step 8.

No

Go to the next step.

6

INSPECT PSP SWITCH CIRCUIT FOR
OPEN CIRCUIT



Inspect for continuity between PSP
switch terminal A (wiring harness-side)
and PCM terminal 21 (wiring harness-
side)



Is there continuity?

Yes Go to the next step.

No

Repair or replace suspected part, then go to

Step 8.

7

INSPECT FOR CORRECT PCM
OPERATION



Disconnect all the PCM connectors.



Visually inspect for:



Pushed out pins



Corrosion



Connect all the PCM connectors and
verify that they seat correctly.



Retrieve DTCs using the M-MDS.

Yes Go to the next step.

No

The system is correctly. Go to the next step.



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:41 AM

Page 353

© 2005 Mitchell Repair Information Company, LLC.

DTC P1674 [MZI-3.7]

DTC P1674 (MZI-3.7) DETECTION CONDITIONS AND POSSIBLE CAUSES

DIAGNOSTIC PROCEDURE

DTC P1674 (MZI-3.7) DIAGNOSTIC PROCEDURE



Is the PENDING CODE for this DTC
present?

8

VERIFY TROUBLESHOOTING OF DTC
P1650 HAS BEEN COMPLETED



Verify that all disconnected connectors
reconnected.



Start the engine.



Clear DTC from PCM memory using
M-MDS.



Perform the "KOEO/KOER Self-Test".
(See KOEO/KOER SELF TEST
[MZI-3.7].)



Is same DTC present?

Yes

Replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION
[MZI-3.7] .)

No

Go to the next step.

9

VERIFY AFTER REPAIR PROCEDURE



Perform "AFTER REPAIR
PROCEDURE". (See AFTER
REPAIR PROCEDURE [MZI-3.7].)



Are any DTCs present?

Yes

Go to the applicable DTC inspection. (See
DTC TABLE [MZI-3.7].)

No

Troubleshooting completed.

DTC P1674

Control module software corrupted

DETECTION

CONDITION



Indicates that an error occurred in the PCM. This DTC is set in
combination with P2105.

POSSIBLE CAUSE



Software incompatibility issue



PCM malfunction

STEP

INSPECTION

ACTION

1

VERIFY FREEZE FRAME DATA
HAS BEEN RECORDED



Has FREEZE FRAME DATA been
recorded?

Yes Go to the next step.

No

Record FREEZE FRAME DATA on the repair

order, then go to the next step.

VERIFY RELATED REPAIR
INFORMATION AVAILABILITY

Yes

Perform repair or diagnosis according to the
available Service Bulletins.



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:41 AM

Page 354

© 2005 Mitchell Repair Information Company, LLC.

DTC P1703 [MZI-3.7]

DTC P1703 (MZI-3.7) DETECTION CONDITIONS AND POSSIBLE CAUSES

2



Verify related Service Bulletins
and/or on-line repair information
availability.



Is any related Service Bulletins
available?



If the vehicle is not repaired, go to the next
step.

No

Perform the PCM reprogramming procedure. (See

PCM CONFIGURATION [MZI-3.7] .)Then go

to the next step.

3

VERIFY TROUBLESHOOTING OF
DTC P1674 HAS BEEN COMPLETED



Verify that all disconnected
connectors are reconnected.



Turn the ignition switch to the ON
position (Engine off).



Clear the DTC from the PCM
memory using the M-MDS.



Start the engine and perform the
KOEO and KOER self-test.



Retrieve DTCs using the M-MDS.



Is the PENDING CODE for this
DTC present?

Yes

Replace the PCM, then go to the next step. (See
PCM REMOVAL/INSTALLATION [MZI-
3.7] .)

No

Go to the next step.

4

VERIFY AFTER REPAIR
PROCEDURE



Perform the "AFTER REPAIR
PROCEDURE". (See AFTER
REPAIR PROCEDURE [MZI-
3.7].)



Are any DTC present?

Yes

Go to the applicable DTC inspection. (See DTC
TABLE [MZI-3.7].)

No

Troubleshooting completed.

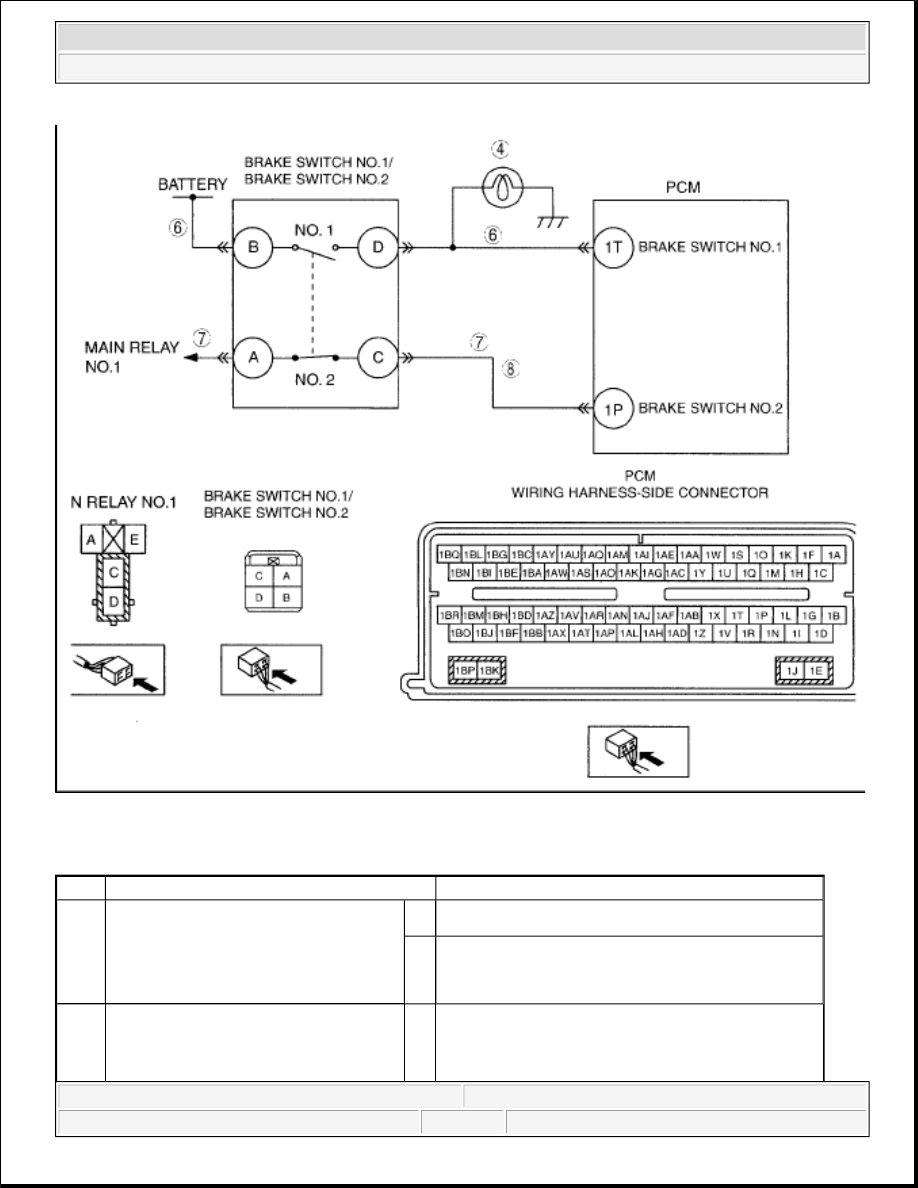

DTC P1703

Brake switch out of self-test range

DETECTION

CONDITION



Indicates that during the KOEO self-test, the brake pedal position signal was high,
or during the KOER self-test, the BPP signal did not cycle high and low.

POSSIBLE CAUSE



Connector or terminal malfunction



Brake switch No.1 malfunction



Brake switch No.1 misinstallation



Brake switch No.1 circuit malfunction



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:41 AM

Page 355

© 2005 Mitchell Repair Information Company, LLC.

DIAGNOSTIC PROCEDURE

DTC P1703 (MZI-3.7) DIAGNOSTIC PROCEDURE

STEP

INSPECTION

ACTION

1

VERIFY FREEZE FRAME DATA
HAS BEEN RECORDED



Has FREEZE FRAME DATA
been recorded?

Yes Go to next step.

No

Record FREEZE FRAME DATA on the repair

order, then go to next step.

VERIFY RELATED REPAIR
INFORMATION AVAILABILITY

Yes

Perform repair or diagnosis according to available
Service Bulletins.
