DTC P145E [MZI-3.7]

DTC P145E (MZI-3.7) DETECTION CONDITIONS AND POSSIBLE CAUSES

8



Connect all disconnected connectors
and hoses.



Perform the EVAP system leak test.
(See ENGINE CONTROL
SYSTEM OPERATION
INSPECTION [MZI-3.7] .)



Are the test results normal?

Yes Go to the next step.

No

Leakage still exists. Locate leak point and repair.

Repeat this step.

9

VERIFY TROUBLESHOOTING OF
DTC P1450 HAS BEEN COMPLETED



Verify that all disconnected
connectors are reconnected.



Turn the ignition switch to the ON
position (Engine off).



Clear the DTC from the PCM
memory using the M-MDS.



Start the engine and the perform
"EVAP system monitor drive cycle"



Retrieve DTCs using the M-MDS.



Is the PENDING CODE for this
DTC present?

Yes

Replace the PCM, then go to the next step. (See
PCM REMOVAL/INSTALLATION [MZI-
3.7] .)

No

Go to the next step.

10

VERIFY AFTER REPAIR
PROCEDURE



Perform "AFTER REPAIR
PROCEDURE".



(See AFTER REPAIR
PROCEDURE [MZI-3.7].)



Are any DTC present?

Yes

Go to the applicable DTC inspection. (See DTC
TABLE [MZI-3.7].)

No

Troubleshooting completed.

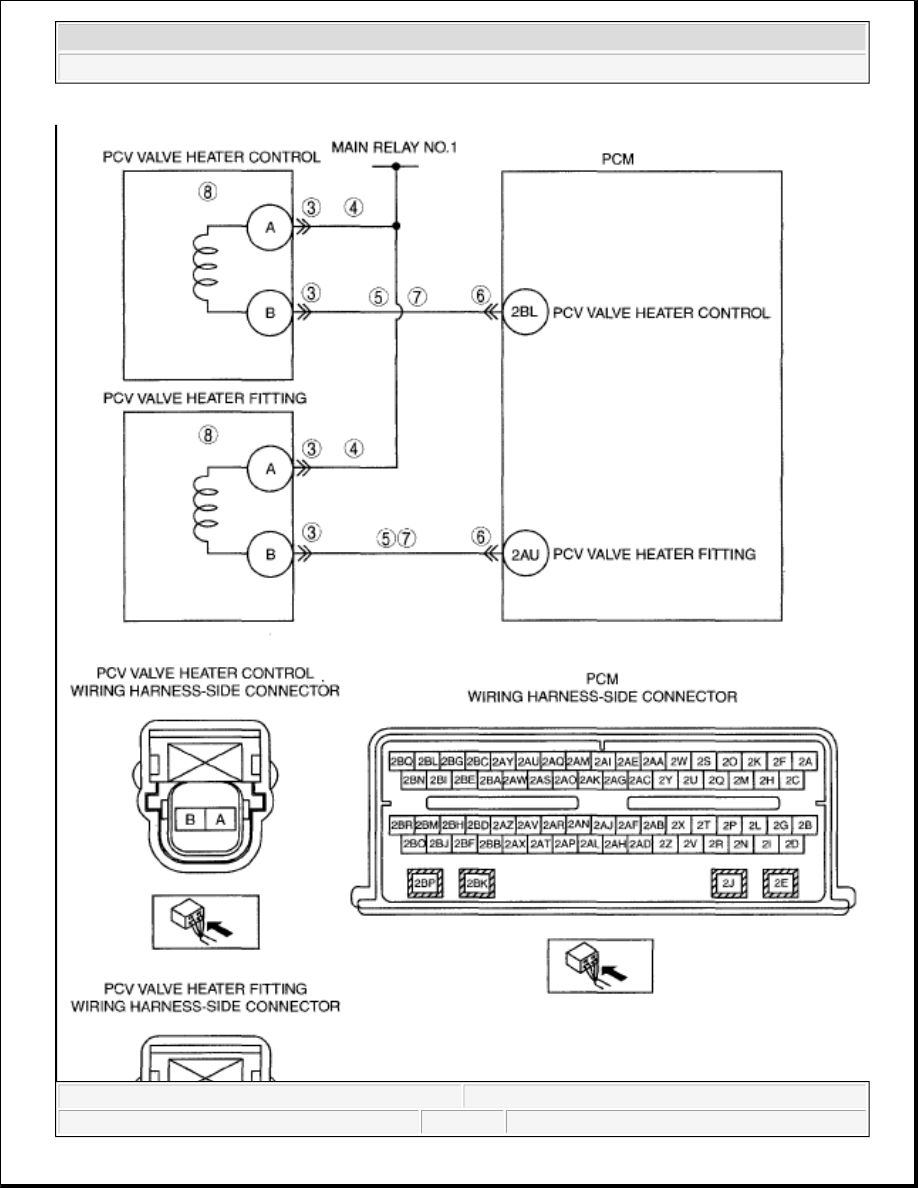

DTC P145E

PCV heater control circuit

DETECTION

CONDITION



This DTC sets when the PCM detects a PCV valve heater circuit malfunction.



Open circuit between PCV valve heater control terminal A and main relay
No.1



Open circuit between PCV valve heater fitting terminal A and main relay
No.1



Short to ground circuit between PCV valve heater control terminal B and
PCM terminal 2BL



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:41 AM

Page 337

© 2005 Mitchell Repair Information Company, LLC.

POSSIBLE CAUSE



Short to ground circuit between PCV valve heater fitting terminal B and PCM
terminal 2AU



Open circuit between PCV valve heater control terminal B and PCM terminal
2BL



Open circuit between PCV valve heater fitting B and PCM terminal 2AU



Connector or terminal malfunction



PCV valve heater control malfunction



PCV valve heater fitting malfunction



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:41 AM

Page 338

© 2005 Mitchell Repair Information Company, LLC.



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:41 AM

Page 339

© 2005 Mitchell Repair Information Company, LLC.

DIAGNOSTIC PROCEDURE

DTC P145E (MZI-3.7) DIAGNOSTIC PROCEDURE

STEP

INSPECTION

ACTION

1

VERIFY FREEZE FRAME DATA HAS
BEEN RECORDED



Has FREEZE FRAME DATA been
recorded?

Yes Go to the next step.

No

Record FREEZE FRAME DATA on the

repair order, then go to the next step.

2

VERIFY RELATED REPAIR
INFORMATION AVAILABILITY



Verify related Service Bulletins and/or
on-line repair information availability.



Is any related Service Bulletins available?

Yes

Perform repair or diagnosis according to the
available Service Bulletins.



If the vehicle is not repaired, go to the
next step.

No

Go to the next step.

3

INSPECT PCV VALVE HEATER
CONTROL AND PCV VALVE HEATER
FITTING CONNECTOR FOR POOR
CONNECTION



Turn the ignition switch off.



Disconnect PCV valve heater control and
PCV valve heater fitting connector.



Inspect for poor connection (such as
damaged/pulled-out pins, corrosion).



Are there any malfunction?

Yes

Repair or replace suspected part, then go to
Step 9.

No

Go to the next step.

4

INSPECT POWER SUPPLY CIRCUIT
FOR OPEN CIRCUIT



Turn the ignition switch to the ON
position (Engine off).



Inspect the voltage between the following
circuit:



PCV valve heater control terminal
A (wiring harness-side) and body
ground



PCV valve heater fitting terminal A
(wiring harness-side) and body
ground



Are there voltage B+?

Yes Go to the next step.

No

Repair or replace suspected part, then go to

Step 9.

INSPECT PCV VALVE HEATER
CONTROL AND PCV VALVE HEATER
FITTING CIRCUIT FOR SHORT TO
GROUND
