Mazda CX-9 Grand Touring. Manual - part 292



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:40 AM

Page 301

© 2005 Mitchell Repair Information Company, LLC.

DIAGNOSTIC PROCEDURE

DTC P0685 (MZI-3.7) DIAGNOSTIC PROCEDURE

STEP

INSPECTION

ACTION

1

VERIFY FREEZE FRAME DATA HAS
BEEN RECORDED



Has FREEZE FRAME DATA been
recorded?

Yes Go to the next step.

No

Record FREEZE FRAME DATA on the repair

order, then go to the next step.

2

VERIFY RELATED REPAIR
INFORMATION AVAILABILITY



Verify related Service Bulletins and/or
on-line repair information availability.



Is any related Service Bulletins
available?

Yes

Perform repair or diagnosis according to the
available Service Bulletins.



If the vehicle is not repaired, go to the
next step.

No

Go to the next step.

3

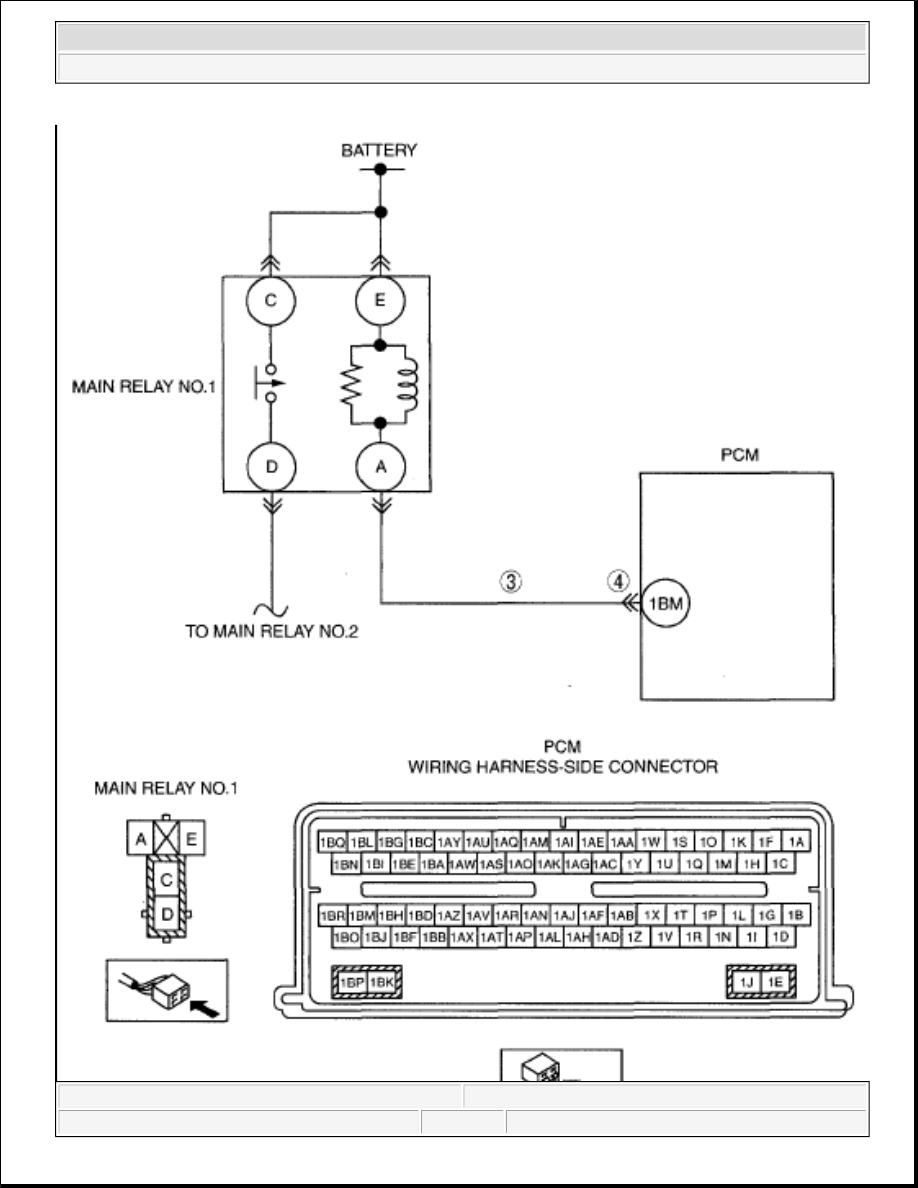

INSPECT MAIN RELAY NO.1
CONTROL CIRCUIT FOR SHORT TO
GROUND



Turn the ignition switch off.



Inspect for continuity between main
relay No.1 terminal A (wiring harness-
side) and body ground.



Is there continuity?

Yes

Repair or replace suspected part, then go to Step
5.

No

Go to the next step.

4

INSPECT FOR CORRECT PCM
OPERATION



Disconnect all the PCM connectors.



Visually inspect for:



Pushed out pins



Corrosion



Connect all the PCM connectors and
verify that they seat correctly.



Retrieve DTCs using the M-MDS.



Is the PENDING CODE for this DTC
present?

Yes Go to the next step.

No

The system is correctly. Go to the next step.

VERIFY TROUBLESHOOTING OF
DTC P0685 HAS BEEN COMPLETED



Verify that all disconnected connectors
reconnected.



Clear the DTC from the PCM memory

Yes

Replace the PCM, then go to the next step. (See
PCM REMOVAL/INSTALLATION [MZI-
3.7] .)



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:40 AM

Page 302

© 2005 Mitchell Repair Information Company, LLC.

DTC P0689 [MZI-3.7]

DTC P0689 (MZI-3.7) DETECTION CONDITIONS AND POSSIBLE CAUSES

5

using the M-MDS.



Perform the "KOEO or KOER self-
test" using the M-MDS. (See
KOEO/KOER SELF TEST [MZI-
3.7].)



Is the PENDING CODE for the DTC
present?

No

Go to the next step.

6

VERIFY AFTER REPAIR PROCEDURE




Perform the "AFTER REPAIR
PROCEDURE". (See AFTER
REPAIR PROCEDURE [MZI-3.7].)



Are any DTCs present?

Yes

Go to the applicable DTC inspection. (See DTC
TABLE [MZI-3.7].)

No

Troubleshooting completed.

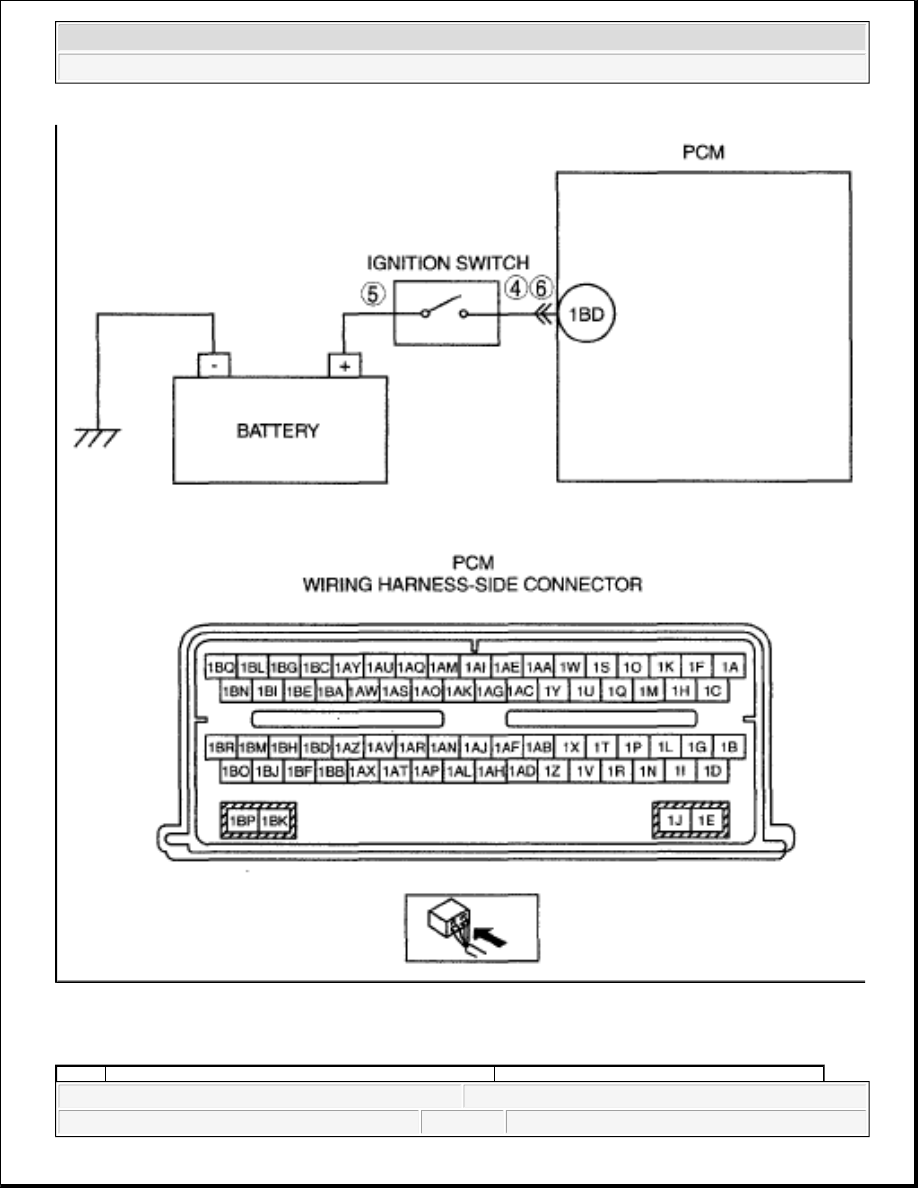

DTC P0689

ECM/PCM power relay sense circuit low

DETECTION

CONDITION



This DTC sets when the passive anti theft system (PATS) system indicates the key
is in ON or START position and the ignition switch position run circuit indicates
OFF, ACC, or LOCK position.

POSSIBLE

CAUSE



Ignition circuit fuse (MAIN, IG KEY 1, IG KEY 2)



Open circuit between battery positive terminal and PCM terminal 1 BD



Short to ground circuit between battery positive terminal and PCM terminal 1 BD



Ignition switch malfunction



PATS system malfunction



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:40 AM

Page 303

© 2005 Mitchell Repair Information Company, LLC.

DIAGNOSTIC PROCEDURE

DTC P0689 (MZI-3.7) DIAGNOSTIC PROCEDURE



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:40 AM

Page 304

© 2005 Mitchell Repair Information Company, LLC.
