CONDITION



The test fails when the PCM detects an intermittent signal from the CMP
sensor (LH).

POSSIBLE CAUSE



Connector or terminal malfunction



CMP sensor (LH) malfunction



Sensor shielding malfunction



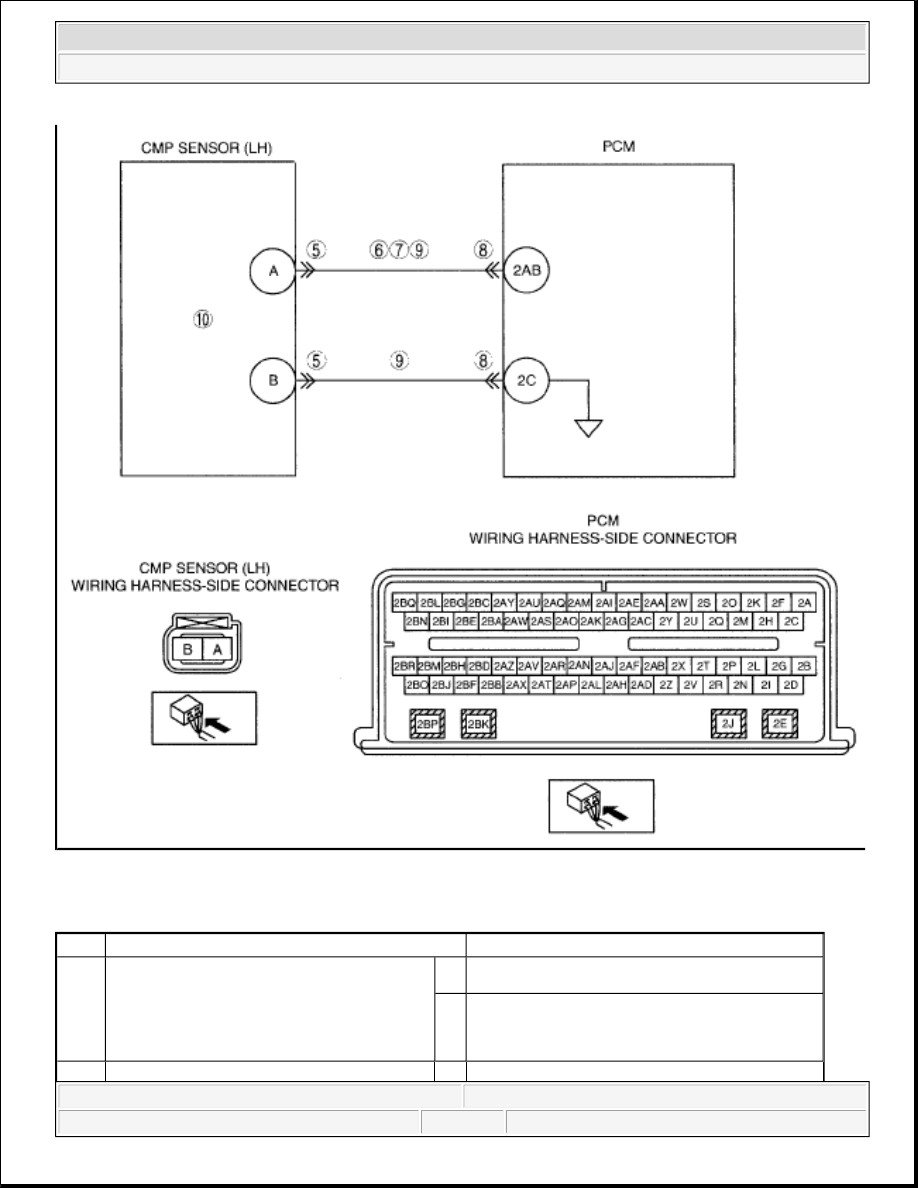

Short to ground circuit between CMP sensor (LH) terminal A and PCM
terminal 2AB



Short to power supply between CMP sensor (LH) terminal A and PCM
terminal 2AB



Open circuit between CMP sensor (LH) terminal A and PCM terminal 2AB



Open circuit between CMP sensor (LH) terminal B and PCM terminal 2C



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:37 AM

Page 189

© 2005 Mitchell Repair Information Company, LLC.

DIAGNOSTIC PROCEDURE

DTC P0349 (MZI-3.7) DIAGNOSTIC PROCEDURE

STEP

INSPECTION

ACTION

1

VERIFY FREEZE FRAME DATA HAS
BEEN RECORDED



Has FREEZE FRAME DATA been
recorded?

Yes Go to the next step.

No

Record FREEZE FRAME DATA on the repair

order, then go to the next step.

VERIFY RELATED REPAIR



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:37 AM

Page 190

© 2005 Mitchell Repair Information Company, LLC.

2

INFORMATION AVAILABILITY



Verify related Service Bulletins and/or
on-line repair information availability.



Is any related Service Bulletins
available?

Yes

Perform repair or diagnosis according to the
available Service Bulletins.



If the vehicle is not repaired, go to the
next step.

No

Go to the next step.

3

CLEAR AND ATTEMPT TO RETRIEVE
THE DTC





Clear the DTC from the PCM memory
using the M-MDS.



Turn the ignition switch to the ON
position (Engine running).



Increase engine speed to more than
1,500 rpm for 10 s. Repeat this 3
times.



Retrieve the continuous memory
DTCs.



The same DTC present?

NOTE:



If DTCs P0340, P0344, P0345 or
P0349 are present, ignition,
alternator noise, radio frequency
interference and CKP concerns
should be considered.

Yes Go to the next step.

No

Perform the "INTERMITTENT CONCERN

TROUBLESHOOTING". Then go to Step 11.

4

CHECK THE GENERATOR FOR
EXCESSIVE ELECTRICAL NOISE





Turn the ignition switch to the ON
position (Engine running).



Monitor the generator for an audible
electric noise.



Turn the ignition switch off.



Generator/regulator terminal B
disconnected.

NOTE:



If the generator/regulator is
electrically noisy, the noise
decreases when the terminal B is
disconnected.

Yes Go to the next step.

No



Inspect the charging system, then go to

Step 11.



Drive belt damaged and

misinstallation



Generator pulley or generator

misinstallation



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:37 AM

Page 191

© 2005 Mitchell Repair Information Company, LLC.



Turn the ignition switch to the ON
position (Engine running).



With the engine running, determine if
the generator is still noisy.



Does the noise remain constant when
the terminal B is disconnected?

5

INSPECT CMP SENSOR (LH)
CONNECTOR FOR POOR
CONNECTION



Turn the ignition switch off.



Disconnect the CMP sensor (LH)
connector.



Inspect for poor connection (such as
damaged/pulled-out pins, corrosion).



Are there any malfunction?

Yes

Repair or replace suspected part, then go to Step
11.

No

Go to the next step.

6

INSPECT CMP SENSOR SIGANAL
CIRCUIT FOR SHORT TO POWER
SUPPLY



Turn the ignition switch to the ON
position (Engine off).



Measure voltage between CMP sensor
(LH) terminal A (wiring harness-side)
and body ground.



Is the voltage B+?

Yes

Repair or replace suspected part, then go to Step
11.

No

Go to the next step.

7

INSPECT CMP SENSOR (LH) SIGNAL
CIRCUIT FOR SHORT TO GROUND



Turn the ignition switch off.



Check continuity between CMP sensor
(LH) terminal A and body ground.



Is there continuity?

Yes

Repair or replace suspected part, then go to Step
11.

No

Go to the next step.

8

INSPECT PCM CONNECTOR FOR
POOR CONNECTION



Turn the ignition switch off.



Disconnect PCM connector.



Check for poor connection (such as
damaged, pulled-out pins, and
corrosion).



Are there any malfunction?

Yes

Repair or replace suspected part, then go to Step
11.

No

Go to the next step.

INSPECT CMP SENSOR (LH) CIRCUIT
