Go to the next step.

3

VERIFY RELATED PENDING CODE OR STORED
DTC


Verify the related PENDING CODE or stored
DTCs.

Are other DTCs present?

Yes

Go to appropriate DTC inspection.
(See DTC TABLE [MZI-3.7].)

No

Go to the next step.

4

INSPECT FUEL PUMP RELAY CONNECTOR FOR
POOR CONNECTION


Turn the ignition switch off.

Disconnect the fuel pump relay.

Inspect for poor connection (such as
damaged/pulled-out pins, corrosion).

Are there malfunction?

Yes

Repair or replace suspected part,
then go to Step 9.

No

Go to the next step.

5

INSPECT PCM CONNECTOR FOR POOR
CONNECTION


Turn the ignition switch off.

Disconnect PCM connector.

Inspect for poor connection (such as
damaged/pulled-out pins, corrosion).

Are there malfunction?

Yes

Repair or replace suspected part,
then go to Step 9.

No

Go to the next step.

6

INSPECT FUEL PUMP RELAY POWER SUPPLY
CIRCUIT FOR OPEN CIRCUIT


Turn the ignition switch to the ON position (Engine
off).

Measure voltage between fuel pump relay
connector terminal C (wiring harness-side) and
body ground.

Is voltage B+?

Yes Go to the next step.

No

Repair or replace suspected part,

then go to Step 9.

7

INSPECT FUEL PUMP MONITOR CIRCUIT FOR
OPEN CIRCUIT


Turn the ignition switch off.

Inspect continuity between fuel pump relay
terminal D (wiring harness-side) and PCM terminal
1Q (wiring harness-side).

Is there continuity?

Yes Go to the next step.

No

Repair or replace suspected part,

then go to Step 9.

8

INSPECT FUEL PUMP RELAY

Inspect the fuel pump relay. (See RELAY

Yes

Replace the fuel pump relay, then
go to the next step.



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:36 AM

Page 145

© 2005 Mitchell Repair Information Company, LLC.

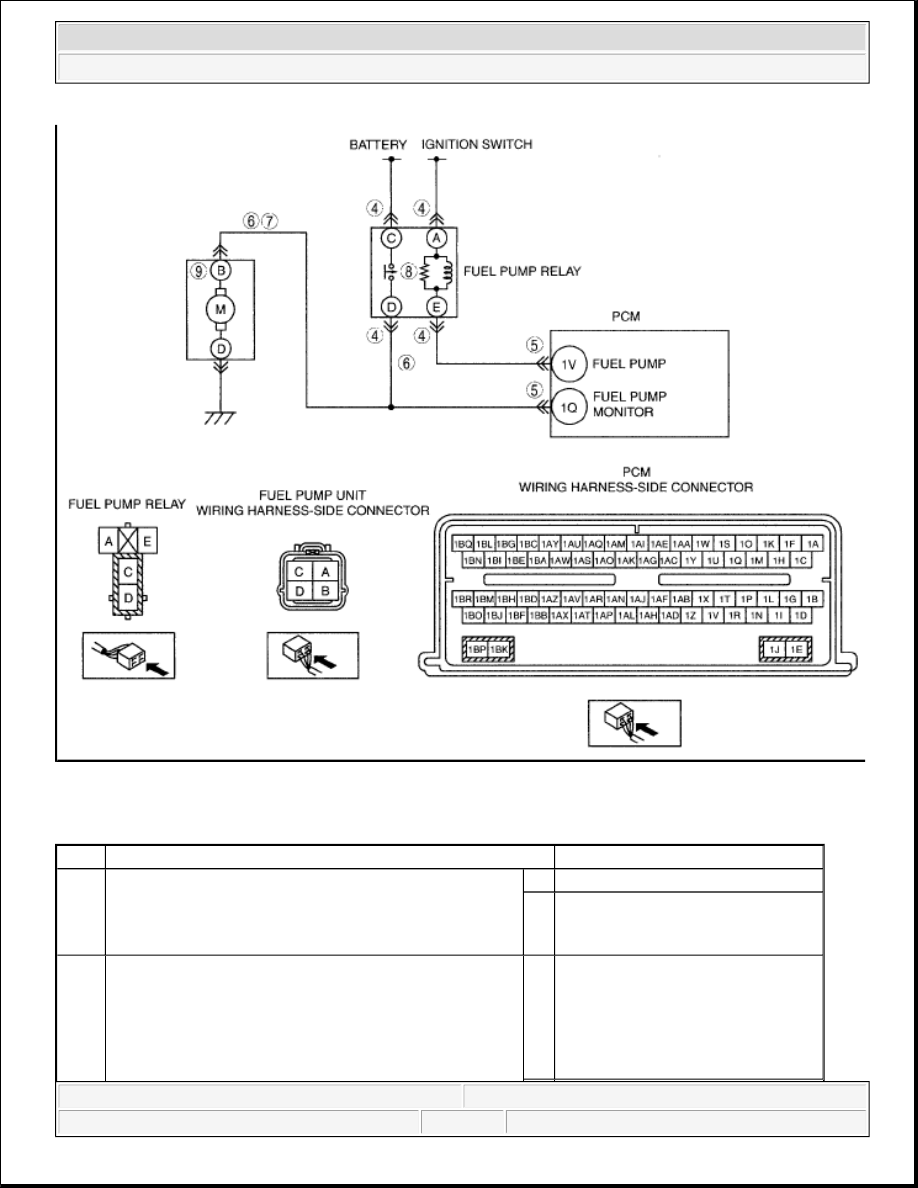

DTC P0232 [MZI-3.7]

DTC P0232 (MZI-3.7) DETECTION CONDITIONS AND POSSIBLE CAUSES

INSPECTION .)

Is there any malfunction?

No

Go to the next step.

9

VERIFY TROUBLESHOOTING OF DTC P0231
HAS BEEN COMPLETED


Verify that all disconnected connectors
reconnected.

Clear DTC from memory using M-MDS.

Start the engine.

Perform the "KOEO/KOER self-test" (See
KOEO/KOER SELF TEST [MZI-3.7].)

Is same DTC present?

Yes

Replace the PCM, then go to the
next step.

No

Go to the next step.

10

VERIFY AFTER REPAIR PROCEDURE

Perform the "AFTER REPAIR PROCEDURE".
(See AFTER REPAIR PROCEDURE [MZI-
3.7]
.)

Are any DTCs present?

Yes

Go to the applicable DTC
inspection. (See DTC TABLE
[MZI-3.7]
.)

No

Troubleshooting completed.
