Mazda CX-9 Grand Touring. Manual - part 184





GROUNDS

GROUNDS LOCATION

COMPONENT LOCATION GRAPHICS

C-35 (70 Pin)

Right side of engine compartment. See Fig. 10.

C-39 (Yellow, 4 Pin)

Behind right side of dash. See Fig. 17.

C-40 (6 Pin)

Under driver's seat. See Fig. 43.

Component

Location

G01 (Joint Connector)

Behind right kick panel. See Fig. 35.

G3

Left side of engine compartment. See Fig. 3.

G5

Behind right headlight assembly. See Fig. 11.

G7

Behind left headlight assembly. See Fig. 1.

G9

Behind right center of dash. See Fig. 18.

G10 (Joint Connector)

Behind left side of dash. See Fig. 26.

G11 (Joint Connector)

Behind left side of dash. See Fig. 33.

G12 (Joint Connector)

At right "C" pillar. See Fig. 50.

G13 (Joint Connector)

At left "C" pillar. See Fig. 61.

G14

At left "D" pillar. See Fig. 62.

G15

Center rear of roof. See Fig. 59.

NOTE:

Figures may show multiple component locations. Refer to appropriate table for
proper figure references.



2008 Mazda CX-9 Grand Touring

2008 MAZDA CX-9



Microsoft



Sunday, November 15, 2009 9:55:42 AM

Page 7

© 2005 Mitchell Repair Information Company, LLC.

Fig. 1: Engine Compartment
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 MAZDA CX-9



Microsoft



Sunday, November 15, 2009 9:55:42 AM

Page 8

© 2005 Mitchell Repair Information Company, LLC.

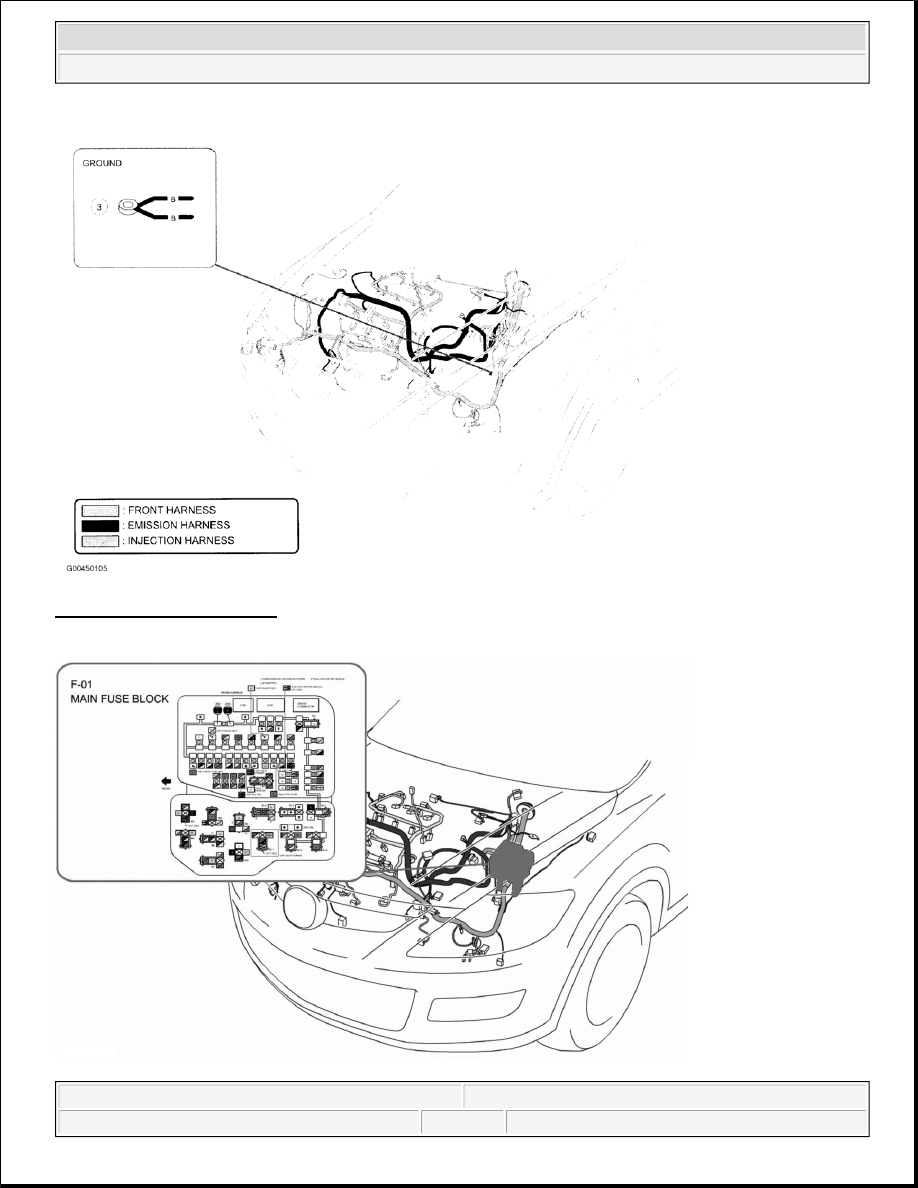

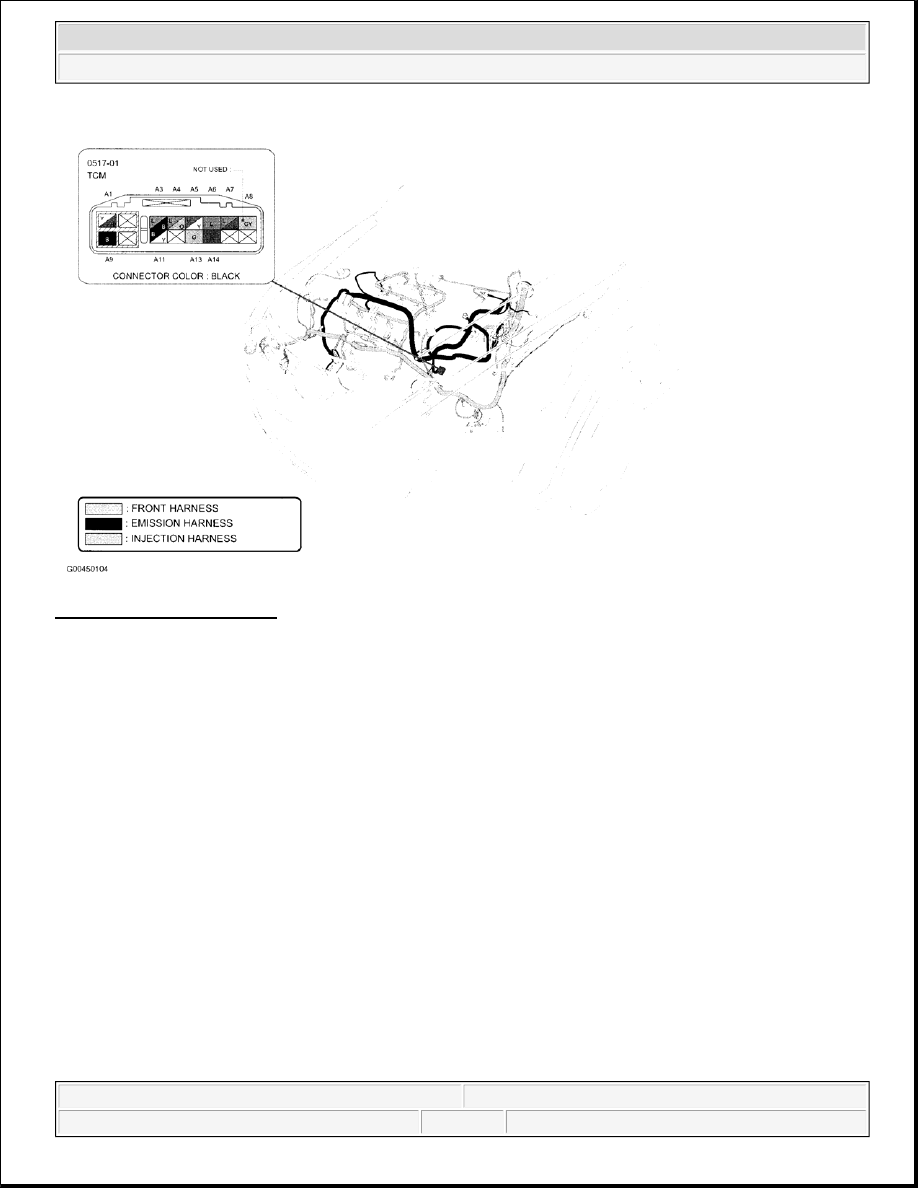

Fig. 2: Engine Compartment
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 MAZDA CX-9



Microsoft



Sunday, November 15, 2009 9:55:42 AM

Page 9

© 2005 Mitchell Repair Information Company, LLC.

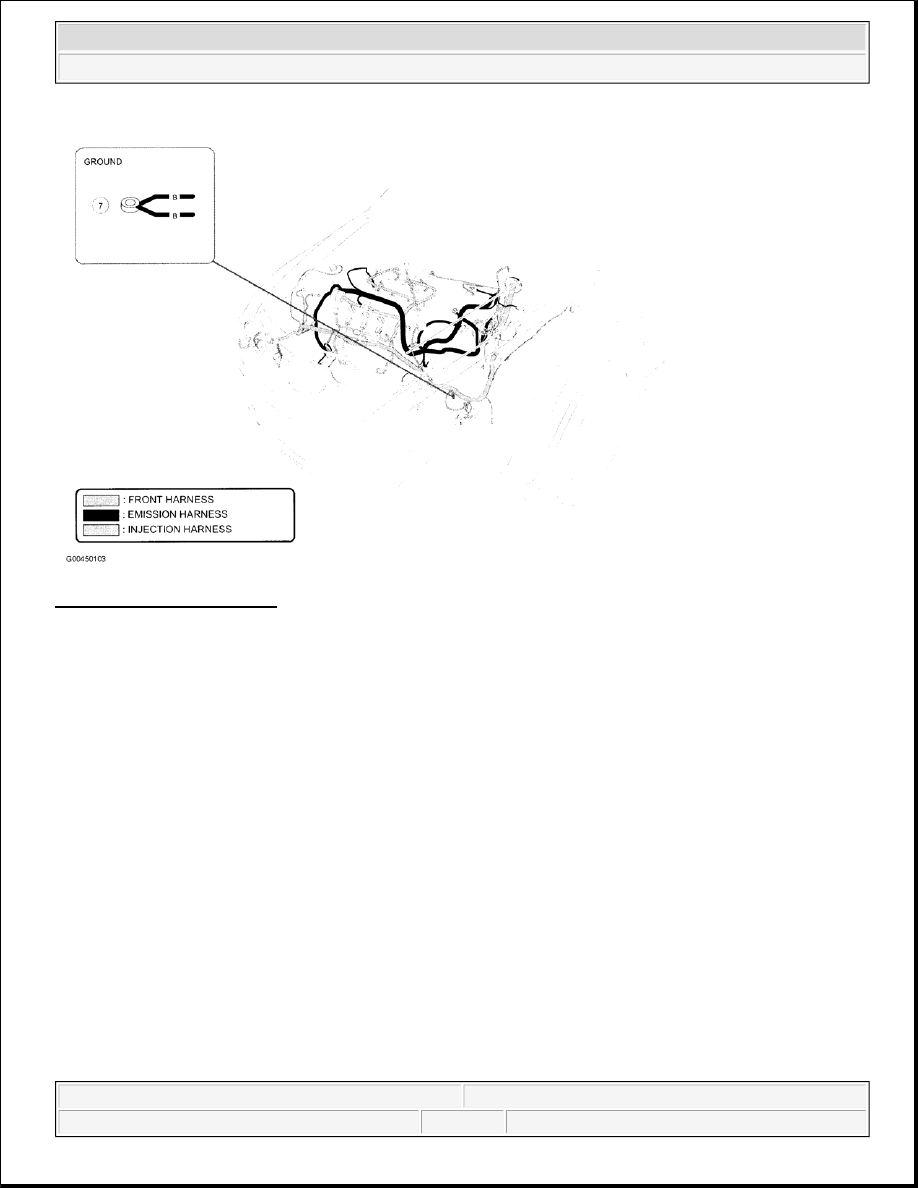

Fig. 3: Engine Compartment
Courtesy of MAZDA MOTORS CORP.

Fig. 4: Engine Compartment



2008 Mazda CX-9 Grand Touring

2008 MAZDA CX-9



Microsoft



Sunday, November 15, 2009 9:55:42 AM

Page 10

© 2005 Mitchell Repair Information Company, LLC.
