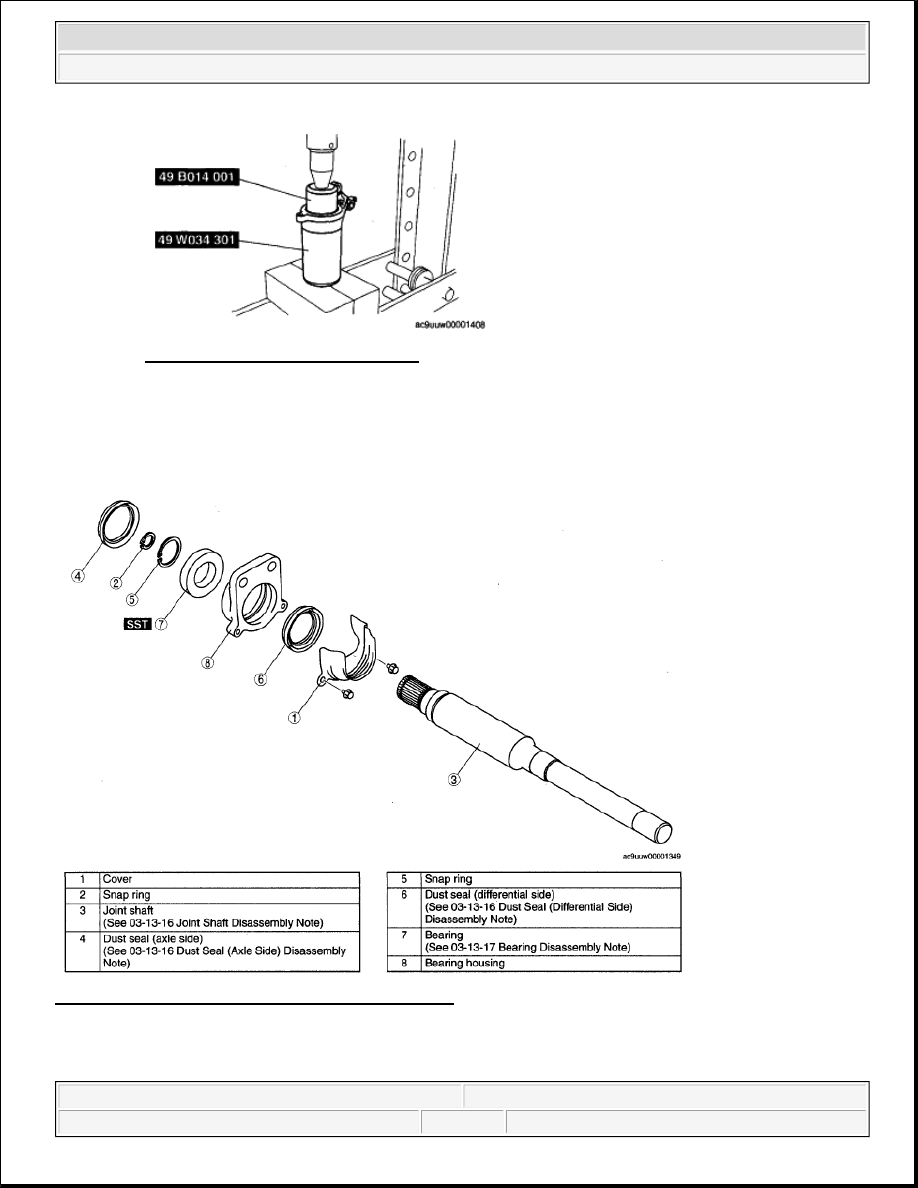

Fig. 33: Pressing Bearing With SST
Courtesy of MAZDA MOTORS CORP.

JOINT SHAFT DISASSEMBLY [AWD]

1. Disassemble in the order indicated in the table.

Fig. 34: Identifying Joint Shaft Components (AWD)
Courtesy of MAZDA MOTORS CORP.

JOINT SHAFT DISASSEMBLY NOTE



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLES Drive Shaft - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:50:58 AM

Page 22

© 2005 Mitchell Repair Information Company, LLC.

1. Remove the joint shaft using a press.

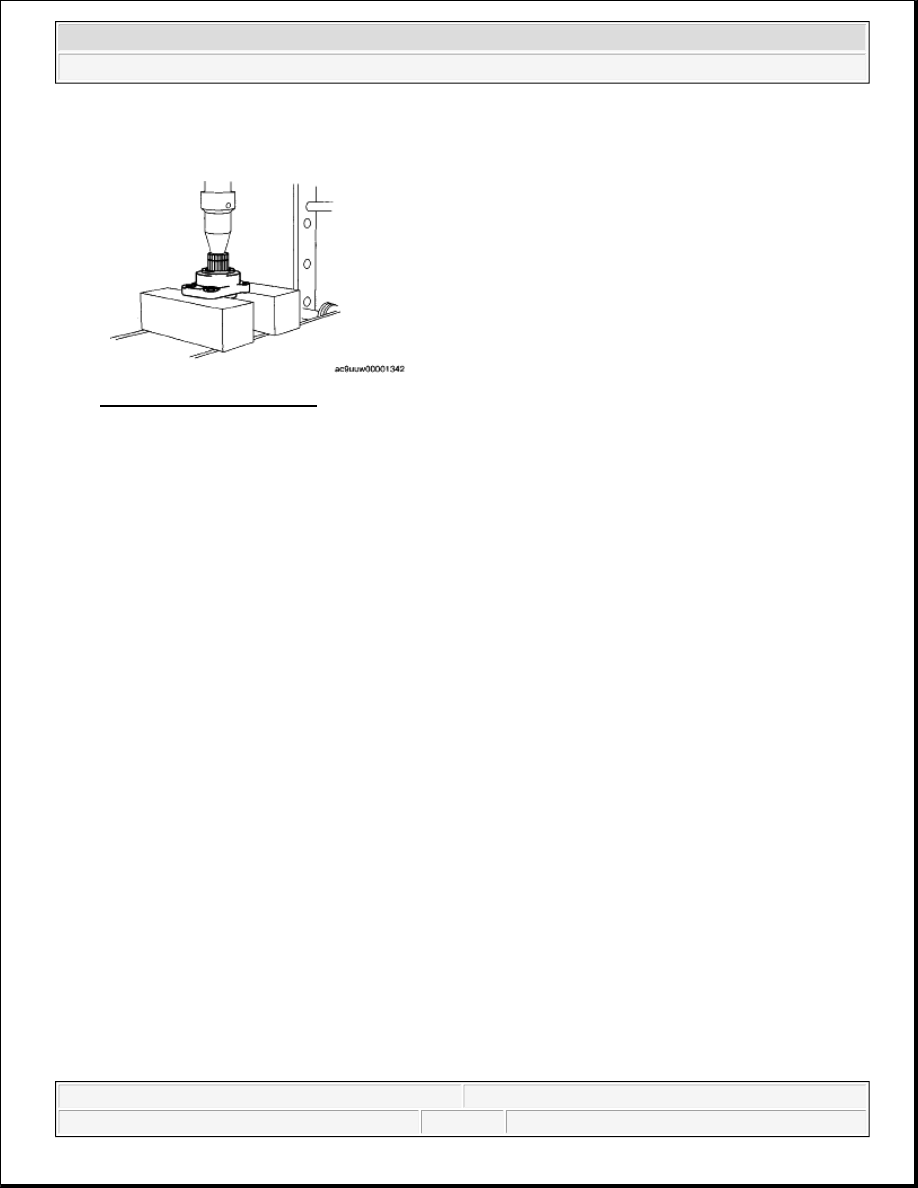

Fig. 35: Pressing Joint Shaft
Courtesy of MAZDA MOTORS CORP.

DUST SEAL (AXLE SIDE) DISASSEMBLY NOTE

1. Remove the dust seal using a flathead screwdriver.

DUST SEAL (DIFFERENTIAL SIDE) DISASSEMBLY NOTE

1. Remove the dust seal using a flathead screwdriver.

BEARING DISASSEMBLY NOTE

1. Remove the bearing using a press and the SSTs.

Substitution SST



49B014 001

Outer diameter: 47-55 mm {1.9-2.1 in}



49W034 301

Inner diameter: 67.5-72 mm {2.7-2.8 in}

Inner depth: 30 mm {1.2 in} or more

Plate thickness: 1 mm {0.04 in} or more



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLES Drive Shaft - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:50:58 AM

Page 23

© 2005 Mitchell Repair Information Company, LLC.

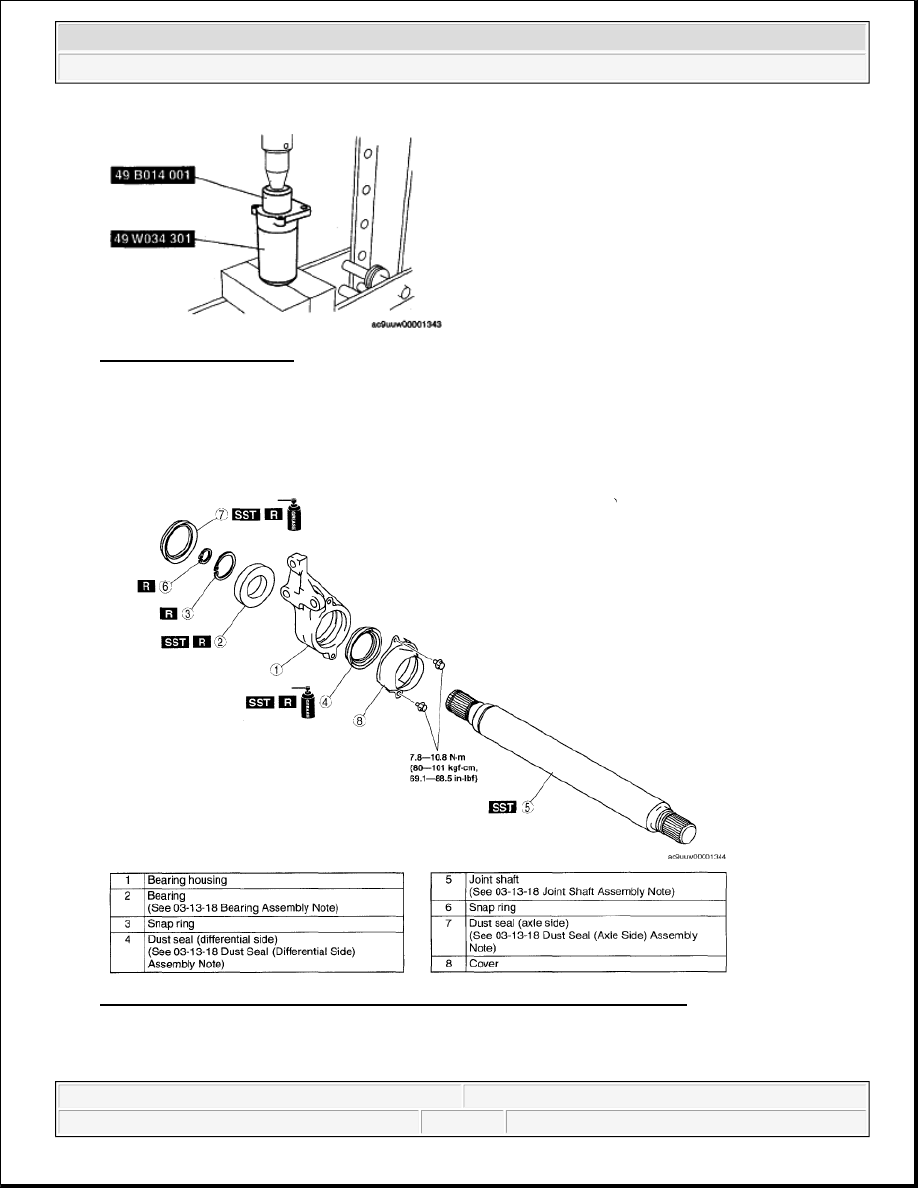

Fig. 36: Pressing Bearing
Courtesy of MAZDA MOTORS CORP.

JOINT SHAFT ASSEMBLY [2WD]

1. Assemble in the order indicated in the table.

Fig. 37: Identifying Joint Shaft Components (2WD) & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

BEARING ASSEMBLY NOTE



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLES Drive Shaft - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:50:58 AM

Page 24

© 2005 Mitchell Repair Information Company, LLC.

1. Install the new bearing using a press and the SST.

Substitution SST



49B025 004

Outer diameter: 61 mm {2.4 in} or more

Inner diameter: 46 mm {1.8 in} or more

Plate thickness: 1 mm {0.04 in} or more

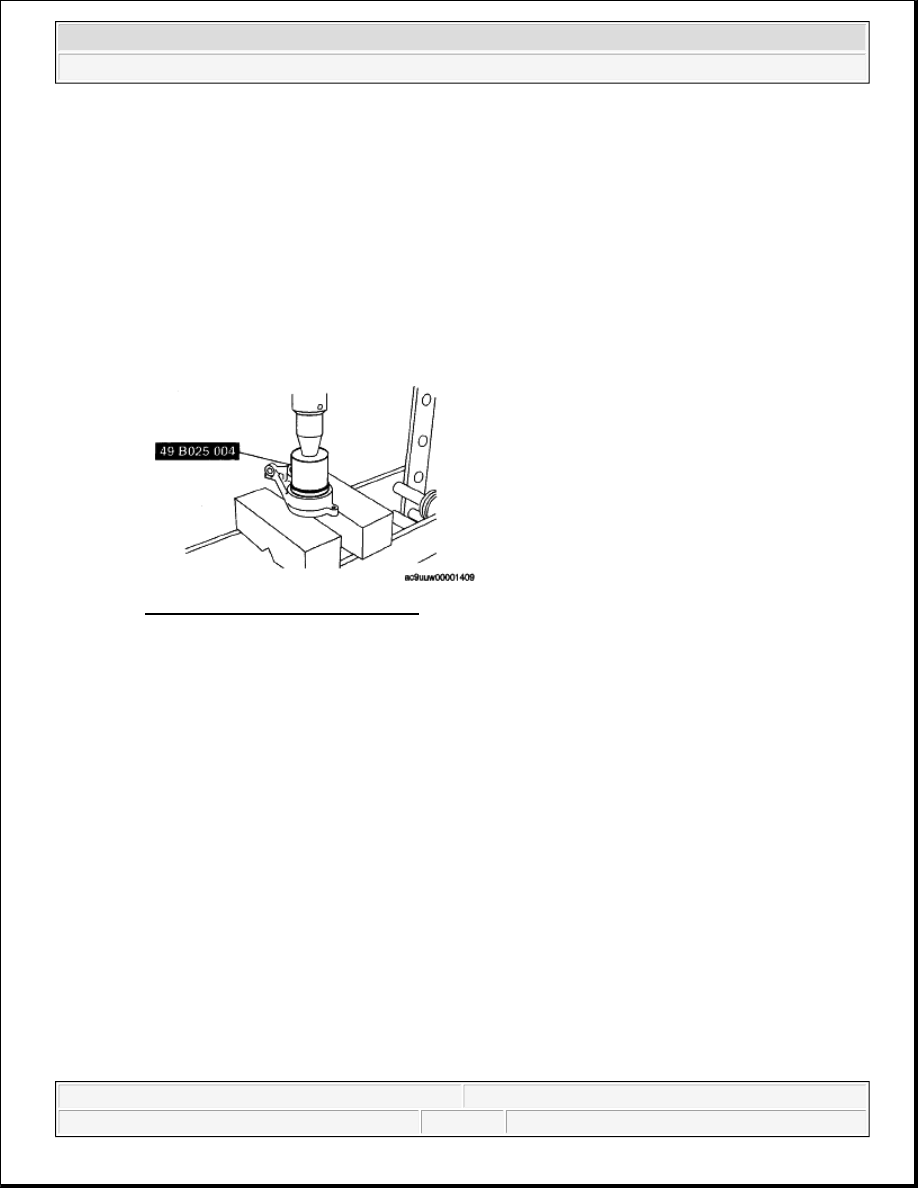

Fig. 38: Pressing Bearing With SST
Courtesy of MAZDA MOTORS CORP.

DUST SEAL (DIFFERENTIAL SIDE) ASSEMBLY NOTE

1. Apply grease to the new dust seal lip.

2. Install the dust seal (differential side) using a press and the SSTs.

Substitution SST



49B025 004

Outer diameter: 58-59.8 mm {2.2-2.3 in} or less

Inner diameter: 53 mm {2.1 in} or more

Inner depth: 7.5 mm {0.30 in} or more



49W034 301

Inner diameter: 67.5-72.0 mm {2.66-2.83 in}

Inner depth: 8.5 mm {0.33 in} or more
