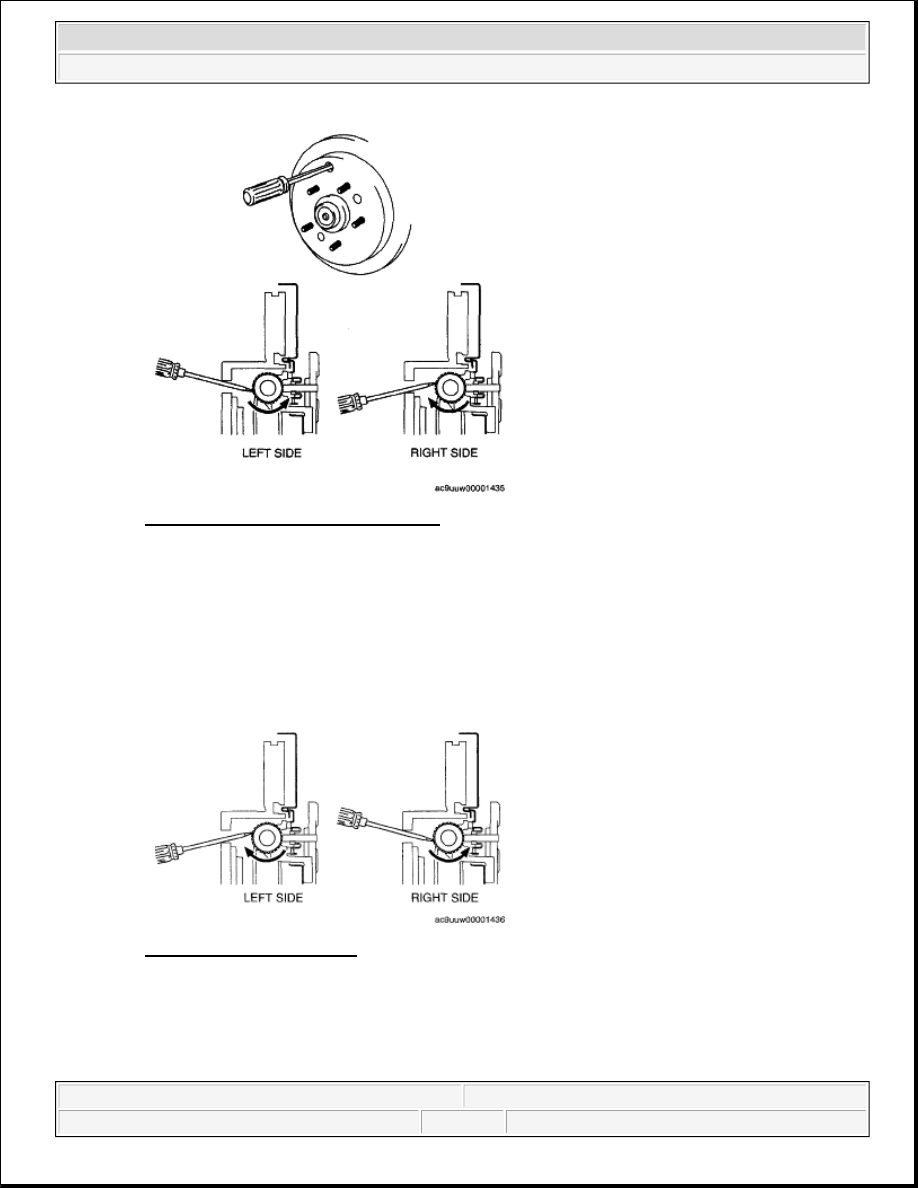

Fig. 35: Installing Disc Plate & Screws
Courtesy of MAZDA MOTORS CORP.

2. Return the adjuster 13-25 notches in the direction of the arrow.

3. Rotate the disc plate and make sure it does not drag.

Fig. 36: Adjusting Adjuster
Courtesy of MAZDA MOTORS CORP.

CALIPER INSTALLATION NOTE

1. Push the piston fully inward using the SST.

2. Install the caliper.

NOTE:



Shoe clearance can be adjusted to 0.15 mm {0.006 in} by
returning the adjuster 15 notches.



2008 Mazda CX-9 Grand Touring

2008 BRAKES Conventional Brake System - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:48:49 AM

Page 30

© 2005 Mitchell Repair Information Company, LLC.

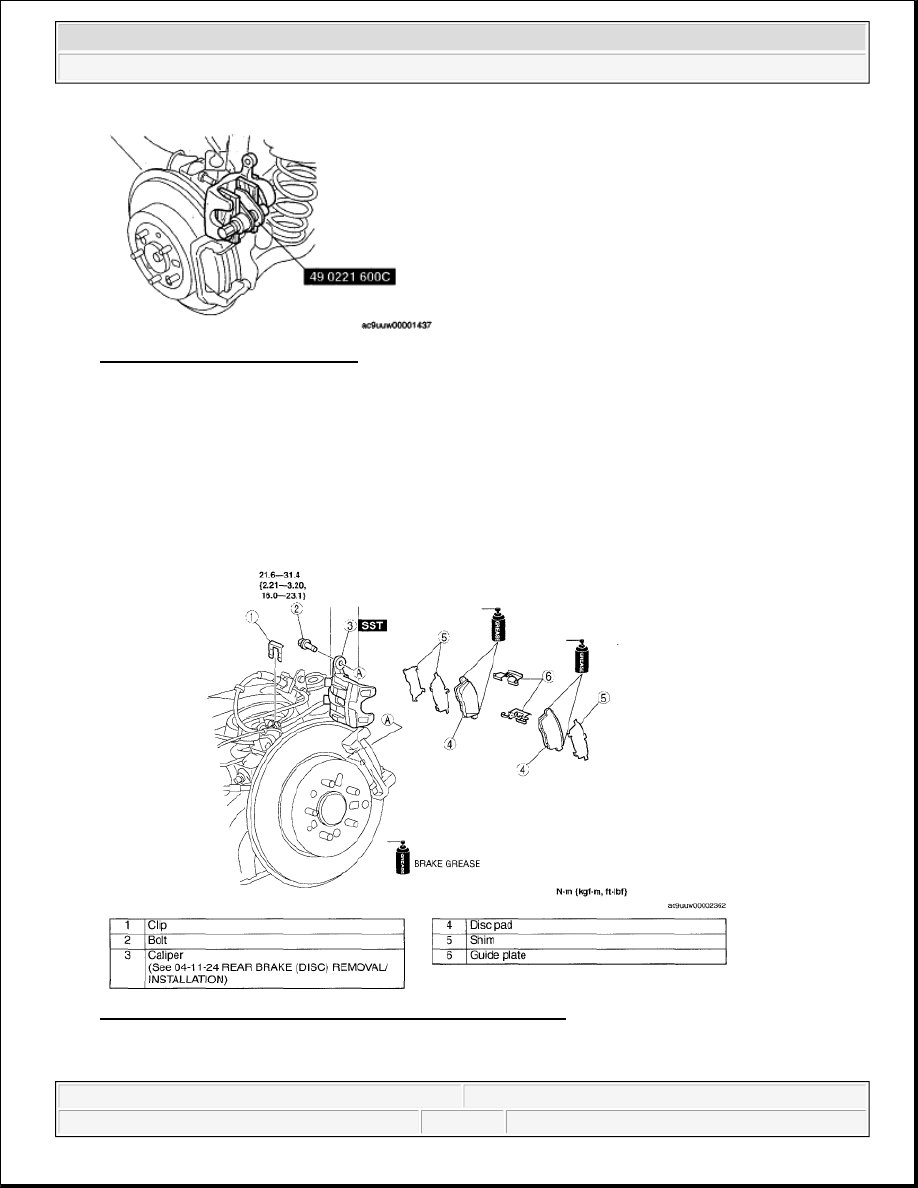

Fig. 37: Pushing Piston With SST
Courtesy of MAZDA MOTORS CORP.

DISC PAD (REAR) REPLACEMENT

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.

3. After installation, depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake

does not drag.

Fig. 38: Identifying Disc Pad (Rear) & Torque Specifications
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 BRAKES Conventional Brake System - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:48:49 AM

Page 31

© 2005 Mitchell Repair Information Company, LLC.

CALIPER (REAR) DISASSEMBLY/ASSEMBLY

1. Disassemble in the order indicated in the table.

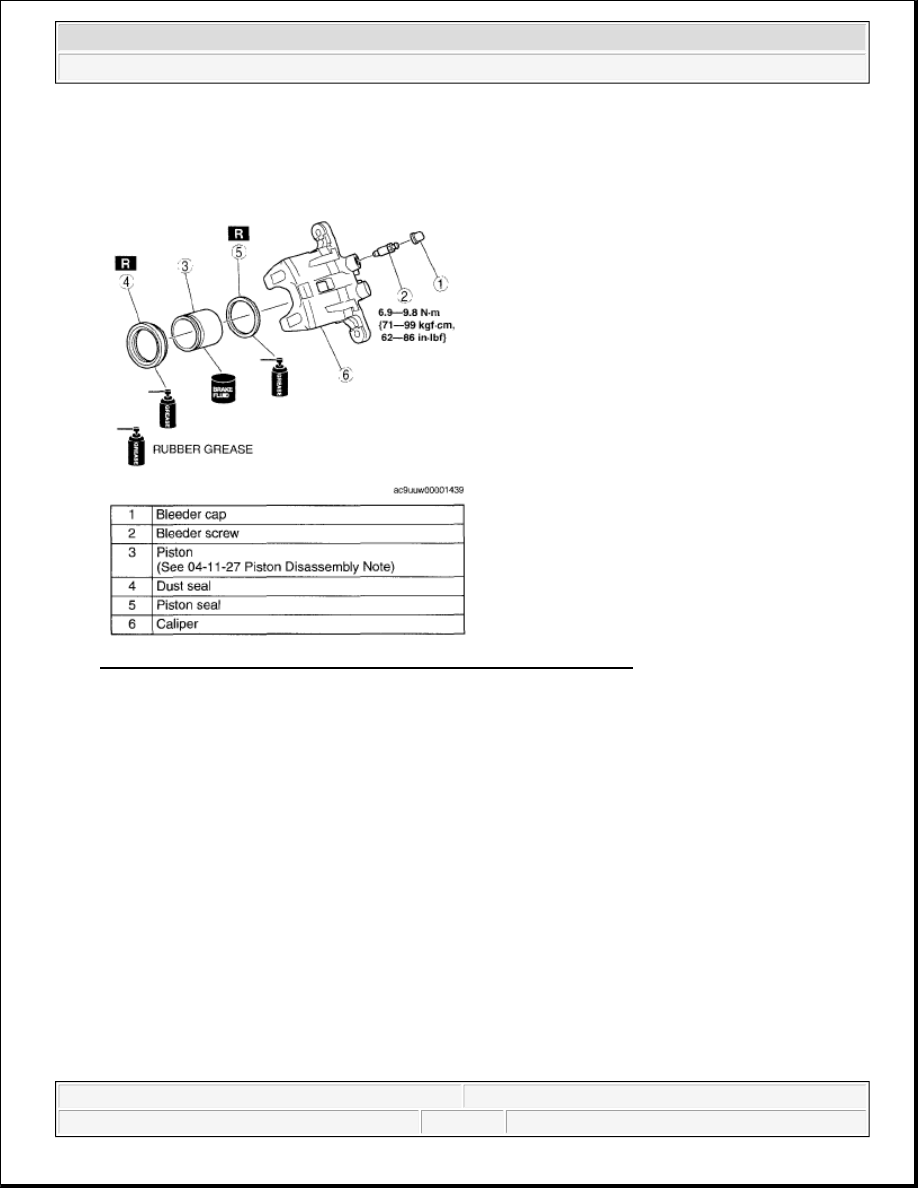

Fig. 39: Identifying Caliper Sequence (Rear) & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

2. Assemble in the reverse order of removal.

PISTON DISASSEMBLY NOTE

1. Place a piece of wood in the caliper, then blow compressed air through the hole to force the piston out of

the caliper.

WARNING:



When compressed air is blown into the caliper body, injury to a
finger or other part from pinching could result from the piston
springing up. When blowing in compressed air, do not place your
fingers between the piston and caliper body when performing the
work.

CAUTION:



The piston could be damaged if blown out with great force. Blow the
compressed air slowly to prevent the piston from suddenly popping
out.



2008 Mazda CX-9 Grand Touring

2008 BRAKES Conventional Brake System - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:48:49 AM

Page 32

© 2005 Mitchell Repair Information Company, LLC.

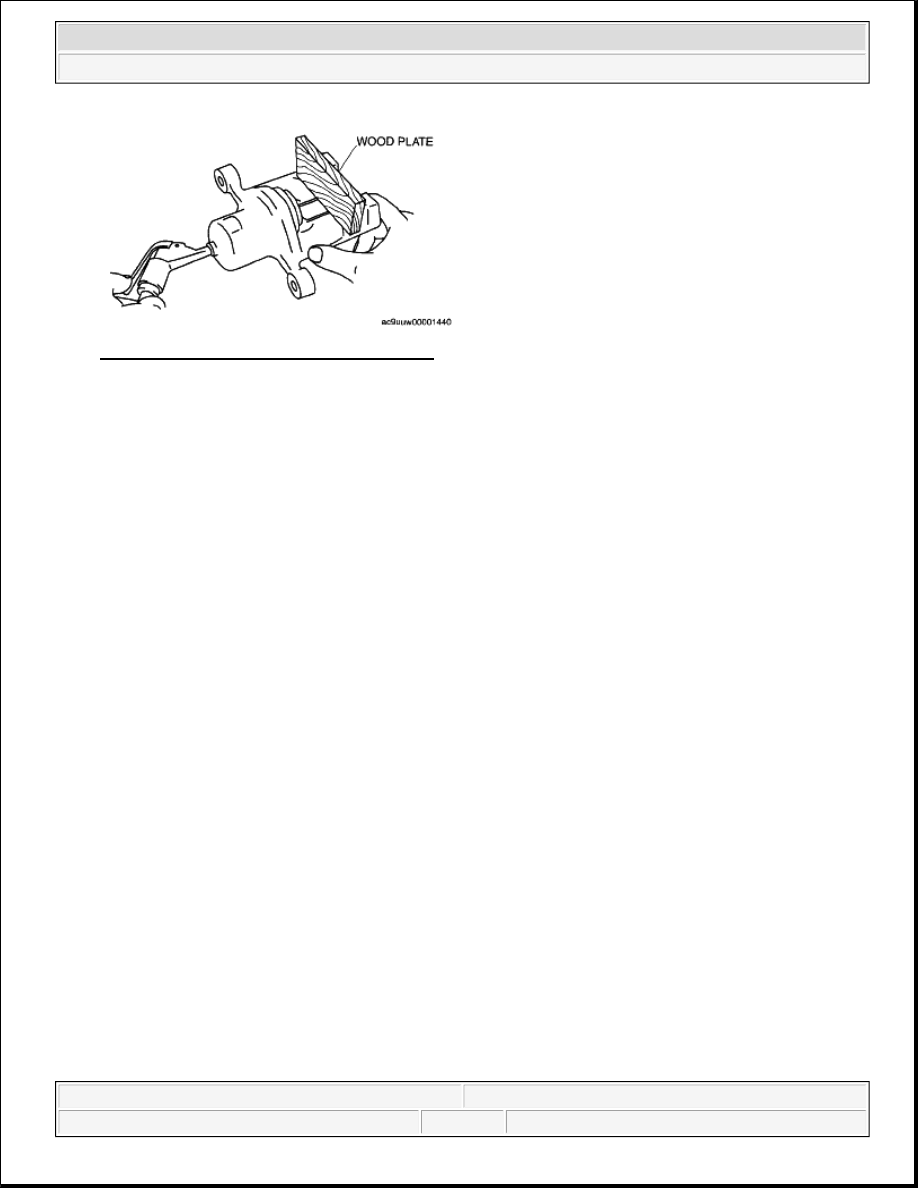

Fig. 40: Compressing Air Piston Of Caliper
Courtesy of MAZDA MOTORS CORP.
