1. Disconnect the negative battery cable.

2. Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION

[MZI-3.7] .)

3. Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [AW6A-EL,

AW6AX-EL].)

4. Remove the oil cooler.

5. Remove the oil pipe. (See OIL COOLER REMOVAL/INSTALLATION [AW6A-EL, AW6AX-EL].)

6. Remove the control valve body. (See CONTROL VALVE BODY REMOVAL/INSTALLATION

[AW6A-EL, AW6AX-EL].)

7. Remove the TFT sensor. (See TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR

REMOVAL/INSTALLATION [AW6A-EL, AW6AX-EL].)

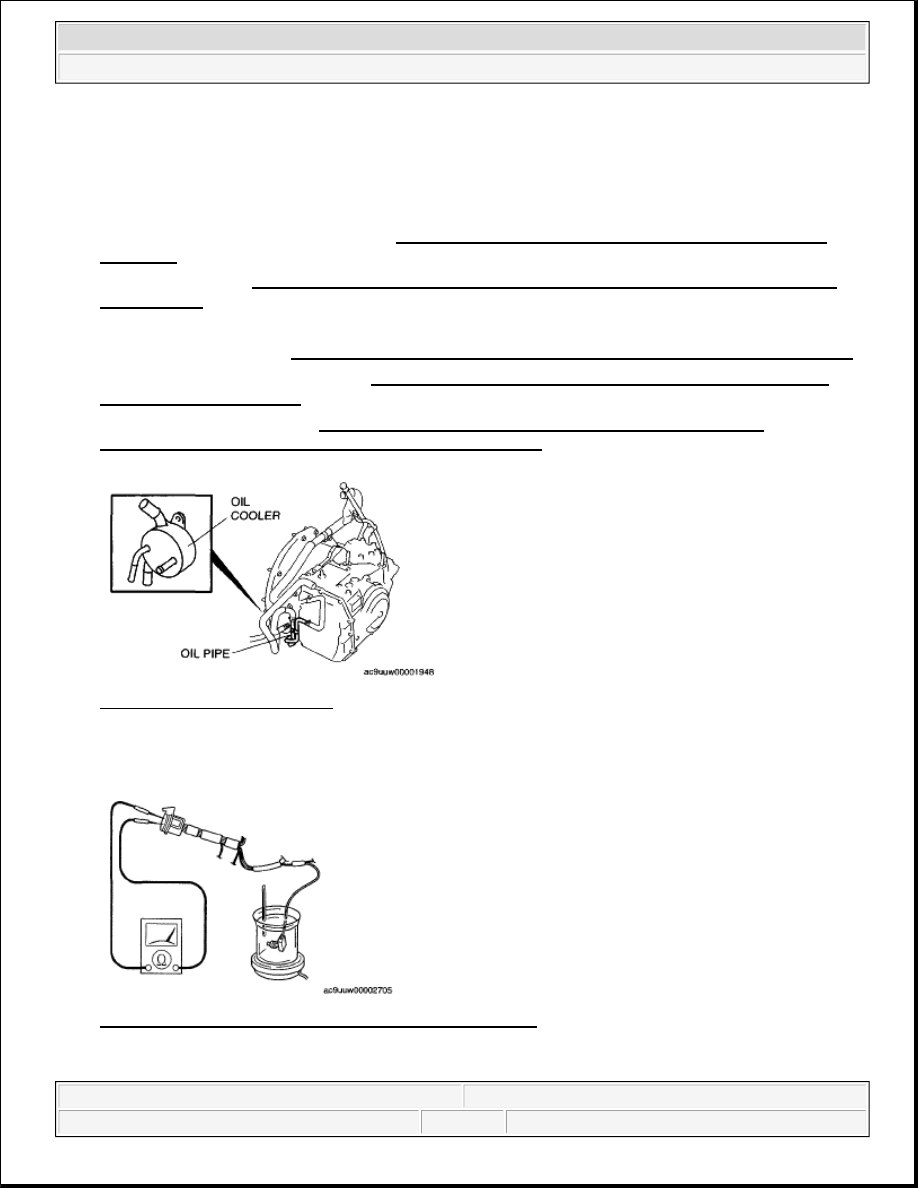

Fig. 11: Identifying Oil Cooler
Courtesy of MAZDA MOTORS CORP.

8. Place the TFT sensor and a thermometer in ATF as shown in the figure, and heat the ATF gradually.

Fig. 12: Identifying TFT Sensor & Thermometer In ATF
Courtesy of MAZDA MOTORS CORP.

material on the connector when disconnecting.



Do not damage the terminals.



2008 Mazda CX-9 Grand Touring

2008 TRANSMISSION Automatic Transaxle (AW6A-EL, AW6AX-EL) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:29:30 AM

Page 17

© 2005 Mitchell Repair Information Company, LLC.

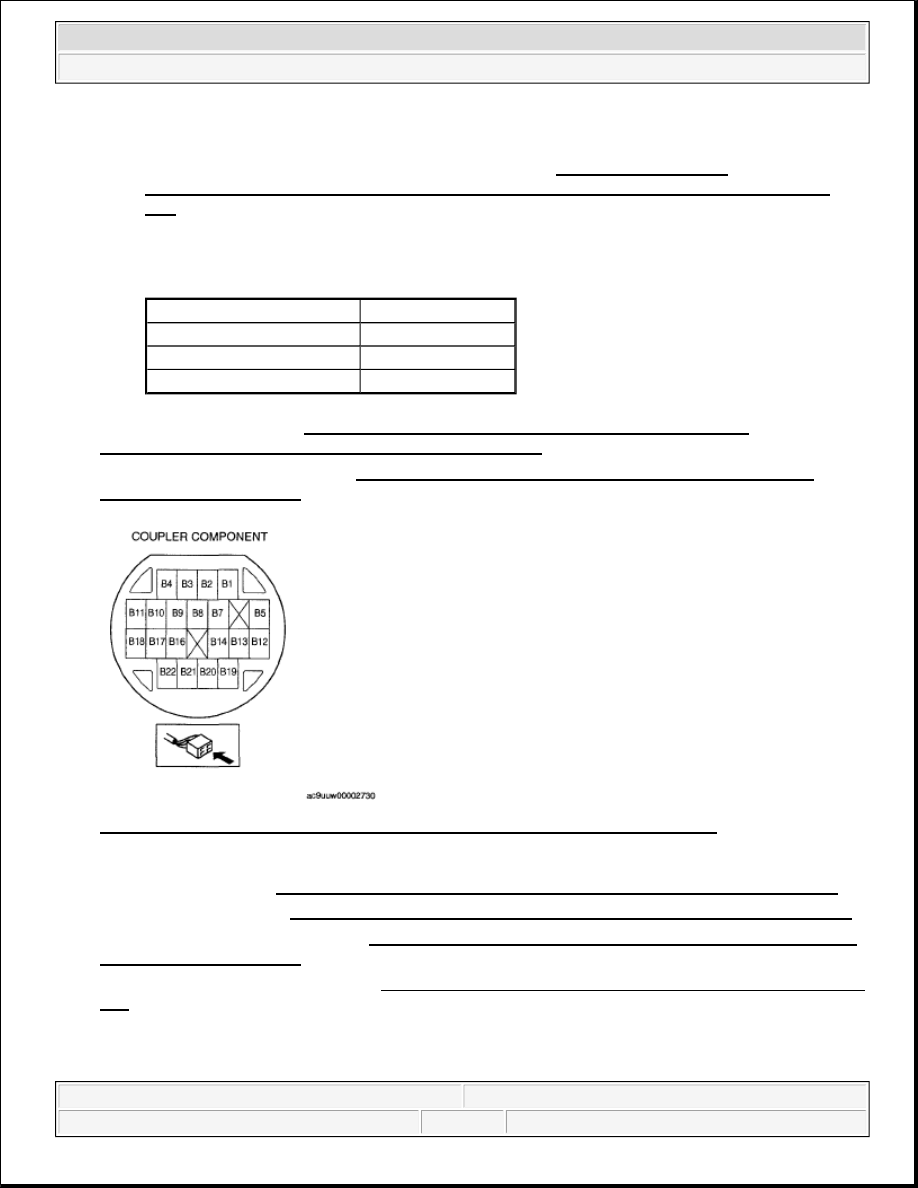

9. Measure the resistance between the coupler component terminals B7 and B8.



If there is any malfunction, replace the TFT sensor. (See TRANSAXLE FLUID
TEMPERATURE (TFT) SENSOR REMOVAL/INSTALLATION [AW6A-EL, AW6AX-
EL].)

Transaxle fluid temperature (TFT) sensor

RESISTANCE REFERENCE

10. Install the TFT sensor. (See TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR

REMOVAL/INSTALLATION [AW6A-EL, AW6AX-EL].)

11. Install the control valve body. (See CONTROL VALVE BODY REMOVAL/INSTALLATION

[AW6A-EL, AW6AX-EL].)

Fig. 13: Measuring Resistance Between Coupler Component Terminals B7 & B8
Courtesy of MAZDA MOTORS CORP.

12. Install the oil pipe. (See OIL COOLER REMOVAL/INSTALLATION [AW6A-EL, AW6AX-EL].)

13. Install the oil cooler. (See OIL COOLER REMOVAL/INSTALLATION [AW6A-EL, AW6AX-EL].)

14. Add ATF to the specified level. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT

[AW6A-EL, AW6AX-EL].)

15. Install the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZI-

3.7] .)

16. Connect the negative battery cable.

TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR

ATF temperature (°C {°F}) Resistance (kilohm)

10 {50}

5.62-7.31

25 {77}

Approx. 3.5

110 {230}

0.22-0.27



2008 Mazda CX-9 Grand Touring

2008 TRANSMISSION Automatic Transaxle (AW6A-EL, AW6AX-EL) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:29:30 AM

Page 18

© 2005 Mitchell Repair Information Company, LLC.

REMOVAL/INSTALLATION [AW6A-EL, AW6AX-EL]

1. Disconnect the negative battery cable.

2. Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION

[MZI-3.7] .)

3. Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [AW6A-EL,

AW6AX-EL].)

4. Remove the TCM. (See TCM REMOVAL/INSTALLATION [AW6A-EL, AW6AX-EL].)

5. Remove the oil cooler.

6. Remove the oil pipe. (See OIL COOLER REMOVAL/INSTALLATION [AW6A-EL, AW6AX-EL].)

7. Remove the control valve body. (See CONTROL VALVE BODY REMOVAL/INSTALLATION

[AW6A-EL, AW6AX-EL].)

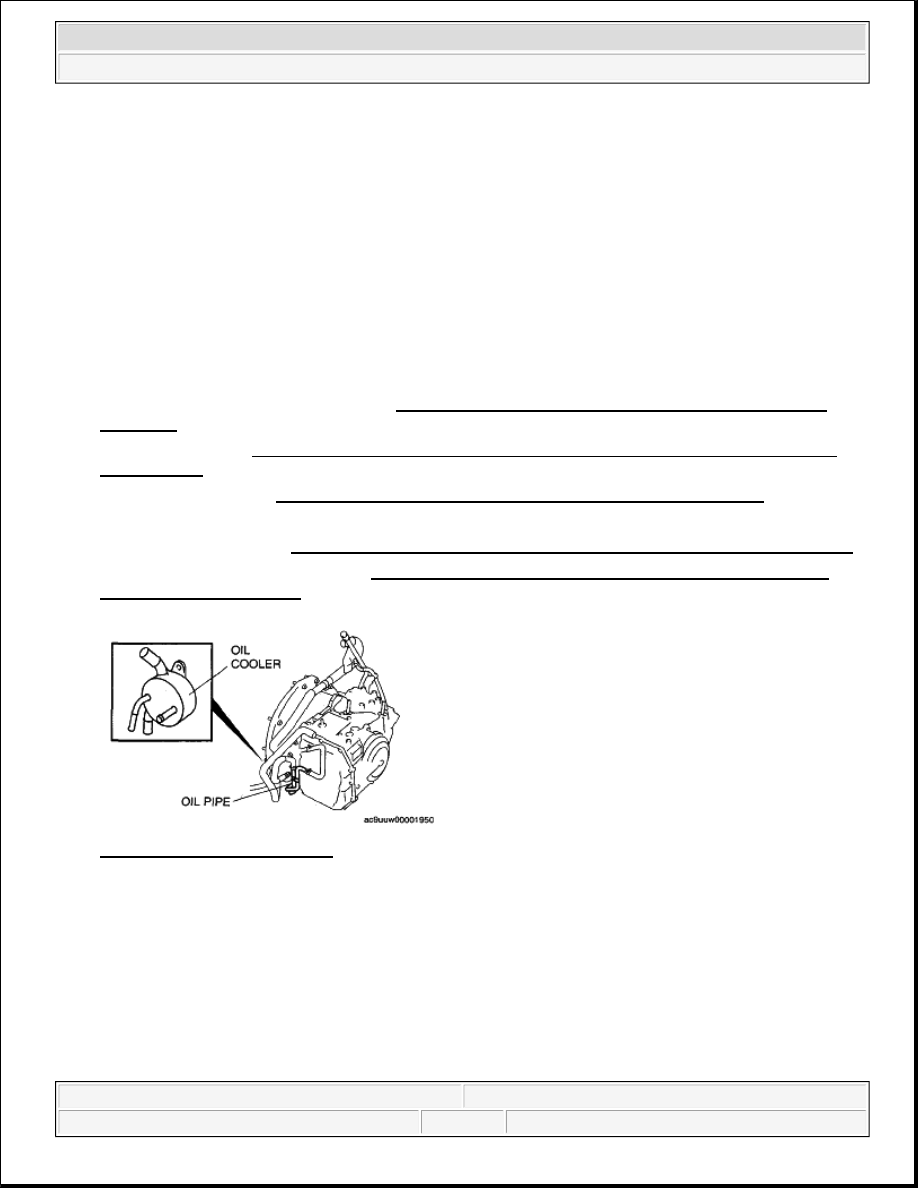

Fig. 14: Identifying Oil Cooler
Courtesy of MAZDA MOTORS CORP.

8. Remove the coupler component lock plate.

9. Remove the coupler component from the transaxle case.

WARNING:



A hot transaxle and ATF can cause severe burns. Turn off the engine
and wait until they are cool before replacing the ATF.

CAUTION:



Water or foreign material entering the connector can cause a poor
connection or corrosion. Be sure not to allow water or foreign
material on the connector when disconnecting.



Do not damage the terminals.

CAUTION:



Do not damage the wiring harness.



Do not pull hard on the wiring harness.



2008 Mazda CX-9 Grand Touring

2008 TRANSMISSION Automatic Transaxle (AW6A-EL, AW6AX-EL) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:29:30 AM

Page 19

© 2005 Mitchell Repair Information Company, LLC.

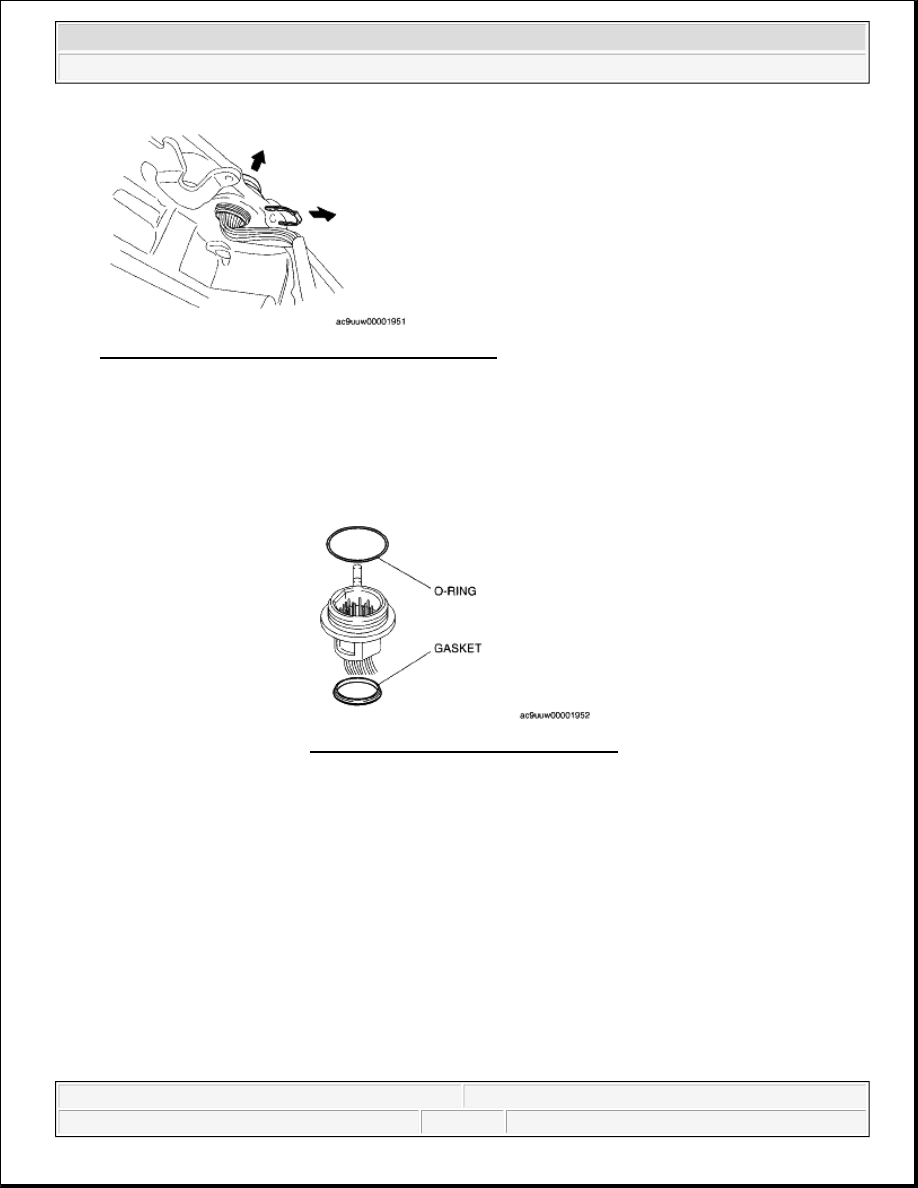

Fig. 15: Identifying Coupler Component Lock Plate
Courtesy of MAZDA MOTORS CORP.

10. Remove the O-ring and the gasket from the coupler component.

11. Apply ATF to a new gasket and install it on the coupler component.

12. Install a new O-ring to the coupler component.

13. Install the coupler component to the transaxle case.

CAUTION:



Do not apply ATF to the O-ring.

Fig. 16: Identifying O-Ring & Gasket
Courtesy of MAZDA MOTORS CORP.

CAUTION:



Do not apply too much force to the coupler component.



Do not damage the coupler component.
