Mazda CX-9 Grand Touring. Manual - part 81





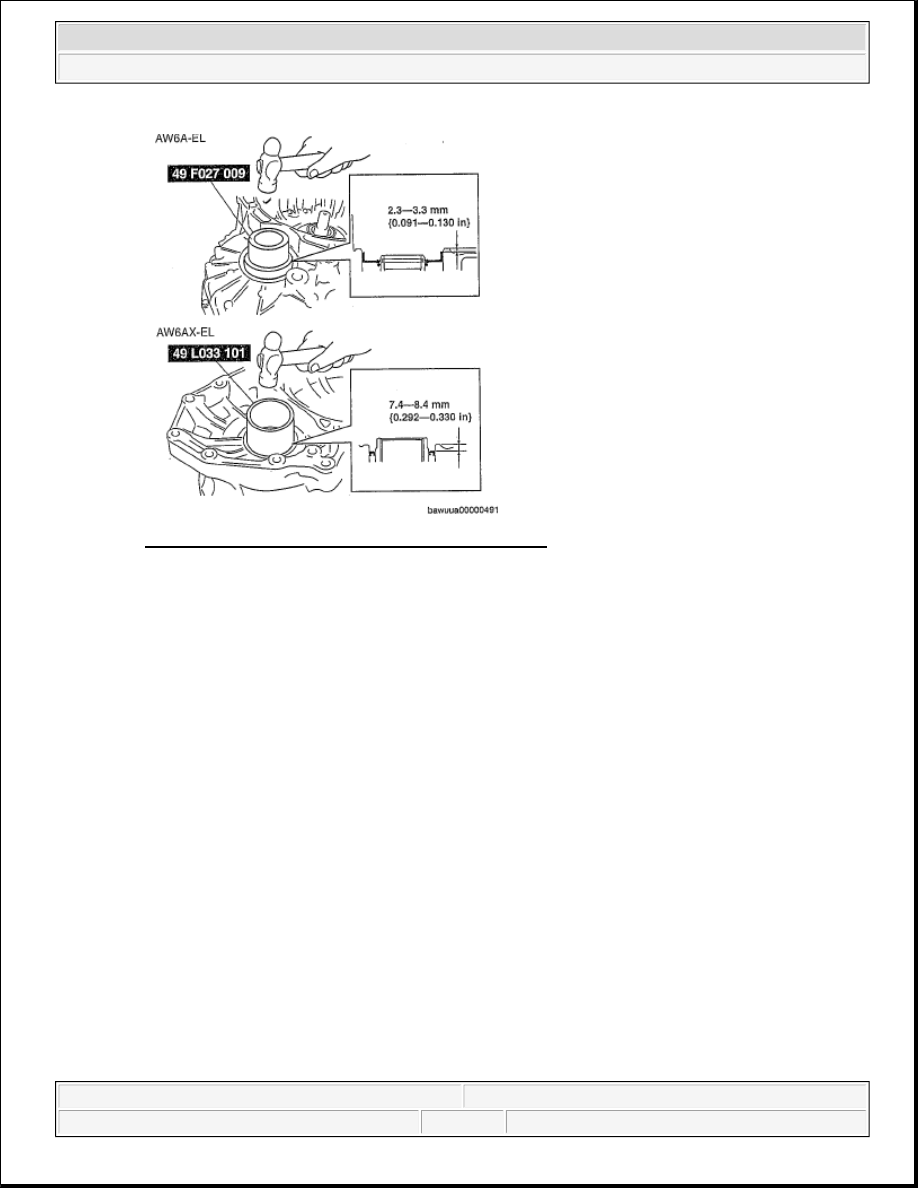

Fig. 292: Tapping Oil Seal - Converter Housing Side
Courtesy of MAZDA MOTORS CORP.

100. Install a new gasket and the drain plug.

Tightening torque 23.5 - 54.9 N.m {2.4 - 5.5 kgf.m, 17.4 - 40.4 ft.lbf}

CAUTION:

Do not damage the oil seal.

Do not drop the torque converter.

Be careful that fingers do not get caught.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:18 AM

Page 158

© 2005 Mitchell Repair Information Company, LLC.

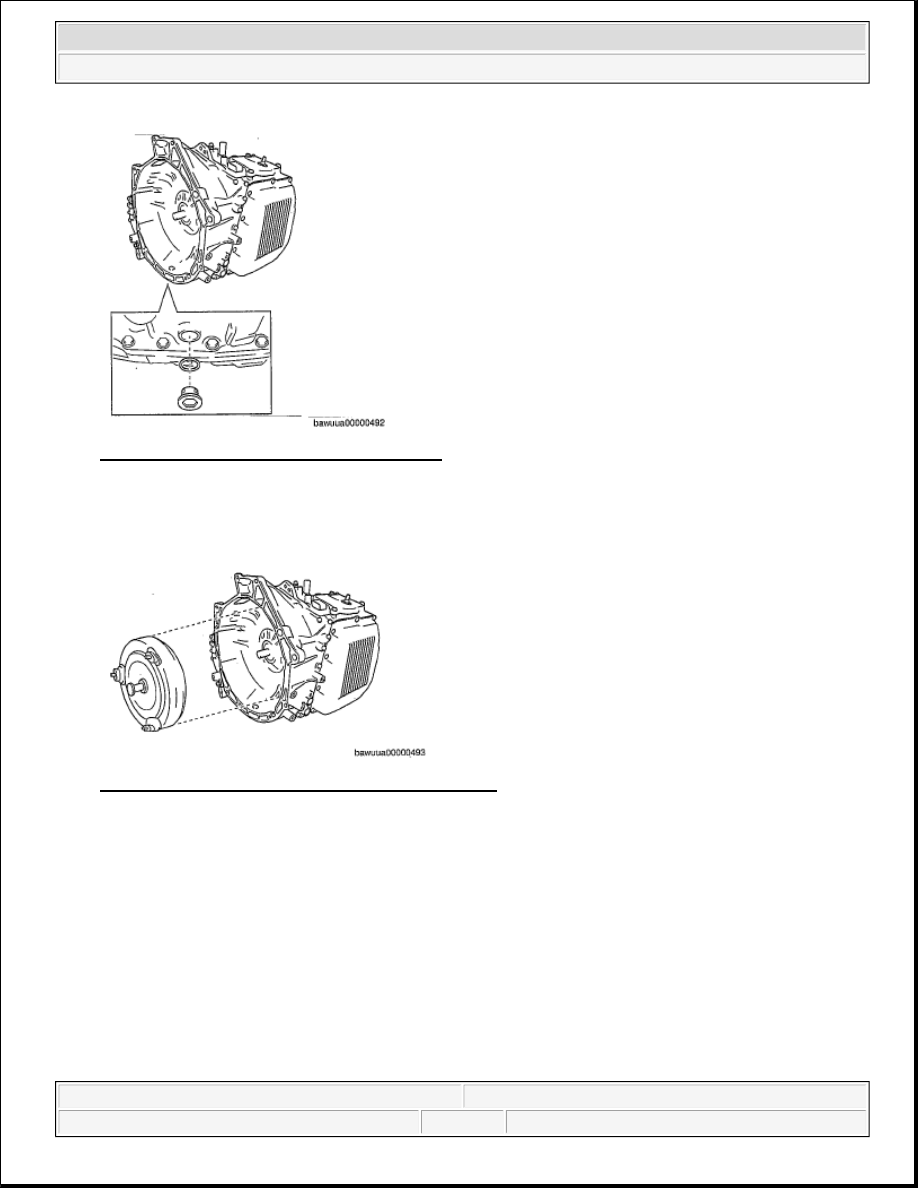

Fig. 293: Identifying Gasket And Drain Plug
Courtesy of MAZDA MOTORS CORP.

101. Using a flathead screwdriver, position the drive gear on the oil pump component in the center. Then

install the torque converter component to the transaxle.

Fig. 294: Identifying Torque Converter Component
Courtesy of MAZDA MOTORS CORP.

102. To ensure that the torque converter is installed accurately, measure distance A between the end of the

torque converter and the end of the converter housing.

Distance A (between the end of the torque converter and the end of the converter housing)

Mazda6: 18 mm {0.709 in}

CX-7: 31.4 mm {1.24 in}



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:18 AM

Page 159

© 2005 Mitchell Repair Information Company, LLC.

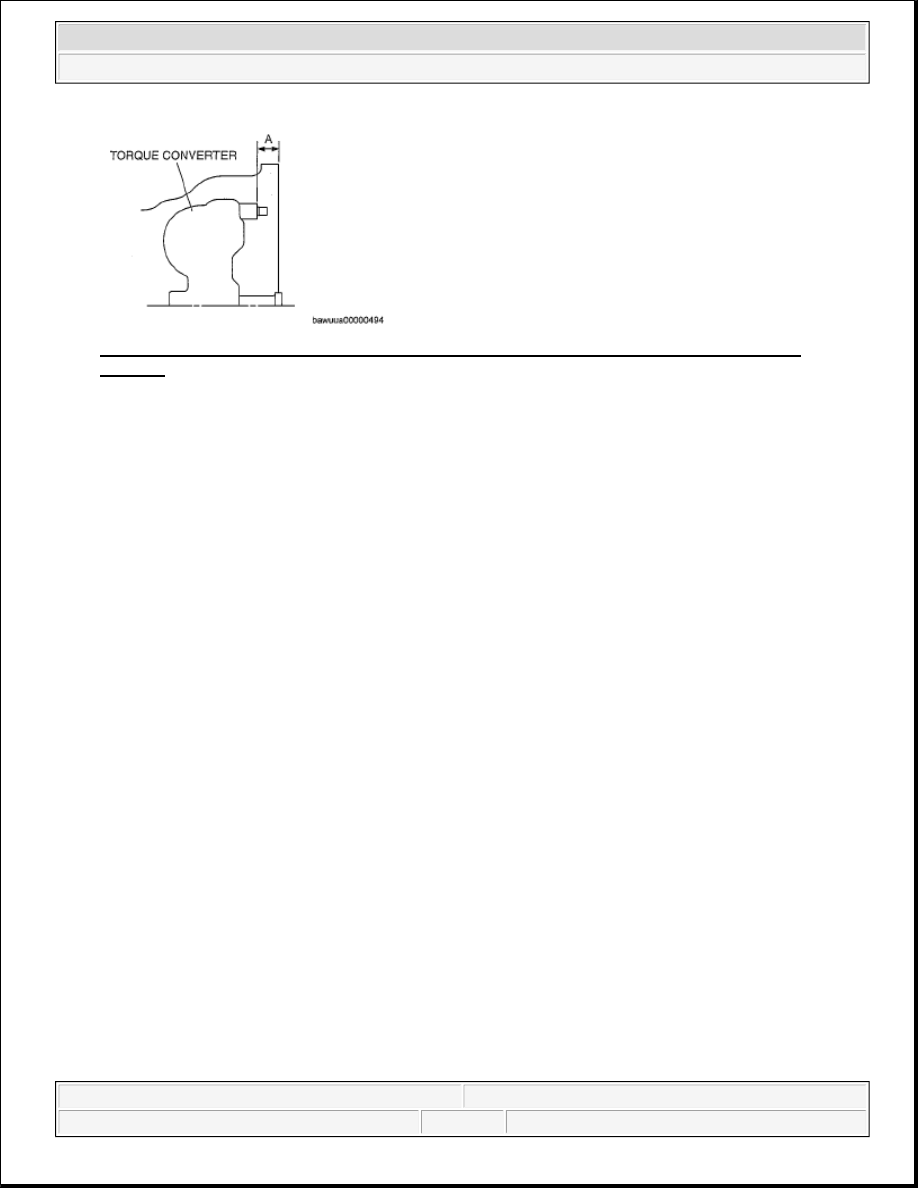

Fig. 295: Measuring Distance A Between End Of Torque Converter And End Of Converter
Housing

Courtesy of MAZDA MOTORS CORP.

103. Install the O-rings and oil pipes. (Refer to the appropriate article .)

104. Add the ATF.

AUTOMATIC TRANSAXLE INSPECTION

B2 Brake Inspection

1. Apply ATF to the driven plates, drive plates and retaining plates.

2. Install driven plates, drive plates and the retaining plate in the following order to the transaxle case as

shown in the figure.

Six drive plates type

Drive- Retaining- Driven- Drive- Driven- Drive- Driven- Drive- Driven- Drive- Driven- Drive-
Retaining

Seven drive plates type

Retaining- Drive- Driven- Drive- Driven- Drive- Driven- Drive- Driven- Drive- Driven- Drive-
Driven- Drive- Retaining

NOTE:

Replace with new drive plates after soaking them at least 2 h in ATF.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:18 AM

Page 160

© 2005 Mitchell Repair Information Company, LLC.

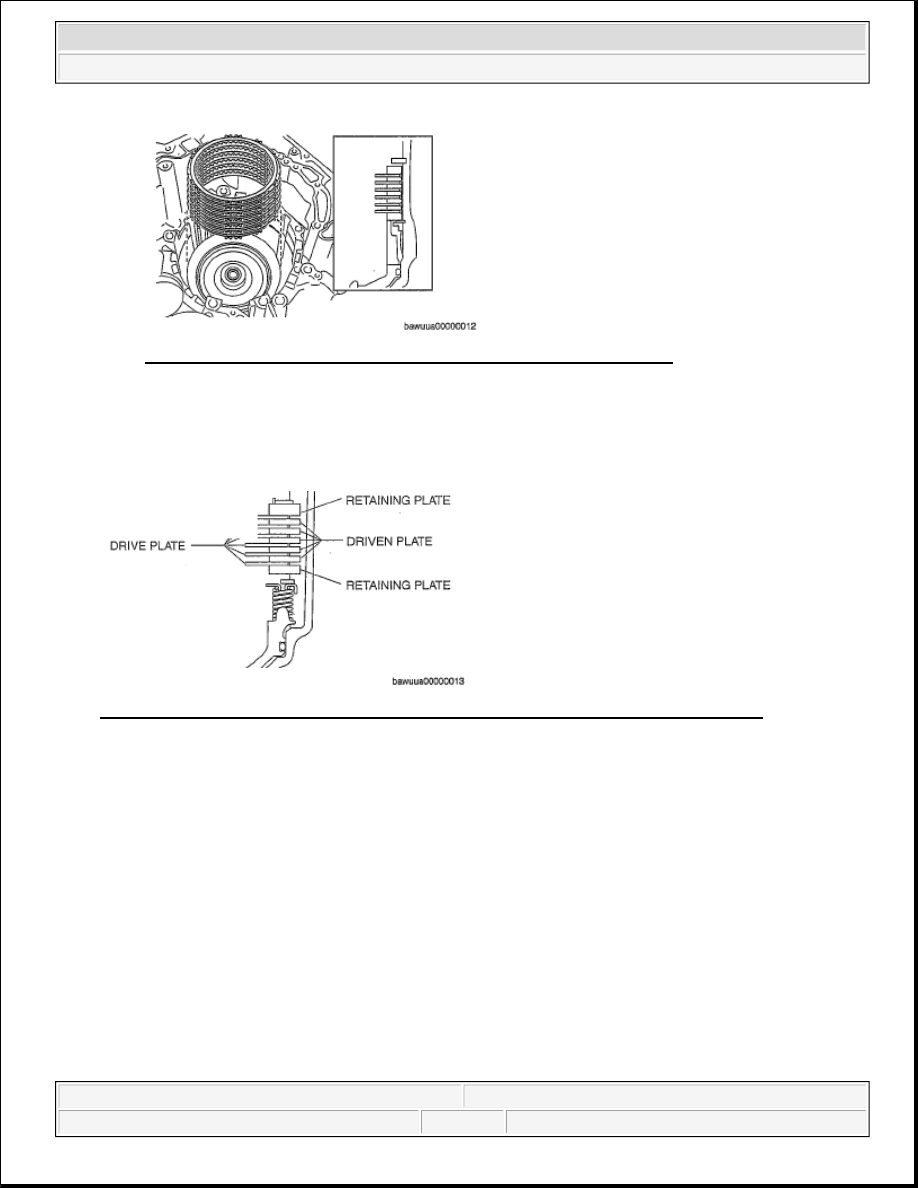

Fig. 296: Identifying Driven Plates, Drive Plates And Retaining Plate
Courtesy of MAZDA MOTORS CORP.

Fig. 297: Inspecting Number And Order Of Retaining Plates, Drive And Driven Plates
Courtesy of MAZDA MOTORS CORP.

3. Using a flathead screwdriver, install the snap ring into the groove.

CAUTION:

Inspect the number and order of the retaining plates, drive and
driven plates.

CAUTION:

Align the opening of the snap ring with the position shown in
the figure.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:18 AM

Page 161

© 2005 Mitchell Repair Information Company, LLC.
