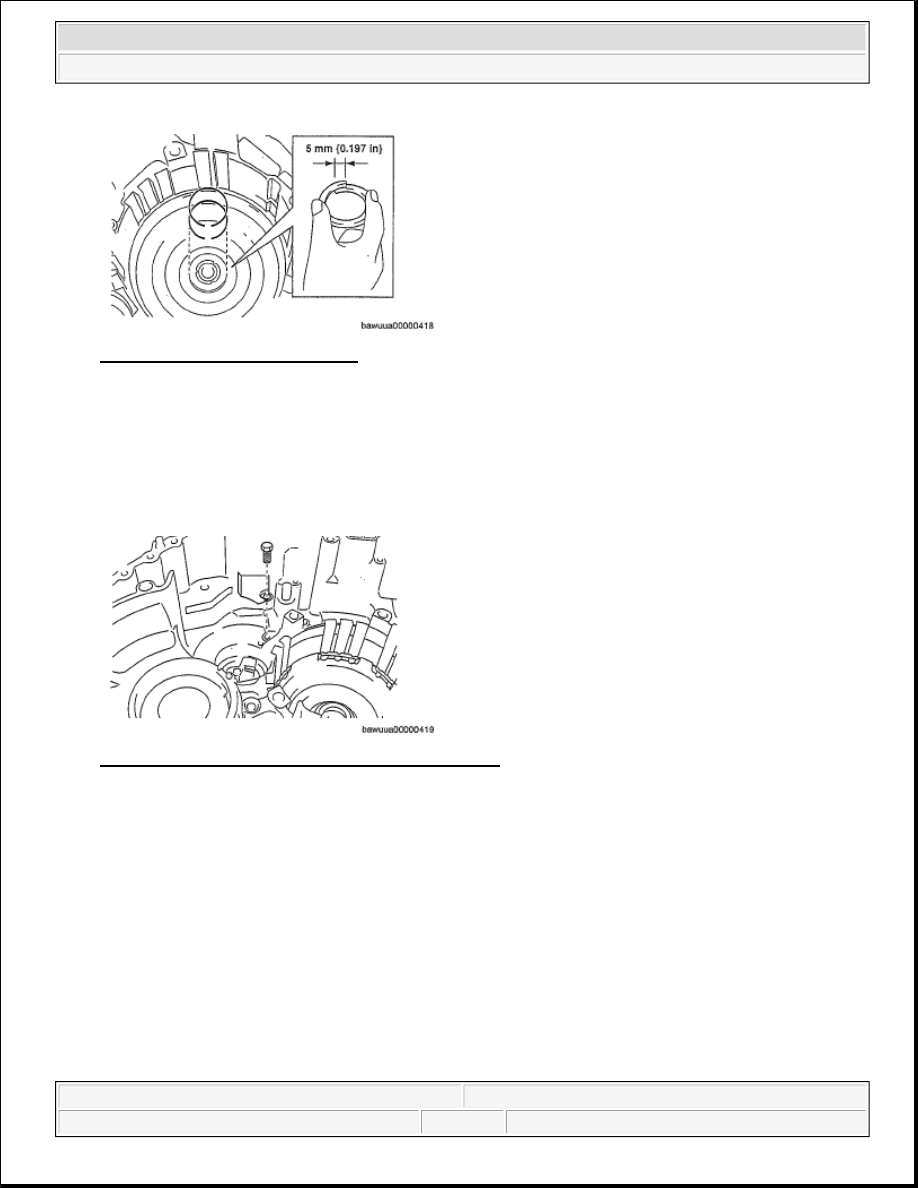

Fig. 219: Compressing Seal Rings
Courtesy of MAZDA MOTORS CORP.

4. Install the transaxle case plate No.3.

Tightening torque

3.9 - 6.9 N.m {40 - 70 kgf.cm, 26 - 60 in.lbf}

Fig. 220: Identifying Transaxle Case Plate No.3 Bolt
Courtesy of MAZDA MOTORS CORP.

5. Install the transaxle case plate No.2.

Tightening torque

3.9 - 6.9 N.m {40 - 70 kgf.cm, 26 - 60 in.lbf}



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:17 AM

Page 122

© 2005 Mitchell Repair Information Company, LLC.

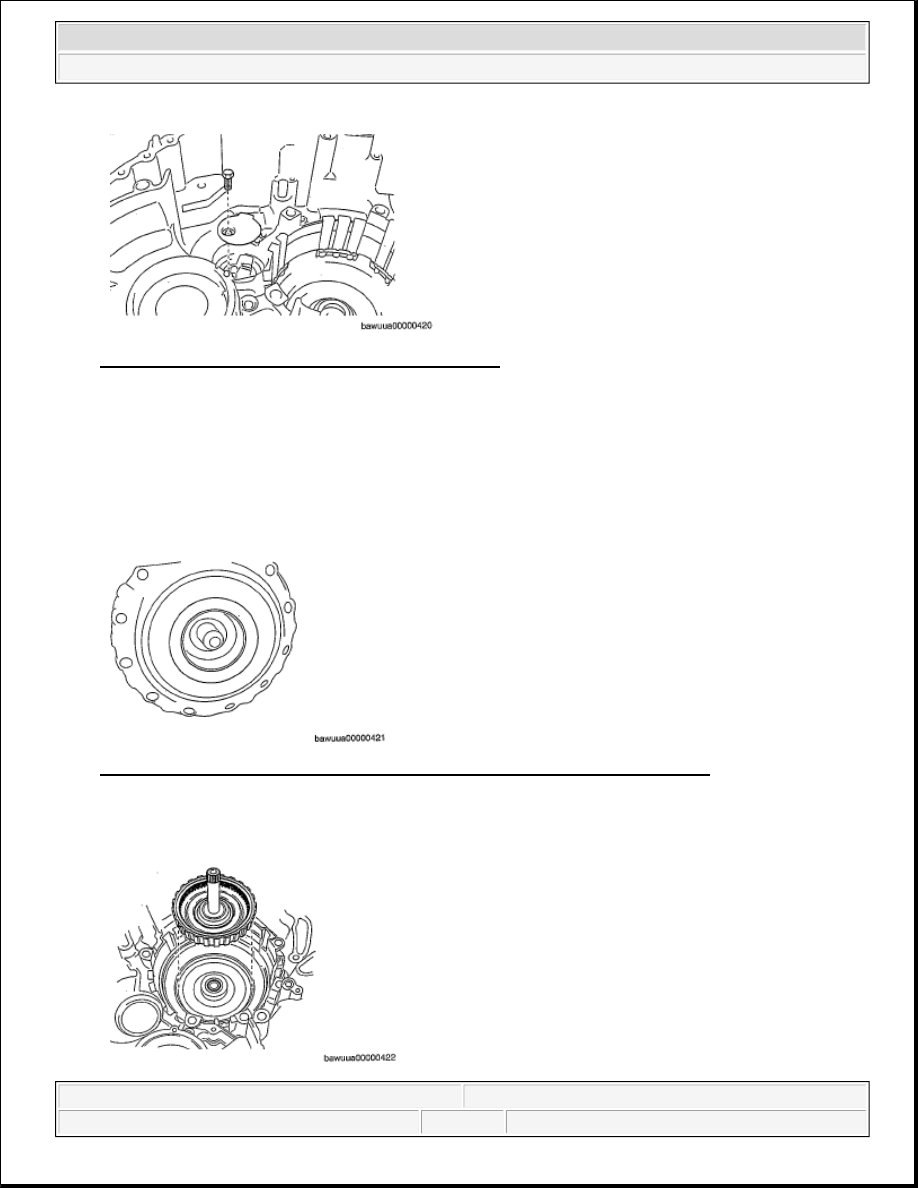

Fig. 221: Identifying Transaxle Case Plate No.2 Bolt
Courtesy of MAZDA MOTORS CORP.

6. Apply ATF or grease to the thrust bearing and install it to the C2 clutch component.

7. Apply ATF to the seal ring and rubbing surface of the C2 clutch component where the bushing is fit.

Fig. 222: Identifying Seal Ring And Rubbing Surface Of C2 Clutch Component
Courtesy of MAZDA MOTORS CORP.

8. Install the C2 clutch component to the transaxle case.

CAUTION:



Do not damage the seal ring.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:17 AM

Page 123

© 2005 Mitchell Repair Information Company, LLC.

Fig. 223: Identifying C2 Clutch Component To Transaxle Case
Courtesy of MAZDA MOTORS CORP.

9. Apply ATF to the driven plates, drive plates and retaining plates.

10. Install driven plates, drive plates and the retaining plate in the following order to the transaxle case as

shown in the figure.

Six drive plates type



Retaining- Drive- Driven- Drive- Driven- Drive- Driven- Drive- Driven- Drive- Driven- Drive-
Retaining

Seven drive plates type



Retaining- Drive- Driven- Drive- Driven- Drive- Driven- Drive- Driven- Drive- Driven- Drive-
Driven- Drive- Retaining

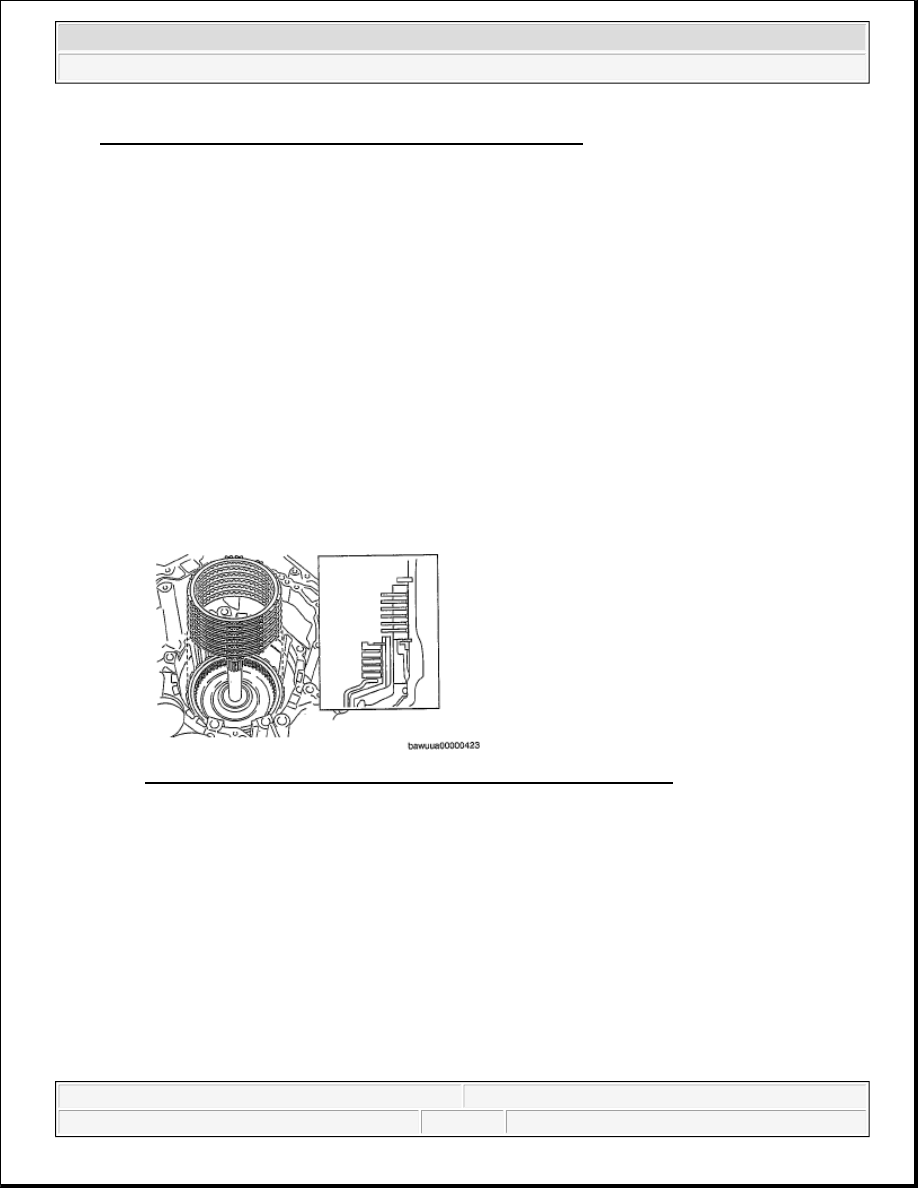

Fig. 224: Identifying Driven Plates, Drive Plates And Retaining Plate
Courtesy of MAZDA MOTORS CORP.

NOTE:



Replace with new drive plates after soaking them at least 2 h in ATF.

CAUTION:



Inspect the number and order of the retaining plates, drive and
driven plates.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:17 AM

Page 124

© 2005 Mitchell Repair Information Company, LLC.

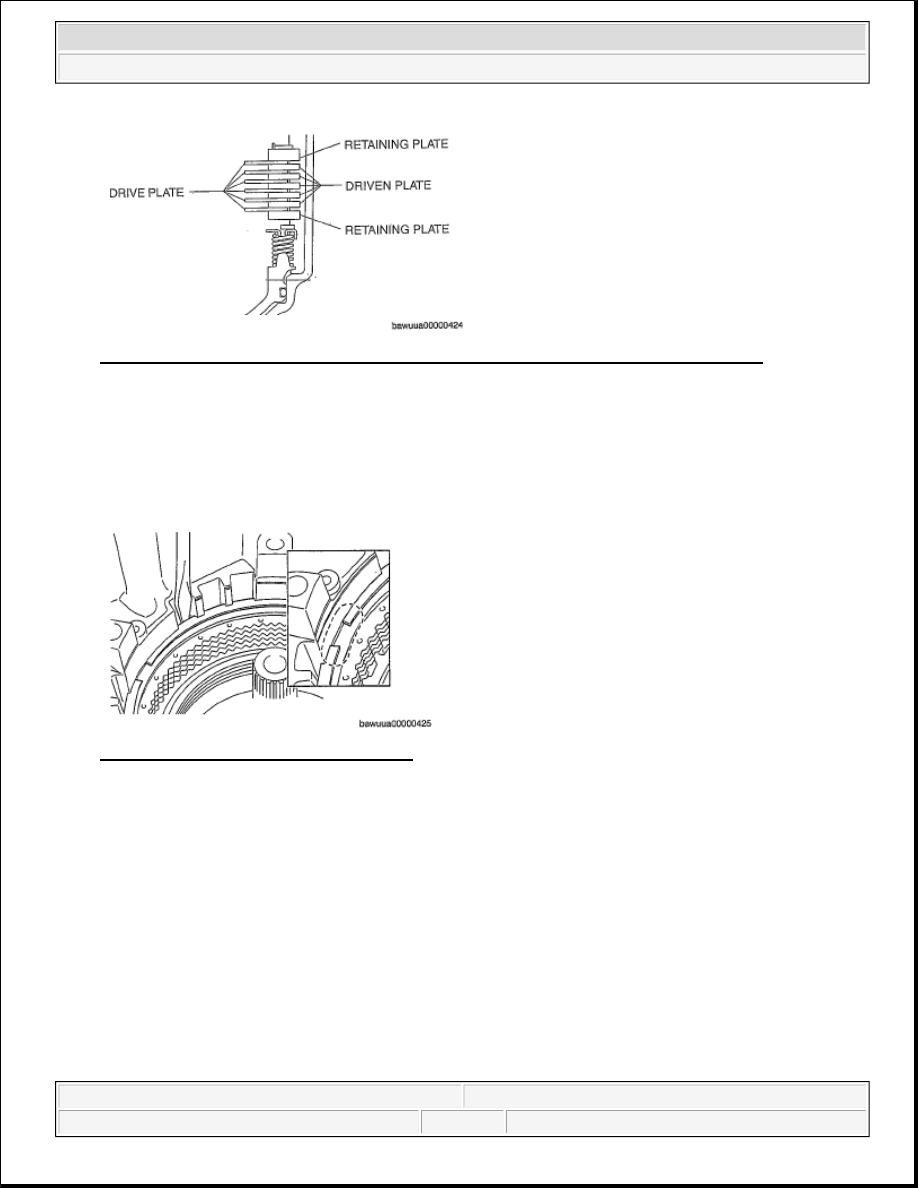

Fig. 225: Inspecting Number And Order Of Retaining Plates, Drive And Driven Plates
Courtesy of MAZDA MOTORS CORP.

11. Using a flathead screwdriver, install the snap ring in the groove.

Fig. 226: Installing Snap Ring In Groove
Courtesy of MAZDA MOTORS CORP.

12. Apply ATF to the thrust bearing and the bearing races and install them to the transaxle case.

CAUTION:



Align the opening of the snap ring with the position as shown in
the figure.

NOTE:



Align the spline of the C2 clutch drive plates and B2 brake drive
plates before installing the rear planetary gear component.
