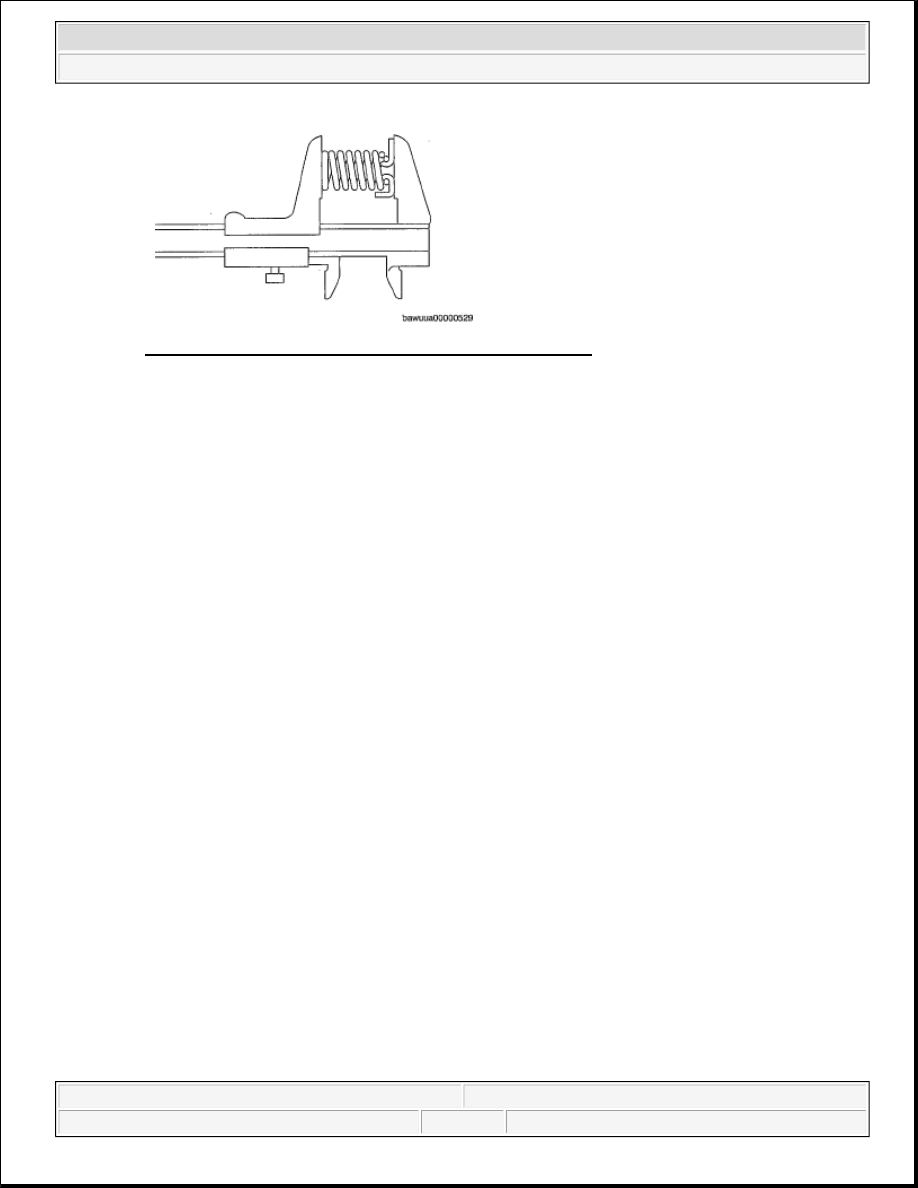

Fig. 205: Measuring Free Length Of Piston Return Spring
Courtesy of MAZDA MOTORS CORP.

CONTROL VALVE BODY DISASSEMBLY/ASSEMBLY

Components



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:17 AM

Page 110

© 2005 Mitchell Repair Information Company, LLC.

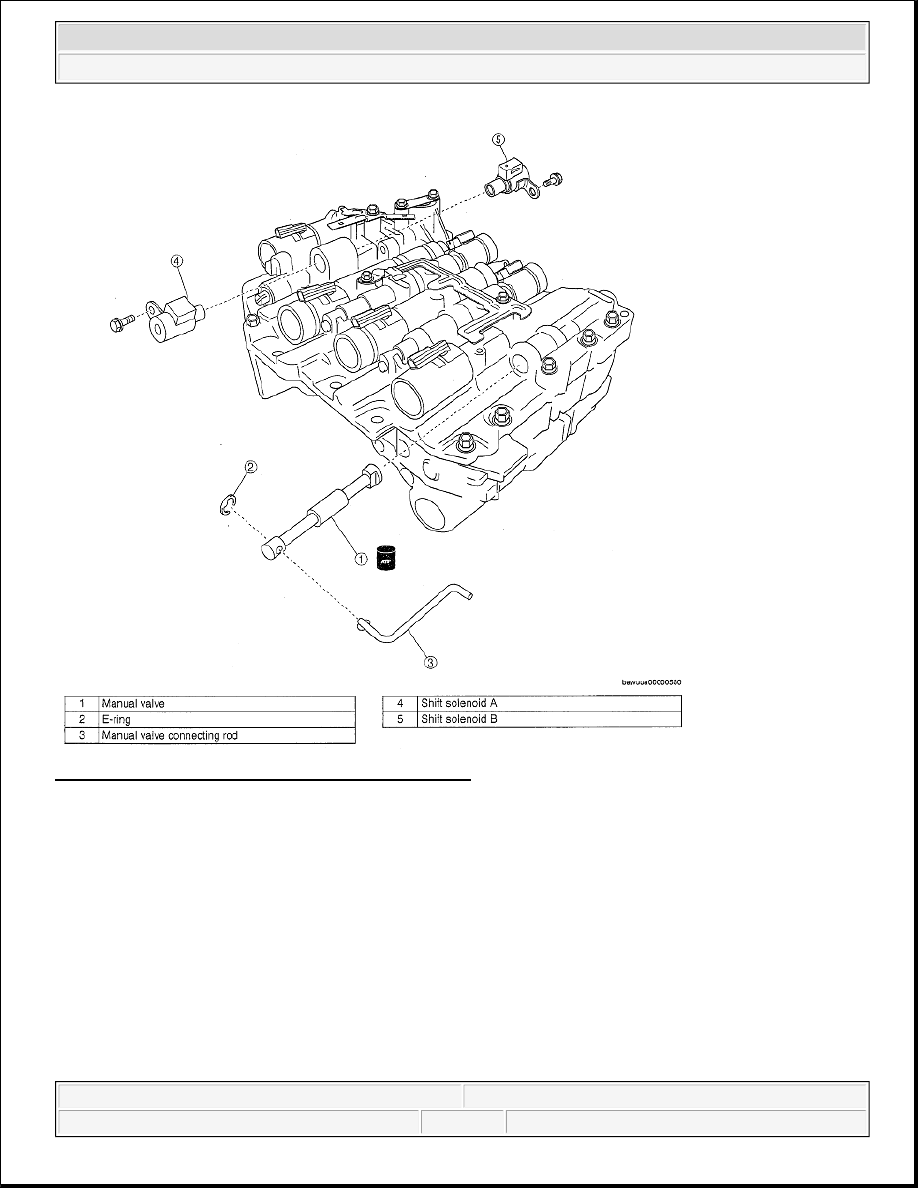

Fig. 206: Identifying Control Valve Body Components
Courtesy of MAZDA MOTORS CORP.

Disassembly Procedure

CAUTION:



Do not pull the manual valve strongly.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:17 AM

Page 111

© 2005 Mitchell Repair Information Company, LLC.

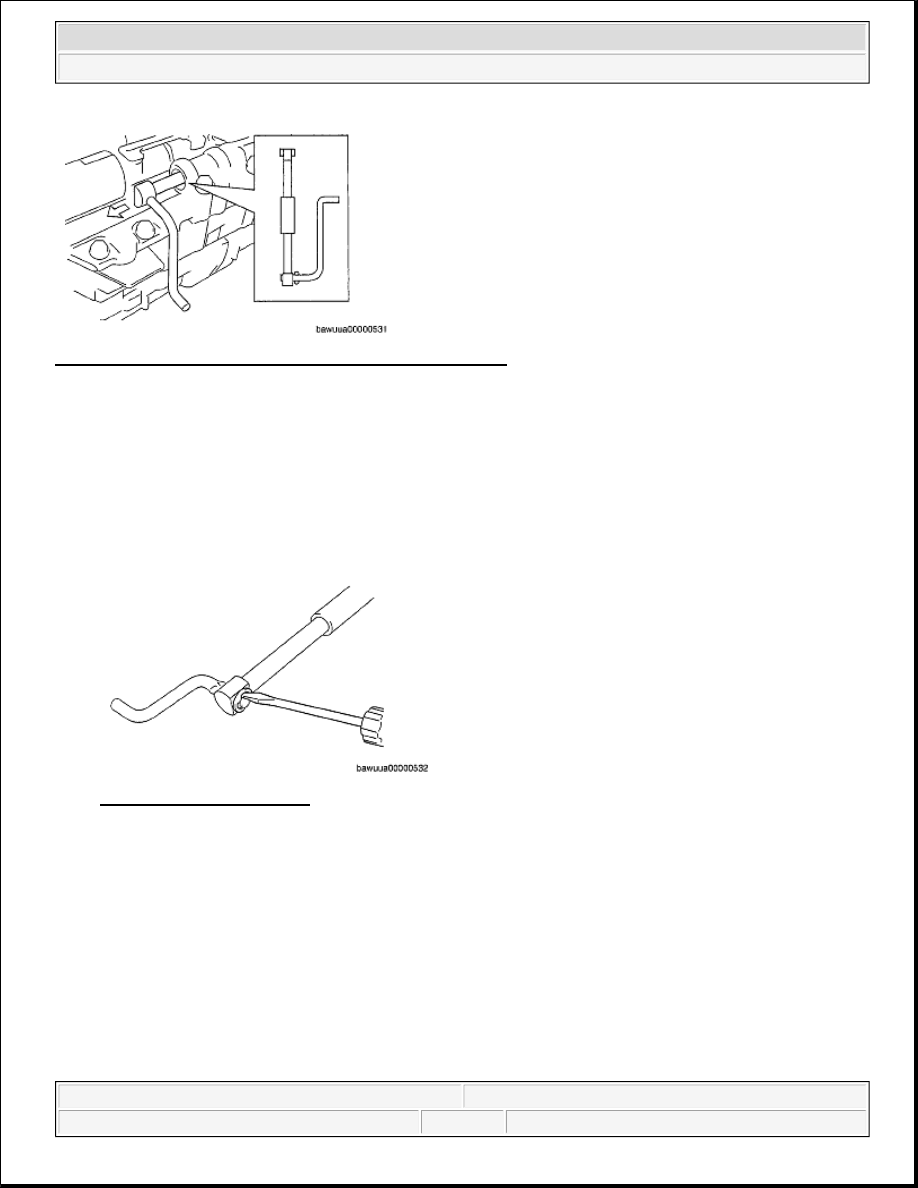

Fig. 207: Identifying Manual Valve Of Control Valve Body
Courtesy of MAZDA MOTORS CORP.

1. Remove the manual valve from the control valve body.

2. Using a flathead screwdriver, remove the E-ring.

3. Remove the manual valve connecting rod from the manual valve.

Fig. 208: Removing E-Ring
Courtesy of MAZDA MOTORS CORP.

4. Remove the solenoids from the control valve body.

CAUTION:



Do not damage the solenoid.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:17 AM

Page 112

© 2005 Mitchell Repair Information Company, LLC.

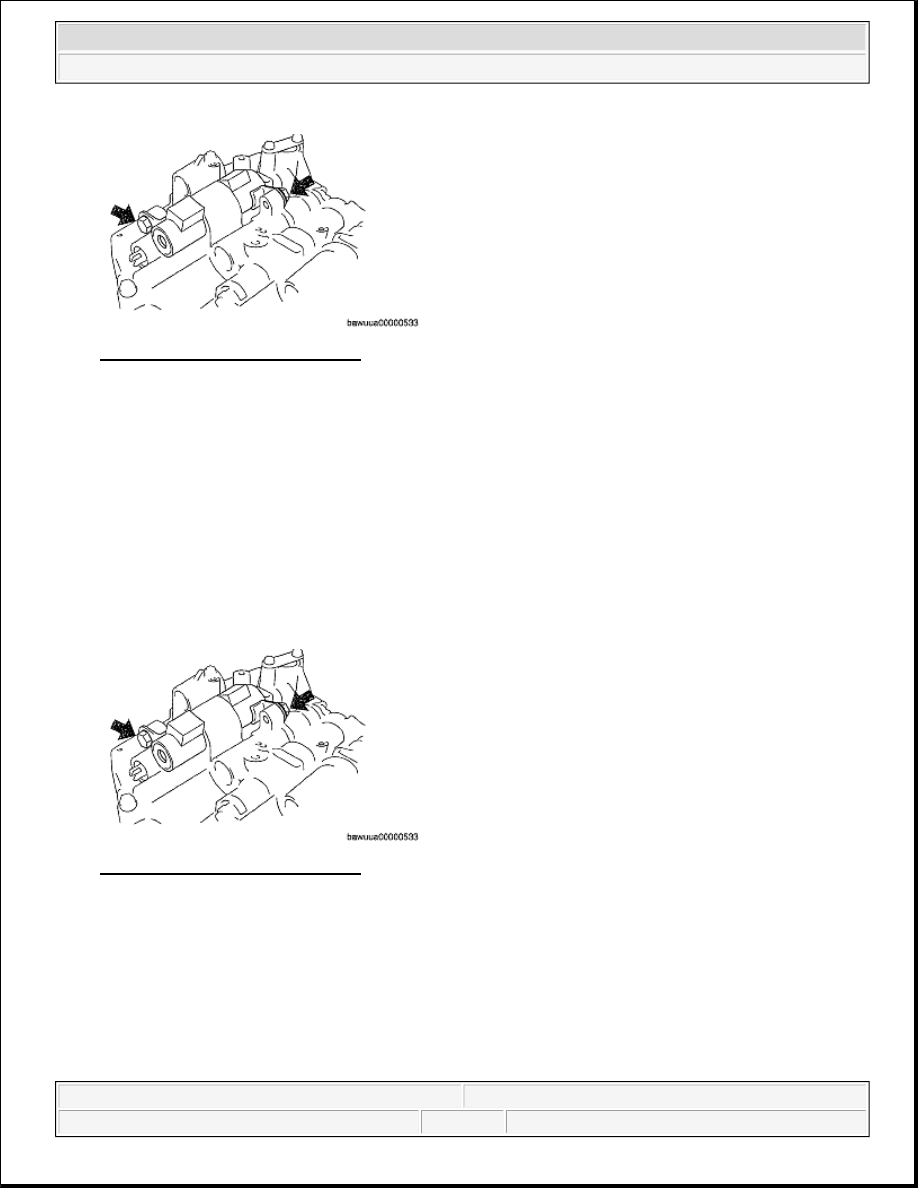

Fig. 209: Locating Solenoids Bolts
Courtesy of MAZDA MOTORS CORP.

Assembly Procedure

1. Install the solenoids to the front control valve body.

Tightening torque

8.0-12.0 N.m {81.6-122.3 kgf.cm, 70.9 - 106.1 in.lbf}

Fig. 210: Locating Solenoids Bolts
Courtesy of MAZDA MOTORS CORP.

2. Install the manual valve connecting rod to the manual valve.

3. Install the E-ring.

4. Apply ATF to the manual valve.

CAUTION:



Do not damage the solenoid.

CAUTION:



Do not damage the manual valve.
