Mazda CX-9 Grand Touring. Manual - part 65

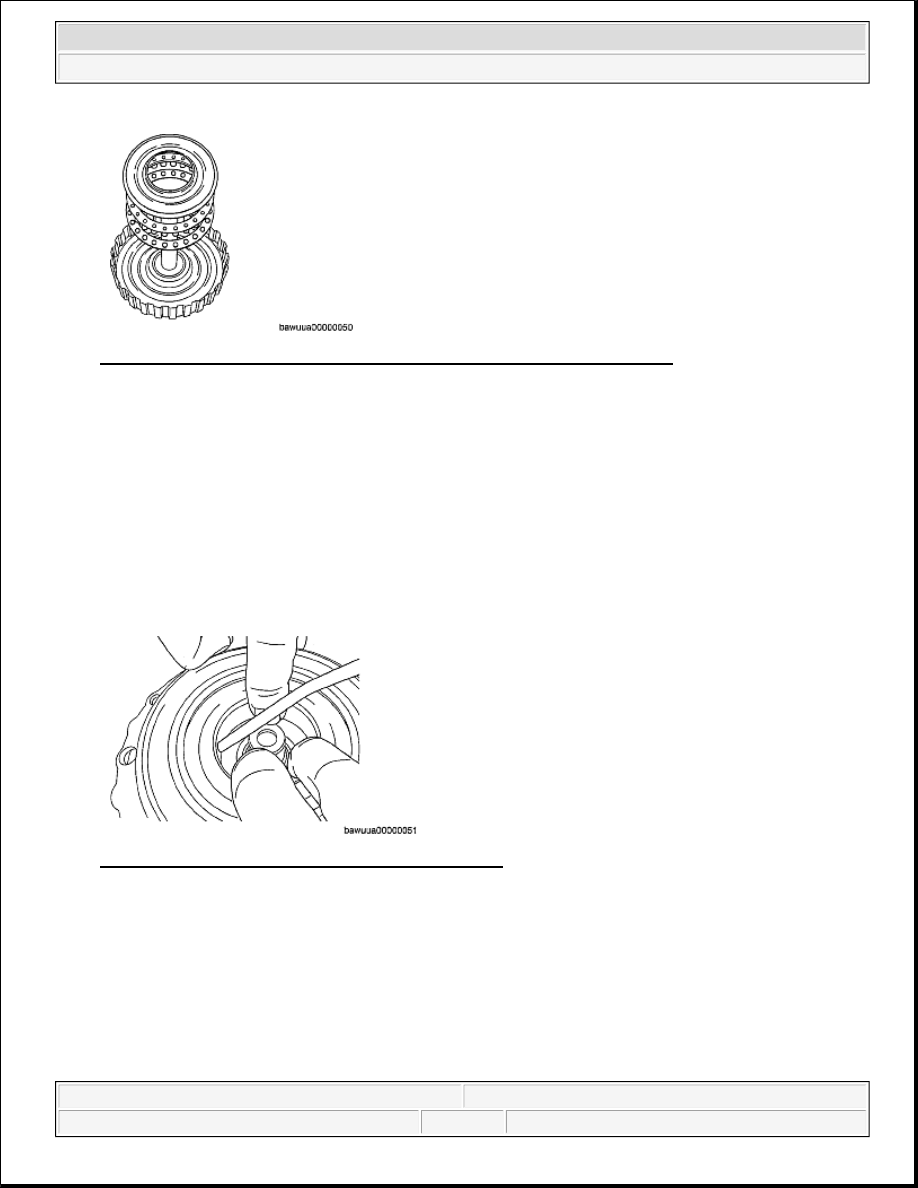

Fig. 178: Identifying Clutch Balancer, Return Spring And Spring Retainer
Courtesy of MAZDA MOTORS CORP.

7. While pushing the C2 clutch piston by hand, apply compressed air into the oil passage as shown in the

figure and remove the C2 clutch piston from the intermediate shaft.

Air pressure

392 kPa {4.0 kgf/cm

2

 , 57 psi}



Fig. 179: Applying Compressed Air Into Oil Passage
Courtesy of MAZDA MOTORS CORP.

8. Remove the O-rings from the intermediate shaft.

NOTE:



When applying compressed air, block the three oil passages of the
intermediate shaft as shown in the figure.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:16 AM

Page 94

© 2005 Mitchell Repair Information Company, LLC.

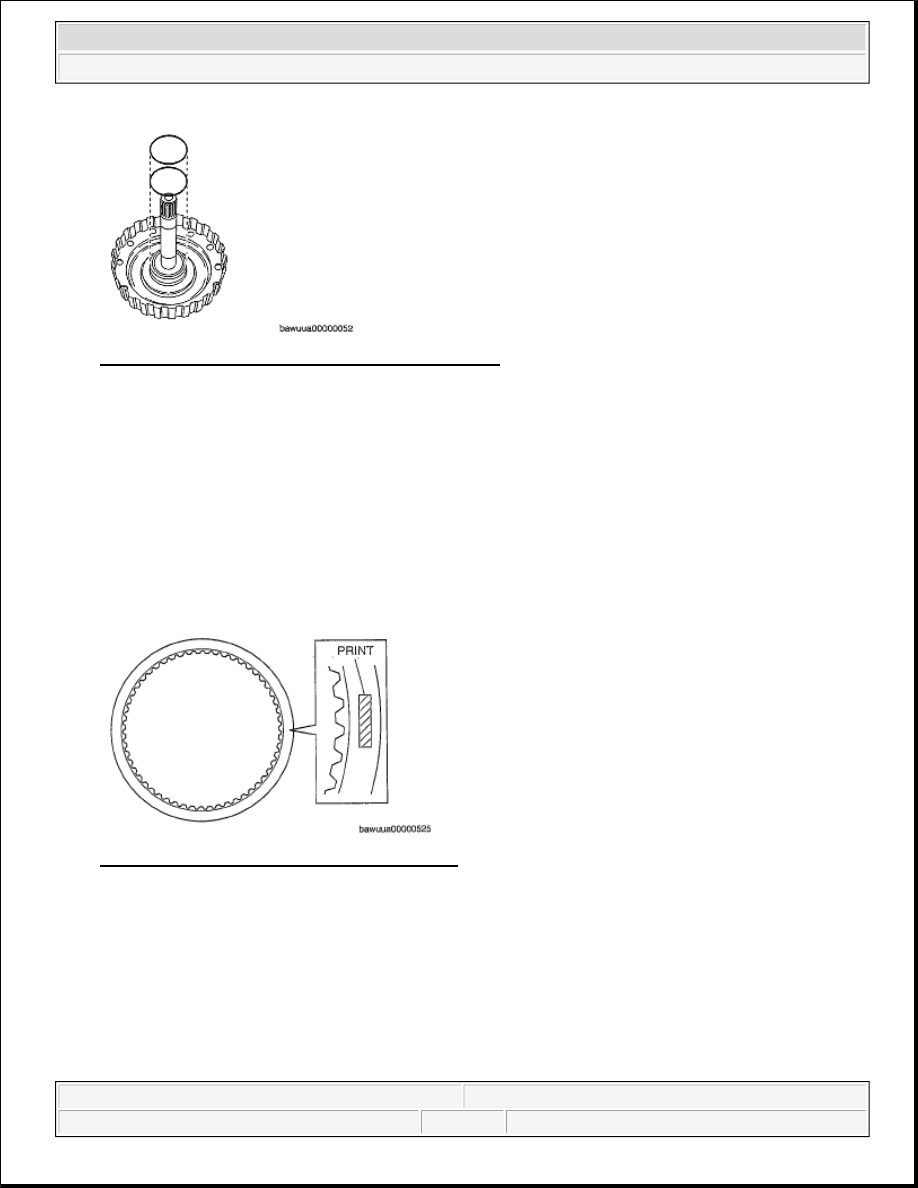

Fig. 180: Identifying O-Rings Of Intermediate Shaft
Courtesy of MAZDA MOTORS CORP.

C2 CLUTCH INSPECTION

1. Inspect the lining of all drive plates.



If the lining is flaking or has changed color, or if it is worn or the print mark is wearing away,
replace with a new drive plate. When replacing, inspect the contact surfaces between the retaining
plate, driven plate and drive plate. If they are scratched or have changed color, replace with new
parts.

Fig. 181: Inspecting Lining Of All Drive Plates
Courtesy of MAZDA MOTORS CORP.

2. Using vernier calipers, measure the free length of the piston return spring.

C2 clutch return spring free length

Standard: 14.02 mm {0.5520 in}



If it is less than the specification, replace the piston return spring with a new one.

NOTE:



Before replacing with new drive plates, soak them at least 2 h in ATF.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:17 AM

Page 95

© 2005 Mitchell Repair Information Company, LLC.

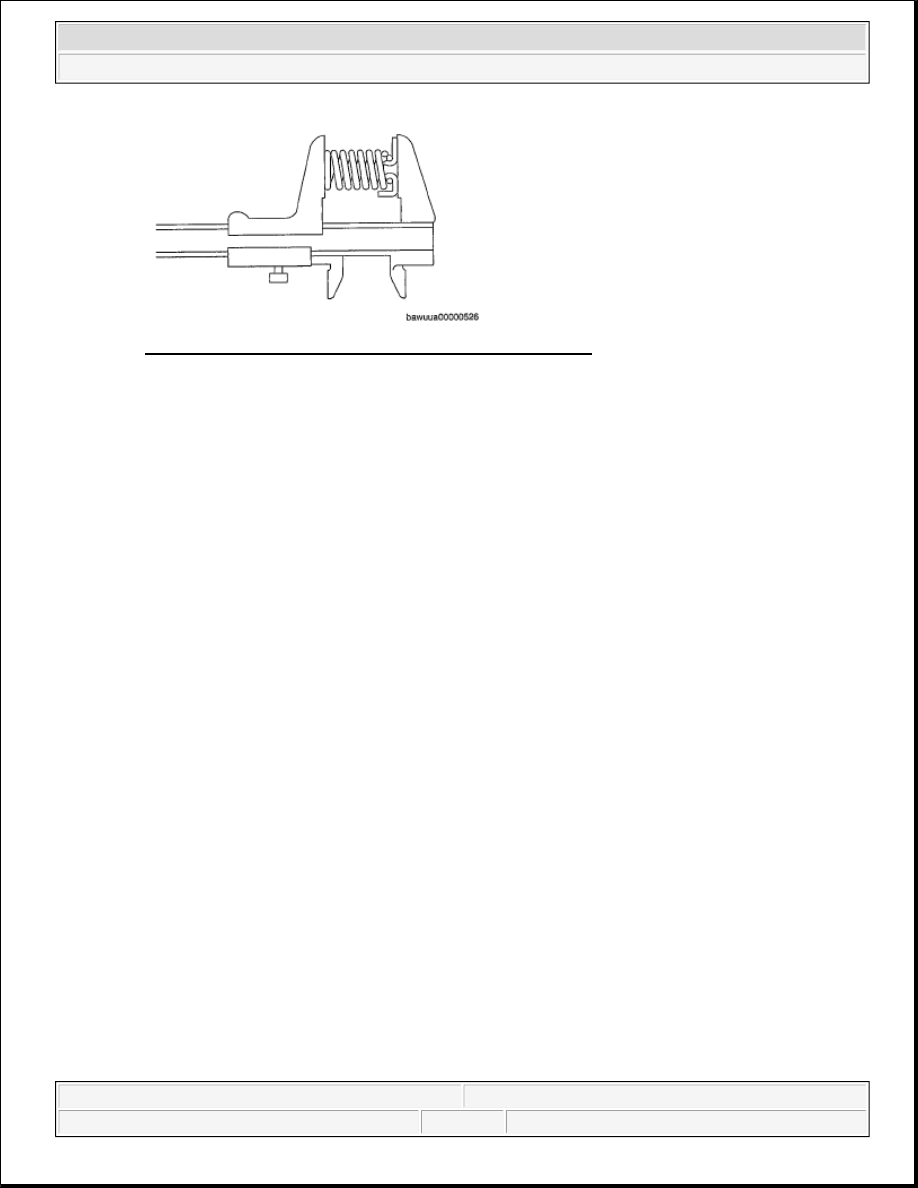

Fig. 182: Measuring Free Length Of Piston Return Spring
Courtesy of MAZDA MOTORS CORP.

C2 CLUTCH COMPONENT ASSEMBLY

Components



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:17 AM

Page 96

© 2005 Mitchell Repair Information Company, LLC.

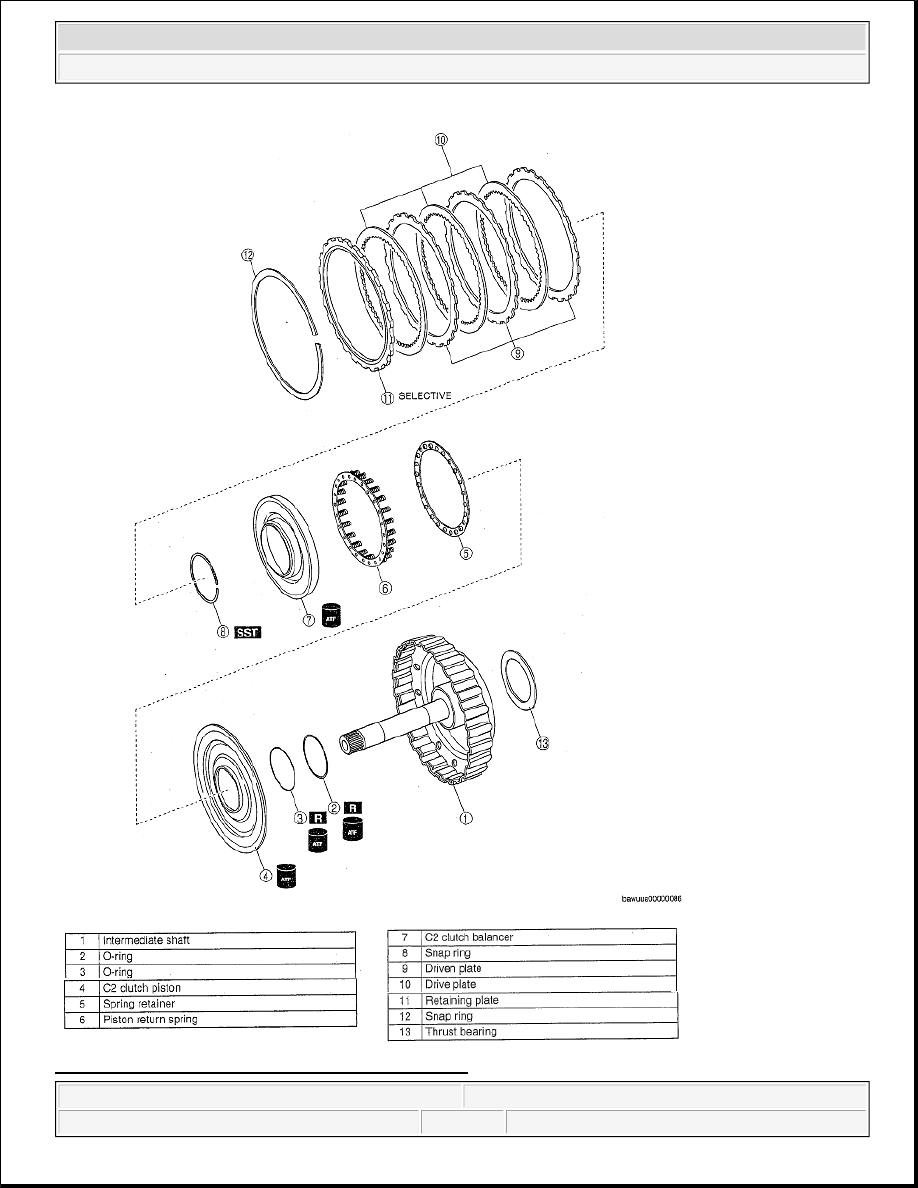

Fig. 183: Identifying C2 Clutch Component Assembly
