Mazda CX-9 Grand Touring. Manual - part 52





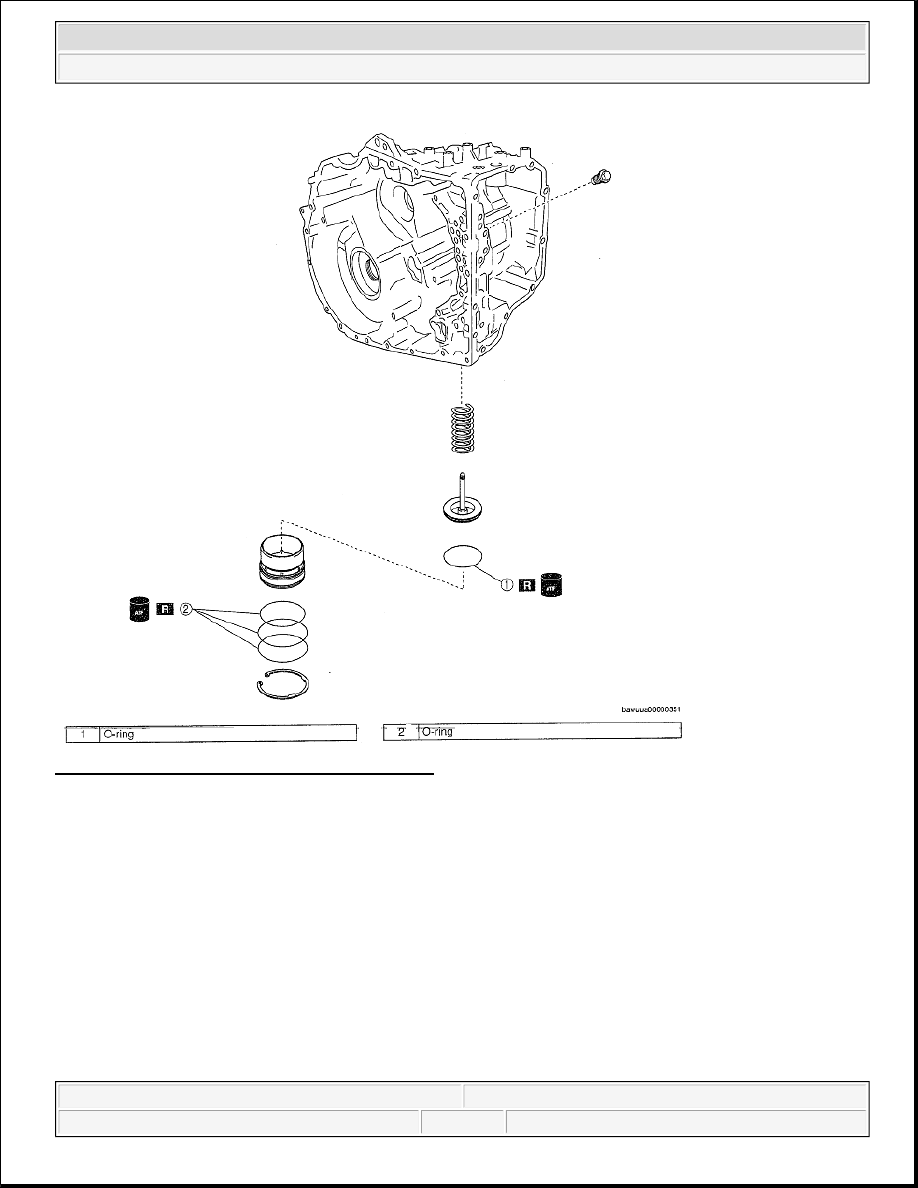

Fig. 83: Identifying B1 Brake Piston Components
Courtesy of MAZDA MOTORS CORP.

Disassembly Procedure

1. Remove the O-ring from the B1 brake piston.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:16 AM

Page 42

© 2005 Mitchell Repair Information Company, LLC.

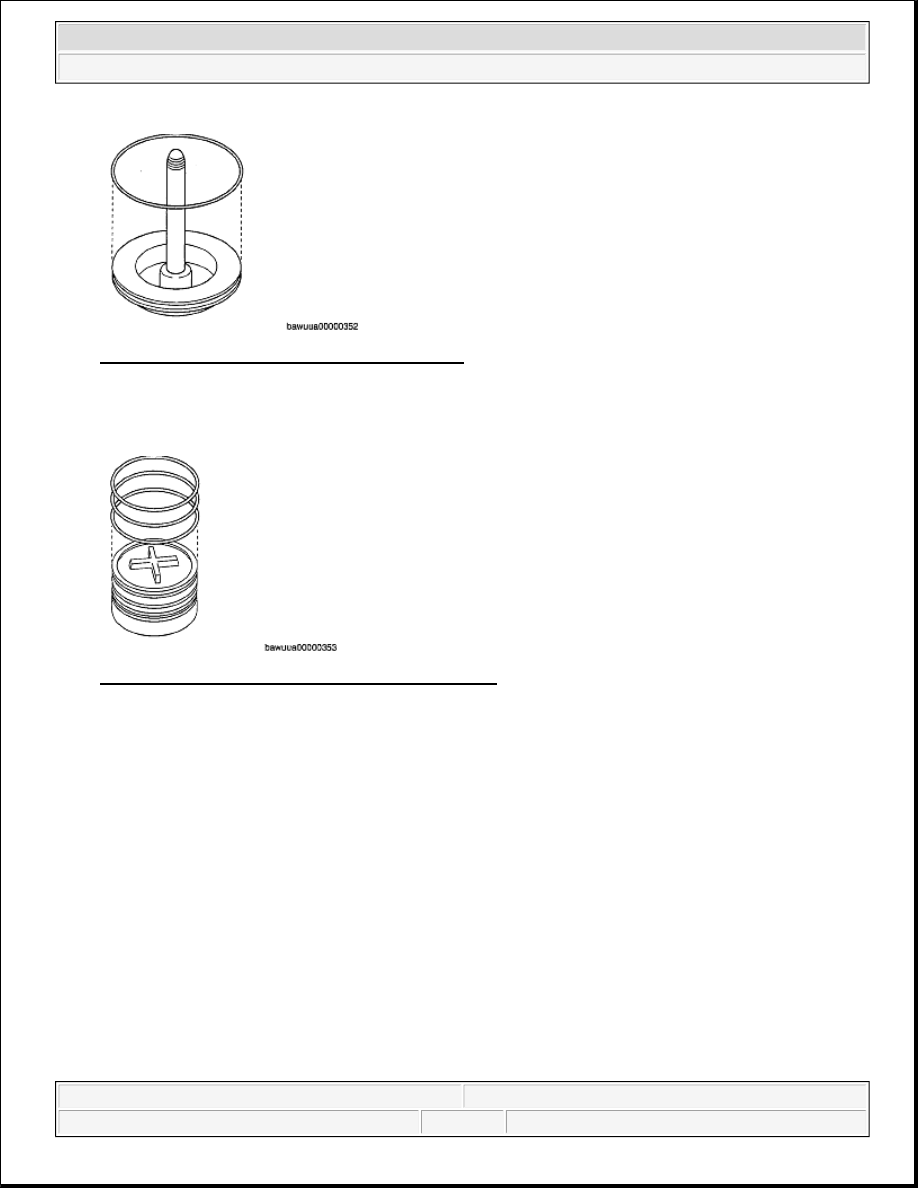

Fig. 84: Identifying O-Ring Of B1 Brake Piston
Courtesy of MAZDA MOTORS CORP.

2. Remove the O-rings from the brake piston cover.

Fig. 85: Identifying O-Rings Of Brake Piston Cover
Courtesy of MAZDA MOTORS CORP.

Assembly Procedure

1. Apply ATF to the new O-rings.

2. Install the O-rings to the brake piston cover.

Number of O-ring

AJ:3

L3 with TC: 2

3. Apply ATF to a new O-ring.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:16 AM

Page 43

© 2005 Mitchell Repair Information Company, LLC.

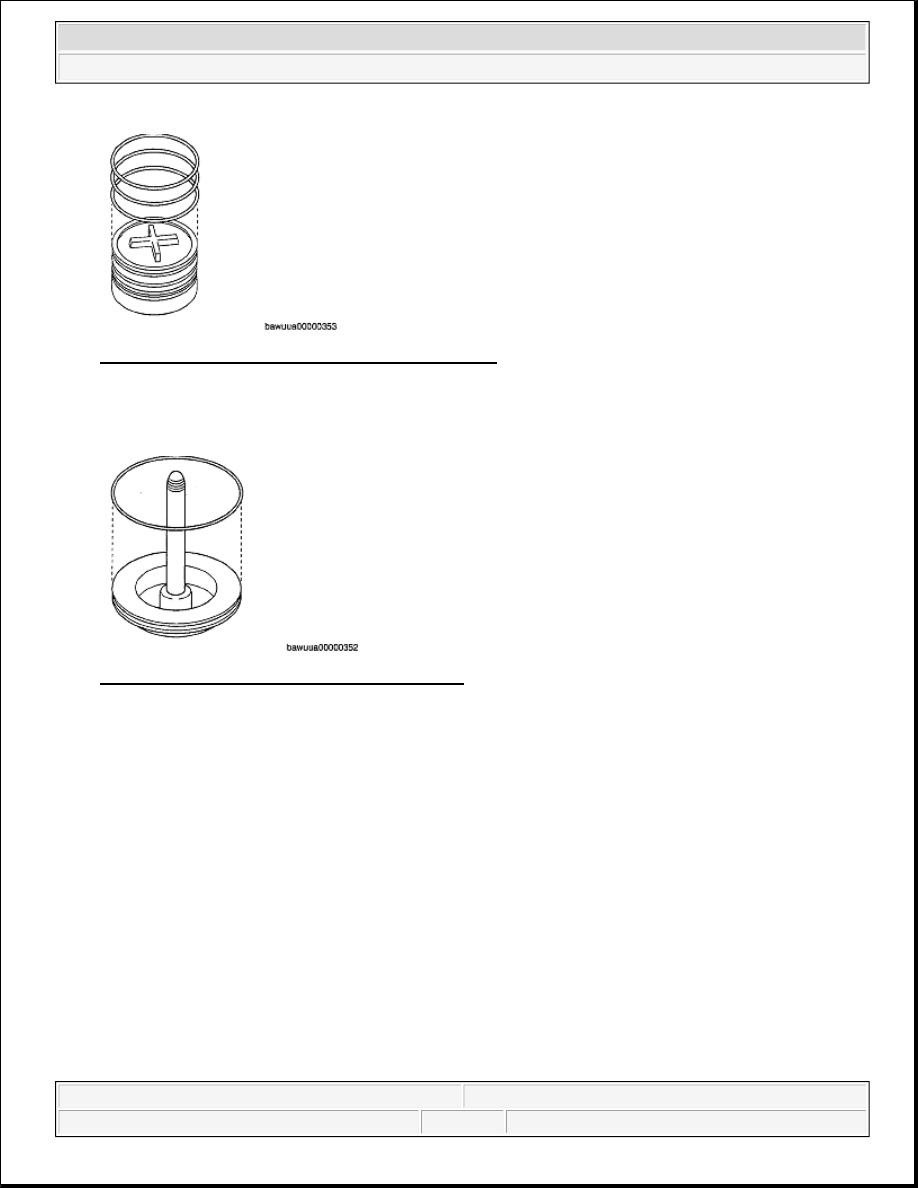

Fig. 86: Identifying O-Rings Of Brake Piston Cover
Courtesy of MAZDA MOTORS CORP.

4. Install the O-ring to the B1 brake piston.

Fig. 87: Identifying O-Ring Of B1 Brake Piston
Courtesy of MAZDA MOTORS CORP.

C3 CLUTCH COMPONENT DISASSEMBLY

Components



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:16 AM

Page 44

© 2005 Mitchell Repair Information Company, LLC.

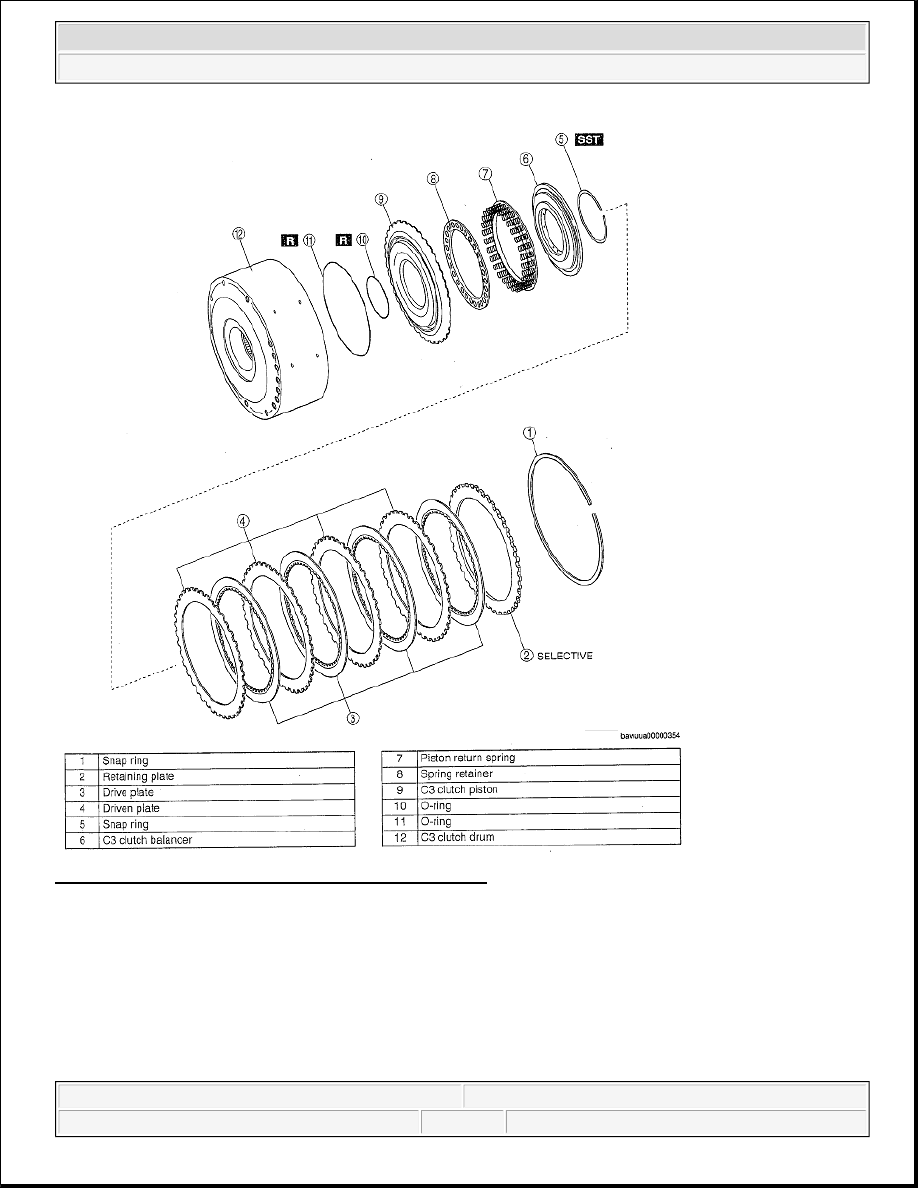

Fig. 88: Identifying C3 Clutch Disassembly Components
Courtesy of MAZDA MOTORS CORP.

Disassembly Procedure

1. Using a flathead screwdriver, remove the snap ring from the C3 clutch drum.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:16 AM

Page 45

© 2005 Mitchell Repair Information Company, LLC.
