Mazda CX-9 Grand Touring. Manual - part 49

Fig. 57: Identifying O-Rings Of Oil Cooler Outlet Tube
Courtesy of MAZDA MOTORS CORP.

58. Using a flathead screwdriver and a hammer, pry back the crimp on the lockwashers.

59. Remove the lockwashers, washers and the counter drive gear.

CAUTION:



If the lockwasher crimp is not completely pried back, the tool
cannot fit over the bolt properly and the bolt cannot be
loosened.

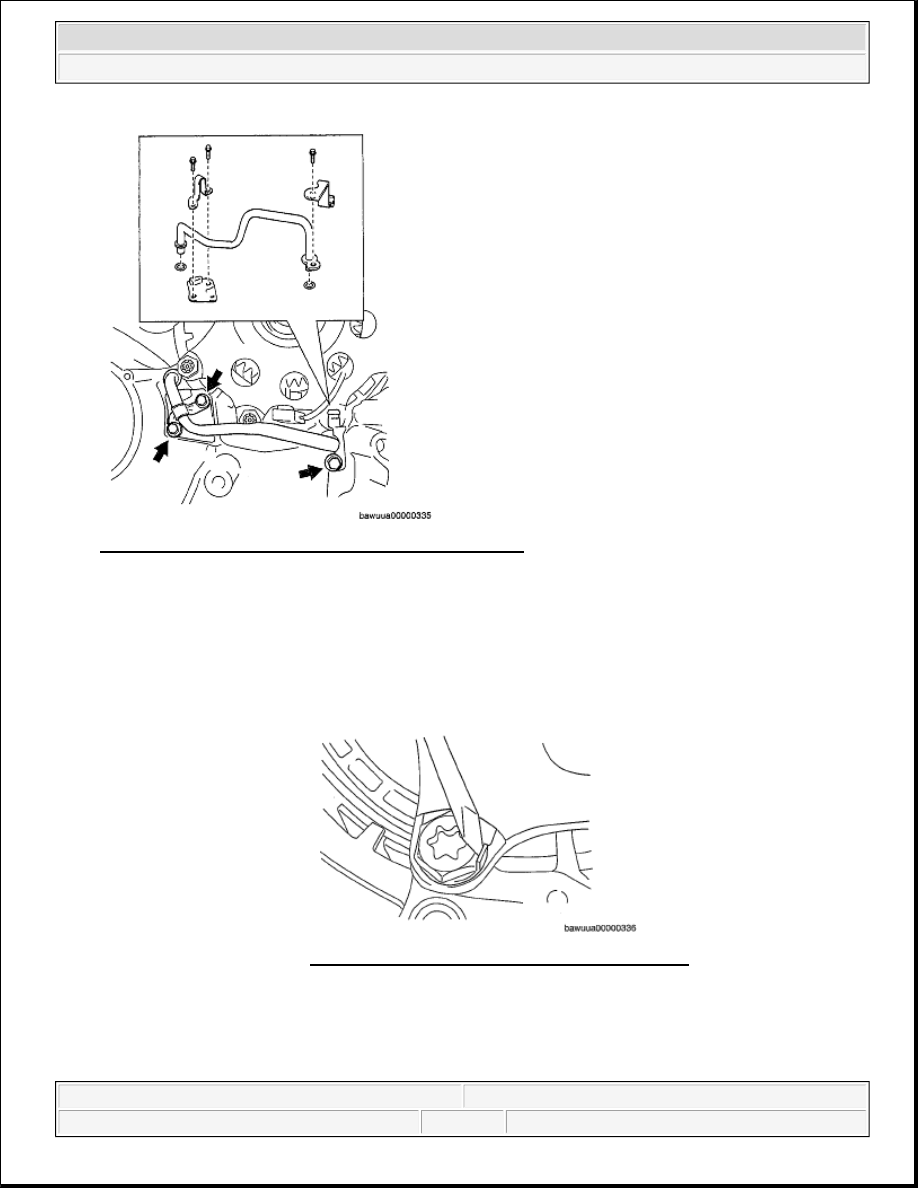

Fig. 58: Prying Back Crimp On Lockwashers
Courtesy of MAZDA MOTORS CORP.

CAUTION:



Do not damage the VSS wiring harness.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:16 AM

Page 30

© 2005 Mitchell Repair Information Company, LLC.

60. Remove the VSS and spacer from the counter drive gear.

Fig. 60: Identifying VSS And Spacer
Courtesy of MAZDA MOTORS CORP.

61. Using a flathead screwdriver, remove the snap ring.



Do not pull hard on the VSS wiring harness.



Do not damage the VSS.

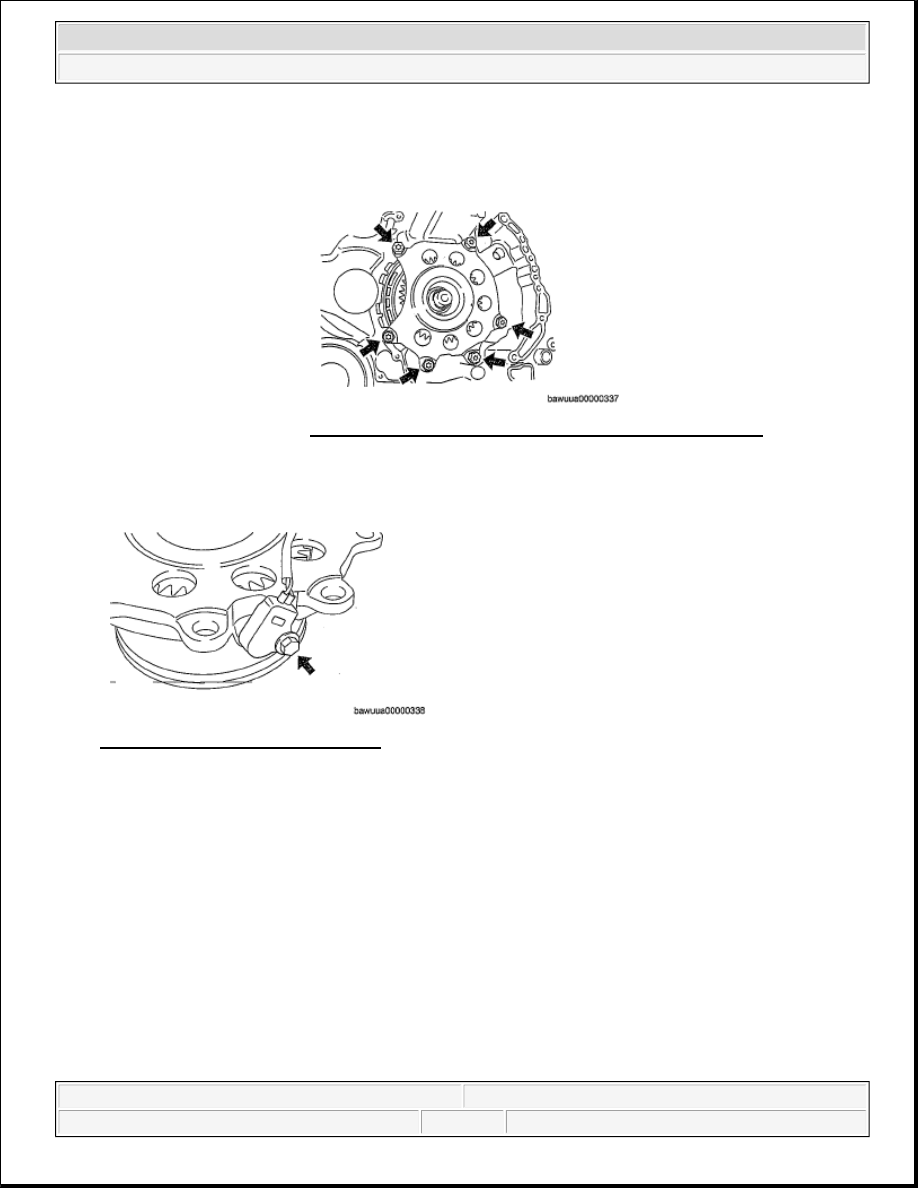

Fig. 59: Identifying Bolts Of Counter Drive Gear Plate
Courtesy of MAZDA MOTORS CORP.

CAUTION:



Do not drop the sun gear.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:16 AM

Page 31

© 2005 Mitchell Repair Information Company, LLC.

62. Remove the rear planetary gear component and the one-way clutch.

63. Remove the thrust bearing and the bearing races.

Fig. 61: Removing Snap Ring
Courtesy of MAZDA MOTORS CORP.

NOTE:



In some cases, the sun gear may be detached with the bearing race
attached.

NOTE:



Remove the sun gear in the center while holding it.



The thrust washer of the rear planetary gear on the rear side might
remain on the transaxle case side when removing the rear planetary
gear component.

Fig. 62: Removing Rear Planetary Gear Component And One-Way
Clutch
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:16 AM

Page 32

© 2005 Mitchell Repair Information Company, LLC.

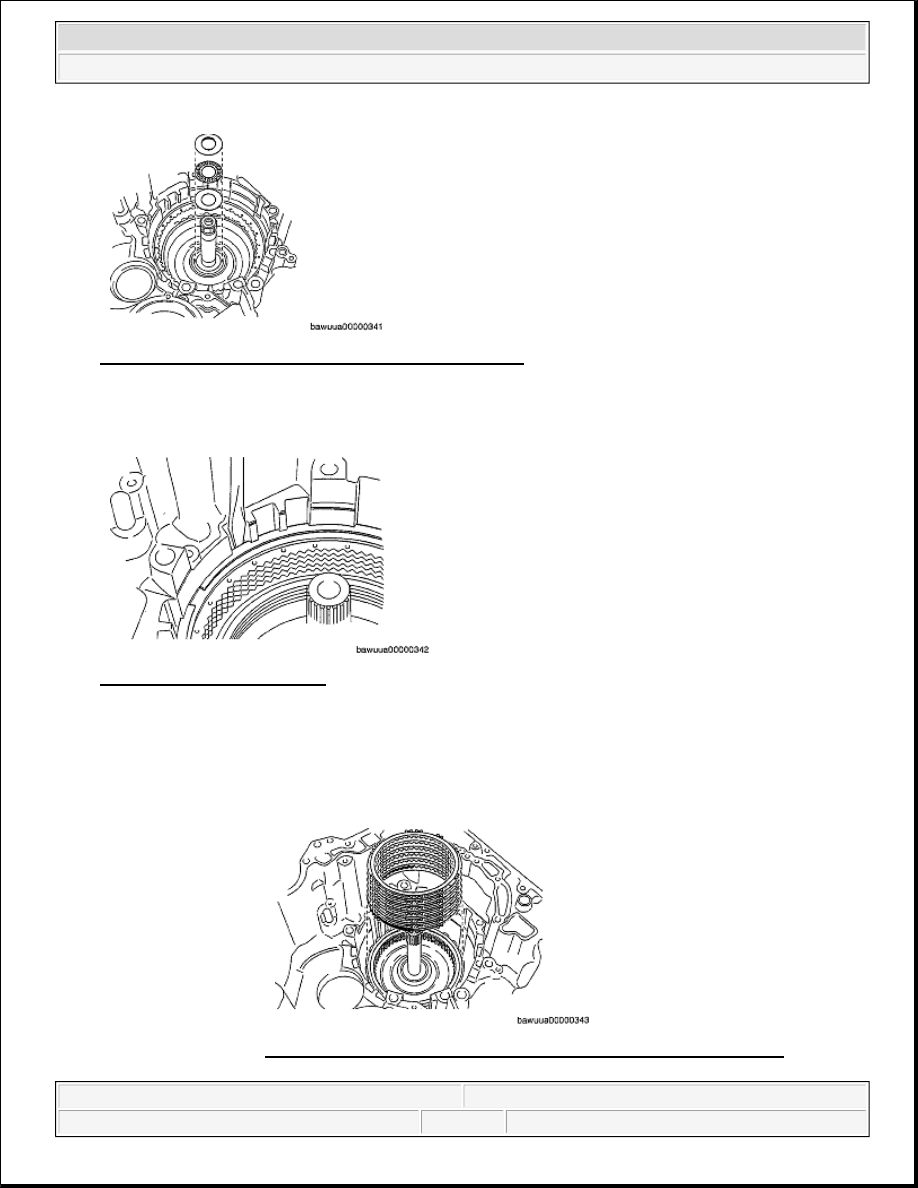

Fig. 63: Identifying Thrust Bearing And Bearing Races
Courtesy of MAZDA MOTORS CORP.

64. Using a flathead screwdriver, remove the snap ring.

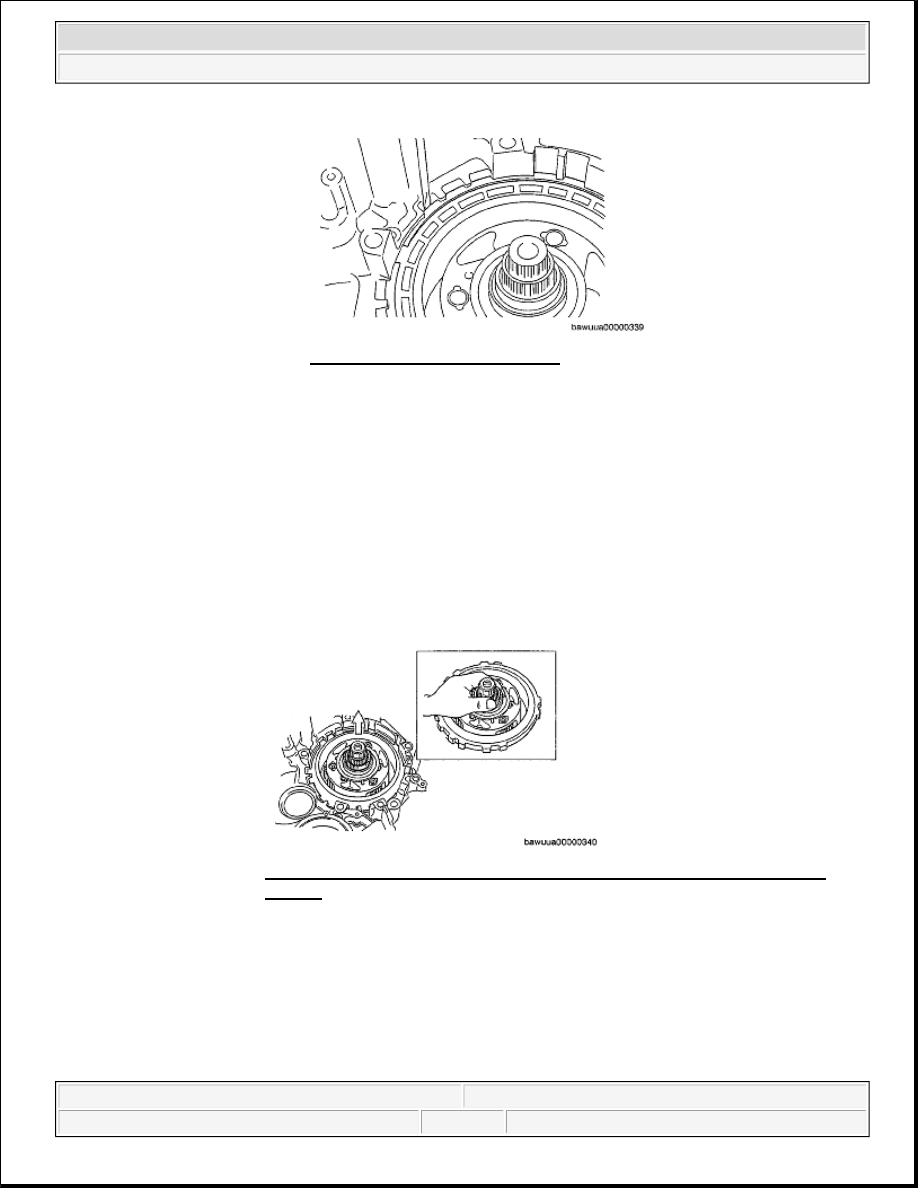

Fig. 64: Removing Snap Ring
