Mazda CX-9 Grand Touring. Manual - part 45

Fig. 20: Securing VSS Wiring Harness And Input/Turbine Speed Sensor Wiring Harness With
Tape
Courtesy of MAZDA MOTORS CORP.

18. Remove the suction cover and the gasket.

19. Remove the control valve body installation bolts.

CAUTION:



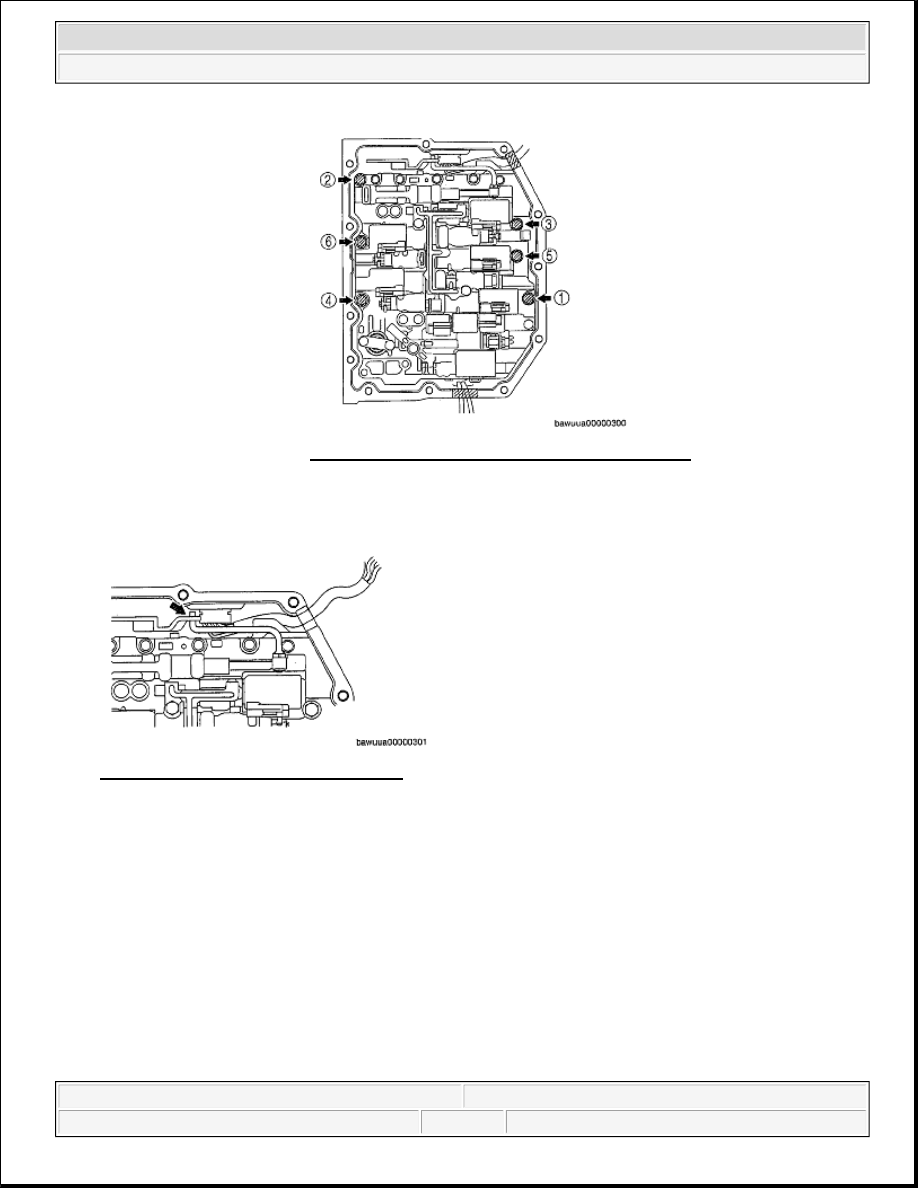

Loosen the bolts evenly a little at a time in the order shown in
the figure.

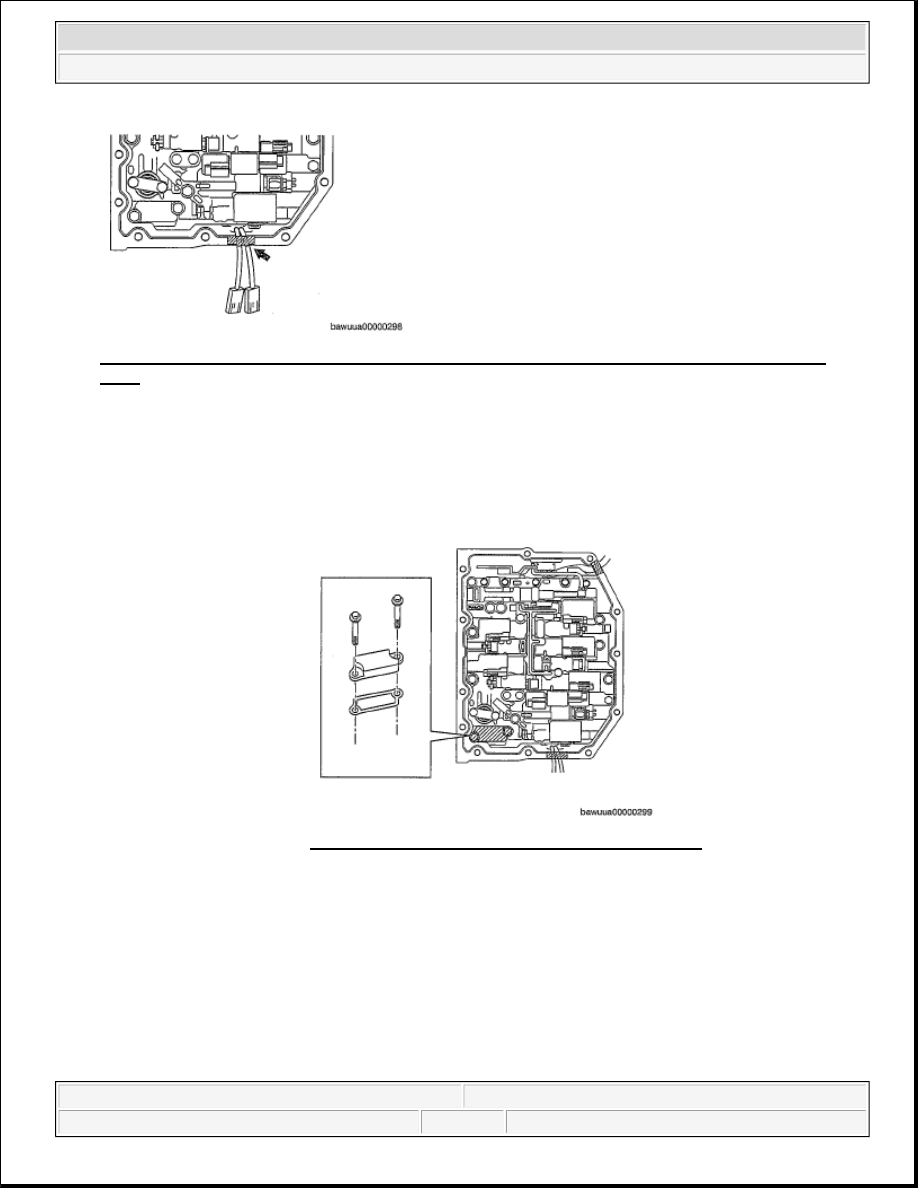

Fig. 21: Identifying Suction Cover And Gasket
Courtesy of MAZDA MOTORS CORP.

CAUTION:



Do not drop the control valve body component.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:15 AM

Page 14

© 2005 Mitchell Repair Information Company, LLC.

20. Disconnect the manual valve link and remove the control valve body component.

Fig. 23: Identifying Manual Valve Link
Courtesy of MAZDA MOTORS CORP.

21. Remove the coupler component lock plate.

22. Remove the coupler component from the transaxle case.

Fig. 22: Identifying Control Valve Body Bolts
Courtesy of MAZDA MOTORS CORP.

CAUTION:



Do not damage the wiring harness.



Do not pull hard on the wiring harness.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:15 AM

Page 15

© 2005 Mitchell Repair Information Company, LLC.

Fig. 24: Identifying Coupler Component Lock Plate
Courtesy of MAZDA MOTORS CORP.

23. Remove the O-ring and the gasket from the coupler component.

24. Remove the input/turbine speed sensor.

25. Remove the bolts as shown in the figure.

CAUTION:



Do not damage the input/turbine speed sensor.

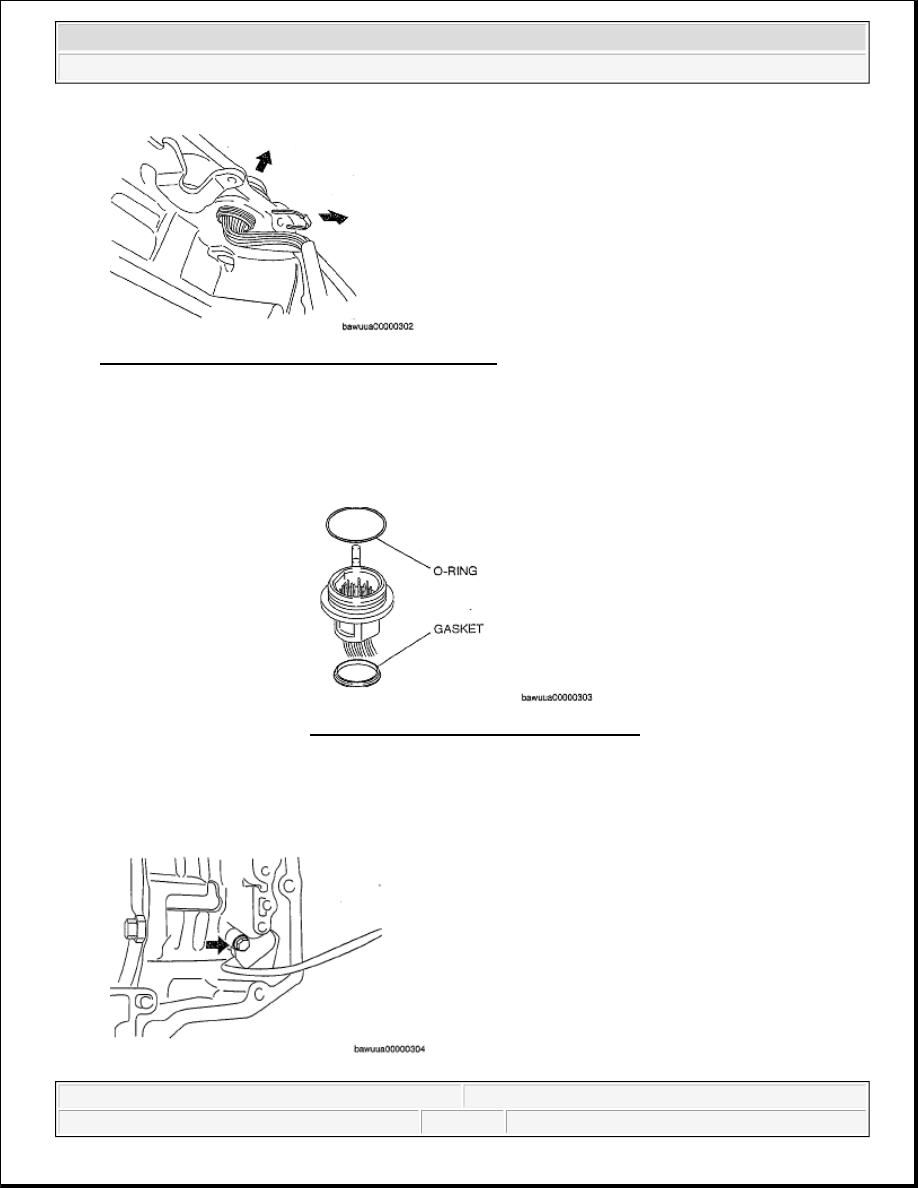

Fig. 25: Identifying O-Ring And Gasket
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:15 AM

Page 16

© 2005 Mitchell Repair Information Company, LLC.

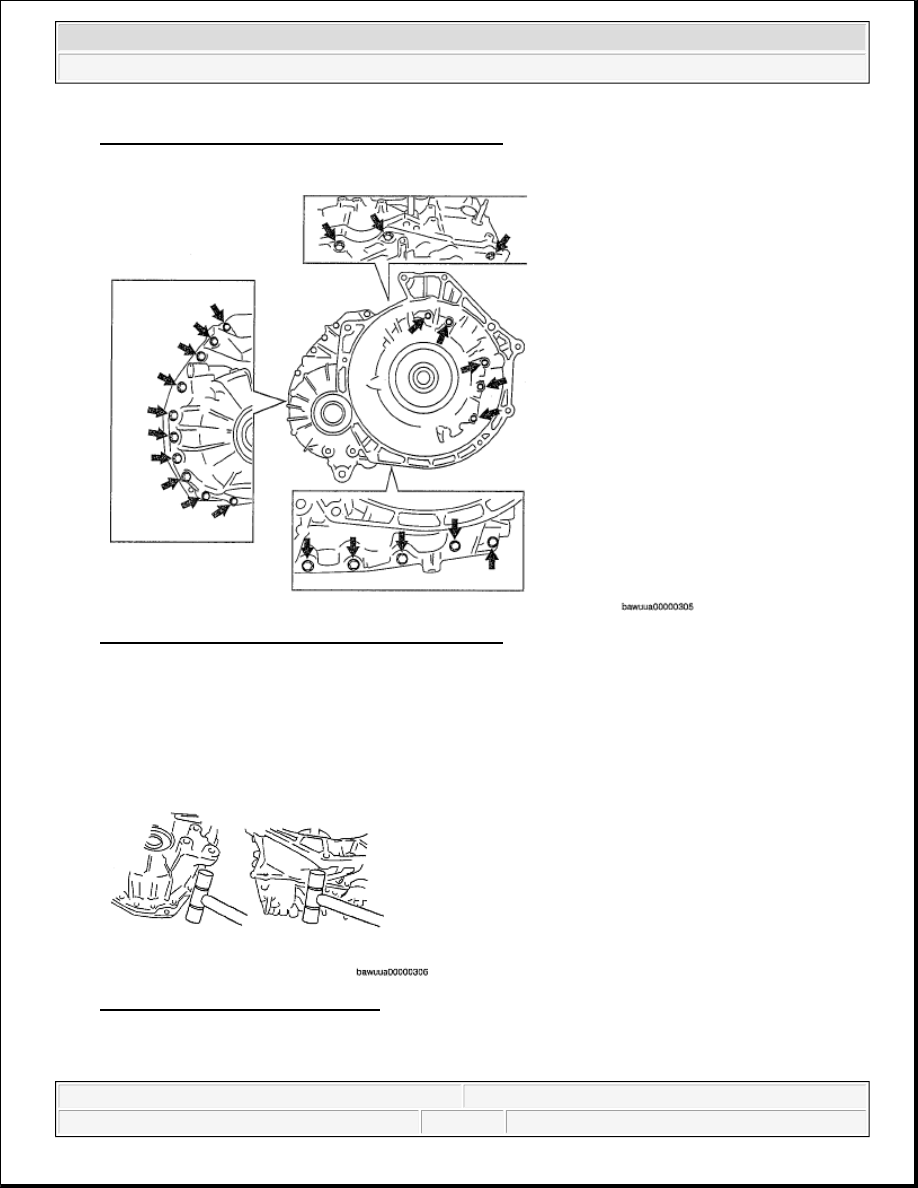

Fig. 26: Identifying Bolts Of Transaxle Case (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

Fig. 27: Identifying Bolts Of Transaxle Case (2 Of 2)
Courtesy of MAZDA MOTORS CORP.

26. Using a plastic hammer, tap the converter housing to remove it.

Fig. 28: Tapping Converter Housing
Courtesy of MAZDA MOTORS CORP.

27. Remove the transaxle case gaskets as shown in the figure.

CAUTION:



Do not damage the fitting surface of the converter housing and
the transaxle case.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:15 AM

Page 17

© 2005 Mitchell Repair Information Company, LLC.
