Mazda CX-9 Grand Touring. Manual - part 33

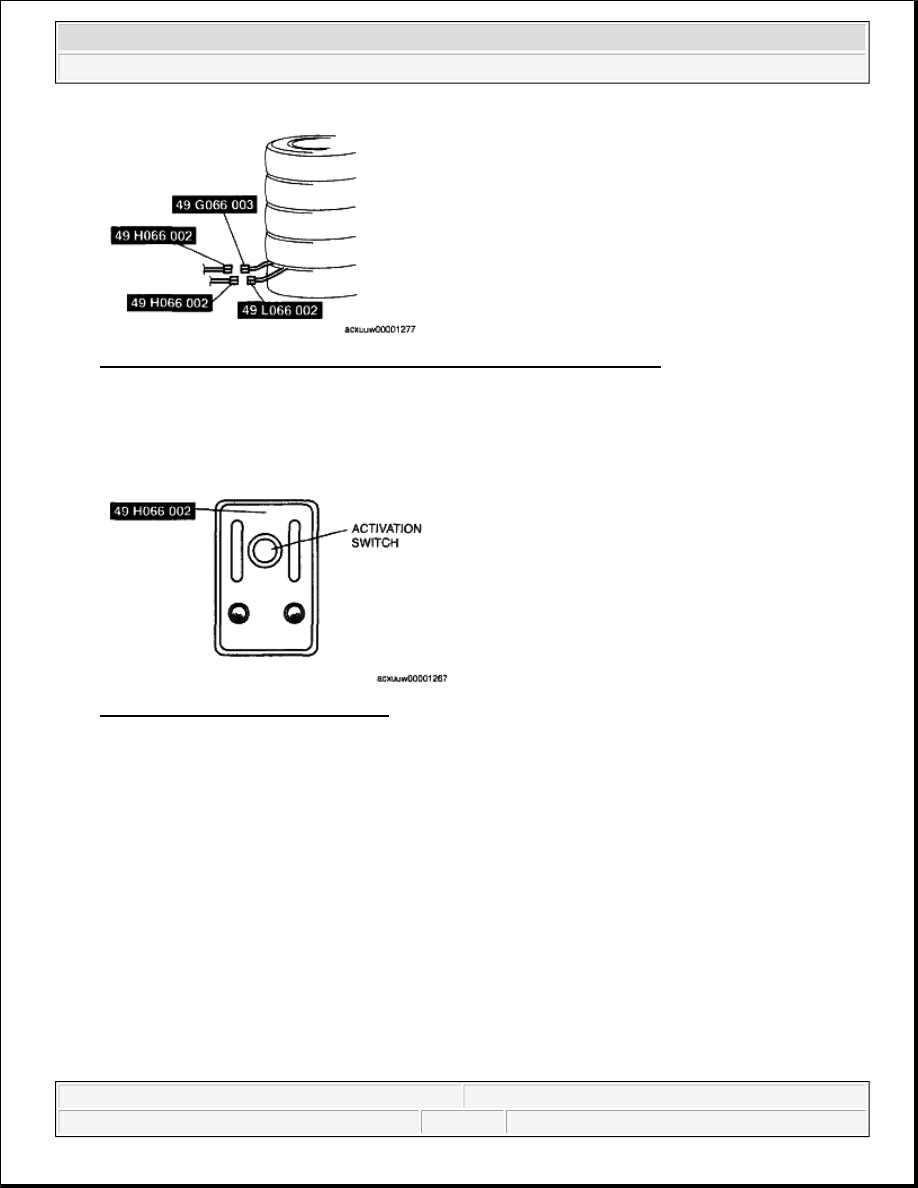

Fig. 51: Connecting SSTs (Deployment Tool) To SSTs (Adapter Harness)
Courtesy of MAZDA MOTORS CORP.

10. Press the activation switch on the SST (Deployment tool) connected with 49 L066 002 (a yellow

connector) of the SST (Adapter harness) , and after 3 s , press the activation switch on other SST
(Deployment tool) to operate (deploy) the air bag module (both inflators).

Fig. 52: Identifying Activation Switch
Courtesy of MAZDA MOTORS CORP.

11. Disconnect the SSTs (Deployment tool) from the SSTs (Adapter harness) .

WARNING:



Verify that air bag module operation (explosive) sound occurs
twice. If no operation (explosive) sound was heard or a single
operation (explosive) sound was heard, both inflators would
not have operated (deployed) properly. This may cause serious
injury if the air bag module operates (deploy) unexpectedly. If
the two operation (explosive) sounds are not heard, perform
Step 8 again. If a total of two operation (explosive) sounds
cannot be verified even though Step 8 is performed again,
leave the air bag module alone for 30 min or more before
approaching it again.



The air bag module is very hot immediately after it is operated
(deployed). You can be burned. Do not touch the air bag
module for at least 15 min after deployment.

2008 Mazda CX-9 Grand Touring

2008 RESTRAINTS Air Bag System - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:16:38 AM

Page 37

PASSENGER-SIDE AIR BAG MODULE

1. Remove the passenger-side air bag module.

(See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

2. Install the bolts to the passenger-side air bag module.

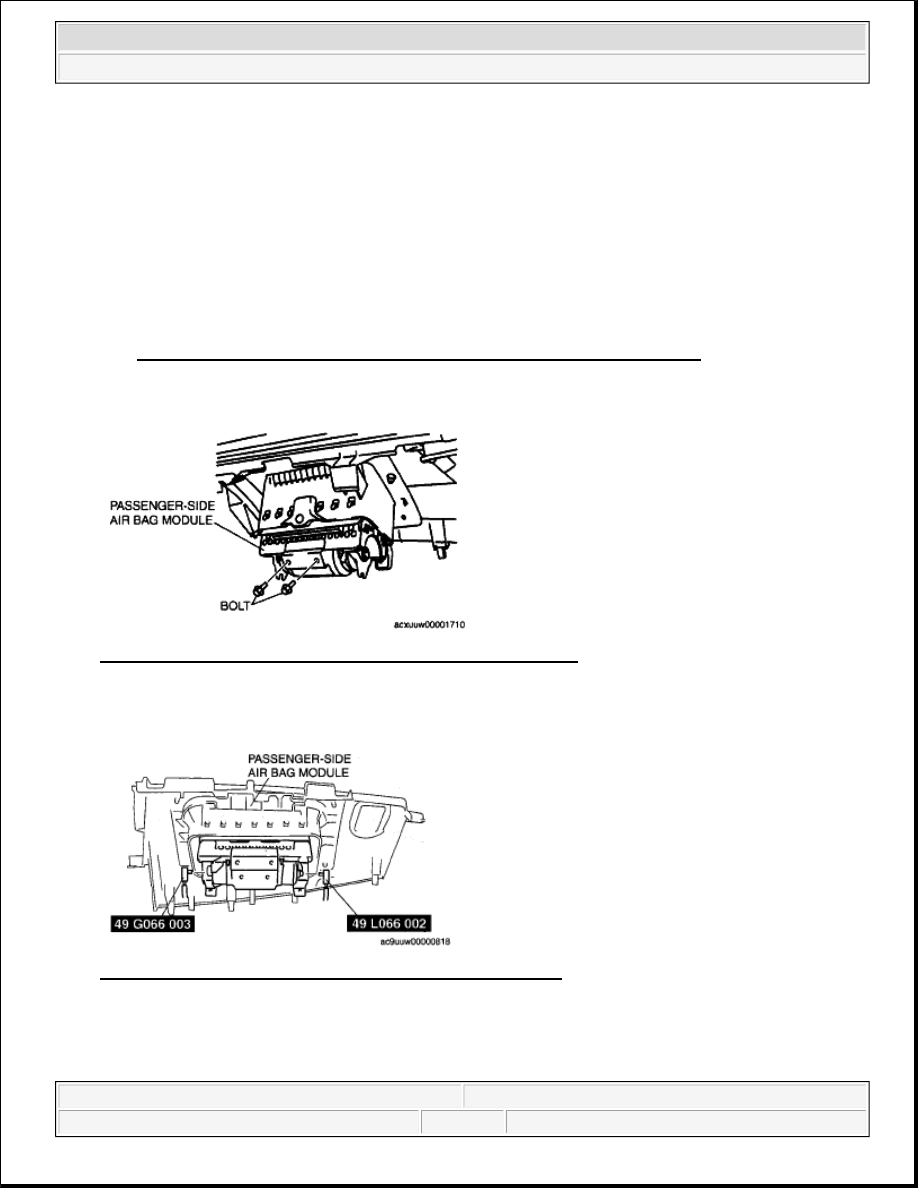

Fig. 53: Identifying Bolts And Passenger-Side Air Bag Module
Courtesy of MAZDA MOTORS CORP.

3. Connect the SSTs (Adapter harness) to the passenger-side air bag module as shown in the figure.

Fig. 54: Connecting SST To Passenger-Side Air Bag Module
Courtesy of MAZDA MOTORS CORP.

4. Place the padded surface of the passenger-side air bag module facing the center of the tire as shown in the

figure. To secure the air bag module to the tire wheel, wrap a wire (cross section 1.25 mm

{0.002 in

}

or more) through the tire and around the bolts at least 4 times as shown in the figure.

WARNING:



The passenger-side air bag module is a dual inflator type. If one
inflator is forced to operate (deploy), the other may operate (deploy)
accidentally. To prevent injury while disposing of the air bag
module, make sure to operate (deploy) both passenger-side air bag
module inflators simultaneously, following the procedure below.

2008 Mazda CX-9 Grand Touring

2008 RESTRAINTS Air Bag System - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:16:38 AM

Page 38

5. Stack the tire with the passenger-side air bag module on top of two tires without wheels. Stack a tire

without a wheel on top of the tire with the passenger-side air bag module, and then stack another tire with
a wheel on the very top.

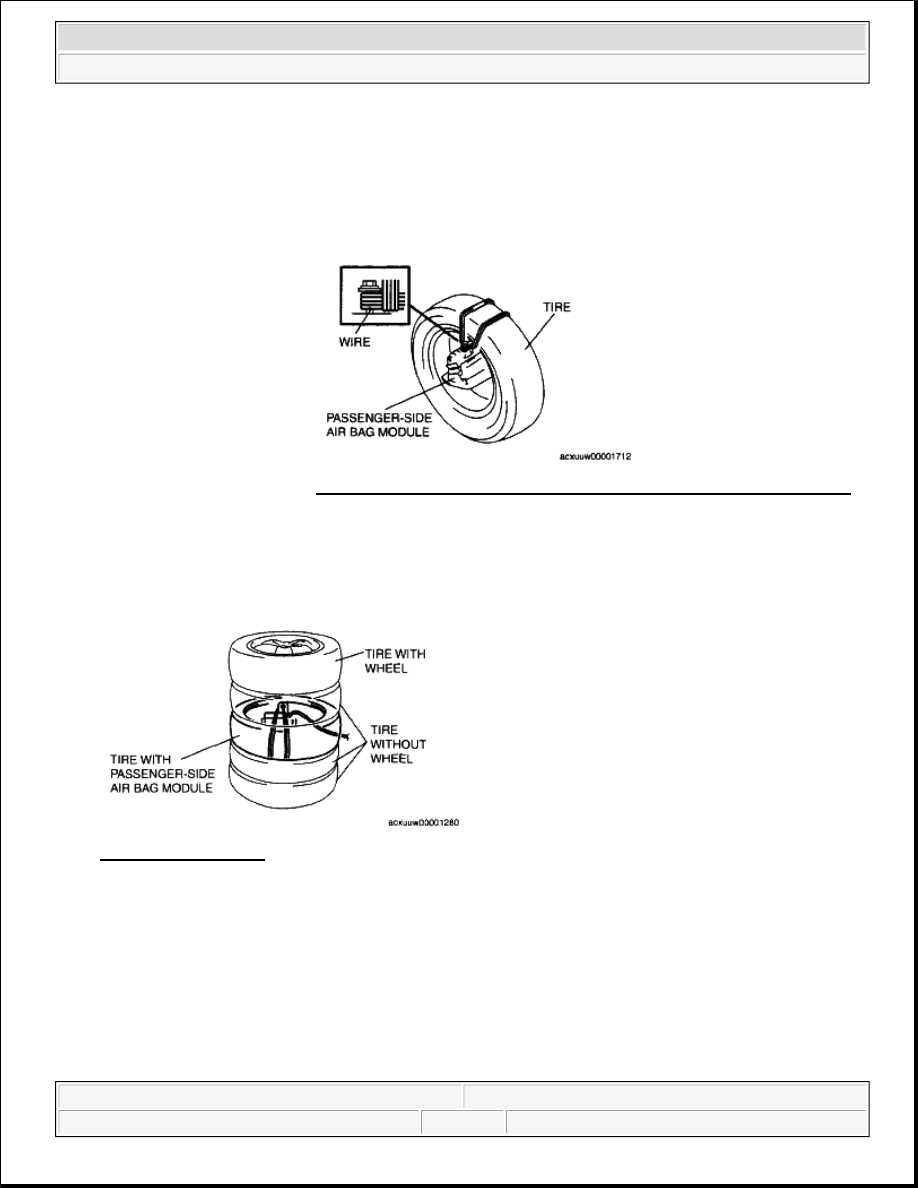

Fig. 56: Placing Tires
Courtesy of MAZDA MOTORS CORP.

6. Secure the tires with wire.

WARNING:



If the air bag module is not properly secured to the tire, the
tires may fall over by the impact of operation (deployment) and
cause serious injury. To prevent this, secure the air bag
module properly with the padded surface facing the center of
the tire

Fig. 55: Placing Passenger-Side Air Bag Module Center Of Tire
Courtesy of MAZDA MOTORS CORP.

2008 Mazda CX-9 Grand Touring

2008 RESTRAINTS Air Bag System - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:16:38 AM

Page 39

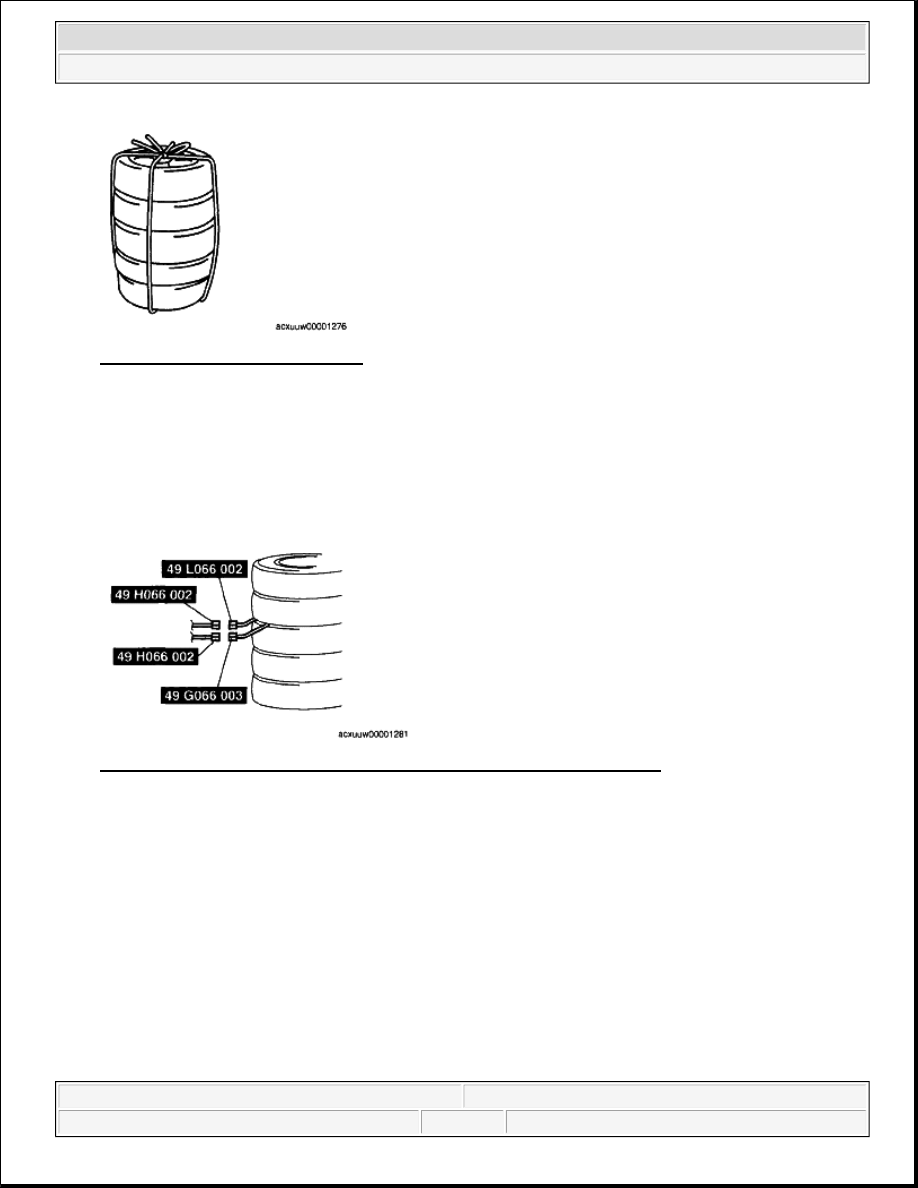

Fig. 57: Securing Tires With Wire
Courtesy of MAZDA MOTORS CORP.

7. Connect the SSTs (Deployment tool) to the SSTs (Adapter harness) .

8. Connect both SSTs (Deployment tool) to the battery. Connect the power supply red clip to the positive

battery terminal, and the black clip to the negative battery terminal.

9. Verify that the red lamp on both SSTs (Deployment tool) is illuminated.

10. Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

Fig. 58: Connecting SSTs (Deployment Tool) To SSTs (Adapter Harness)
Courtesy of MAZDA MOTORS CORP.

11. Press the activation switch on the SST (Deployment tool) connected with 46 L066 002 (a yellow

connector) of the SST (Adapter harness) , and after 3 s , press the activation switch on the other SST
(Deployment tool) to operate (deploy) the air bag module (both inflators).

2008 Mazda CX-9 Grand Touring

2008 RESTRAINTS Air Bag System - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:16:38 AM

Page 40
