DTC B1059, B2229, B2231, B2233, B2235

DTC B1059, B2229, B2231, B2233, B2235 DETECTION CONDITION AND POSSIBLE CAUSE

module terminal 1Q and clock spring terminal
1B, SAS control module terminal 1U and clock
spring terminal 1A for the following:



Short to ground



Short to power supply



Open circuit



Is the wiring harness normal?

No

Replace the air bag wiring harness.

DTC

B1059 Passenger-side air bag module (inflator No.2) and other air bag module circuits short
B2229 Passenger-side air bag module (inflator No.2) circuit short to body ground
B2231 Passenger-side air bag module (inflator No.2) circuit short to power supply
B2233 Passenger-side air bag module (inflator No.2) circuit resistance high
B2235 Passenger-side air bag module (inflator No.2) circuit resistance low

DETECTION

CONDITION



Resistance other than 1.0-9.7 ohms detected in passenger-side side air bag module
circuit



Malfunction in wiring harness between passenger-side air bag module (inflator No.2)
and SAS control module

WARNING:



Detection conditions are for understanding the DTC outline before performing an
inspection. Performing an inspection according to only the detection conditions
may cause injury due to an operating error, or damage the system. When
performing an inspection, always follow the inspection procedure.

POSSIBLE

CAUSE



Open or short circuit in wiring harness between passenger-side air bag module

(inflator No.2) and SAS control module



Passenger-side air bag module malfunction



SAS control module malfunction



2008 Mazda CX-9 Grand Touring

2008 RESTRAINTS On-Board Diagnostic (Restraints) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:18:47 AM

Page 57

© 2005 Mitchell Repair Information Company, LLC.

DIAGNOSTIC PROCEDURE

DTC B1059, B2229, B2231, B2233, B2235 DIAGNOSTIC PROCEDURE

STEP

INSPECTION

ACTION

1

INSPECT PASSENGER-SIDE AIR BAG
MODULE (INFLATOR NO.2)



Using the M-MDS, verify the following
PID/DATA monitor.

(See PID/DATA MONITOR TABLE.)



RES_AB2_P



Is the resistance of the passenger-side air bag
module normal?



Resistance: 1.0-9.7 ohms

Yes

Replace the SAS control module. (See
SAS CONTROL MODULE
REMOVAL/INSTALLATION .)

No

Go to the next step.

INSPECT PASSENGER-SIDE AIR BAG
MODULE (INFLATOR NO.2) CONNECTOR

WARNING:



Handling the air bag system components
improperly can accidentally deploy the air bag
modules and pre-tensioner seat belts, which
may seriously injure you. Read the air bag
system service warnings and cautions before
handling the air bag system components.

Yes Replace the air bag wiring harness.



2008 Mazda CX-9 Grand Touring

2008 RESTRAINTS On-Board Diagnostic (Restraints) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:18:47 AM

Page 58

© 2005 Mitchell Repair Information Company, LLC.

2





Turn the ignition switch to the LOCK position.



Disconnect the negative battery cable and wait
for 1 min or more.



Remove the glove compartment. (See GLOVE
COMPARTMENT
REMOVAL/INSTALLATION .)



Disconnect the passenger-side air bag module
connector. (See PASSENGER-SIDE AIR BAG
MODULE REMOVAL/INSTALLATION .)



Is there any malfunction of the passenger-side
air bag module connector?

(See AIR BAG SYSTEM SERVICE
WARNINGS .)

(See AIR BAG SYSTEM SERVICE
CAUTIONS .)

No

Go to the next step.

3

VERIFY WHETHER MALFUNCTION IS IN
PASSENGER-SIDE AIR BAG MODULE
(INFLATOR NO.2) OR RELATED WIRING
HARNESS



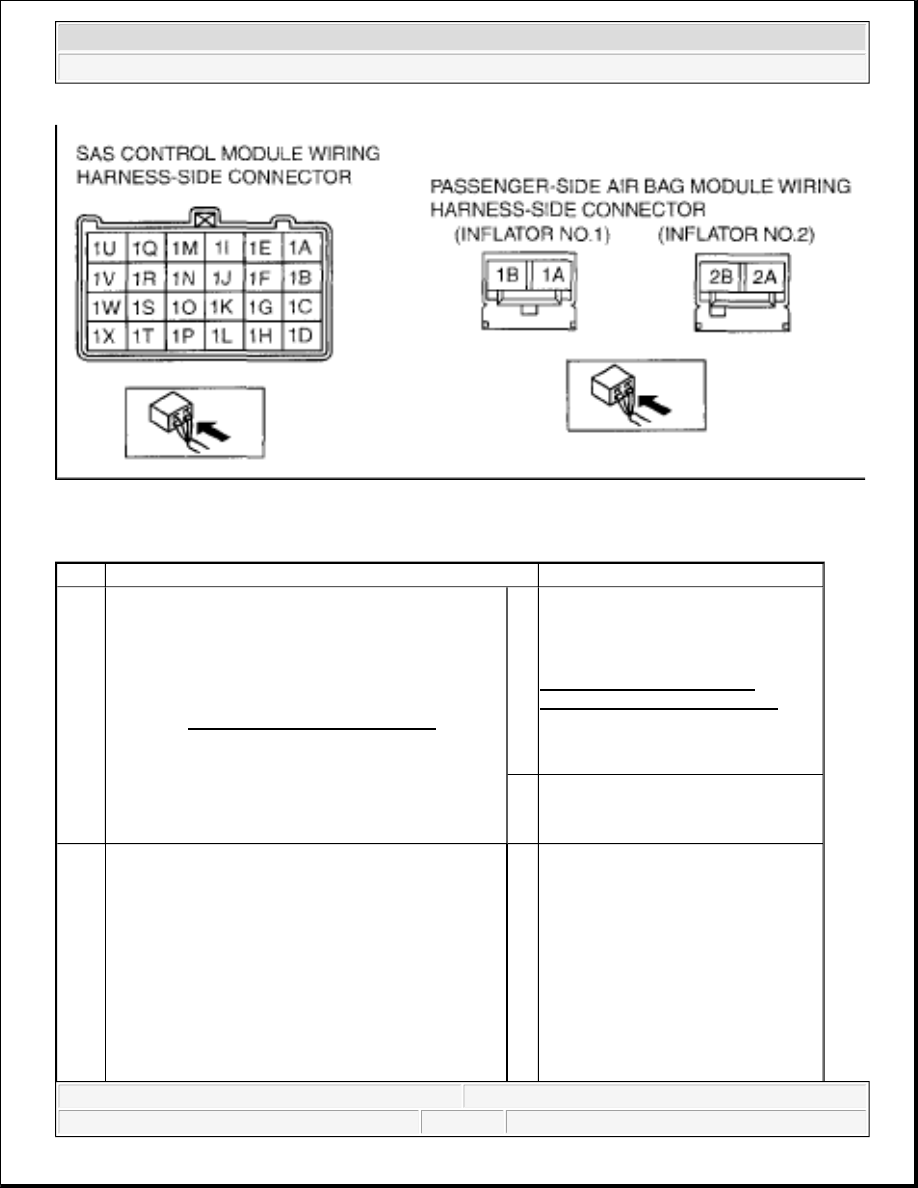

Connect the leads of the SST (Fuel and
thermometer checker) or apply 2-ohm resistance
to passenger-side air bag module (inflator No.1)
connector terminals 1A and



1B, and passenger-side air bag module (inflator
No.2) connector terminals 2A and 2B.



Set the resistance of the SST (Fuel and
thermometer checker) to the 2-ohm position.



Connect the negative battery cable.



Turn the ignition switch to the ON position.



Are DTCs B1059, B2229, B2231, B2233 and/or
B2235 indicated?

Yes Go to the next step.

No

Replace the passenger-side air bag

module.

(See PASSENGER-SIDE AIR BAG

MODULE

REMOVAL/INSTALLATION .)

INSPECT WIRING HARNESS BETWEEN
PASSENGER-SIDE AIR BAG MODULE AND
SAS CONTROL MODULE



Turn the ignition switch to the LOCK position.



Disconnect the negative battery cable and wait
for 1 min or more.



Remove the column cover. (See COLUMN
COVER REMOVAL/INSTALLATION .)



2008 Mazda CX-9 Grand Touring

2008 RESTRAINTS On-Board Diagnostic (Restraints) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:18:47 AM

Page 59

© 2005 Mitchell Repair Information Company, LLC.

DTC B105A

DTC B105A DETECTION CONDITION AND POSSIBLE CAUSE

4



Disconnect the clock spring connector. (See
COMBINATION SWITCH
REMOVAL/INSTALLATION .)



Disconnect the driver and passenger-side front
seat connectors. (See FRONT SEAT
REMOVAL/INSTALLATION .)



Disconnect the driver and passenger-side curtain
air bag module connectors. (See CURTAIN
AIR BAG MODULE
REMOVAL/INSTALLATION .)



Remove the B-pillar lower trim. (See B-
PILLAR LOWER TRIM
REMOVAL/INSTALLATION .)



Disconnect the driver and passenger-side pre-
tensioner seat belt connectors. (See FRONT
SEAT BELT
REMOVAL/INSTALLATION .)



Disconnect the SAS control module connectors.
(See SAS CONTROL MODULE
REMOVAL/INSTALLATION .)



Inspect the wiring harness between SAS control
module terminal 1V and passenger-side air bag
module terminal 2A, SAS control module
terminal 1R and passenger-side air bag module
terminal 2B for the following:



Short to ground



Short to power supply



Open circuit



Is the wiring harness normal?

Yes

Replace the SAS control module. (See
SAS CONTROL MODULE
REMOVAL/INSTALLATION .)

No

Replace the air bag wiring harness.

DTC B105A

SAS control module activation (deployment) control frequency error

DETECTION

CONDITION



The SAS control module has enabled the air bag module or pre-tensioner seat
belt to operate (deploy) five times or more.

WARNING:



Detection conditions are for understanding the DTC outline before
performing an inspection. Performing an inspection with only detection
conditions may cause injury due to an operating error, or damage the
system. When performing an inspection, always follow the inspection
procedure.
