Mazda CX-9 Grand Touring. Manual - part 1

2008 RESTRAINTS

On-Board Diagnostic (Restraints) - Mazda CX-9

FOREWORD

OUTLINE



The OBD (on-board diagnostic) system has the following functions:



Malfunction detection function: Detects malfunctions in the air bag system and outputs DTCs.



Data monitor function: Reads out specific input/output signals and the system status.



Diagnostic DTCs can be read/cleared using the M-MDS.

FLOWCHART



Use the following flowchart to verify the cause of the trouble.

NOTE:



While performing the inspection of the past malfunction code, the
applicable DTCs may be added to memory by removing or disconnecting
the related parts. Inspect only the DTCs that were indicated before
inspecting.



When DTCs of the present malfunction are no longer output after present
or past malfunctions or both have been repaired, be sure to perform past
malfunction display cancellation to prevent repair of malfunctions that
have already been repaired.



2008 Mazda CX-9 Grand Touring

2008 RESTRAINTS On-Board Diagnostic (Restraints) - Mazda CX-9





2008 Mazda CX-9 Grand Touring

2008 RESTRAINTS On-Board Diagnostic (Restraints) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:18:46 AM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

Microsoft



Sunday, November 15, 2009 10:18:53 AM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

AIR BAG SYSTEM WIRING DIAGRAM (ON-BOARD DIAGNOSTIC)

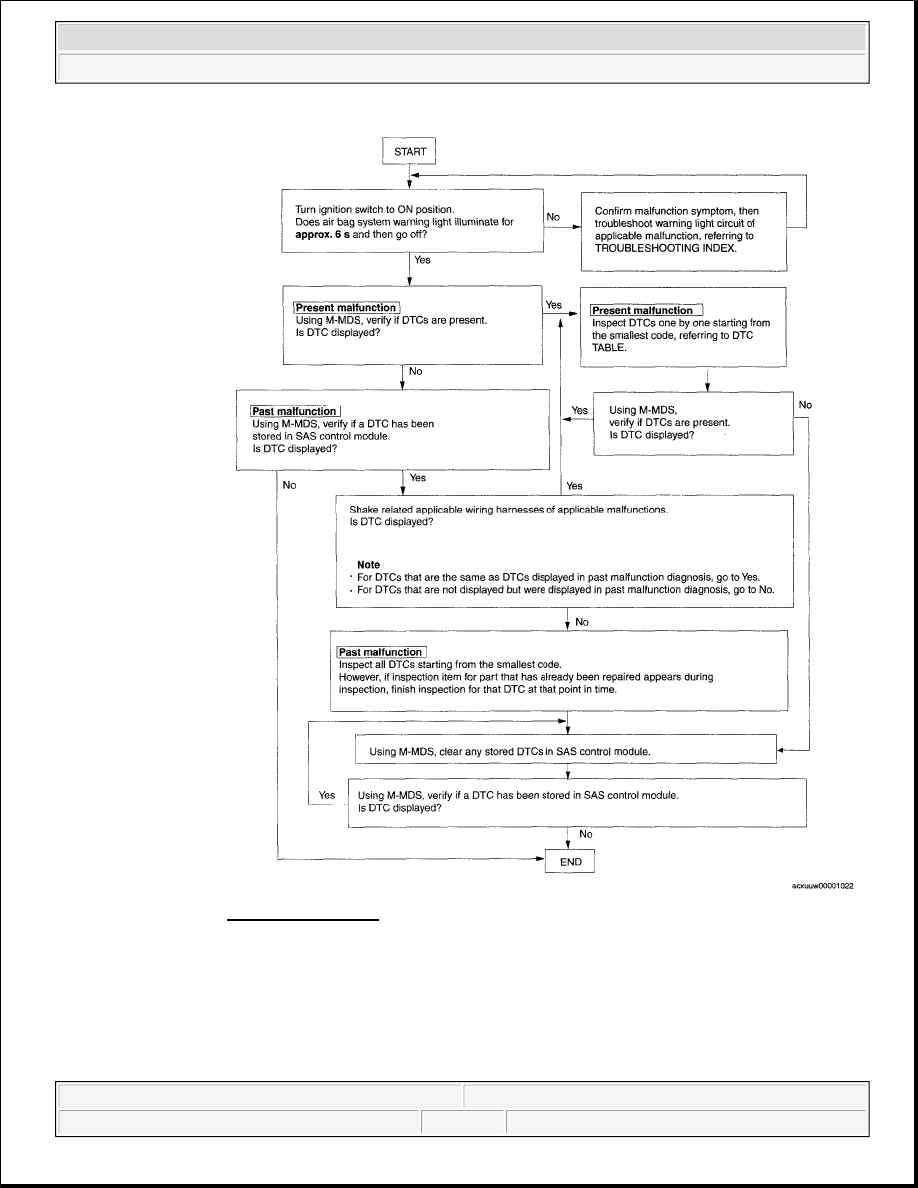

Fig. 1: Flow Chart
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 RESTRAINTS On-Board Diagnostic (Restraints) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:18:46 AM

Page 2

© 2005 Mitchell Repair Information Company, LLC.

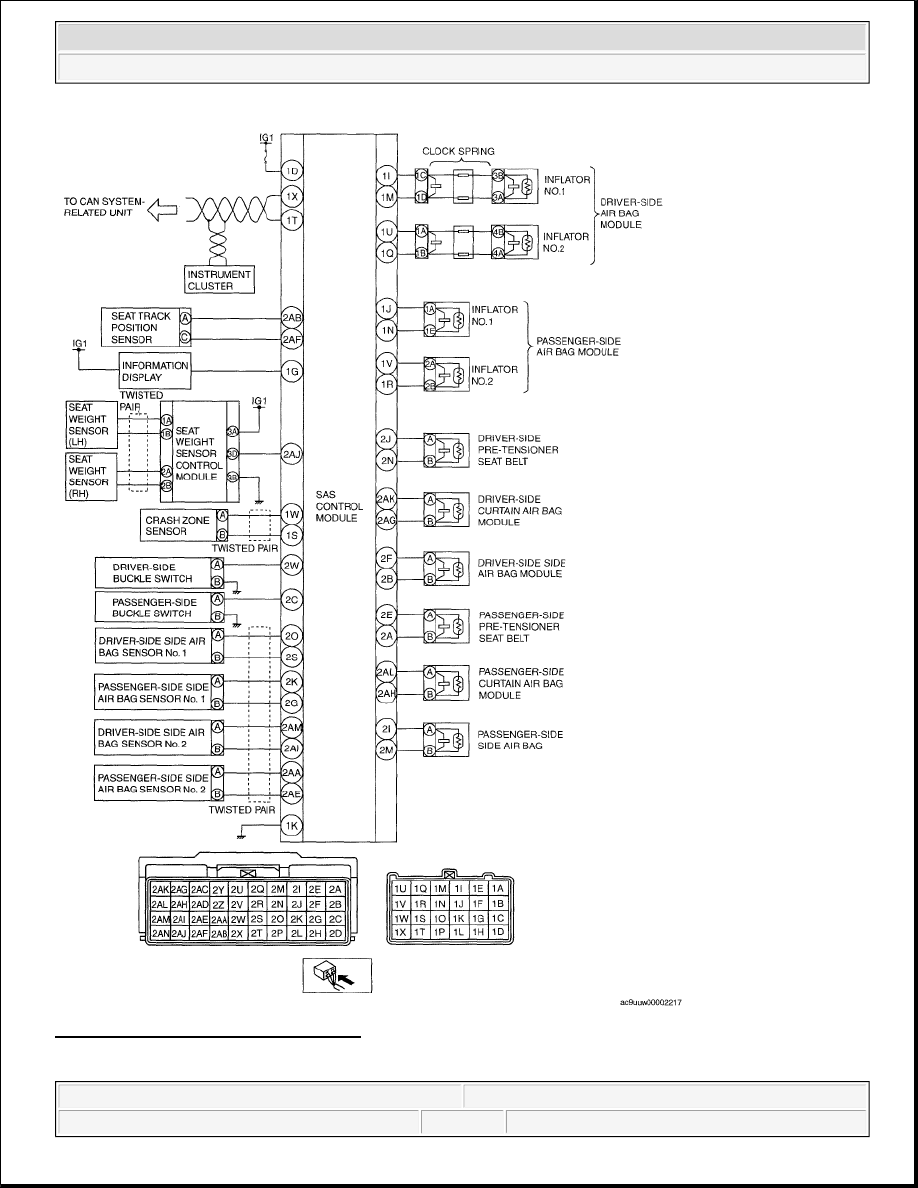

Fig. 2: Air Bag System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 RESTRAINTS On-Board Diagnostic (Restraints) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:18:46 AM

Page 3

© 2005 Mitchell Repair Information Company, LLC.

DTC DISPLAY

1. Connect the M-MDS to the DLC-2.

2. After the vehicle is identified, select the following items from the initialization screen of the M-MDS.



When using the IDS (laptop PC)

1. Select "Self Test".

2. Select "Modules".

3. Select "RCM".



When using the PDS (Pocket PC)

1. Select "Module Tests".

2. Select "RCM".

3. Select "Self Test".

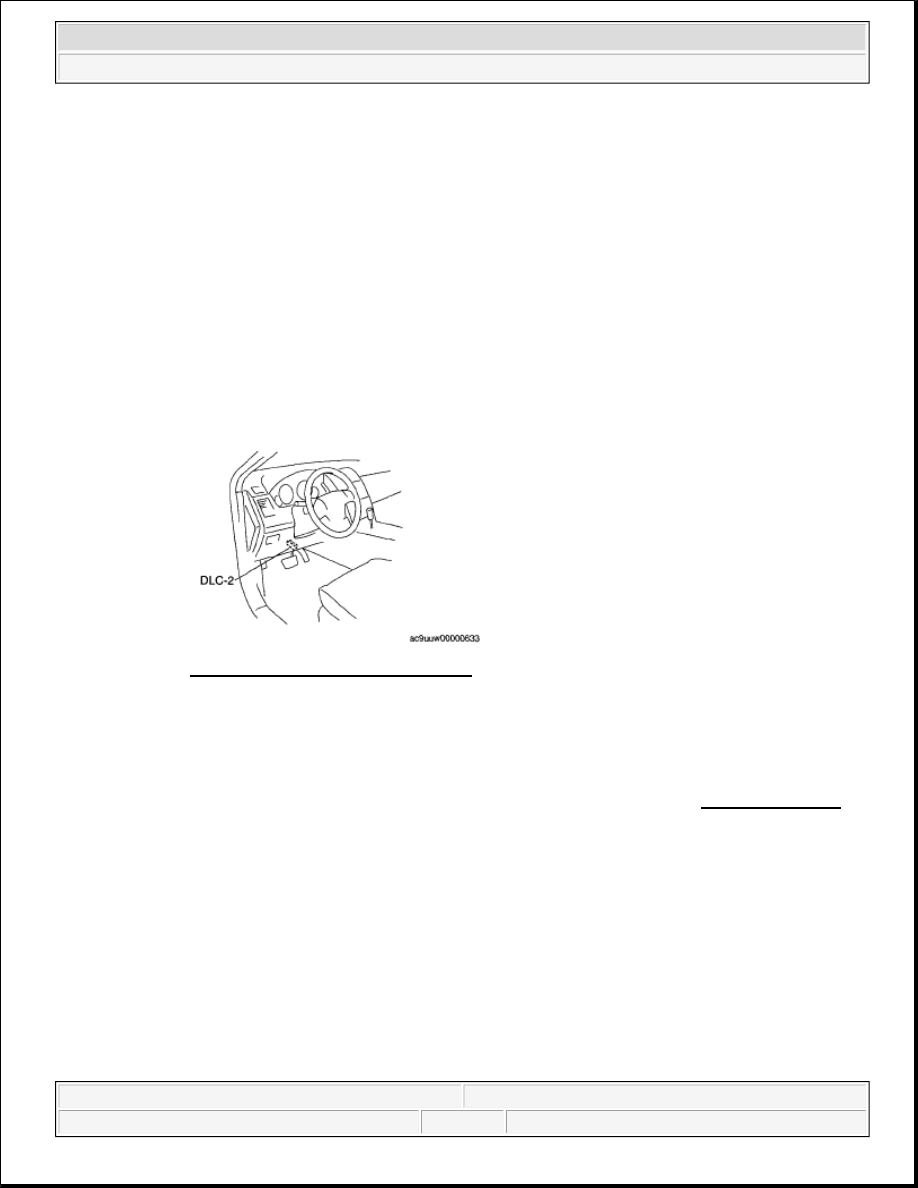

Fig. 3: Identifying DLC-2 Connector
Courtesy of MAZDA MOTORS CORP.

3. Verify the DTC according to the directions on the screen.



If any DTCs are displayed, perform troubleshooting according to the corresponding DTC
inspection.

4. After completion of repairs, clear all DTCs stored in the SAS control module. (See CLEARING DTC.)

CLEARING DTC

1. Connect the M-MDS to the DLC-2.

2. After the vehicle is identified, select the following items from the initialization screen of the M-MDS.



When using the IDS (laptop PC)

1. Select "Self Test".

2. Select "Modules".

3. Select "RCM".



When using the PDS (Pocket PC)

1. Select "Module Tests".
