Mazda RX7. Manual - part 90

INSTALLING MAZDA BRAND OIL FILTER CAT. 2, NO. 005/89

Article Text

1983 Mazda RX7

For www.iluvmyrx7.com

Saturday, September 08, 2001 09:19AM

ARTICLE BEGINNING

TECHNICAL SERVICE BULLETIN

ENGINE OIL FILTER CARTRIDGE

Models ALL MODELS
Bulletin No. 005/89
Category 2
Date 2/10/89

DESCRIPTION
When servicing Mazda vehicles, please be aware of the following
installation procedure and tightening requirements of the Mazda brand
oil filters.

INSTALLATION PROCEDURE
1. Apply a thin film of oil to the surface of the gasket before
installing the filter.
2. Tightening requirements:

Oil Filter Part No.
FEY0 14 3020 Tighten 1 and 1/6 turns after the gasket
contacts the filter base.
JEY0 14 3020 Tighten 1 and 1/6 turns after the gasket
contacts the filter base (six dots are
printed on the filter at even intervals to
facilitate tightening instructions).
N3Y6 14 3020 Tighten by hand.

NOTE: For rotary engine with a water cooled oil cooler, tighten an
additional 1/12 turn with a suitable tool (twelve dots are
printed on the filter at even intervals to facilitate tightening
instructions).

8173 23 8020 Tighten by hand.
F802 23 8020 Tighten by hand.

3. Start engine and check for oil leakage.

IMPORTANT: Always be sure the correct filter is installed on the
proper Mazda vehicle.

INSTALLATION INSTRUCTIONS FOUND ON THE FILTER BOXES AND THE FILTERS
FEY0 14 3020 8173 23 8020
Caution Caution
1. Apply a Thin Film of Oil 1. Apply a Thin Film of Oil
to the Surface of Gasket to the Surface of Gasket
before Screwing on. before Screwing on.
2. Tighten 1-1/6 Turn after 2. Then tighten enough by Gasket
Contacts Base. hand.
3. Start Engine and Check 3. Start Engine and Check

INSTALLING MAZDA BRAND OIL FILTER CAT. 2, NO. 005/89

Article Text (p. 2)

1983 Mazda RX7

For www.iluvmyrx7.com

Saturday, September 08, 2001 09:19AM

for Oil Leakage. for Oil Leakage.
TOKYO ROKI CO., LTD. TOKYO ROKI CO., LTD.

JEYO 14 3020 F802 23 8020
Caution Caution
1. Apply a Thin Film of Oil 1. Apply a Thin Film of Oil
to the Surface of Gasket to the Surface of Gasket
before Screwing on. before Screwing on.
2. Tighten 1-1/6 Turn after 2. Then tighten enough by
Gasket Contacts Base. hand.
3. Start Engine and Check 3. Start Engine and Check
for Oil Leakage. for Oil Leakage.
TOKYO ROKI CO., LTD. TOKYO ROKI CO., LTD.

N3Y6 14 3020
Caution
1. Apply a Thin Film of Oil
to the Surface of Gasket
before Screwing on.
2. Then Tighten Enough by Hand,
But Rotary Engine with watercooled
oil-cooler Tighten Additional
About 1/12 turn by tool.
3. Start Engine and Check for Oil Leakage.
TOKYO ROKI CO., LTD.

END OF ARTICLE

OIL LEAK AT REAR STATIONARY GEAR O-RING - CAR FIX CAT. B, NO. 003/98

Article Text

1983 Mazda RX7

For www.iluvmyrx7.com

Saturday, September 08, 2001 09:19AM

ARTICLE BEGINNING

TECHNICAL SERVICE BULLETIN

OIL LEAK AT REAR STATIONARY GEAR O-RING/ON-CAR REPLACEMENT PROCEDURE

Model(s): 1979-95 Mazda RX-7
Category: B (01) - Engine
Bulletin No.: 003/98
Date: July 16, 1998

DESCRIPTION

The following procedure is for on-car rear stationary (RS) gear
O-ring replacement. This procedure is not included in the Workshop
Manual. When the RS gear O-ring is leaking, use the following on-car
procedure.

REPAIR PROCEDURE

1. Verify customer complaint.

2. Remove the flywheel (M/T) or counterweight (A/T). Refer to the
Workshop Manual section C and H.

3. Set the front rotor to TDC (top dead center) per the Work-shop
Manual section C.

4. Remove the six bolts from the RS gear.

NOTE: If the eccentric shaft and rotor are rotated with the
RS gear removed, they cannot be re-used. The engine
will require overhauling.

5. Insert two screwdrivers or pry bars and pry out the RS gear.
See Fig. 1.

CAUTION: To prevent the (RS) gear from falling out, loosely
reinstall one of the bolts back into the gear. This
will hold the gear in place while prying.

6. After the (RS) gear is pried loose, remove the one bolt used
to hold it in place, and remove the (RS) gear assembly.

7. Remove the O-ring and oil seal, and clean the (RS) gear. After
(RS) gear is cleaned, use shop air to remove any remaining
debris. See Fig. 2.

8. Apply a small amount of oil to the new O-ring and oil seal
and install.

OIL LEAK AT REAR STATIONARY GEAR O-RING - CAR FIX CAT. B, NO. 003/98

Article Text (p. 2)

1983 Mazda RX7

For www.iluvmyrx7.com

Saturday, September 08, 2001 09:19AM

9. Install the (RS) gear.

Tightening torque: 16-22 N.m

10. Install remaining parts in the reverse order of removal.

11. Verify repair.

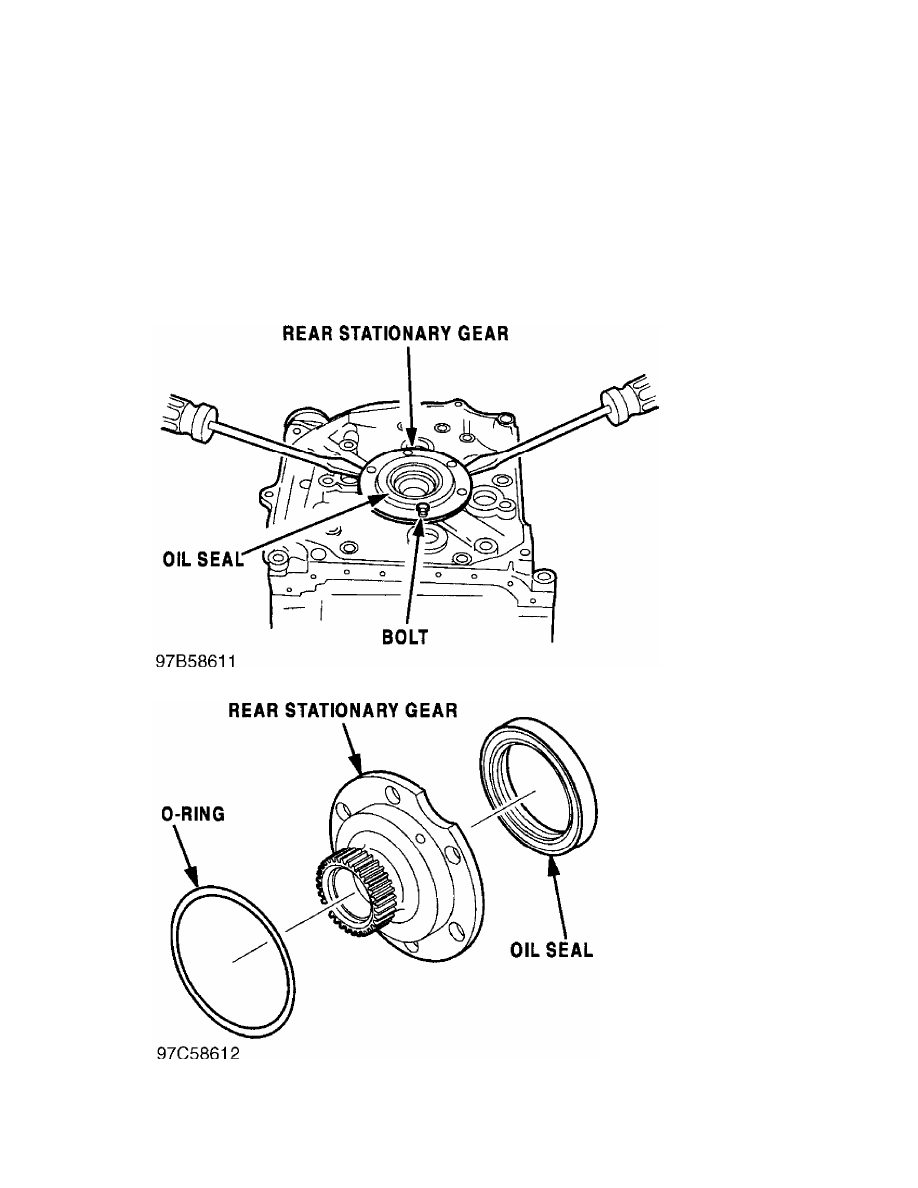

Fig. 1: Rear Stationary Gear, Oil Seal & Bolt - Insert Screwdrivers

Fig. 2: Rear Stationary Gear, Oil Seal & Bolt - Remove & Clean

PARTS INFORMATION
