MISCELLANEOUS BLOWN FUSES/ELECTRICAL PROBLEMS CAT. 15, NO. 016/85

Article Text

1983 Mazda RX7

For www.iluvmyrx7.com

Monday, August 27, 2001 06:32AM

ARTICLE BEGINNING

TECHNICAL SERVICE BULLETIN

APPLICATION

1979-85 RX7

SUBJECT

Miscellaneous Blown Fuses/Electrical Problems

REFERENCE

Mazda Motors Corp., Service Bulletin, No. 15 016/85, October, 1985

CONDITION & CAUSE

Some 1979-85 RX7 vehicles may exhibit one or more of the following
electrical problems:

* RADIO, ANTENNA fuse blown
* TAIL, ILLUM fuse blown
* METER, BACK fuse blown
* OPENER fuse blown
* Inoperative rear defroster/rear wiper
* Rear wiper operates with wiper switch in OFF position

One or more of the above problems may be caused by a short circuit in
the rear harness. The rear harness may be cut by a sharp metal edge
where the harness is routed over the inner wheel well. See Fig. 1.
This was fixed in production beginning with VIN JM1FB33 F0852204.

REPAIR

If this problem is present, repair the rear harness as necessary.

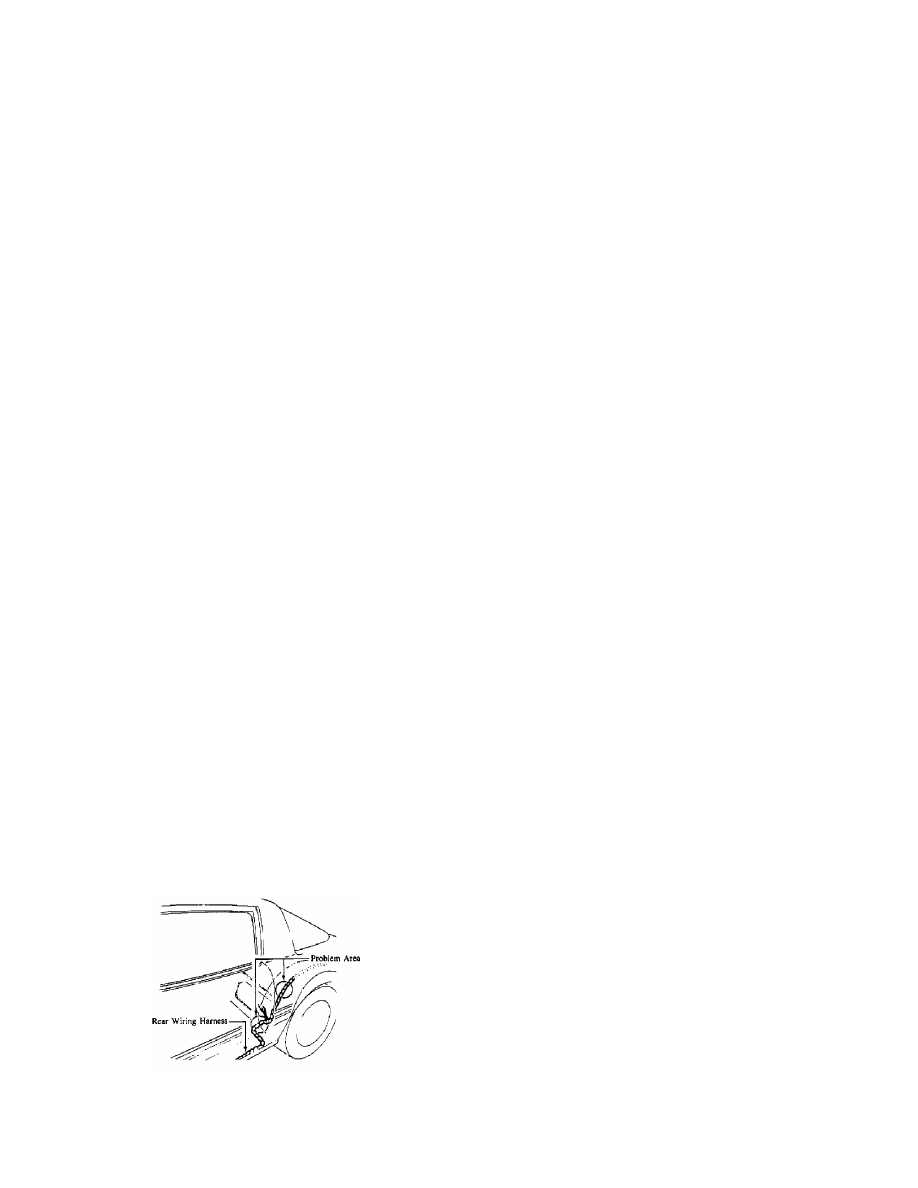

Fig. 1: View of Rear Wiring Harness

END OF ARTICLE

REAR WINDOW DEFROSTER GRID LINE REPAIR PROCEDURE CAT. T, NO. 015/95

Article Text

1983 Mazda RX7

For www.iluvmyrx7.com

Monday, August 27, 2001 06:33AM

ARTICLE BEGINNING

TECHNICAL SERVICE BULLETIN

REAR WINDOW DEFROSTER GRID LINE REPAIR

Model(s): All Mazda Models
Category: T - Body Electrical System
Bulletin No.: 015/95
Date Issued: November 14, 1995
Date Revised: December 21, 1995

DESCRIPTION

The following procedure should be used to repair broken grid lines
on rear window defrosters. Place a copy of these procedures in the
appropriate section of the workshop manual.

REPAIR PROCEDURE

1. Turn the defroster switch on with the ignition in the on position.

2. Determine the broken grid line visually or with a test light or
voltage meter.

3. Turn the defroster and ignition Off.

4. Clean the area with a glass cleaner.

5. Remove the protective backing from the stencil.

6. Align both ends of the broken grid line with the opening in the
stencil and press firmly to attach. See Fig. 1

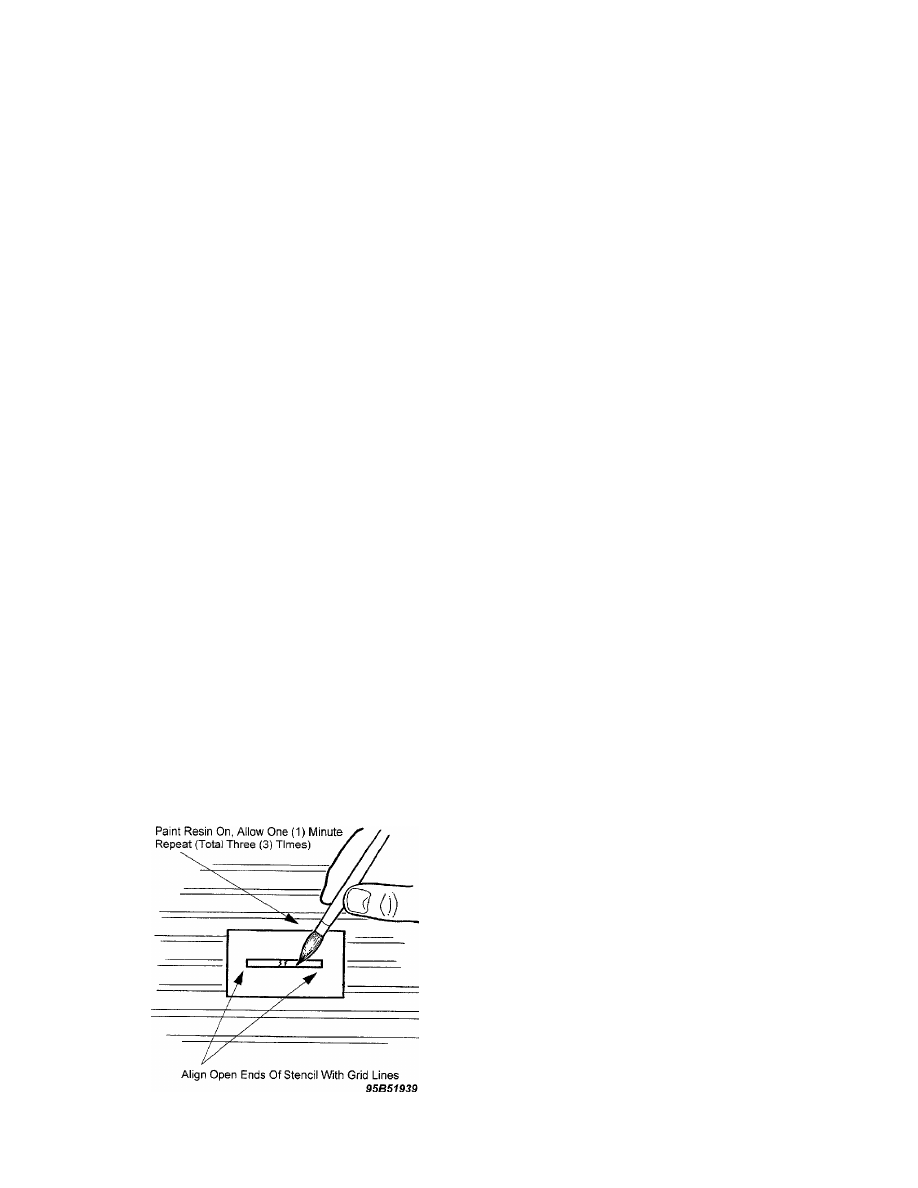

Fig. 1: Resin Application Location

REAR WINDOW DEFROSTER GRID LINE REPAIR PROCEDURE CAT. T, NO. 015/95

Article Text (p. 2)

1983 Mazda RX7

For www.iluvmyrx7.com

Monday, August 27, 2001 06:33AM

NOTE: Make sure both ends are aligned prior to attaching.

7. Shake the bottle of resin well.

CAUTION: Continuity failure will occur if the ingredients are not
mixed completely.

8. Brush on the resin overlapping both ends of the broken grid line.

NOTE: Use paint remover to clean brush for future applications.

9. Repeat application (total of 3 times) when the surface is tack-free
(approximately one (1) minute).

10. Allow to dry twenty (20) minutes.

11. Carefully peel stencil from glass.

12. Allow twenty-four (24) hours before activating rear defroster.

PARTS INFORMATION

PARTS INFORMATION TABLE

ÚÄÄÄÄÄÄÄÄÄÄÄÄÄÄÂÄÄÄÄÄÄÄÄÄÄÄÄÄ¿
³

Part Number

Description

ÃÄÄÄÄÄÄÄÄÄÄÄÄÄÄÅÄÄÄÄÄÄÄÄÄÄÄÄÄ´
³

0000 88 5067

Resin

ÀÄÄÄÄÄÄÄÄÄÄÄÄÄÄÁÄÄÄÄÄÄÄÄÄÄÄÄÄÙ

WARRANTY INFORMATION

(Applies To Verified Customer Complaints On Vehicles Covered Under
Normal Warranty. Refer To The SRT Microfiche For Warranty Term
Information.)

Warranty Type: A
Symptom Code: D5
Damage Code: AA
Part Number Main Cause: 0000 88 5067
Quantity: 0
Operation Number: XX0777RX
Labor Hours: 0.3 Hrs.

END OF ARTICLE

REVISED WIPER LINK BUSHING CAT. 14, NO. 022/85

Article Text

1983 Mazda RX7

For www.iluvmyrx7.com

Monday, August 27, 2001 06:33AM

ARTICLE BEGINNING

TECHNICAL SERVICE BULLETIN

WIPER LINK

Models 1981-1985 RX-7
Bulletin No. 022/85
Category 14
Date 10/18/85

DESCRIPTION

A new wiper link has been established as a service part. This new
wiper link features a bushing as shown in Fig. 1.

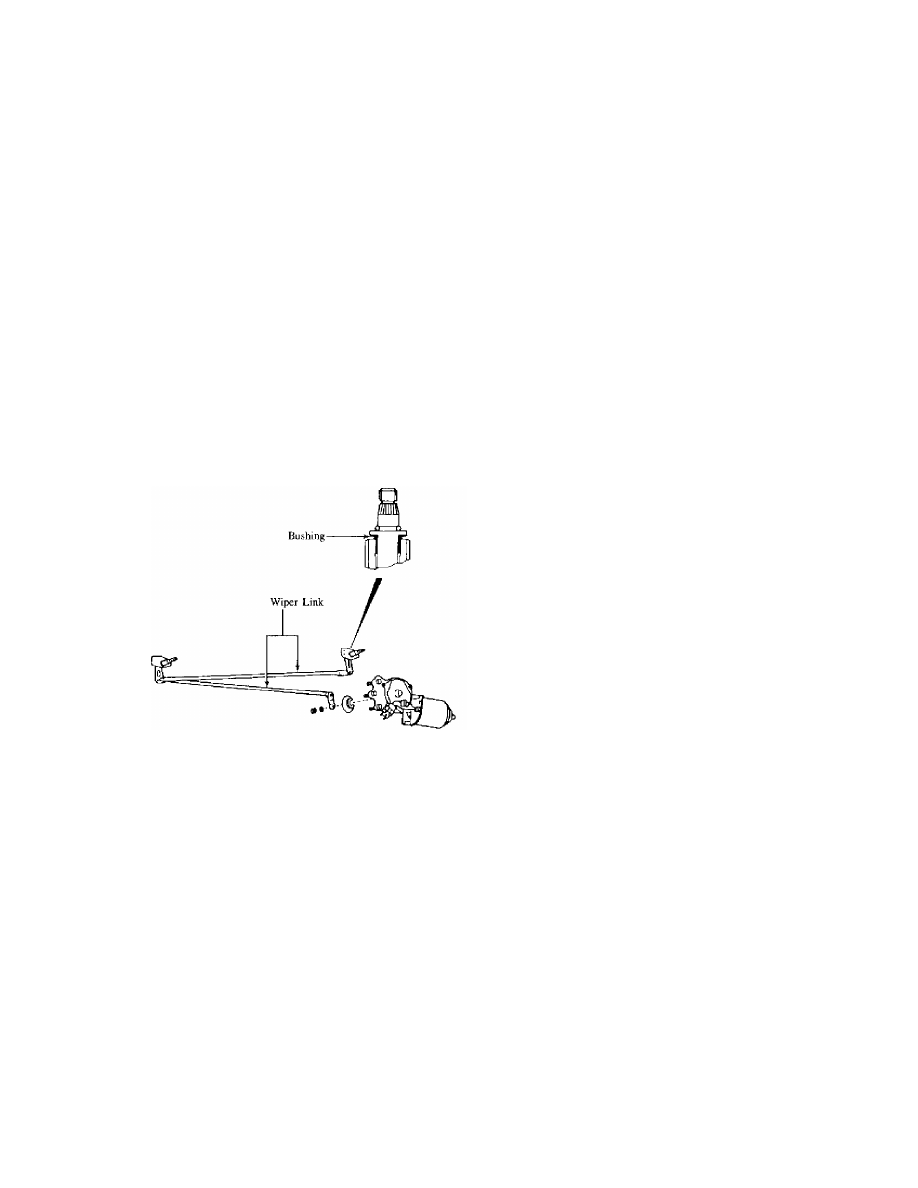

Fig. 1: 1981-85 RX7 Wiper Link

PARTS INFORMATION

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

NEW PART NO. OLD PART NO. DESCRIPTION INTERCHANGEABILITY APPLIED
MODEL

FA54 76 601A FA54 76 601 Wiper Link NEW -> OLD 1984-85 RX-7
8871 76 601B 8871 76 601A Wiper Link NEW -> OLD 1981-83 RX-7

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

NOTE: A new part can be used in place of the former part, but the
former part may not be used in place of the new part.

END OF ARTICLE
