MAINTENANCE INFORMATION

Article Text

1983 Mazda RX7

For www.iluvmyrx7.com

Sunday, August 26, 2001 06:13PM

ARTICLE BEGINNING

1983-91 MAINTENANCE
Mazda Maintenance Information

RX7

* PLEASE READ THIS FIRST *

NOTE: For scheduled maintenance intervals and the related fluid
capacities, fluid specifications and labor times for major
service intervals, see SCHEDULED SERVICES article in this
section. Warranty information and specifications for fluid
capacities, lubrication specifications, wheel and tire size,
and battery type are covered in this article.

MODEL IDENTIFICATION

VIN LOCATION

The Vehicle Identification Number (VIN) is located on the
left side of the dash panel at the base of the windshield. The VIN
chart explains the code characters.

VIN CODE ID EXPLANATION

Numbers preceding the explanations in the legend below refer
to the sequence of characters as listed on VIN identification label.
See VIN example below.

ÚÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ¿
³

(VIN) J M 1 F C 3 3 1 1 K 0 2 0 0 0 0 1

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

ÀÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÙ

1 - Manufacturing Country
J * Japan

2 - Make
M * Mazda Motors Corp., Japan

3 - Type
1 * Passenger Car
V * Passenger Car

4-5 - Model
FB * RX7 (1983-85)
FC * RX7 (1986-91)

6-7 - Body Style
33 * Hatchback

MAINTENANCE INFORMATION

Article Text (p. 2)

1983 Mazda RX7

For www.iluvmyrx7.com

Sunday, August 26, 2001 06:13PM

35 * Convertible

8 - Modification Code
1 * 13BE Rotary
2 * 13BT Rotary (Turbo)

9 - VIN Check Digit
1 * Constant For All Models

10 - Vehicle Model Year
D * 1983
E * 1984
F * 1985
G * 1986
H * 1987
J * 1988
K * 1989
L * 1990
M * 1991

11 - Assembly Plant
0 * Hiroshima, Japan

12-17 - Serial Number
* Sequential Production Number

MAINTENANCE SERVICE INFORMATION

SEVERE & NORMAL SERVICE DEFINITIONS

NOTE: Use the Severe Service schedule if the vehicle to be serviced
is operated under ANY (one or more) of these conditions:

Service is recommended at mileage intervals based on vehicle
operation. Service schedules are based on the following primary
operating conditions:

Normal Service

* Driven More Than 10 Miles Daily
* No Operating Conditions From Severe Service Schedule

Severe Service (Unique Driving Conditions)

  * Repeated Short Distance Driving
  * Dusty Conditions
  * Extended Use Of Brakes
  * Salt Or Other Corrosive Materials On The Roads
  * Rough Or Muddy Roads
  * Extended Idling Or Low Speed Operation
  * Extended Operation In Extreme Temperatures

MAINTENANCE INFORMATION

Article Text (p. 3)

1983 Mazda RX7

For www.iluvmyrx7.com

Sunday, August 26, 2001 06:13PM

SERVICE POINT LOCATIONS

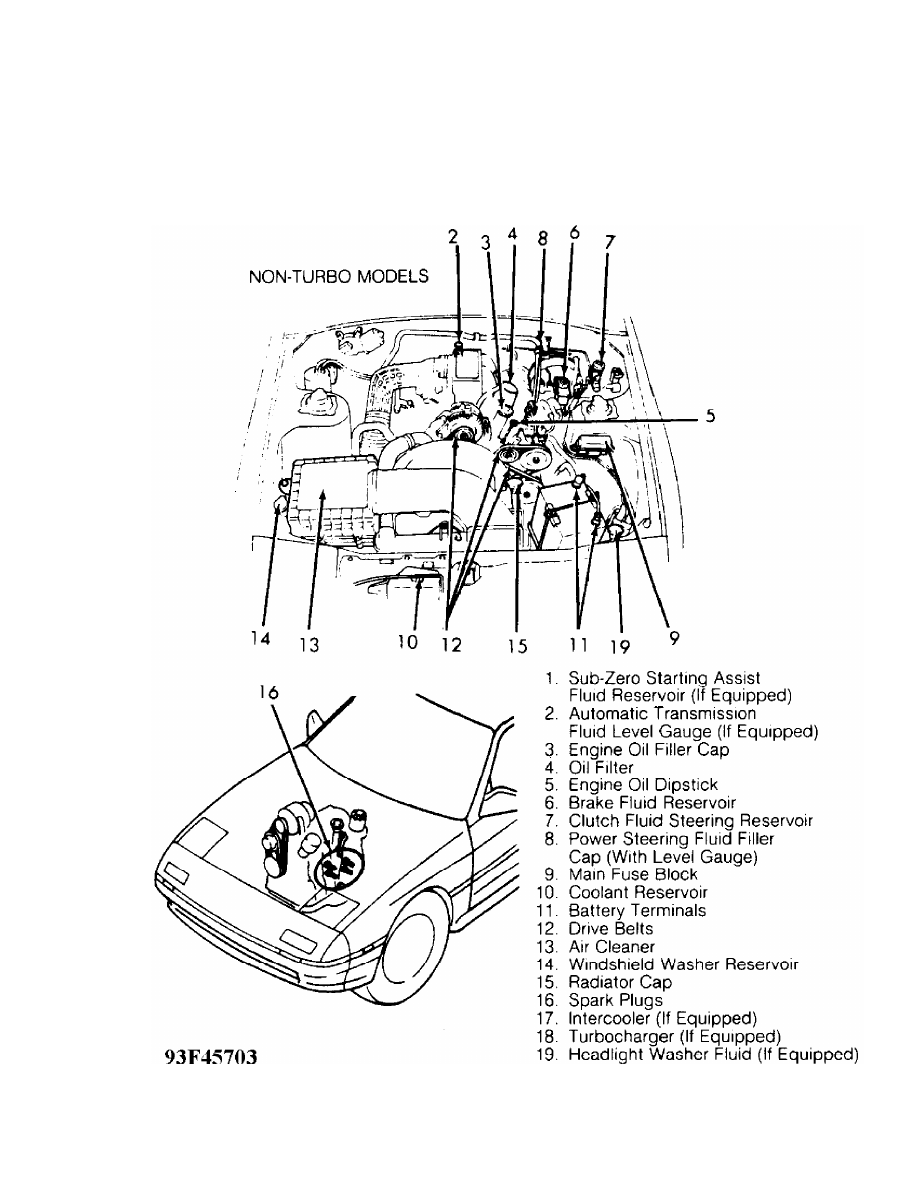

Fig. 1: Service Point Locations (Typical Non-Turbo Engine)
Courtesy of Mazda Motor of America, Inc.
