WIPER/WASHER SYSTEM

09-19–7

09-19

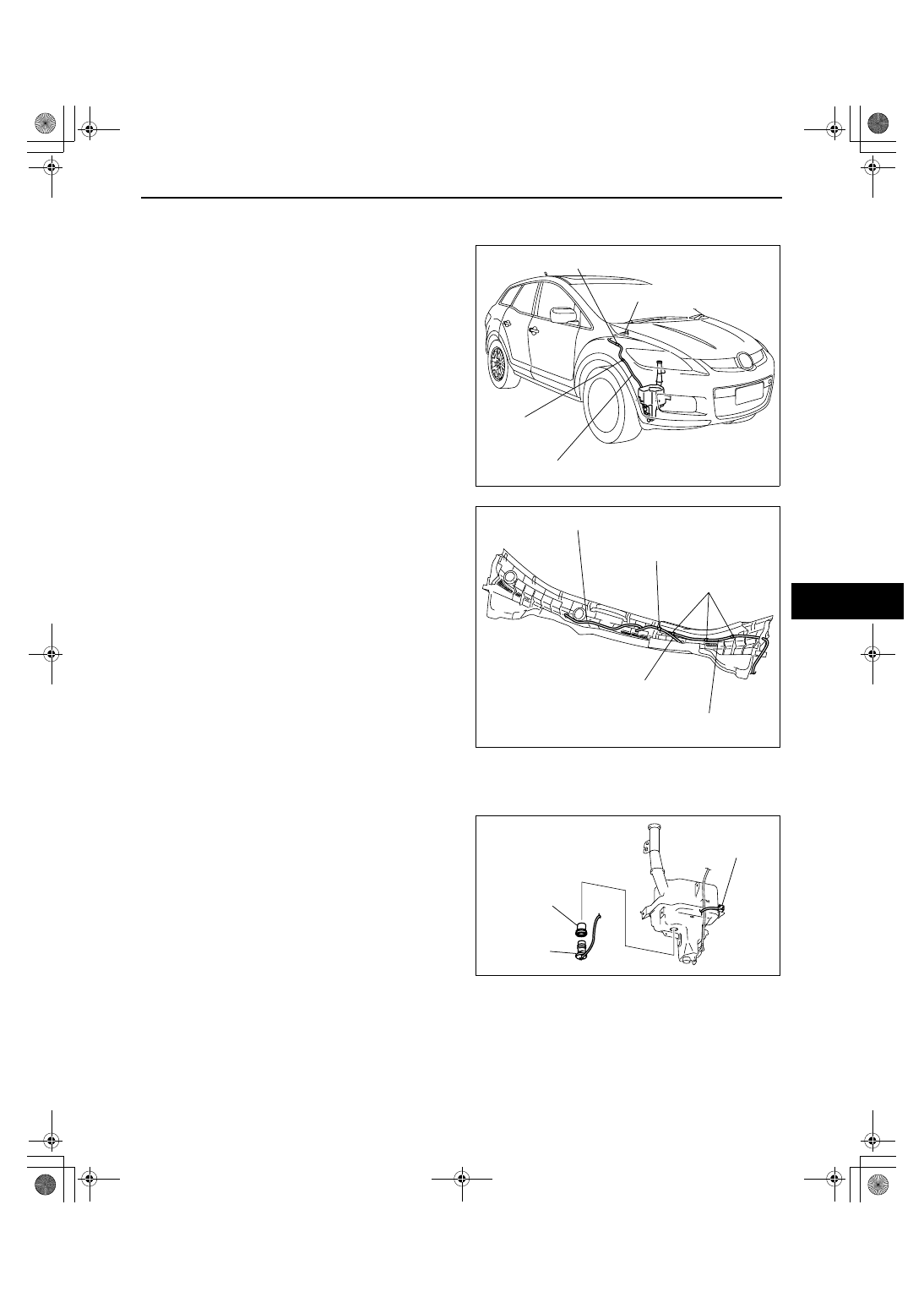

WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION

id091900802100

1. Remove the mudguard (RH).
2. Disconnect windshield washer hose A from the

windshield washer motor.

3. Remove windshield washer hose A from clip A.
4. Disconnect joint pipe A and remove windshield

washer hose A, B.

5. Remove the windshield wiper arm and blade.

(See.09-19-3 WINDSHIELD WIPER ARM AND
BLADE REMOVAL/INSTALLATION.)

6. Remove the cowl grill. (See.09-16-11 COWL

GRILLE REMOVAL/INSTALLATION.)

7. Remove windshield washer hose B from hook.
8. Disconnect windshield washer hose C from the

washer nozzle.

9. Disconnect windshield washer hose D from the

washer nozzle.

10. Disconnect joint pipe B and remove windshield

washer hose C, B and D.

11. Install in the reverse order of removal.

End Of Sie

WM: WASHER FLUID-LEVEL SENSOR

WASHER FLUID-LEVEL SENSOR REMOVAL/INSTALLATION

id091900801800

1. Disconnect the negative battery cable.
2. Remove the washer tank. (See 09-19-5 WASHER TANK REMOVAL/INSTALLATION.)
3. Disconnect the connector.
4. Remove the washer fluid-level sensor.
5. Remove the grommet.
6. Install in the reverse order of removal.

End Of Sie

JOINT PIPE A

CLIP A

WINDSHIELD WASHER HOSE A

WINDSHIELD WASHER
HOSE B

acxuuw00001820

HOOK

JOINT PIPE B

WINDSHIELD WASHER
HOSE D

WINDSHIELDWASHER
HOSE B

WINDSHIELD WASHER
HOSE C

acxuuw00001821

GROMMET

CONNECTOR

WASHER
FLUID-LEVEL
SENSOR

acxuuw00001831

WIPER/WASHER SYSTEM

09-19–8

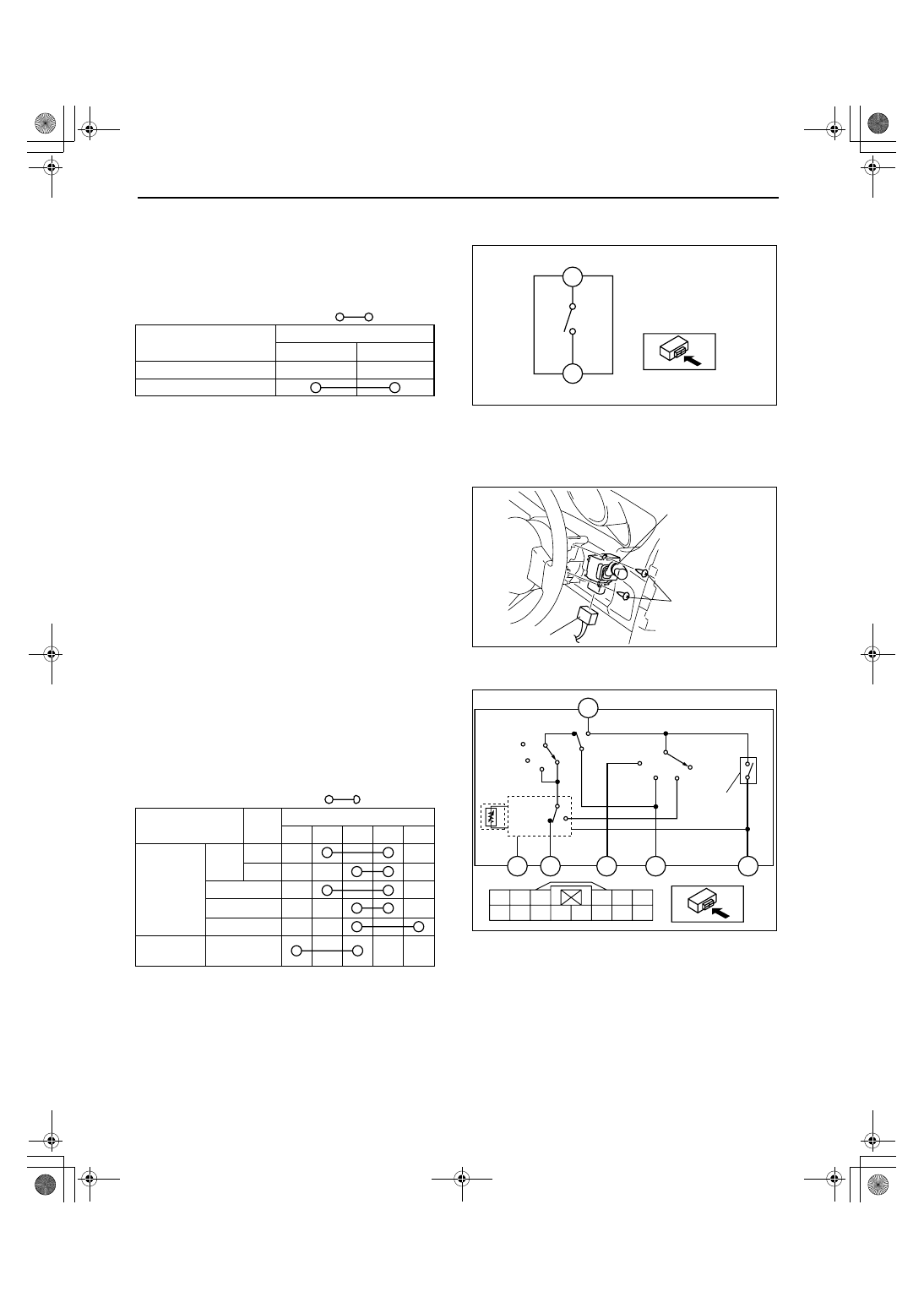

WASHER FLUID-LEVEL SENSOR INSPECTION

id091900801900

1. Disconnect the negative battery cable.
2. Inspect for continuity between the washer fluid-

level sensor terminals using an ohmmeter.

• If not as specified, replace the washer fluid-

level sensor.

End Of Sie

WM: WIPER AND WASHER SWITCH

WIPER AND WASHER SWITCH REMOVAL/INSTALLATION

id091900800200

1. Disconnect the negative battery cable.
2. Remove the column cover. (See 09-17-8 COLUMN COVER REMOVAL/INSTALLATION.)
3. Disconnect the wiper and washer switch

connector.

4. Remove the screws, then remove the wiper and

washer switch.

5. Install in the reverse order of removal.

End Of Sie

WINDSHIELD WIPER AND WASHER SWITCH INSPECTION

id091900800300

1. Verify that the continuity between the windshield

wiper and washer switch is as indicated in the
table.

• If not as indicated in the table, replace the

wiper and washer switch.

End Of Sie

A

B

acxuuw00001885

B

A

Fluid level

Terminal

: Continuity

Above low

Below low

acxuuw00001886

CONNECTOR

SCREW

WIPER AND WASHER
SWITCH

acxuuw00001781

C

K

M

A

O

E

K

C

E

O

A

*

M

INT

2

1

OFF

MIST

INT
VOL

INT

OFF

2

1

*

*

*

*

*

*

*

WINDSHIELD
WASHER
SWITCH

acxuuw00001621

OFF

INT

1

2

OFF

ON

ON

Mist

A

C

E

K

O

: Continuity

Switch position

Terminal

Windshield

wiper switch

Windshield

washer switch

acxuuw00001622

WIPER/WASHER SYSTEM

09-19–9

09-19

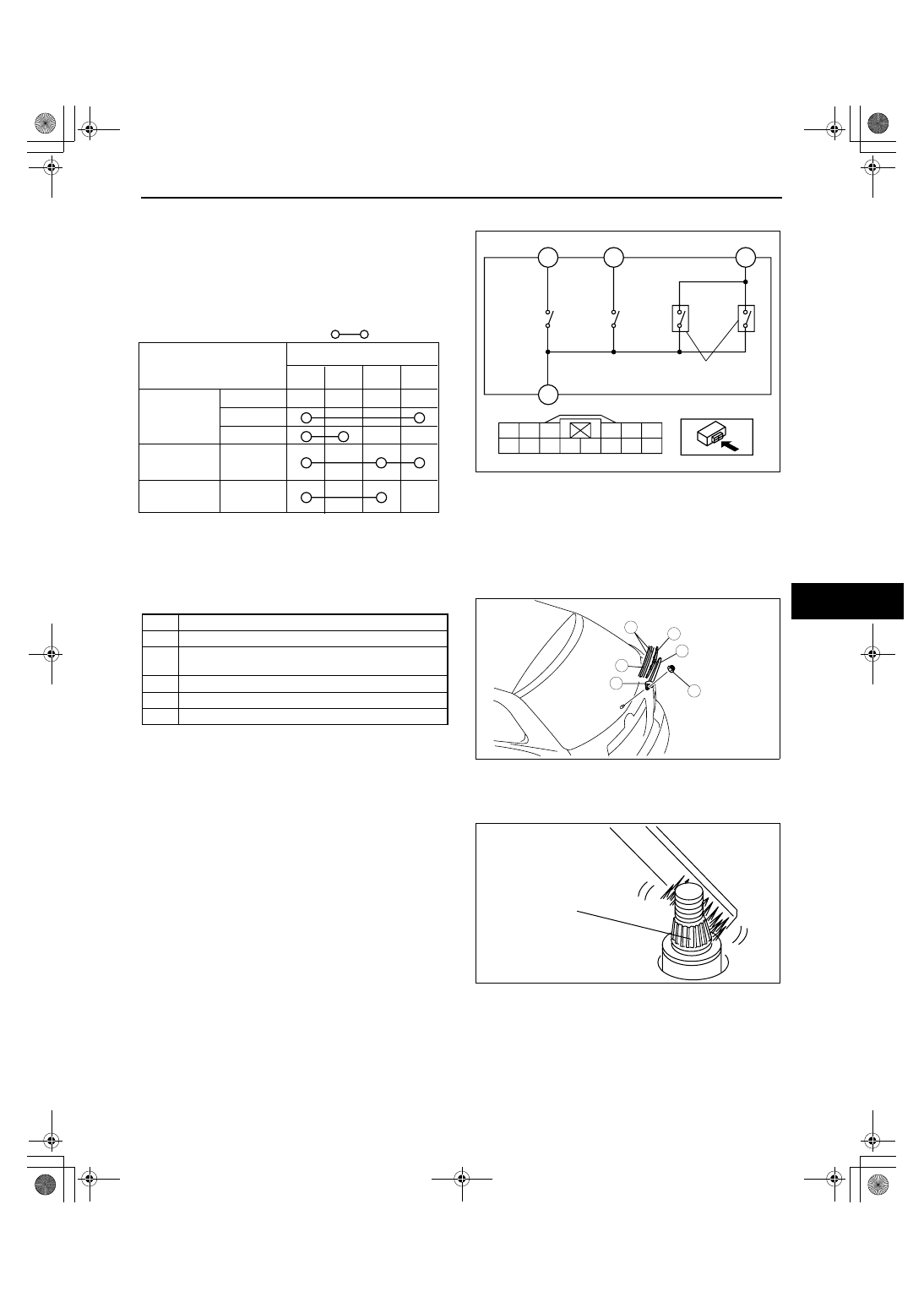

REAR WIPER AND WASHER SWITCH INSPECTION

id091900800400

1. Verify that the continuity between the rear wiper

and washer switch terminals is as indicated in the
table.

• If not as indicated in the table, replace the

wiper and washer switch.

End Of Sie

WM: REAR WIPER ARM AND BLADE

REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION

id091900801200

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.
3. Adjust the rear wiper arm and blade. (See 09-19-

10 REAR WIPER ARM AND BLADE
ADJUSTMENT.)

Rear Wiper Arm Installation Note

1. Clean the rear wiper arm connector shaft using a

wire brush before installing the rear wiper arm.

End Of Sie

F

H

*

*

*

*

F

H

J

L

*

*

REAR WASHER
SWITCH

REAR
WIPER
INT

REAR
WIPER
ON

J

L

*

*

*

*

acxuuw00001627

INT

OFF

ON

ON

ON

F

H

J

L

Switch position

Rear wiper

switch

Rear washer

switch

Rear wiper

and washer

switch

Terminal

: Continuity

acxuuw00001628

1

Cap

2

Nut

3

Rear wiper arm
(See 09-19-9 Rear Wiper Arm Installation Note.)

4

Rear wiper blade

5

Rubber brush

6

Backing plate

5.9—9.8 N·m
{61—99 kgf·cm,
53—86 in·lbf}

5

4

3

1

2

6

acxuuw00001783

REAR WIPER ARM
CONNECTOR
SHAFT

acxuuw00001784

WIPER/WASHER SYSTEM

09-19–10

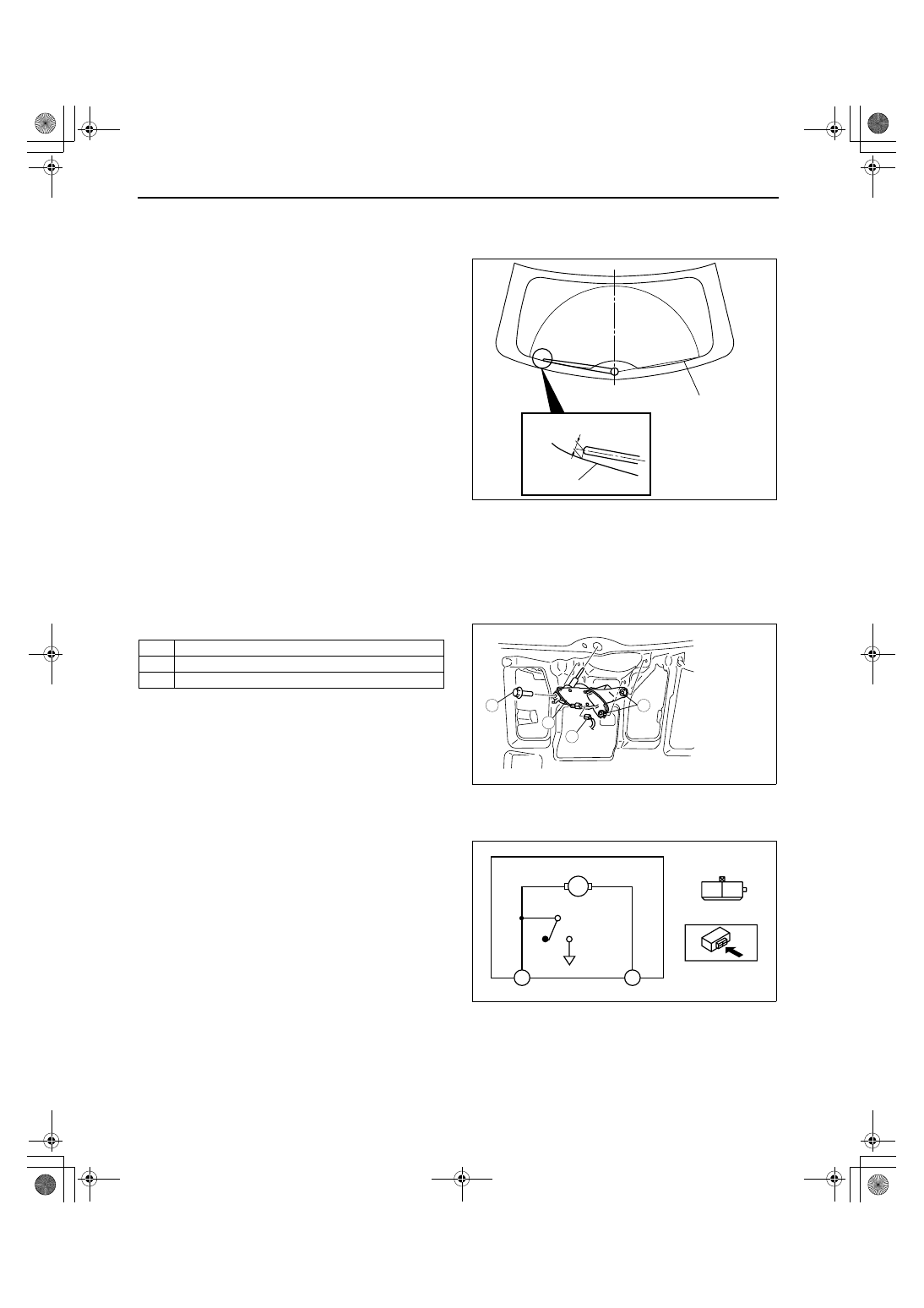

REAR WIPER ARM AND BLADE ADJUSTMENT

id091900801300

1. Turn off the rear wiper switch while operating the rear wiper motor, and then stop the rear wiper at the auto-stop

position.

2. Set the rear wiper arm onto the ceramic end line.

End Of Sie

WM: REAR WIPER MOTOR

REAR WIPER MOTOR REMOVAL/INSTALLATION

id091900801400

1. Disconnect the negative battery cable.
2. Remove the rear wiper arm and blade. (See 09-19-9 REAR WIPER ARM AND BLADE REMOVAL/

INSTALLATION.)

3. Remove the liftgate upper trim. (See 09-17-25 LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)
4. Remove the liftgate side trim. (See 09-17-25 LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)
5. Remove the liftgate lower trim. (See 09-17-26 LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)
6. Remove in the order indicated in the table.

7. Install in the reverse order of removal.

End Of Sie

REAR WIPER MOTOR INSPECTION

id091900801500

1. Connect battery positive voltage to the rear wiper motor terminal A, and ground the rear wiper motor terminal B.
2. Verify that the rear wiper motor operates.

• If there is any malfunction, replace the rear

wiper motor.

End Of Sie

WM: REAR WASHER MOTOR

CERAMIC END LINE

0—30 mm
{0—1.1 in}

CERAMIC
END LINE

acxuuw00001791

1

Rear wiper motor connector

2

Bolt

3

Rear wiper motor

2

1

2

4.0—6.8 N·m
{41—69 kgf·cm,
36—60 in·lbf}

BOLT :

3

acxuuw00001782

B

A

B

A

M

AUTOSTOP
SWITCH

acxuuw00001630
