Mazda CX 7. Manual - part 387





GLASS/WINDOWS/MIRRORS

09-12–35

09-12

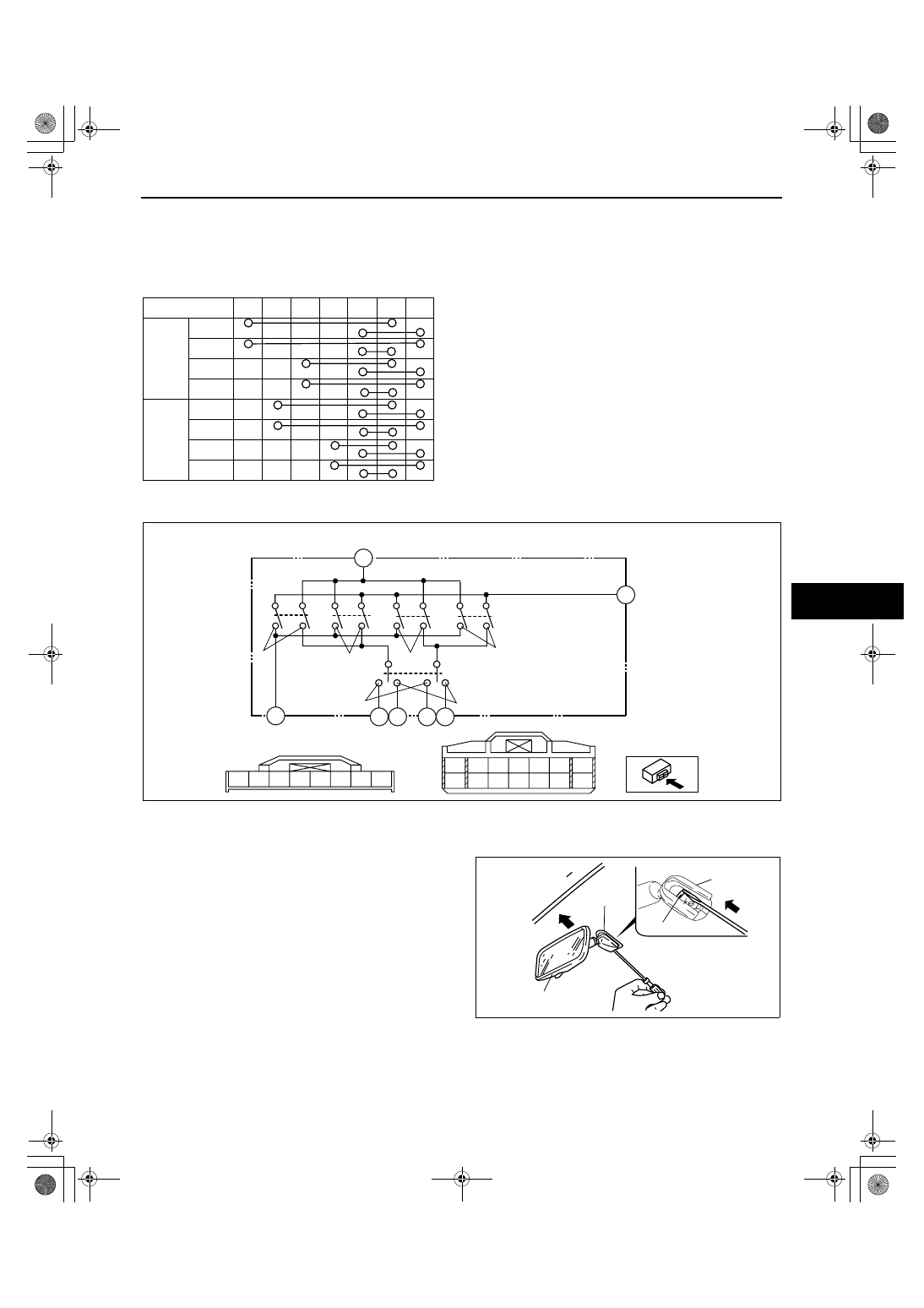

POWER OUTER MIRROR SWITCH INSPECTION

id091200802400

1. Inspect for continuity between the power outer mirror switch terminals using an ohmmeter.

• If not as indicated in the table, replace the power outer mirror switch.

End Of Sie

WM: REARVIEW MIRROR

REARVIEW MIRROR REMOVAL

id091200806800

1. Insert a flathead screwdriver between the mirror

and the base.

2. Push the base pin down to remove the rearview

mirror.

End Of Sie

: Continuity

OPERATION

UP

LH

RH

DOWN

LEFT

RIGHT

UP

DOWN

LEFT

RIGHT

3D

3F

3G

3H

1C

1M

3B

acxuuw00001655

*

*

*

3B

3D

3F

3G

3H

3B

3H

3G

3F

3D

1C

1M

1I

1M

1N

1K

1L

1J

1A

1E

1F

1C

1D 1B

1G

1H

LH

RH

POWER OUTER MIRROR
SWITCH

UP

DOWN

LEFT

RIGHT

MIRROR GLASS
ADJUSTMENT SWITCH

LEFT/RIGHT SELECTION
SWITCH

acxuuw00002228

BASE

BASE PIN

BASE

REARVIEW MIRROR

acxuuw00001667

GLASS/WINDOWS/MIRRORS

09-12–36

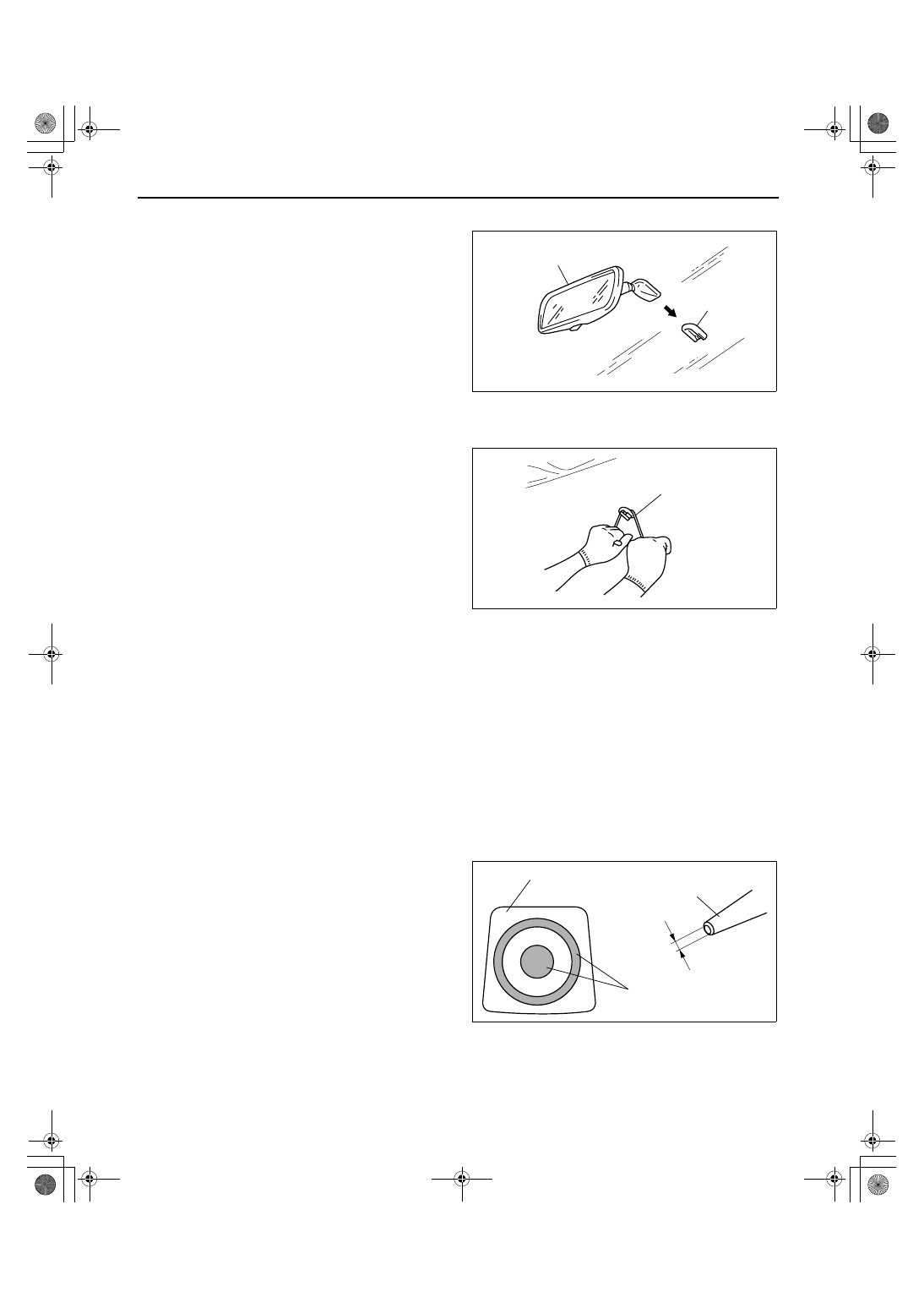

REARVIEW MIRROR INSTALLATION

id091200806700

1. Install the rearview mirror onto the base.

End Of Sie

BASE REMOVAL

id091200803200

1. Remove the rearview mirror. (See 09-12-35 REARVIEW MIRROR REMOVAL.)
2. Wind each end of a wire around a bar.

Warning

• Using the piano wire with bare hands can

cause injury. Always wear gloves when
using the piano wire.

Note

• Use a long sawing action to spread the work

over the whole length of the piano wire to
prevent it from breaking.

3. Fix one end of the piano wire, and while pulling

the other end, cut the sealant to remove the base.

End Of Sie

BASE INSTALLATION

id091200803300

1. Cut away all of the original sealant using a razor.

Warning

• Using a razor with bare hands can cause injury. Always wear gloves when using a razor.

2. Clean and degrease the ceramic coating on the glass and the base.

Caution

• Keep the area free of dirt and grease, and do not touch the surface. Otherwise, the primer may not

properly bond to the surface of the glass.

3. Apply primer to the bonding area of the glass and the base.
4. Use only glass primer on the glass, and body primer on the base. Allow the primer to dry for approx. 30 min.
5. Apply 3.0 mm {0.12 in} layer of sealant to the

base.

BASE

REARVIEW MIRROR

acxuuw00001668

PIANO WIRE

acxuuw00001981

NOZZLE

SEALANT

BASE

3.0 mm
{0.12 in}

acxuuw00001982

GLASS/WINDOWS/MIRRORS

09-12–37

09-12

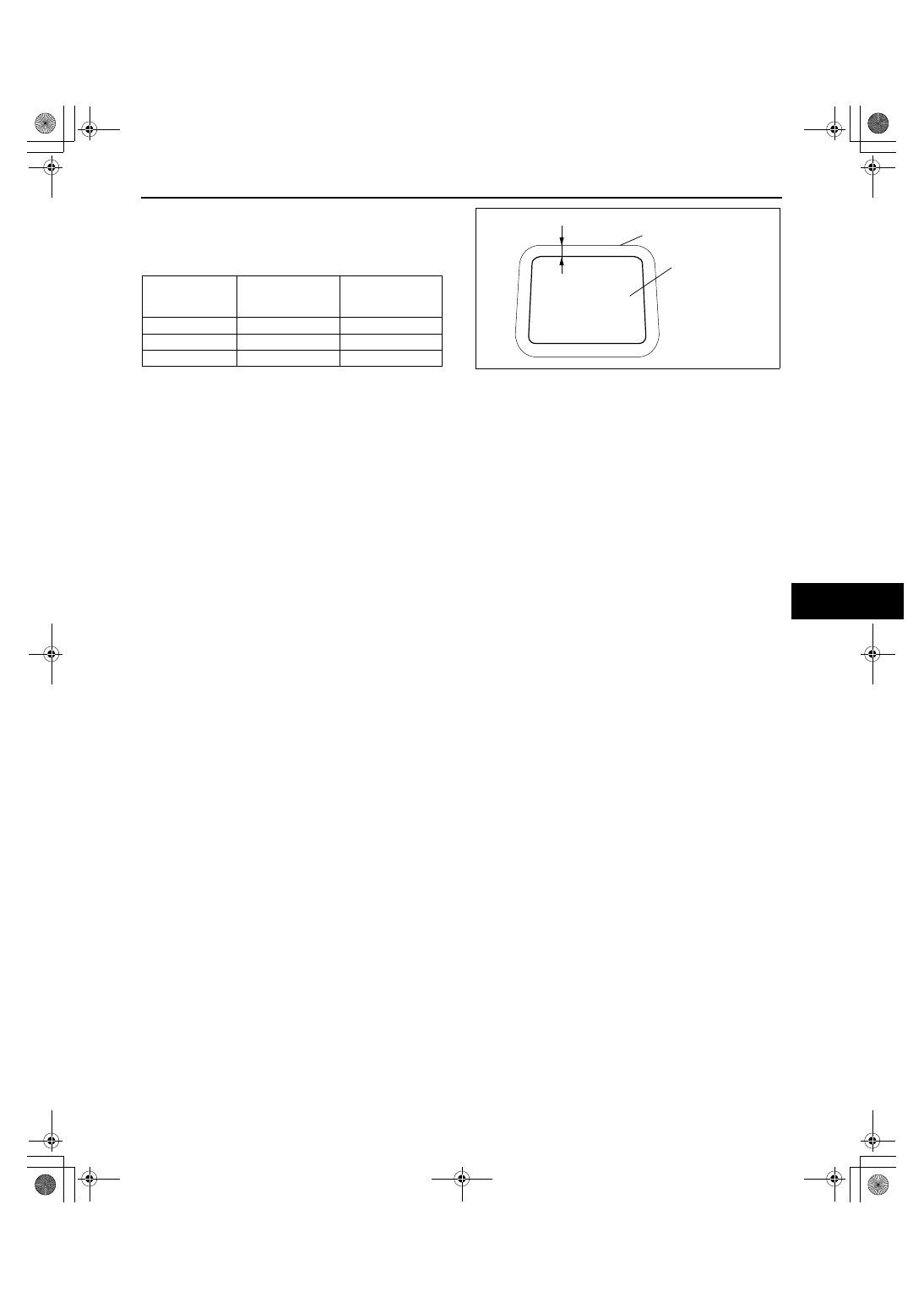

6. Center the base in the ceramic coating and press

it onto the glass.

7. Use isopropyl alcohol to remove any excess

repair sealant.

Hardening time of sealant

8. Install the rearview mirror.

End Of Sie

Temperature

Surface

hardening time

Time required

until car can be

put into service

°C {41 °F}

Approx. 1.5 h

Approx. 12 h

20

°C {68 °F}

Approx. 1 h

Approx. 4 h

35

°C {95 °F}

Approx. 10 min

Approx. 2 h

CERAMIC COATING

BASE

5 mm
{0.2 in}

acxuuw00001983
