Mazda CX 7. Manual - part 384





GLASS/WINDOWS/MIRRORS

09-12–23

09-12

18. Install the liftgate side trim. (See 09-17-25 LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)
19. Install the liftgate upper trim. (See 09-17-25 LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)
20. Install the rear wiper arm and blade. (See 09-19-9 REAR WIPER ARM AND BLADE REMOVAL/

INSTALLATION .)

21. Allow the sealant to harden completely.

Sealant hardening time: 24 h

End Of Sie

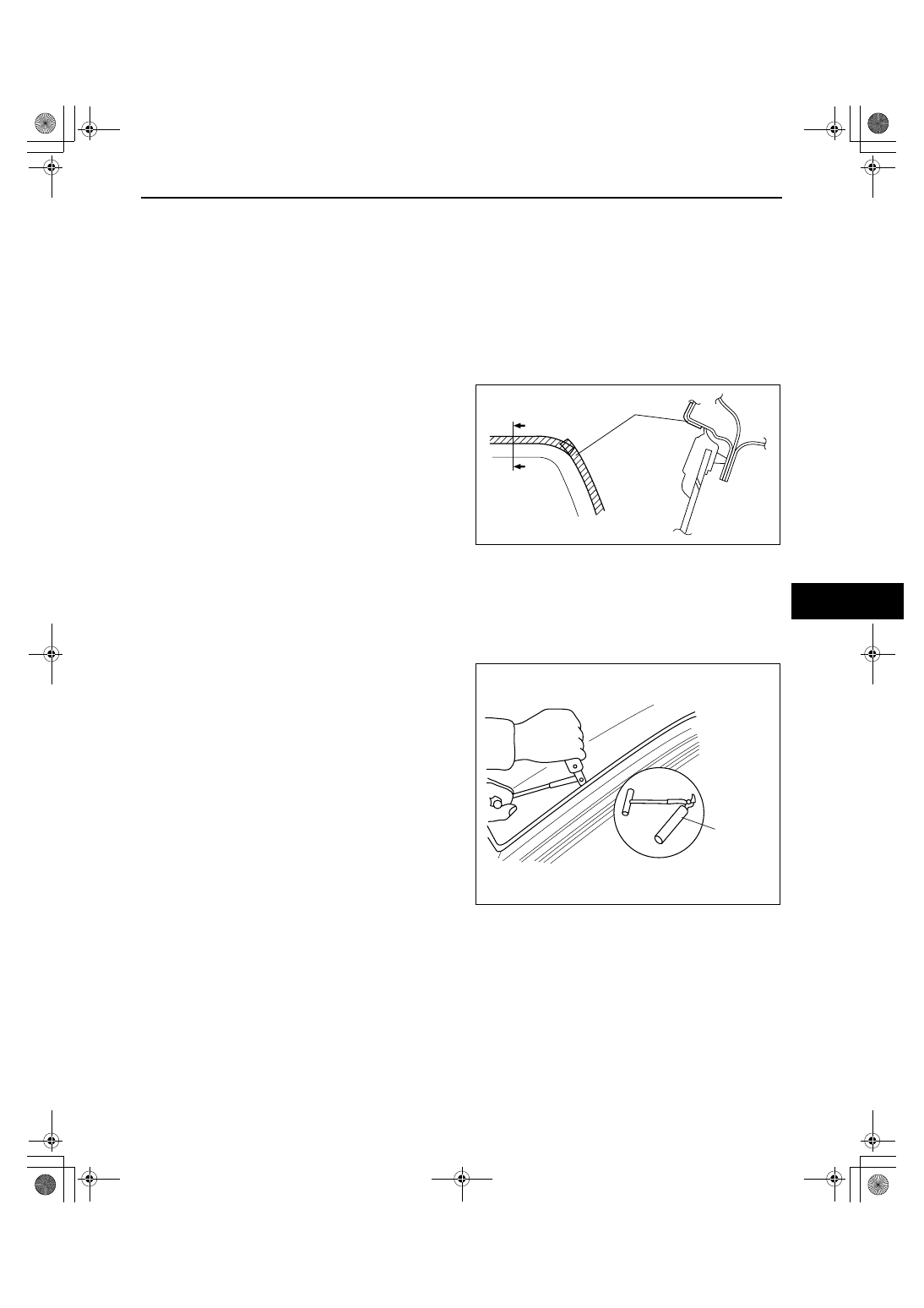

SIDE WINDOW GLASS REMOVAL

id091200803800

1. Remove the A-pillar lower trim. (See 09-17-16 A-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
2. Remove the A-pillar trim. (See 09-17-15 A-PILLAR TRIM REMOVAL/INSTALLATION.)
3. Apply protective tape along the edge of the body

and the side window glass.

Not Reusing Windshield

Note

• For the areas of the sealant that are difficult to cut, use the piano wire and follow the procedure under

“Reusing Windshield”.

1. Cut out the sealant all around the glass from

inside the vehicle using a sealant remover.

Warning

• Using a razor with bare hands can cause

injury. Always wear gloves when using a
razor.

2. Remove the side window glass.

PROTECTIVE TAPE

A

A

GLASS SIDE

BODY SIDE

SEC. A—A

acxuuw00001647

49 G050 1A0

SEALANT
REMOVER

acxuuw00001579

GLASS/WINDOWS/MIRRORS

09-12–24

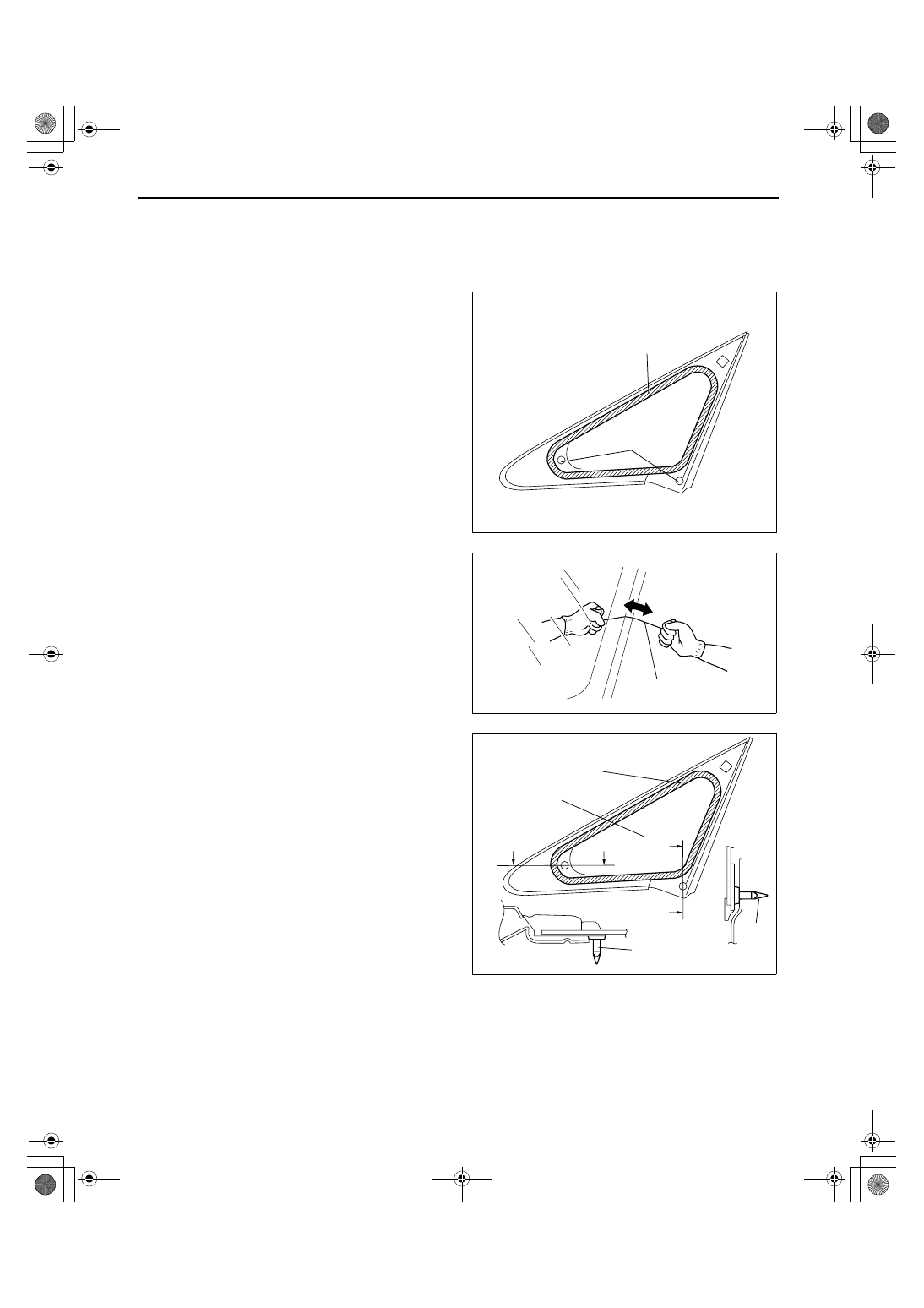

Reusing Windshield

Warning

• Using the piano wire with bare hands can cause injury. Always wear gloves when using the piano

wire.

1. Avoiding the pin on the inside of the vehicle, insert

the piano wire which has been cut to sufficient
length.

2. Wind each end of the piano wire around a bar.

Note

• Use a long sawing action to spread the work

over the whole length of the piano wire to
prevent it from breaking due to localized
heating.

3. Secure one end of the piano wire, and while

pulling the other end, cut the sealant around the
side window glass.

4. Pull the side window glass outward and detach

the pins from the body.

5. If a pin or spacer is damaged, remove it.

Note

• Before removing the pins or spacers from

the quarter window glass, place alignment
marks on the side window glass.

End Of Sie

PRIMER

PIN

acxuuw00001648

PIANO WIRE

acxuuw00001945

QUARTER WINDOW GLASS

SEC. A—A

SEC. B—B

B

B

A

A

PRIMER

PIN

PIN

acxuuw00001649

GLASS/WINDOWS/MIRRORS

09-12–25

09-12

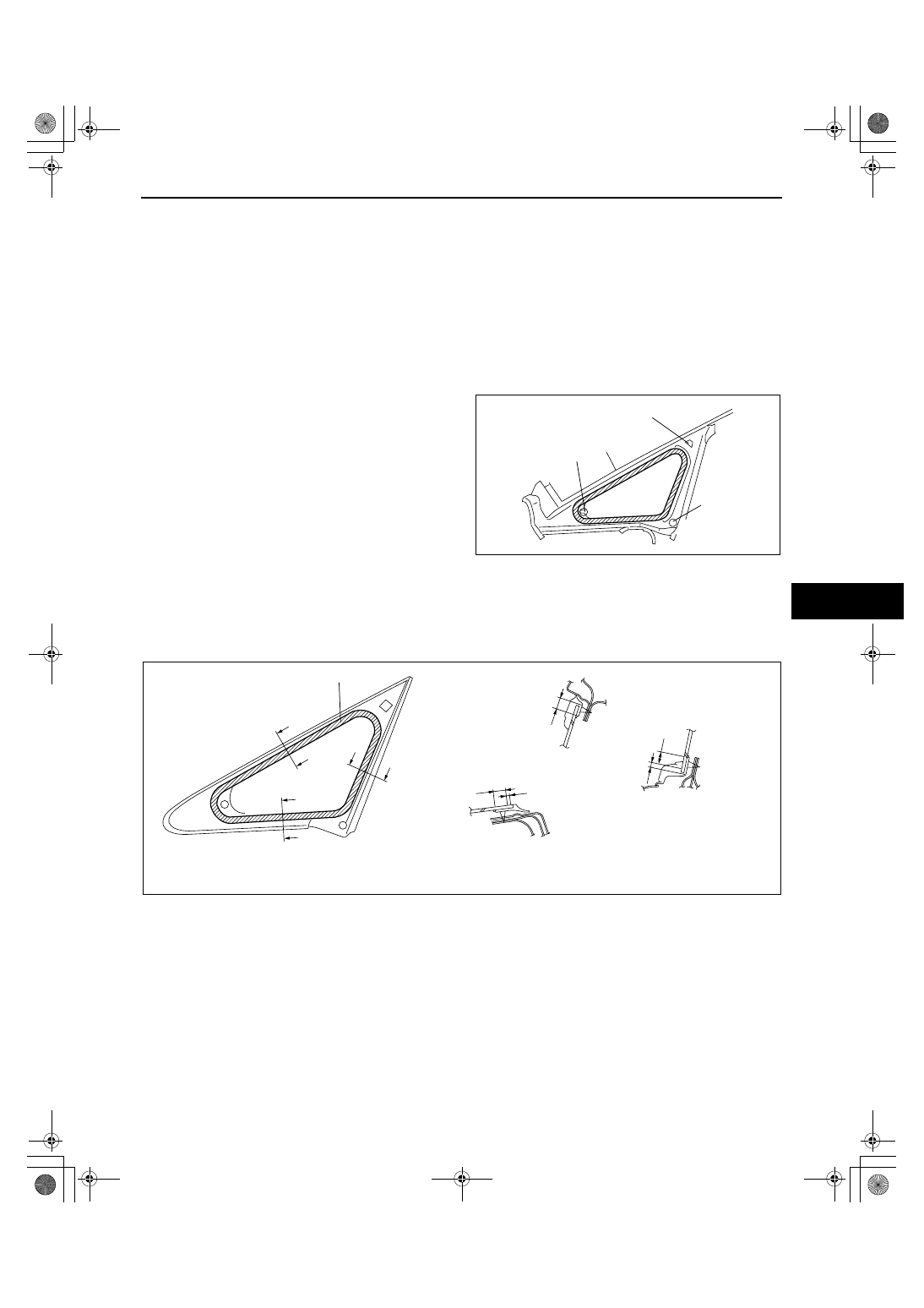

SIDE WINDOW GLASS INSTALLATION

id091200803900

Warning

• Using a razor with bare hands can cause injury. Always wear gloves when using a razor.

Caution

• If a door is opened or closed when all the window glass is closed, the resulting change in air

pressure could cause the sealant to crack preventing the proper installation of the glass. Keep the
door glass open until the side window glass installation is completed.

1. Remove sealant along the perimeter of the glass using a razor or scraper. (when reusing the glass)
2. Clean and degrease the ceramic part along the perimeter of the glass.
3. Inspect the glass for cracks. If it is cracked, chamfer it using sandpaper.
4. Press pin A until it locks, then press pin B and

fastener C simultaneously until they lock as
shown in the figure.
Align with the alignment marks marked before
removing the glass.

5. Apply glass primer along the hollowed marks in

the ceramic coating on the new glass, along the
sealant tracks on the reused glass, then allow it to
dry for approx. 30 min.

Caution

• To prevent weakening of the primer

adhesion, keep the bonding surface free
of dirt, moisture, and grease. Do not
touch the surface with your hand.

Note

• Apply primer to the hollowed marks in the ceramic coating.

6. Cut away the old sealant using a razor or scraper so that 1— 2 mm {0.04— 0.079 in} thickness of sealant

remains along the perimeter of the frame.

7. If the sealant has come off completely in any one place, apply some primer after degreasing, and allow it

approx. 30 min to dry. Then apply 2 mm {0.079 in} thickness of new sealant.

8. Clean and degrease the bonding surface along the perimeter of the body.

FASTENER C

PIN A

PIN B

acxuuw00001650

A

A

C

C

B

B

SEC. B—B

SEC. A—A

SEC. C—C

10 {0.39 }

10 {0.39 }

10 {0.39 }

mm {in}

PRIMER

*

*

*: POSSIBLE PRIMER APPLICATION AREA

acxuuw00001651

GLASS/WINDOWS/MIRRORS

09-12–26

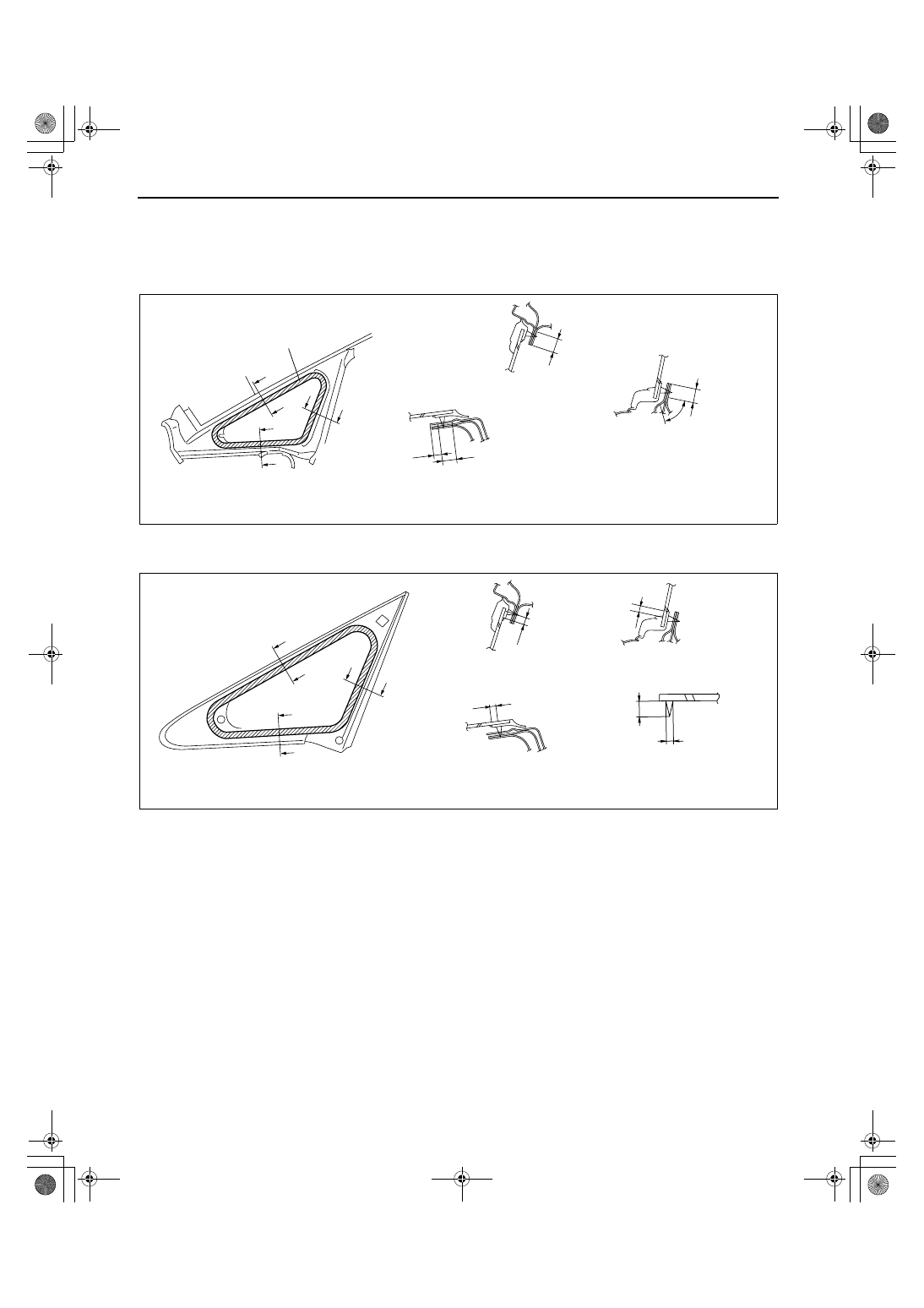

9. Apply body primer on the body as shown in the figure, then allow it to dry for approx. 30 min.

Caution

• To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and

grease. Do not touch the surface with your hand.

10. After the primer has dried, apply 11 mm {0.43 in} in thickness, 5 mm {0.20 in} in width of sealant using a

sealant gun. Where it is not applied properly, correctly apply it using a spatula.

11. Insert the positioning pins to the body and install the side window glass.
12. Install the A-pillar trim. (See 09-17-15 A-PILLAR TRIM REMOVAL/INSTALLATION.)
13. Install the A-pillar lower trim. (See 09-17-16 A-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
14. Allow the sealant to harden completely.

Sealant hardening time: 24 h

End Of Sie

SEC. B—B

SEC. A—A

SEC. C—C

12.5 {0.492 }

7.1 {0.28 }

12.5 {0.492 }

12.5
{0.492 }

mm {in}

*

 * : PRIMER APPLICATION AREA

A

A

C

C

B

B

PRIMER

acxuuw00001652

A

A

C

C

B

B

SEC. B—B

SEC. A—A

SEC. C—C

6 {0.24 }

mm {in}

5 {0.2}

11 {0.43}

6 {0.24 }

6 {0.24 }

acxuuw00001653
