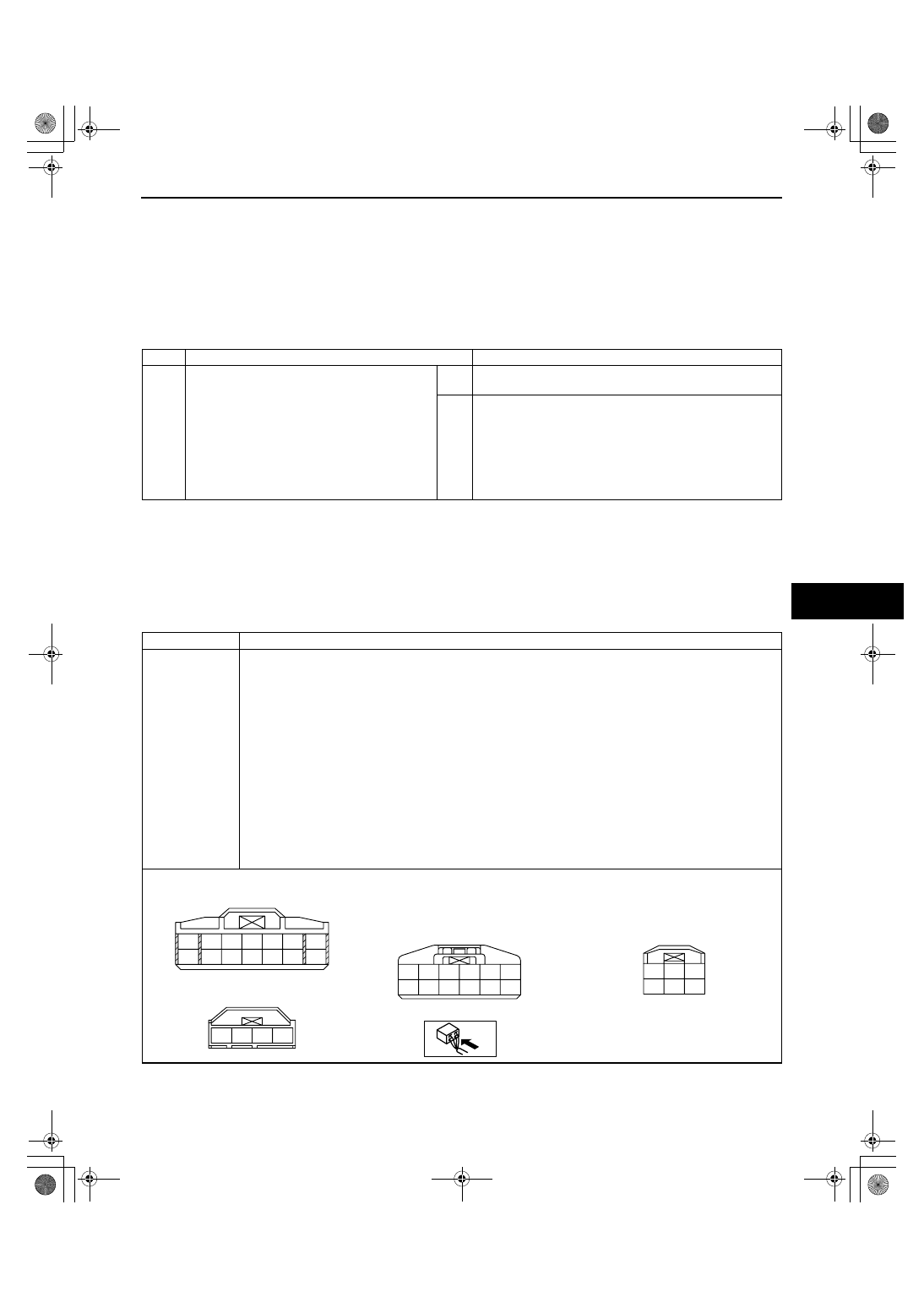

SYMPTOM TROUBLESHOOTING [POWER WINDOW SYSTEMS (AUTO-OPEN/

CLOSE FUNCTION)]

09-03A–5

09-03A

Automatic Mode Function Inspection

Note

• Perform the following inspection for the power window main switch and the power window subswitches for

each window.

Automatic Door Glass Return Function Inspection

Note

• Perform the following inspection for the power window main switch and the power window subswitches for

each front door window.

• With the switch held at auto-up, the front door glass does not automatically reverse even when a foreign

object is encountered.

3

• Does each other door glass other than the

driver-side door glass move up and down in
manual mode using the power window main
switch?

Yes

Go to the next step.

No

• Perform the power window initialization procedure

procedure for any door glass that does not move up and
down, and reinspect. (See 09-12-13 POWER WINDOW
INITIALIZATION PROCEDURE.)

• If it does not move up and down upon reinspection,

inspect the following:

— Wiring harness between power window main switch

and subswitch

• Repair or replace the malfunctioning part, then go to the

next step.

4

• Turn the power-cut switch to LOCK.

• Push/pull the power window main switch

(switches for all windows in manual mode).

• Does only driver-side front door glass move

up and down?

Yes

• Manual mode function is normal.

• Go to the automatic mode function inspection.

No

Replace the power window main switch, then go to the
automatic mode function inspection (power-cut switch
system malfunction).

STEP

INSPECTION

ACTION

STEP

INSPECTION

ACTION

1

• Turn the ignition switch to the ON position.

• Operate the power window switch in

automatic mode.

• Does the door glass move up and down in

automatic mode?

Yes

Go to the next step.

No

• Door glass does not move up and down in automatic

mode:

— Go to Step 1 of NO. 1 DOOR GLASS DOES NOT

MOVE UP AND DOWN IN AUTOMATIC MODE.

• Door glass moves up and down in automatic mode, but

door glass reverses:
— Go to Step 1 of NO. 3 DOOR GLASS REVERSES

EVEN THOUGH THE GLASS DOES NOT
ENCOUNTER A FOREIGN OBJECT WHILE IT IS
MOVING UP IN AUTOMATIC MODE.

2

• Gently pull the power window switch while

the door glass is moving down in automatic
mode.

• Does the glass stop?

Yes

Go to the next step.

No

Replace the power window switch, then go to the automatic
door glass return function inspection.

3

• Gently press the power window switch while

the door glass is moving up in automatic
mode.

• Does the glass stop?

Yes

• Automatic mode function is normal.

• Go to the automatic door glass return function

inspection.

No

Replace the power window switch, then go to the automatic
door glass return function inspection.

STEP

INSPECTION

ACTION

1

• Turn the ignition switch to the ON position.

• Lower the door glass completely.

• Use the power window switch to close the

door glass in automatic mode.

• Does the door glass automatically reverse

even though the glass does not encounter a
foreign object while it is moving up in
automatic mode?

Yes

Go to Step 1 of NO. 3 DOOR GLASS REVERSES EVEN
THOUGH THE GLASS DOES NOT ENCOUNTER A
FOREIGN OBJECT WHILE IT IS MOVING UP IN
AUTOMATIC MODE.

No

Go to the next step.

2

• Lower the door glass completely.

• Take a hammer and hold it against the inside

of the top of the window frame so that the
door glass will hit its handle when it is closed.

• Raise the door glass using automatic mode.

• When the door glass hits the hammer

handle, does it immediately reverse and
move down to approx. 200 mm {7.87 in}
from the completely closed position?

Yes

• Automatic door glass return function inspection is

normal.

• Go to the IG OFF timer function inspection.

No

Go to Step 1 of NO. 2 DOOR GLASS DOES NOT
REVERSE, EVEN WHEN ENCOUNTERING A FOREIGN
OBJECT IN ITS PATH.

1871-1U-06B(09-03A).fm  5 ページ  ２００６年３月１５日　水曜日　午前１１時４２分

SYMPTOM TROUBLESHOOTING [POWER WINDOW SYSTEMS (AUTO-OPEN/

CLOSE FUNCTION)]

09-03A–6

IG OFF Timer Function Inspection

STEP

INSPECTION

ACTION

1

• Close all doors.

• Turn the ignition switch to the ON position.

• In automatic mode, push down the power

window main switch for the driver-side front
door glass. The door glass should move
down within approx. 43 s after ignition
switch off.

• In manual mode (finger continuously

depressing the power window main switch),
the door glass should move down within
approx. 43 s after ignition switch off.

• Does the driver-side front door glass move

down?

Yes

Go to the next step.

No

• Perform the driver-side power window initialization

procedure, and reinspect.(See 09-12-13 POWER
WINDOW INITIALIZATION PROCEDURE.)

• If it does not move up and down upon reinspection,

inspect the following:

— Wiring harness for the door open/close signal system

— Latch switch

• Repair or replace the malfunctioning part, and reinspect.

— If operation is not normal, replace the power window

main switch, and then go to the next step.

2

• Turn the ignition switch to the ON position.

• In automatic mode, pull up the power window

main switch for the driver-side front door
glass. The door glass does not move up
within approx. 43 s after ignition switch off.

• Verify that driver-side front door glass does

not operate.

• Does the driver-side front door glass move

up?

Yes

• Perform the driver-side power window initialization

procedure, and reinspect.(See 09-12-13 POWER
WINDOW INITIALIZATION PROCEDURE.)

— If operation is not normal, replace the power window

main switch, then go to the next step.

No

Go to the next step.

3

• Turn the ignition switch to the ON position.

• Lower the driver-side front door glass

completely.

• Take a hammer and hold it against the inside

of the top of the door glass frame so that the
door glass will hit its handle when it is
closing.

• Raise the door glass using manual mode.

• When the door glass hits the hammer

handle, does it immediately reverse and
move down to approx. 200 mm {7.87 in}
from the completely closed position?

Yes

Go to the next step.

No

• Perform the driver-side power window initialization

procedure, and reinspect.(See 09-12-13 POWER
WINDOW INITIALIZATION PROCEDURE.)

— If operation is not normal, replace the power window

main switch, then go to the next step.

4

• Open front door.

• Turn the ignition switch to the ON position.

• Push/pull the power window main switch for

the door glass within approx. 43 s after
ignition switch off.

• Verify that the door glass does not move up

or down.

• Does the door glass move up or down?

Yes

• Inspect the door switch and related wiring harness.

• If above parts are normal, replace the power window

main switch, then go to the next step.

• If the above parts have any malfunction, repair or

replace the malfunction part, then go to the next step.

No

Go to the next step.

5

• Close front doors.

• Turn the ignition switch to the ON position.

• Push/pull the power window main switch for

door glass after approx. 60 s after ignition
switch off.

• Verify that the door glass does not move up

or down.

• Does the door glass move up or down?

Yes

• Perform the driver-side power window initialization

procedure, and reinspect.(See 09-12-13 POWER
WINDOW INITIALIZATION PROCEDURE.)

— If operation is not normal, replace the power window

main switch, then go to the two-step down function
inspection.

No

• The IG OFF timer function is normal.

• Go to the two-step down function inspection.

1871-1U-06B(09-03A).fm  6 ページ  ２００６年３月１５日　水曜日　午前１１時４２分

SYMPTOM TROUBLESHOOTING [POWER WINDOW SYSTEMS (AUTO-OPEN/

CLOSE FUNCTION)]

09-03A–7

09-03A

Two-step Down Function Inspection

• The distance the door glass opens can be changed using the two-step down function (approx. 20— 100 mm

{0.79— 3.93 in}).

• The two-step down function can be made inoperative. (The function is operative at the initial setting.)

• The two-step down function does not function during IG OFF timer.

Note

• Perform the following inspection for the power window main switch and the power window subswitches for

each front window.

End Of Sie

No.1 DOOR GLASS DOES NOT MOVE UP AND DOWN IN AUTOMATIC MODE[POWER WINDOW SYSTEMS
(AUTO-OPEN/CLOSE FUNCTION)]

id090360805700

Note

• Perform the following inspection for the power window system component parts of windows where the

front door glass cannot be operated automatically.

STEP

INSPECTION

ACTION

1

• Turn the ignition switch to the ON position.

• Raise door glass completely.

• When the door glass is lowered using

manual mode, does it move down to approx.
30 mm {1.2 in} from the completely closed
position and stop for 1 s? (This inspection
cannot be performed during IG OFF timer
function operation.)

Yes

• Two-step down function is normal.

• Reinspect malfunction symptoms.

No

• Perform the power window initial setting procedure and

verify auto-up/down operation.(See 09-12-13 POWER
WINDOW INITIALIZATION PROCEDURE.)
— If the automatic function does not operate, go to

Automatic Door Glass Return Function Inspection.

— If the automatic function operates but the two-step

down function does not, replace the power window
switch.

1

Door glass does not move up and down in automatic mode

POSSIBLE

CAUSE

• Open circuit or short to power supply in sensor 1 signal, ground signal from wiring harness (between

power window switch and power window motor), inner power window switch, or inner motor: Steps 3–6

• Open circuit or short to power supply/ground in sensor 2 signal from wiring harness (between power

window switch and power window motor), inner power window switch, or inner motor: Steps 7–11

Note

• The automatic function and the IG OFF timer function do not operate while the power window switch

is in fail-safe mode. The fail-safe operates when sensor 1, and/or sensor 2, and/or the sensor power
supply malfunctions.

• Sensor 1 and/or 2 malfunction

— When the door glass is moving up and down, the power window switch cannot sense a pulse

signal from sensor 1 during the time it senses 5 pulses (2.5 cycles) from sensor 2.

— When the door glass is moving up and down, the switch cannot sense a pulse signal from sensor

2 during the time it senses 5 pulses (2.5 cycles) from sensor 1.

— There are three abnormal pulses in a pulse signal while the door glass is moving up or down.

— There are 20 cycle pulses from a closed position while the door glass is moving up.

— There is no pulse signal for 1 s after the door glass is moved down.

1A

1C

1E

1I

1K

1M

1B

1D

1F

1J 1H

1L

1N

A

C

*

I

K

B

D

F

J

H

L

*

1G

2A

2B

2C

2D

POWER WINDOW MAIN SWITCH

WIRING HARNESS-SIDE CONNECTOR

 POWER WINDOW PASSENGER'S SUBSWITCH

WIRING HARNESS-SIDE CONNECTOR

POWER WINDOW MOTOR

WIRING HARNESS-SIDE CONNECTOR

A

B

C

D

E

F

1871-1U-06B(09-03A).fm  7 ページ  ２００６年３月１５日　水曜日　午前１１時４２分

SYMPTOM TROUBLESHOOTING [POWER WINDOW SYSTEMS (AUTO-OPEN/

CLOSE FUNCTION)]

09-03A–8

Diagnostic procedure

STEP

INSPECTION

ACTION

1

INSPECT WHETHER POWER WINDOW
SWITCH ENTERS FAIL-SAFE MODE OR NOT

• Did the door glass move up or down in

automatic mode?

Yes

Reinspect malfunction symptoms.

No

Go to the next step. (Power window switch may enter fail-
safe mode.)

2

VERIFY WHETHER MALFUNCTION IS IN
WIRING HARNESS (BETWEEN POWER
WINDOW SWITCH AND FRONT POWER
WINDOW MOTOR) OR ELSEWHERE

• Turn the ignition switch to the ON position.

• Inspect the voltage at the following front

power window switch terminals (sensor 1
signal):
— Driver’s side (at main switch): 2C

— Passenger’s side (at sub-switch): J

• Does the voltage alternate between 0 V and

approx. 12 V when the door glass is moving
up and down?

Yes

Go to Step 7.

No

Go to the next step.

3

VERIFY SENSOR 1 OUTPUT SIGNAL

• Turn the ignition switch to the ON position.

• Inspect the voltage at the following front

power window motor terminals (sensor 1
signal):
— Driver’s side: A

— Passenger’s side: A

• Is the voltage alternate between 0 V and

approx. 12 V when the door glass is moving
up and down in manual mode?

Yes

Go to the next step.

No

Replace the power window motor, then go to Step 12.

4

INSPECT WIRING HARNESS BETWEEN
POWER WINDOW SWITCH AND POWER
WINDOW MOTOR FOR CONTINUITY

• Turn the ignition switch to the LOCK position.

• Disconnect the power window switch

connector.

• Is there continuity between the following

front power window switch terminals and
front power window motor terminals?
— Driver’s side (at main switch— power

window motor):

• 2C— A (sensor 1 signal)

• 2B— D (sensor power supply)

• 2A— C (ground signal)

— Except driver’s side (at sub-switch—

power window motor):

• J— A (sensor 1 signal)

• B— D (sensor power supply)

• D— C (ground signal)

Yes

Go to the next step.

No

Repair the wiring harness between the power window
switch and power window motor, then go to Step 12.

5

VERIFY WHETHER MALFUNCTION IS IN
WIRING HARNESS (BETWEEN POWER
WINDOW SWITCH AND POWER WINDOW
MOTOR) OR POWER WINDOW SWITCH

• Turn the ignition switch to the ON position.

• Inspect the voltage at the following power

window switch terminals:

— Driver’s side (at main switch)

• 2C (sensor 1 signal)

• 2A (ground signal)

— Passenger’s side (at sub-switch)

• C (sensor 1 signal)

• I (ground signal)

• Is the voltage approx. 12 V?

Yes

Repair the wiring harness between the suspect power
window switch and power window motor, then go to Step
12.

No

Replace the suspect power window switch (open circuit or
short to power supply in power window switch).

1871-1U-06B(09-03A).fm  8 ページ  ２００６年３月１５日　水曜日　午前１１時４２分
