AIR BAG SYSTEM

08-10–1

08-10

AIR BAG SYSTEM

LOCATION INDEX. . . . . . . . . . . . . . . . . . 08-10–2
AIR BAG SYSTEM SERVICE

WARNINGS . . . . . . . . . . . . . . . . . . . . . . 08-10–3

Air Bag Module Inspection . . . . . . . . . .  08-10–3
Air Bag Module Handling . . . . . . . . . . .  08-10–3
Side Air Bag Module Handling . . . . . . .  08-10–3
Seat Weight Sensor Handling  . . . . . . .  08-10–4
SAS Control Module Handling . . . . . . .  08-10–4
Crash Zone Sensor Handling. . . . . . . .  08-10–4
Side Air Bag Sensor Handling . . . . . . .  08-10–4
Pre-tensioner Seat Belt Inspection  . . .  08-10–5

AIR BAG SYSTEM SERVICE

CAUTIONS . . . . . . . . . . . . . . . . . . . . . . 08-10–5

Air Bag System Component

Disassembly. . . . . . . . . . . . . . . . . . . . 08-10–5

Air Bag Module, Pre-tensioner

Seat Belt Handling . . . . . . . . . . . . . . . 08-10–5

Seat Weight Sensor Handling . . . . . . . 08-10–5
Air Bag Module, Pre-tensioner

Seat Belt Reuse . . . . . . . . . . . . . . . . . 08-10–6

Air Bag Wiring Harness Repair . . . . . . 08-10–6

DRIVER-SIDE AIR BAG MODULE

REMOVAL/INSTALLATION. . . . . . . . . . 08-10–6

Connector A Removal Note . . . . . . . . . 08-10–6

PASSENGER-SIDE AIR BAG MODULE

REMOVAL/INSTALLATION. . . . . . . . . . 08-10–7

Connector Removal Note. . . . . . . . . . . 08-10–7

SIDE AIR BAG MODULE

REMOVAL/INSTALLATION. . . . . . . . . . 08-10–8

CURTAIN AIR BAG MODULE

REMOVAL/INSTALLATION. . . . . . . . . . 08-10–8

Connector Removal Note. . . . . . . . . . . 08-10–9

CRASH ZONE SENSOR

REMOVAL/INSTALLATION. . . . . . . . . . 08-10–10

Connector Removal Note. . . . . . . . . . . 08-10–10

SAS CONTROL MODULE REMOVAL/

INSTALLATION . . . . . . . . . . . . . . . . . . . 08-10–10

SAS CONTROL MODULE

CONFIGURATION . . . . . . . . . . . . . . . . . 08-10–11

SEAT WEIGHT SENSOR

CONTROL MODULE
REMOVAL/INSTALLATION . . . . . . . . . . 08-10–11

SEAT WEIGHT SENSOR

CALIBRATION . . . . . . . . . . . . . . . . . . . . 08-10–12

SEAT WEIGHT SENSOR

INSPECTION . . . . . . . . . . . . . . . . . . . . . 08-10–12

SIDE AIR BAG SENSOR

NO. 1 REMOVAL/INSTALLATION . . . . . 08-10–13

Connector Removal Note . . . . . . . . . . . 08-10–13

SIDE AIR BAG SENSOR

NO. 2 REMOVAL/INSTALLATION . . . . . 08-10–14

Connector Removal Note . . . . . . . . . . . 08-10–14

CLOCK SPRING

REMOVAL/INSTALLATION . . . . . . . . . . 08-10–15

CLOCK SPRING ADJUSTMENT . . . . . . . 08-10–15
CLOCK SPRING INSPECTION . . . . . . . . 08-10–16
AIR BAG MODULE AND

PRE-TENSIONER SEAT BELT
DEPLOYMENT PROCEDURES . . . . . . . 08-10–17

Deployment Procedure for Inside of

Vehicle. . . . . . . . . . . . . . . . . . . . . . . . . 08-10–17

Driver-side Air Bag Module . . . . . . . . . . 08-10–18
Passenger-side Air Bag Module . . . . . . 08-10–19
Side Air Bag Module . . . . . . . . . . . . . . . 08-10–20
Curtain Air Bag Module . . . . . . . . . . . . . 08-10–20
Pre-tensioner Seat Belt . . . . . . . . . . . . . 08-10–21
Deployment Procedure for Outside of

Vehicle. . . . . . . . . . . . . . . . . . . . . . . . . 08-10–22

Driver-side Air Bag Module . . . . . . . . . . 08-10–22
Passenger-side Air Bag Module . . . . . . 08-10–24
Side Air Bag Module . . . . . . . . . . . . . . . 08-10–26
Curtain Air Bag Module . . . . . . . . . . . . . 08-10–27
Pre-tensioner Seat Belt . . . . . . . . . . . . . 08-10–29

AIR BAG MODULE AND

PRE-TENSIONER SEAT BELT
DISPOSAL PROCEDURES . . . . . . . . . . 08-10–30

INSPECTION OF SST

(DEPLOYMENT TOOL) . . . . . . . . . . . . . 08-10–31

Inspection Procedure . . . . . . . . . . . . . . 08-10–31

End of Toc

WM: AIR BAG SYSTEM

1871-1U-06B(08-10).fm 1 ページ２００６年３月１５日　水曜日　午前１１時３６分

AIR BAG SYSTEM

08-10–2

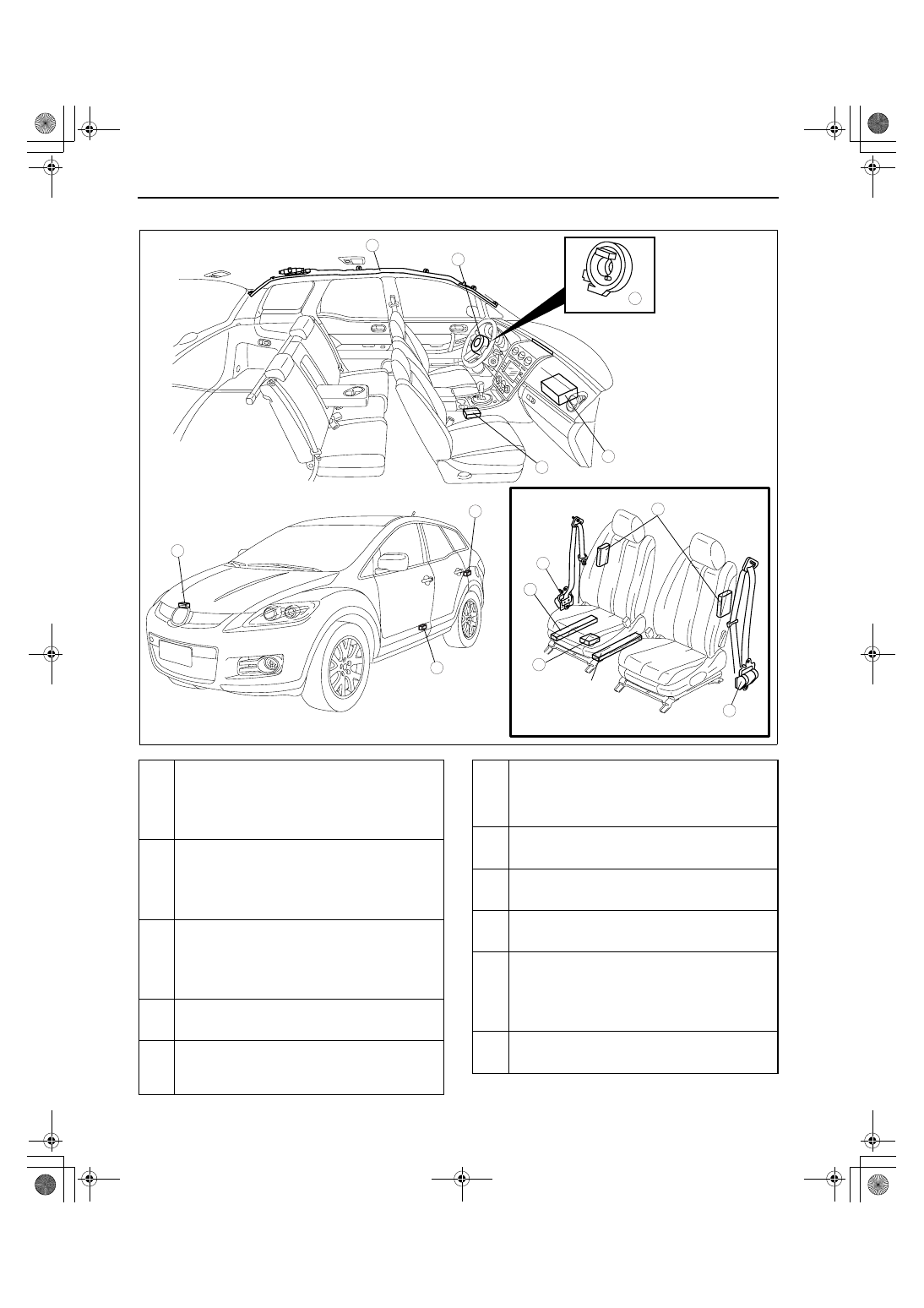

LOCATION INDEX

id081000800100

acxuuw00001173

Driver-side air bag module
(See 08-10-6 DRIVER-SIDE AIR BAG MODULE
REMOVAL/INSTALLATION.)
(See 08-10-17 AIR BAG MODULE AND PRE-
TENSIONER SEAT BELT DEPLOYMENT
PROCEDURES.)

Passenger-side air bag module
(See 08-10-7 PASSENGER-SIDE AIR BAG
MODULE REMOVAL/INSTALLATION.)
(See .08-10-17 AIR BAG MODULE AND PRE-
TENSIONER SEAT BELT DEPLOYMENT
PROCEDURES)

Curtain air bag module
(See 08-10-8 CURTAIN AIR BAG MODULE
REMOVAL/INSTALLATION.)
(See 08-10-17 AIR BAG MODULE AND PRE-
TENSIONER SEAT BELT DEPLOYMENT
PROCEDURES.)

SAS control module
(See 08-10-10 SAS CONTROL MODULE
REMOVAL/INSTALLATION.)

Pre-tensioner seat belt
(See 08-10-17 AIR BAG MODULE AND PRE-
TENSIONER SEAT BELT DEPLOYMENT
PROCEDURES.)

Clock spring
(See 08-10-15 CLOCK SPRING REMOVAL/
INSTALLATION.)
(See 08-10-16 CLOCK SPRING INSPECTION.)
(See 08-10-15 CLOCK SPRING ADJUSTMENT.)

Crash zone sensor
(See 08-10-10 CRASH ZONE SENSOR
REMOVAL/INSTALLATION.)

Side air bag sensor No. 1
(See 08-10-13 SIDE AIR BAG SENSOR NO. 1
REMOVAL/INSTALLATION.)

Side air bag sensor No. 2
(See 08-10-14 SIDE AIR BAG SENSOR NO. 2
REMOVAL/INSTALLATION.)

Side air bag module
(See 08-10-8 SIDE AIR BAG MODULE REMOVAL/
INSTALLATION.)
(See 08-10-17 AIR BAG MODULE AND PRE-
TENSIONER SEAT BELT DEPLOYMENT
PROCEDURES.)

Seat weight sensor control module
(See 08-10-11 SEAT WEIGHT SENSOR CONTROL
MODULE REMOVAL/INSTALLATION.)

1871-1U-06B(08-10).fm 2 ページ２００６年３月１５日　水曜日　午前１１時３６分

AIR BAG SYSTEM

08-10–3

08-10

End Of Sie

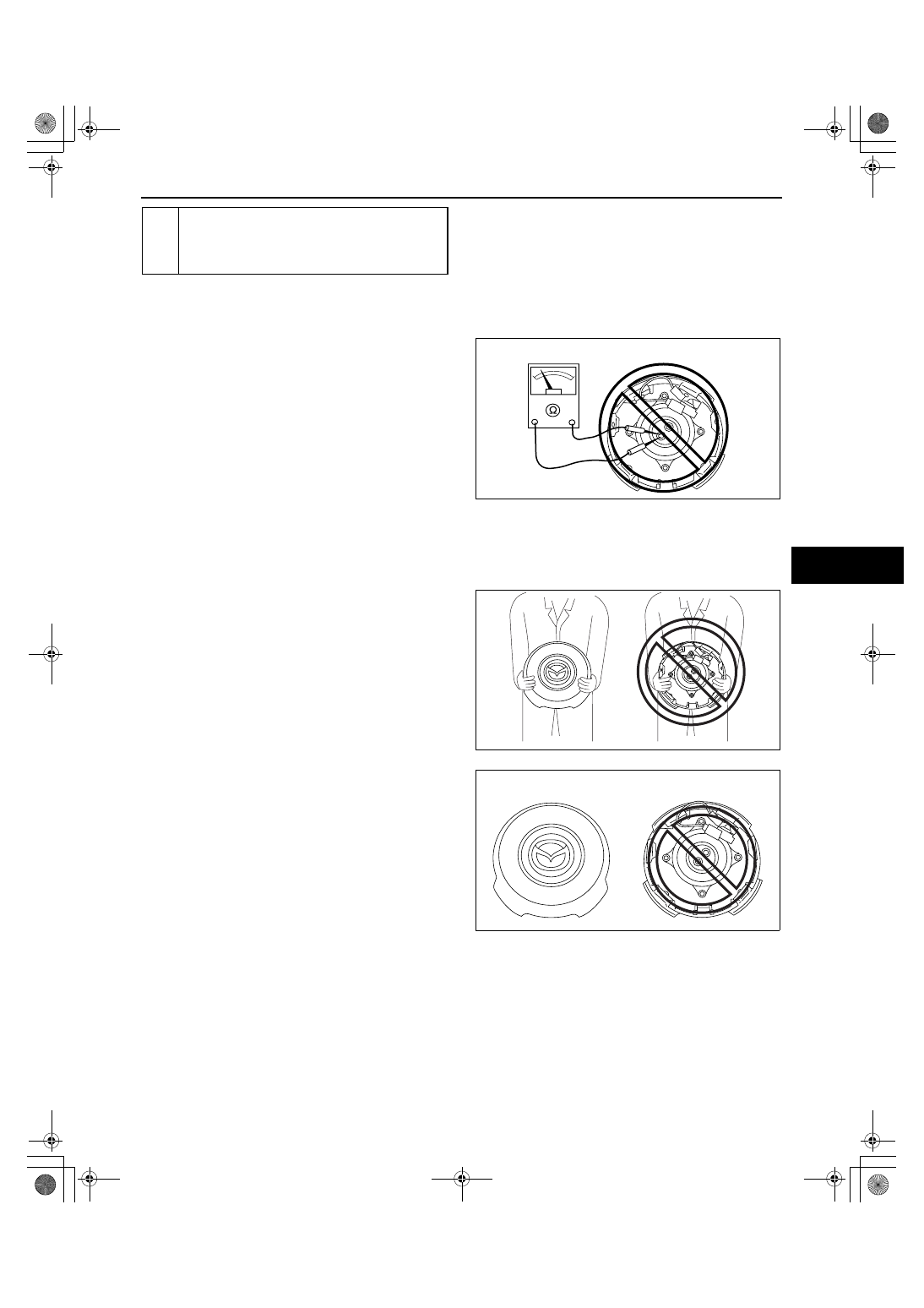

AIR BAG SYSTEM SERVICE WARNINGS

id081000800200

Air Bag Module Inspection

• Inspecting an air bag module using a tester

can operate (deploy) the air bag module,
which may cause serious injury. Do not use a
tester to inspect an air bag module. Always
use the on-board diagnostic function to
diagnose the air bag module for malfunctions.

Air Bag Module Handling

• Before removing the air bag module or disconnecting the air bag module connector, always turn the

ignition switch to the LOCK position, disconnect the negative battery cable, and then wait for 1 min or
more to allow the backup power supply of the SAS control module to deplete its stored power.

• Handling a live (undeployed) air bag module

that is pointed toward your body could result
in serious injury if the air bag module were to
accidentally operate (deploy). When carrying
a live (undeployed) air bag module, point the
deployment surface away from your body to
lessen the chance of injury in case it operates
(deploys).

• A live (undeployed) air bag module placed

with its deployment surface to ground is
dangerous. If the air bag module were to
accidentally operate (deploy), it could cause
serious injury. Always place a live
(undeployed) air bag module with its
deployment surface up.

Side Air Bag Module Handling

• Before removing the side air bag module or disconnecting the side air bag module connector, always

turn the ignition switch to the LOCK position, disconnect the negative battery cable, and then wait for 1
min or more to allow the backup power supply of the SAS control module to deplete its stored power.

• When a side air bag module operates (deploys) due to a collision, the interior of the seat back (pad,

frame, trim) may become damaged. If a side air bag does not operate (deploy) normally from a seat
back that has been reused, a serious accident may result. After a side air bag has operated (deployed),
always replace both the side air bag module and the seat back (pad, frame, trim) with new parts. After
servicing, verify that the seat operates normally and that the wiring harness is not caught.

Seat weight sensor
(See 08-10-12 SEAT WEIGHT SENSOR
CALIBRATION.)
(See 08-10-12 SEAT WEIGHT SENSOR
INSPECTION.)

NO GOOD

acxuuw00001174

NO GOOD

GOOD

acxuuw00001175

NO GOOD

GOOD

acxuuw00001176

1871-1U-06B(08-10).fm 3 ページ２００６年３月１５日　水曜日　午前１１時３６分

AIR BAG SYSTEM

08-10–4

Seat Weight Sensor Handling

• The passenger-side seat and the seat weight sensor may become deformed or otherwise damaged due

to operation (deployment) of the front or side air bag in an accident. This may cause the passenger
sensing function to operate improperly and result in a serious accident. Always replace the passenger
seat and seat weight sensor with new ones after the front or side air bags have operated (deployed).
After servicing, verify that the seat operates normally and that the wiring harness is not caught. If the
collision is not hard enough to cause the front or side air bags to operate (deploy), inspect the seat
weight sensor and replace it if there is any malfunction.

SAS Control Module Handling

• Removing the SAS control module or disconnecting the SAS control module connector with the

ignition switch at the ON position can activate the sensor in the SAS control module and operate
(deploy) the air bags and pre-tensioner seat belts, which may cause serious injury. Before removing the
SAS control module or disconnecting the SAS control module connector, always turn the ignition
switch to the LOCK position, disconnect the negative battery cable, and then wait for 1 min or more to
allow the backup power supply of the SAS control module to deplete its stored power.

• Connecting the SAS control module connector with the SAS control module not securely fixed to the

vehicle is dangerous. The sensor in the SAS control module could send an electrical signal to the air
bag modules and pre-tensioner seat belts. This will operate (deploy) the air bags and pre-tensioner
seat belts, which may result in serious injury. Therefore, before connecting the connector, securely fix
the SAS control module to the vehicle.

• Because a sensor is built into the SAS control module, once the air bags and pre-tensioner seat belts

have operated (deployed) due to a collision or other causes, the SAS control module must be replaced
with a new one even if the used one does not have any visible external damage or deformation. The
used SAS control module may have been damaged internally, which may cause improper operation. If
the SAS control module is reused, the air bags and pre-tensioner seat belts may not operate (deploy)
normally, which could result in a serious accident. Always replace the SAS control module with a new
one. The SAS control module cannot be bench-checked or self-checked.

Crash Zone Sensor Handling

• Removing the crash zone sensor or disconnecting the crash zone sensor connector with the ignition

switch at the ON position can activate the crash zone sensor and operate (deploy) the air bags and pre-
tensioner seat belts, which may cause serious injury. Before removing the crash zone sensor or
disconnecting the crash zone sensor connector, always turn the ignition switch to the LOCK position,
disconnect the negative battery cable, and then wait for 1 min or more to allow the backup power
supply of the SAS control module to deplete its stored power.

• If the crash zone sensor is subjected to shock or the sensor is disassembled, the air bags and pre-

tensioner seat belts may accidentally operate (deploy) and cause injury, or the system may fail to
operate normally and cause a serious accident. Do not subject the crash zone sensor to shock or
disassemble the sensor.

• Because a sensor is built into the crash zone sensor, once the air bags and pre-tensioner seat belts

have operated (deployed) due to a collision or other causes, the crash zone sensor must be replaced
with a new one even if the used one does not have any visible external damage or deformation. If the
crash zone sensor is reused, the air bags and pre-tensioner seat belts may not operate (deploy)
normally, which could result in a serious accident. Always replace the crash zone sensor with a new
one. The crash zone sensor cannot be bench-checked or self-checked.

Side Air Bag Sensor Handling

• Removing the side air bag sensor or disconnecting the side air bag sensor connector with the ignition

switch at the ON position can activate the side air bag sensor and operate (deploy) the side air bag,
which may cause serious injury. Before removing the side air bag sensor or disconnecting the side air
bag sensor connector, always turn the ignition switch to the LOCK position, disconnect the negative
battery cable, and then wait for 1 min or more to allow the backup power supply of the SAS control
module to deplete its stored power.

• If the side air bag sensor is subjected to shock or the sensor is disassembled, the side air bag may

accidentally operate (deploy) and cause injury, or the system may fail to operate normally and cause a
serious accident. Do not subject the side air bag sensor to shock or disassemble the sensor.

• Because a sensor is built into the side air bag sensor, once the air bag has operated (deployed) due to

a collision or other causes, the side air bag sensor must be replaced with a new one even if the used
one does not have any visible external damage or deformation. If the side air bag sensor is reused, the
side air bag may not operate (deploy) normally, which could result in a serious accident. Always
replace the side air bag sensor with a new one. The side air bag sensor cannot be bench-checked or
self-checked.

1871-1U-06B(08-10).fm 4 ページ２００６年３月１５日　水曜日　午前１１時３６分

Content .. 314 315 316 317 ..
