AUTOMATIC TRANSAXLE [AW6A-EL, AW6AX-EL]

05-17–1

05-17

AUTOMATIC TRANSAXLE [AW6A-EL, AW6AX-EL]

AUTOMATIC TRANSAXLE LOCATION

INDEX[AW6A-EL, AW6AX-EL] . . . . . . . 05-17–2

MECHANICAL SYSTEM TEST

[AW6A-EL, AW6AX-EL] . . . . . . . . . . . . 05-17–3

Mechanical System Test Preparation. .  05-17–3
Line Pressure Test . . . . . . . . . . . . . . . .  05-17–3
Stall Test  . . . . . . . . . . . . . . . . . . . . . . .  05-17–5
Time Lag Test  . . . . . . . . . . . . . . . . . . .  05-17–6

ROAD TEST[AW6A-EL, AW6AX-EL] . . . 05-17–7

Road Test Preparation . . . . . . . . . . . . .  05-17–7
Shift Diagram . . . . . . . . . . . . . . . . . . . .  05-17–7
D Range Test . . . . . . . . . . . . . . . . . . . .  05-17–8
M Range Test . . . . . . . . . . . . . . . . . . . .  05-17–9
P Position Test . . . . . . . . . . . . . . . . . . .  05-17–10

AUTOMATIC TRANSAXLE FLUID (ATF)

INSPECTION[AW6A-EL, AW6AX-EL] . 05-17–10

Automatic Transaxle Fluid (ATF)

Condition Inspection . . . . . . . . . . . . . 05-17–10

Automatic Transaxle Fluid (ATF)

Level Inspection . . . . . . . . . . . . . . . . 05-17–10

AUTOMATIC TRANSAXLE FLUID

(ATF) REPLACEMENT
[AW6A-EL, AW6AX-EL] . . . . . . . . . . . . 05-17–11

TRANSAXLE RANGE (TR) SWITCH

INSPECTION[AW6A-EL, AW6AX-EL] . 05-17–11

TRANSAXLE FLUID TEMPERATURE

(TFT) SENSOR INSPECTION
[AW6A-EL, AW6AX-EL] . . . . . . . . . . . . 05-17–12

On-Vehicle Inspection . . . . . . . . . . . . . 05-17–12
Off-Vehicle Inspection . . . . . . . . . . . . . 05-17–12

TRANSAXLE FLUID TEMPERATURE

(TFT) SENSOR
REMOVAL/INSTALLATION
[AW6A-EL, AW6AX-EL] . . . . . . . . . . . . 05-17–13

INPUT/TURBINE SPEED SENSOR

INSPECTION[AW6A-EL, AW6AX-EL] . 05-17–15

On-Vehicle Inspection . . . . . . . . . . . . . 05-17–15
Off-Vehicle Inspection . . . . . . . . . . . . . 05-17–16

INPUT/TURBINE SPEED SENSOR

REMOVAL/INSTALLATION
[AW6A-EL, AW6AX-EL] . . . . . . . . . . . . 05-17–17

VEHICLE SPEED SENSOR (VSS)

INSPECTION[AW6A-EL, AW6AX-EL] . 05-17–18

On-Vehicle Inspection . . . . . . . . . . . . . 05-17–18
Off-Vehicle Inspection . . . . . . . . . . . . . 05-17–18

VEHICLE SPEED SENSOR (VSS)

REMOVAL/INSTALLATION
[AW6A-EL, AW6AX-EL] . . . . . . . . . . . . 05-17–19

SOLENOID VALVE INSPECTION

[AW6A-EL, AW6AX-EL] . . . . . . . . . . . . 05-17–20

Resistance Inspection

(On-Vehicle Inspection). . . . . . . . . . . 05-17–20

Continuity Inspection

(On-Vehicle Inspection). . . . . . . . . . . 05-17–20

TCM INSPECTION

[AW6A-EL, AW6AX-EL] . . . . . . . . . . . . 05-17–21

TR Switch Operating Inspection . . . . . 05-17–21
Control Module Inspection . . . . . . . . . . 05-17–21

TCM REMOVAL/INSTALLATION

[AW6A-EL, AW6AX-EL] . . . . . . . . . . . . . 05-17–25

Neutral Position Learning . . . . . . . . . . . 05-17–28

OIL SEAL (MANUAL SHAFT)

REPLACEMENT
[AW6A-EL, AW6AX-EL] . . . . . . . . . . . . . 05-17–28

AUTOMATIC TRANSAXLE

REMOVAL/INSTALLATION
[AW6A-EL, AW6AX-EL] . . . . . . . . . . . . . 05-17–29

Torque Converter Nuts Removal Note . 05-17–32
No.4 Engine Mount Bracket

Removal Note . . . . . . . . . . . . . . . . . . . 05-17–32

Transaxle Removal Note . . . . . . . . . . . . 05-17–34
Transaxle Installation Note . . . . . . . . . . 05-17–34
No.4 Engine Mount Bracket

Installation Note . . . . . . . . . . . . . . . . . 05-17–34

No.1 Engine Mount Installation Note. . . 05-17–34
Torque Converter Nuts

Installation Note . . . . . . . . . . . . . . . . . 05-17–35

Selector Cable Installation Note . . . . . . 05-17–35

OIL SEAL (DIFFERENTIAL)

REPLACEMENT
[AW6A-EL, AW6AX-EL] . . . . . . . . . . . . . 05-17–35

DIFFERENTIAL GEAR O-RING

REPLACEMENT
[AW6A-EL, AW6AX-EL] . . . . . . . . . . . . . 05-17–37

CONTROL VALVE BODY

REMOVAL/INSTALLATION
[AW6A-EL, AW6AX-EL] . . . . . . . . . . . . . 05-17–38

On-Vehicle Removal . . . . . . . . . . . . . . . 05-17–38
On-Vehicle Installation. . . . . . . . . . . . . . 05-17–42

OIL SEAL (OIL PUMP)

REPLACEMENT
[AW6A-EL, AW6AX-EL] . . . . . . . . . . . . . 05-17–45

TORQUE CONVERTER

REMOVAL/INSTALLATION
[AW6A-EL, AW6AX-EL] . . . . . . . . . . . . . 05-17–46

OIL COOLER FLUSHING

[AW6A-EL, AW6AX-EL] . . . . . . . . . . . . . 05-17–47

OIL COOLER

REMOVAL/INSTALLATION
[AW6A-EL, AW6AX-EL] . . . . . . . . . . . . . 05-17–47

Radiator (In Tank Oil Cooler)

Installation Note . . . . . . . . . . . . . . . . . 05-17–49

Oil Pipe, Hose Clamp,

Oil Hose Installation Note . . . . . . . . . . 05-17–49

OIL COOLER

DISASSEMBLY/ASSEMBLY
[AW6A-EL, AW6AX-EL] . . . . . . . . . . . . . 05-17–50

Radiator Outer Tank

(In Tank Oil Cooler) Removal Note. . . 05-17–51

Radiator Outer Tank

(In Tank Oil Cooler)
Installation Note . . . . . . . . . . . . . . . . . 05-17–51

DRIVE PLATE

REMOVAL/INSTALLATION
[AW6A-EL, AW6AX-EL] . . . . . . . . . . . . . 05-17–52

Drive Plate Mounting Bolts

Removal Note . . . . . . . . . . . . . . . . . . . 05-17–53

Drive Plate Installation Note . . . . . . . . . 05-17–53

End of Toc

1871-1U-06B(05-17).fm 1 ページ２００６年３月１５日　水曜日　午前１１時２０分

AUTOMATIC TRANSAXLE [AW6A-EL, AW6AX-EL]

05-17–2

WM: AUTOMATIC TRANSAXLE

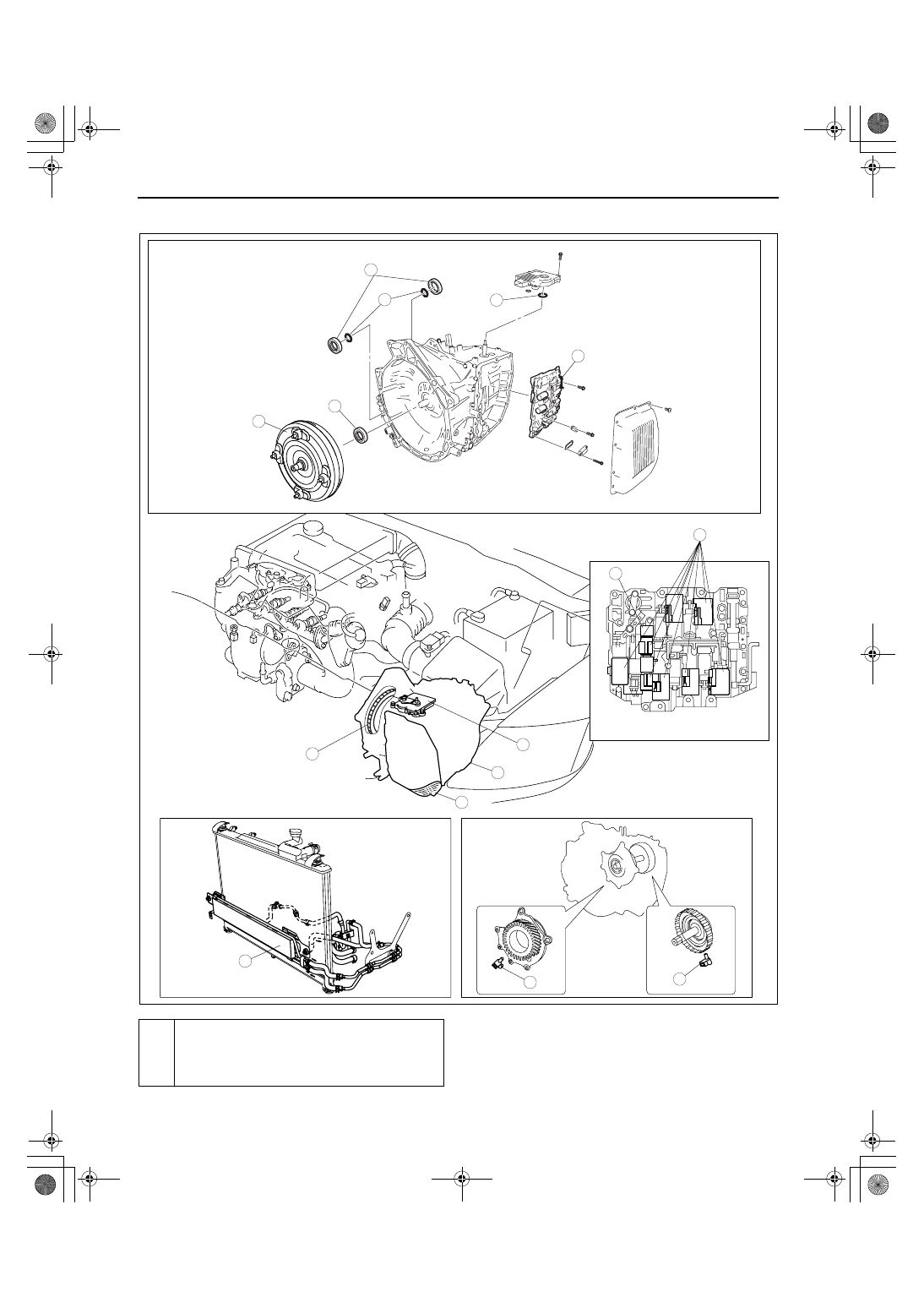

AUTOMATIC TRANSAXLE LOCATION INDEX[AW6A-EL, AW6AX-EL]

id051723802000

acxuuw00000486

Automatic transaxle fluid (ATF)
(See 05-17-10 AUTOMATIC TRANSAXLE FLUID
(ATF) INSPECTION[AW6A-EL, AW6AX-EL].)
(See 05-17-11 AUTOMATIC TRANSAXLE FLUID
(ATF) REPLACEMENT[AW6A-EL, AW6AX-EL].)

1871-1U-06B(05-17).fm 2 ページ２００６年３月１５日　水曜日　午前１１時２０分

AUTOMATIC TRANSAXLE [AW6A-EL, AW6AX-EL]

05-17–3

05-17

End Of Sie

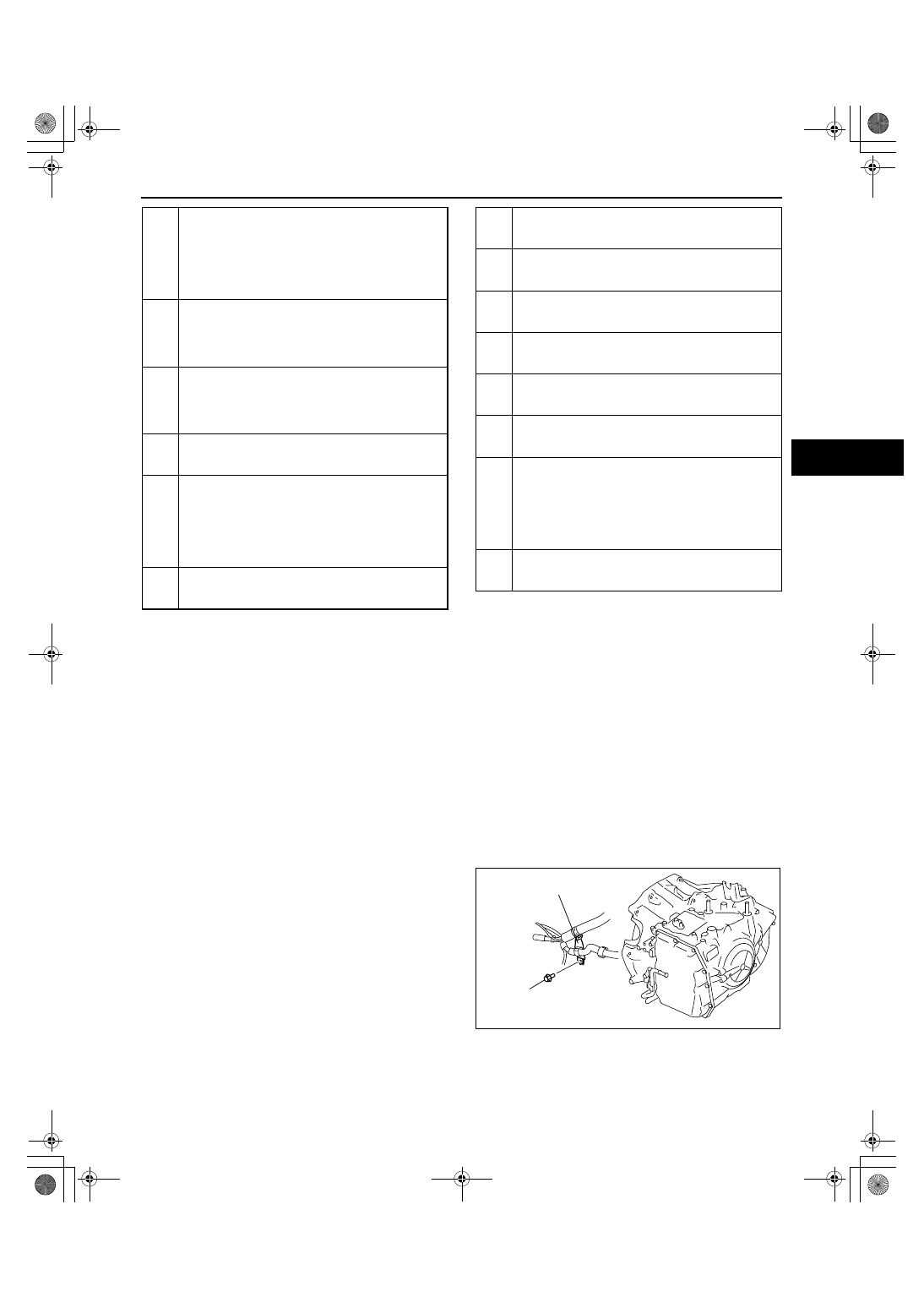

MECHANICAL SYSTEM TEST[AW6A-EL, AW6AX-EL]

id051723802100

Mechanical System Test Preparation

1. Engage the parking brake and use wheel chocks at the front and rear of the wheels.
2. Inspect the engine coolant level. (See 01-12-2 COOLING SYSTEM SERVICE WARNINGS[L3 WITH TC].) (See

01-12-3 ENGINE COOLANT LEVEL INSPECTION[L3 WITH TC].)

3. Inspect the engine oil level. (See 01-11-3 ENGINE OIL LEVEL INSPECTION[L3 WITH TC].)
4. Inspect the ATF level. (See 05-17-10 AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION[AW6A-EL,

AW6AX-EL].)

5. Inspect the idle speed. (See 01-10-35 ENGINE TUNE-UP[L3 WITH TC].)
6. Inspect the ignition timing. (See 01-10-35 ENGINE TUNE-UP[L3 WITH TC].)

Line Pressure Test

1. Perform mechanical system test preparation. (See05-17-3 Mechanical System Test Preparation.)
2. Remove the harness bracket.

Warning

• Removing the test plug when the ATF is

hot can be dangerous. Hot ATF can come
out of the opening and badly burn you.
Before removing the test plug, allow the
ATF to cool.

Transaxle fluid temperature (TFT) sensor
(See 05-17-12 TRANSAXLE FLUID
TEMPERATURE (TFT) SENSOR
INSPECTION[AW6A-EL, AW6AX-EL].)
(See 05-17-13 TRANSAXLE FLUID
TEMPERATURE (TFT) SENSOR REMOVAL/
INSTALLATION[AW6A-EL, AW6AX-EL].)

Input/turbine speed sensor
(See 05-17-15 INPUT/TURBINE SPEED SENSOR
INSPECTION[AW6A-EL, AW6AX-EL].)
(See 05-17-17 INPUT/TURBINE SPEED SENSOR
REMOVAL/INSTALLATION[AW6A-EL, AW6AX-EL].)

Vehicle speed sensor
(See 05-17-18 VEHICLE SPEED SENSOR (VSS)
INSPECTION[AW6A-EL, AW6AX-EL].)
(See 05-17-19 VEHICLE SPEED SENSOR (VSS)
REMOVAL/INSTALLATION[AW6A-EL, AW6AX-EL].)

Solenoid valve
(See 05-17-20 SOLENOID VALVE
INSPECTION[AW6A-EL, AW6AX-EL].)

TCM
(See 05-17-11 TRANSAXLE RANGE (TR)
SWITCH INSPECTION[AW6A-EL, AW6AX-EL].)
(See 05-17-21 TCM INSPECTION[AW6A-EL,
AW6AX-EL].)
(See 05-17-25 TCM REMOVAL/
INSTALLATION[AW6A-EL, AW6AX-EL].)

Oil seal (manual shaft)
(See 05-17-28 OIL SEAL (MANUAL SHAFT)
REPLACEMENT[AW6A-EL, AW6AX-EL].)

Automatic transaxle
(See 05-17-29 AUTOMATIC TRANSAXLE
REMOVAL/INSTALLATION[AW6A-EL, AW6AX-EL].)

Oil seal (differential)
(See 05-17-35 OIL SEAL (DIFFERENTIAL)
REPLACEMENT[AW6A-EL, AW6AX-EL].)

Differential gear O-ring
(See 05-17-37 DIFFERENTIAL GEAR O-RING
REPLACEMENT[AW6A-EL, AW6AX-EL].)

Control valve body
(See 05-17-38 CONTROL VALVE BODY
REMOVAL/INSTALLATION[AW6A-EL, AW6AX-EL].)

Torque converter
(See 05-17-46 TORQUE CONVERTER REMOVAL/
INSTALLATION[AW6A-EL, AW6AX-EL].)

Oil seal (oil pump)
(See 05-17-45 OIL SEAL (OIL PUMP)
REPLACEMENT[AW6A-EL, AW6AX-EL].)

Oil cooler
(See 05-17-47 OIL COOLER FLUSHING[AW6A-
EL, AW6AX-EL].)
(See 05-17-47 OIL COOLER REMOVAL/
INSTALLATION[AW6A-EL, AW6AX-EL].)
(See 05-17-50 OIL COOLER DISASSEMBLY/
ASSEMBLY[AW6A-EL, AW6AX-EL].)

Drive plate
(See 05-17-52 DRIVE PLATE REMOVAL/
INSTALLATION[AW6A-EL, AW6AX-EL].)

HARNESS BRACKET

7.8—10.8 N·m
{80—110 kgf·cm,
70—95 in·lbf}

acxuuw00002187

1871-1U-06B(05-17).fm 3 ページ２００６年３月１５日　水曜日　午前１１時２０分

AUTOMATIC TRANSAXLE [AW6A-EL, AW6AX-EL]

05-17–4

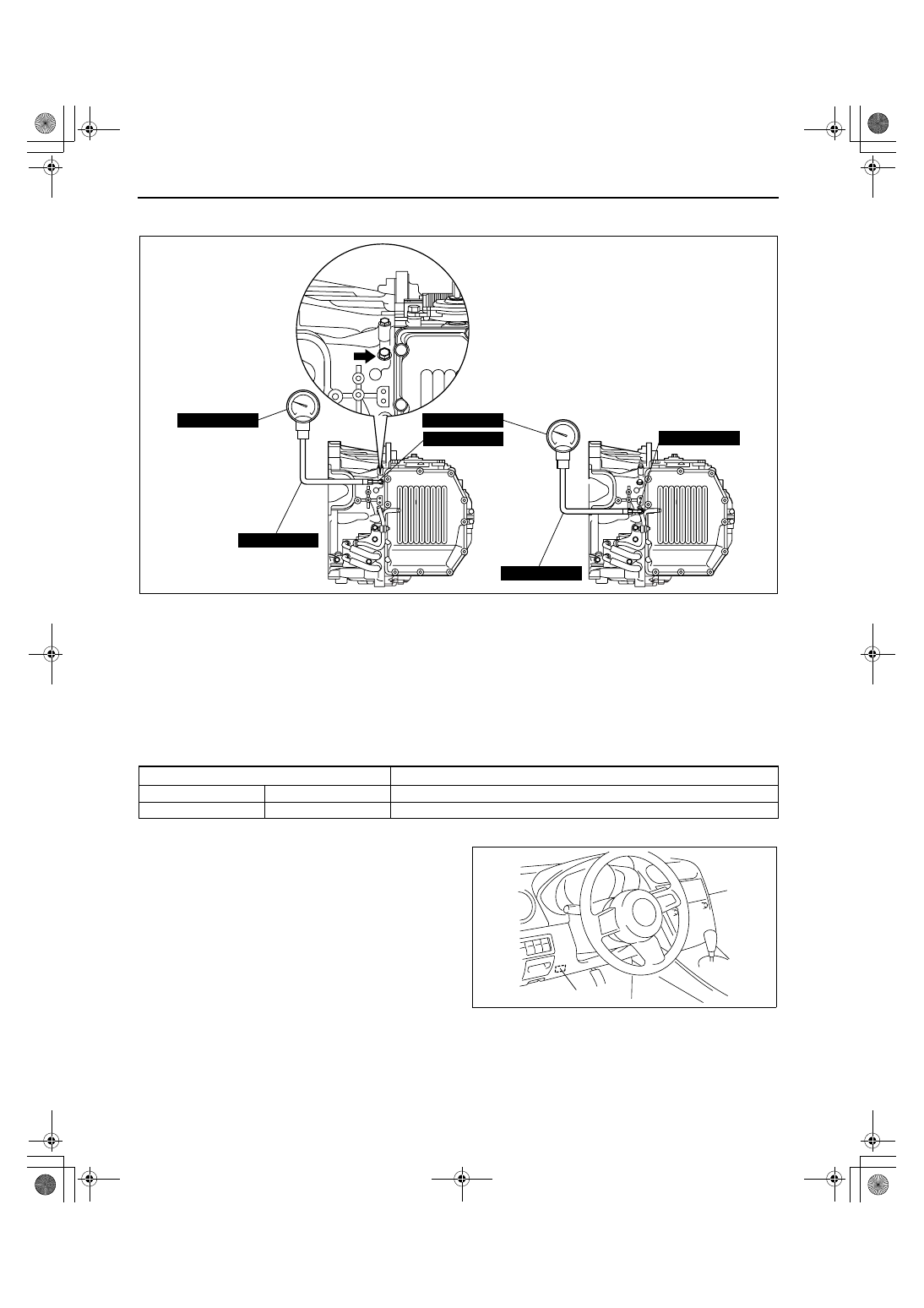

3. Connect the SSTs (49 HD64 406A and, 49 0378 400C) to the line pressure inspection port and replace the

gauge of the SST (49 0378 400C) with the SST (49 B019 901B).

4. Start the engine and warm it up until the ATF reaches 60— 70

°C {140— 158 °F}.

5. Shift the selector lever to the D range.

Caution

• Perform the test at least 3 times and calculate the average.

6. Read the line pressure while the engine is idling for the D range.
7. Read the line pressure while the engine is idling for the R position and M range in the same manner as in Steps

4— 5.

Line pressure

8. Stop the engine, then replace the SST (49 B019 901B) with the gauge of the SST (49 0378 400C).
9. Connect the M-MDS to the DLC-2.

10. Measure the LPS PID value.
11. Start the engine.
12. Firmly depress the brake pedal with the left foot.
13. Shift the selector lever to the D range.

Caution

• If the accelerator pedal is pressed for

more than 5 s while the brake pedal is
pressed, the transaxle could be
damaged. Therefore, perform Steps 13
and 14 within 5 s.

14. Gradually depress the accelerator pedal with the

right foot.

15. When the engine speed no longer increases, quickly read the line pressure and release the accelerator pedal.
16. Shift the selector lever to the N position and idle the engine for 1 min or more to cool the ATF.

D, M RANGE

R POSITION

49 B019 901B

49 0378 400C

49 HD64 406A

acxuuw00000479

Position/range

Line pressure (kPa {kgf/cm

, psi})

D, M

Idle

350— 410 {3.6— 4.1, 51— 59}

Idle

580— 670 {6.0— 6.8, 85— 97}

DLC-2

acxuuw00000480

1871-1U-06B(05-17).fm 4 ページ２００６年３月１５日　水曜日　午前１１時２０分
