ON-BOARD DIAGNOSTIC [AW6A-EL, AW6AX-EL]
05-02–89
05-02
– : N/A
Simulation Function Procedure
1. Connect the M-MDS to the DLC-2.
2. After the vehicle is identified, select the following
items from the initial screen of the M-MDS.
• When using the IDS (notebook PC)
1. Select the “Toolbox” tab.
2. Select “DataLogger”.
3. Select “Module”.
4. Select “TCM”.
• When using the PDS (pocket PC)
1. Select “Module Tests”.
2. Select “TCM”.
3. Select “DataLogger”.
3. Select the simulation items from the PID table.
4. Perform the simulation function, inspect the
operations for each parts.
• If there is no operation sound from the solenoid after the simulation function inspection is performed, it is
possible that there is an open or short circuit in the wiring harness, or solenoid, or sticking and operation
malfunction.

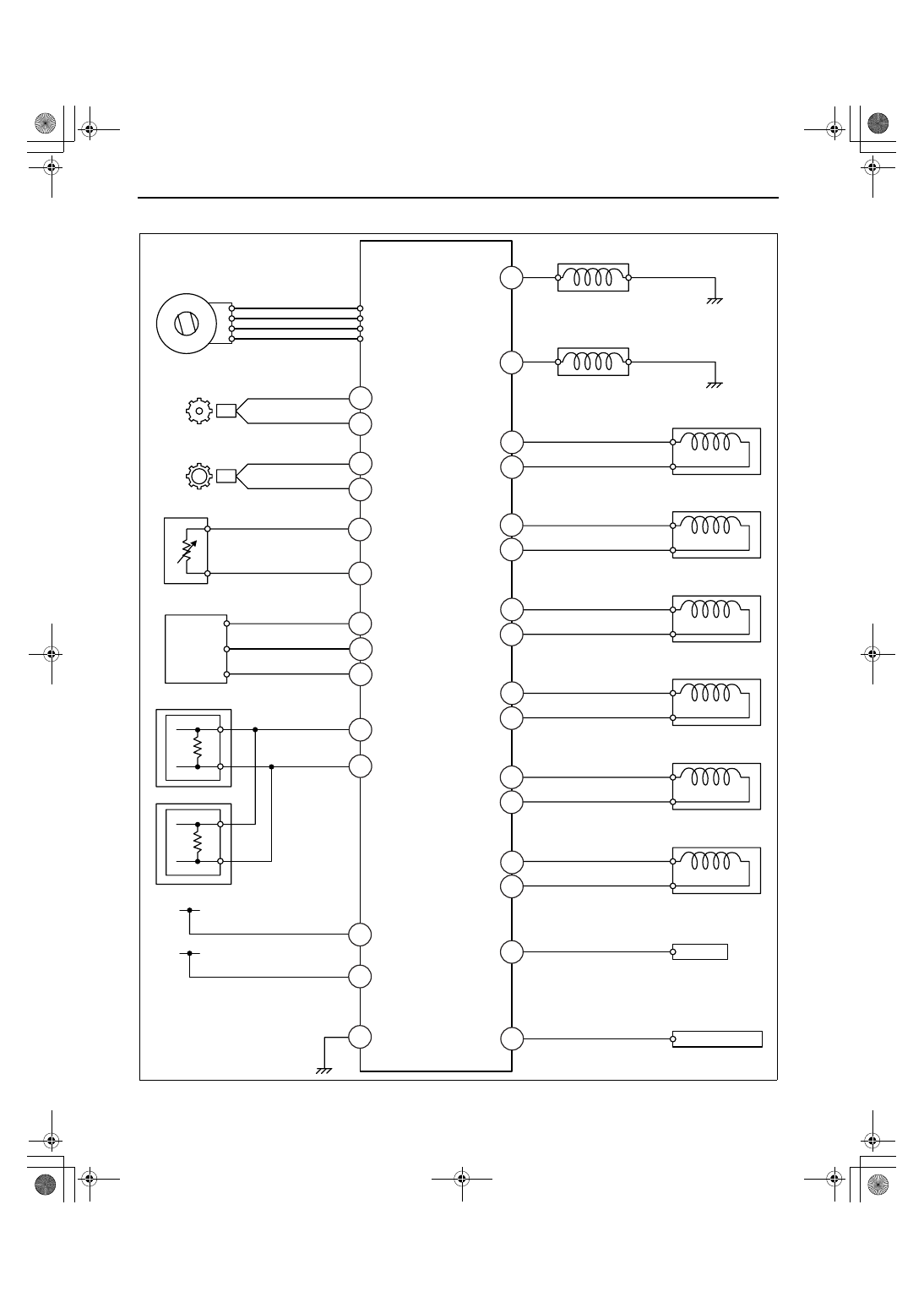

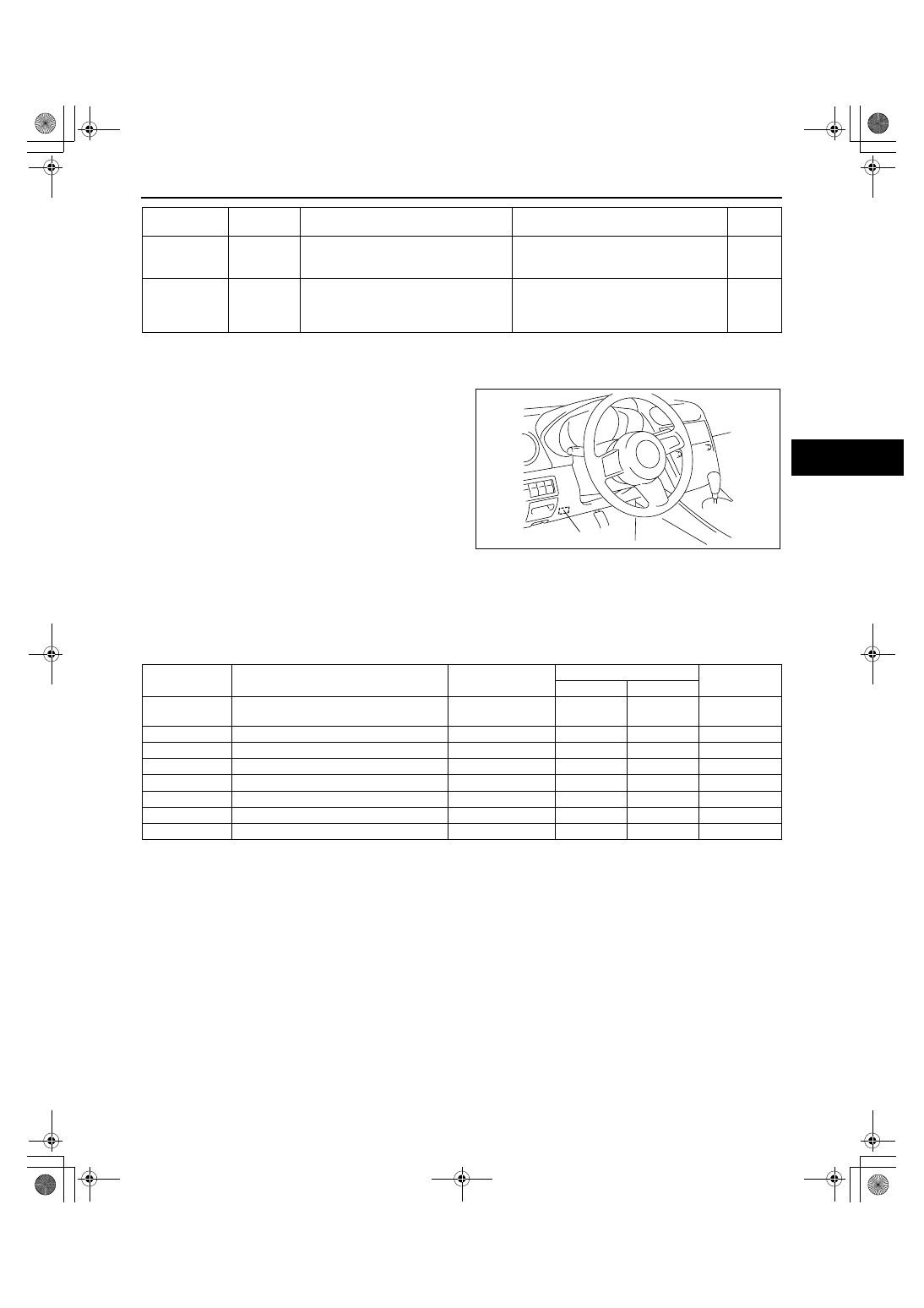

Simulation item table
X: Available
End Of Sie
UP SW
(Up switch)
On/Off
• Up shift at M range: On
• Other: Off
Inspect the selector lever component.
(See 05-18-6 SELECTOR LEVER
COMPONENT INSPECTION.)
A3
VSS
(Vehicle
speed)
KPH, MPH
Indicates vehicle speed
Inspect the VSS.
(See 05-17-18 VEHICLE SPEED
SENSOR (VSS) INSPECTION[AW6A-
EL, AW6AX-EL].)
–
Monitor item
(Definition)
Unit/
Condition
Condition/Specification
Action
TCM
terminal
DLC-2
acxuuw00000480
Simulation
item
Applicable component
Unit/Condition
Operation
TCM terminal
IG ON
Idle
LPS
Pressure control solenoid control signal
in TCM
A
N/A
X
B1, B3
SSA
Shift solenoid A
On/Off
N/A
X
B5
SSB
Shift solenoid B
On/Off
N/A
X
B2
SSC
Shift solenoid C
A
N/A
X
B10, B11
SSD
Shift solenoid D
A
N/A
X
B17, B18
SSE
Shift solenoid E
A
N/A
X
B14, B22
SSF
Shift solenoid F
A
N/A
X
B16, B21
TCCC
TCC solenoid valve
A
N/A
X
B4, B9
