Mazda CX 7. Manual - part 222





TECHNICAL DATA

04-50–1

04-50

04-50

TECHNICAL DATA

BRAKES TECHNICAL DATA  . . . . . . . . .  04-50–1

End of Toc

WM: BRAKES

BRAKES TECHNICAL DATA

id045000800100

Master cylinder fluid pressure

Master cylinder fluid pressure

End Of Sie

Item

Specification

Brake fluid type

SAE J1703, FMVSS 116 DOT-3

Brake pedal height (reference value)

204.3 mm {8.043 in}

Brake pedal play

2—5 mm {0.08—0.19 in}

Brake pedal-to-floor clearance (Brake pedal when
depressed at 147 N {15.0 kgf, 33.0 lbf})

99.1 mm {3.91 in} or more

Front disc plate runout limit

0.05 mm {0.002 in}

Minimum front disc plate thickness

26 mm {1.03 in}

Minimum front disc plate thickness after machining
using a brake lathe on-vehicle

26.8 mm {1.06 in}

Minimum front disc pad thickness

2.0 mm {0.08 in}

Rear disc plate runout limit

0.05 mm {0.002 in}

Minimum rear disc plate thickness

16 mm {0.63 in}

Minimum rear disc plate thickness after machining
using a brake lathe on-vehicle

16.8 mm {0.66 in}

Minimum rear disc pad thickness

2.0 mm {0.08 in}

Parking brake pedal stroke when depressed at 180 N
{18.4 kgf, 40.5 lbf}

1—3 notches

Minimum parking brake shoe thickness

1.0 mm {0.04 in}

Maximum rear disc plate inner diameter

191.0 mm {7.52 in}

Vacuum amount at o kPa {0 mmHg, 0 inHg}

Pedal force (N {kgf, lbf})

Fluid pressure (kPa {kgf/cm2, psi})

200 N {20.4kgf, 44.9lbt}

550 kPa {5.61 kgf/cm

2

, 79.8 psi} or more

Vacuum amount at 66.7 kPa {500 mmHg, 19.7 inHg}

Pedal force (N {kgf, lbf})

Fluid pressure (kPa {kgf/cm2, psi})

200 N {20.4kgf, 44.9lbt}

6,950 kPa {70.88 kgf/cm

2

, 1.009 psi} or more

1871-1U-06B(04-50).fm  1 ページ  2006年3月15日 水曜日 午前11時16分

SERVICE TOOLS

04-60–1

04-60

04-60

SERVICE TOOLS

BRAKES SST  . . . . . . . . . . . . . . . . . . . . .  04-60–1

End of Toc

WM: BRAKES

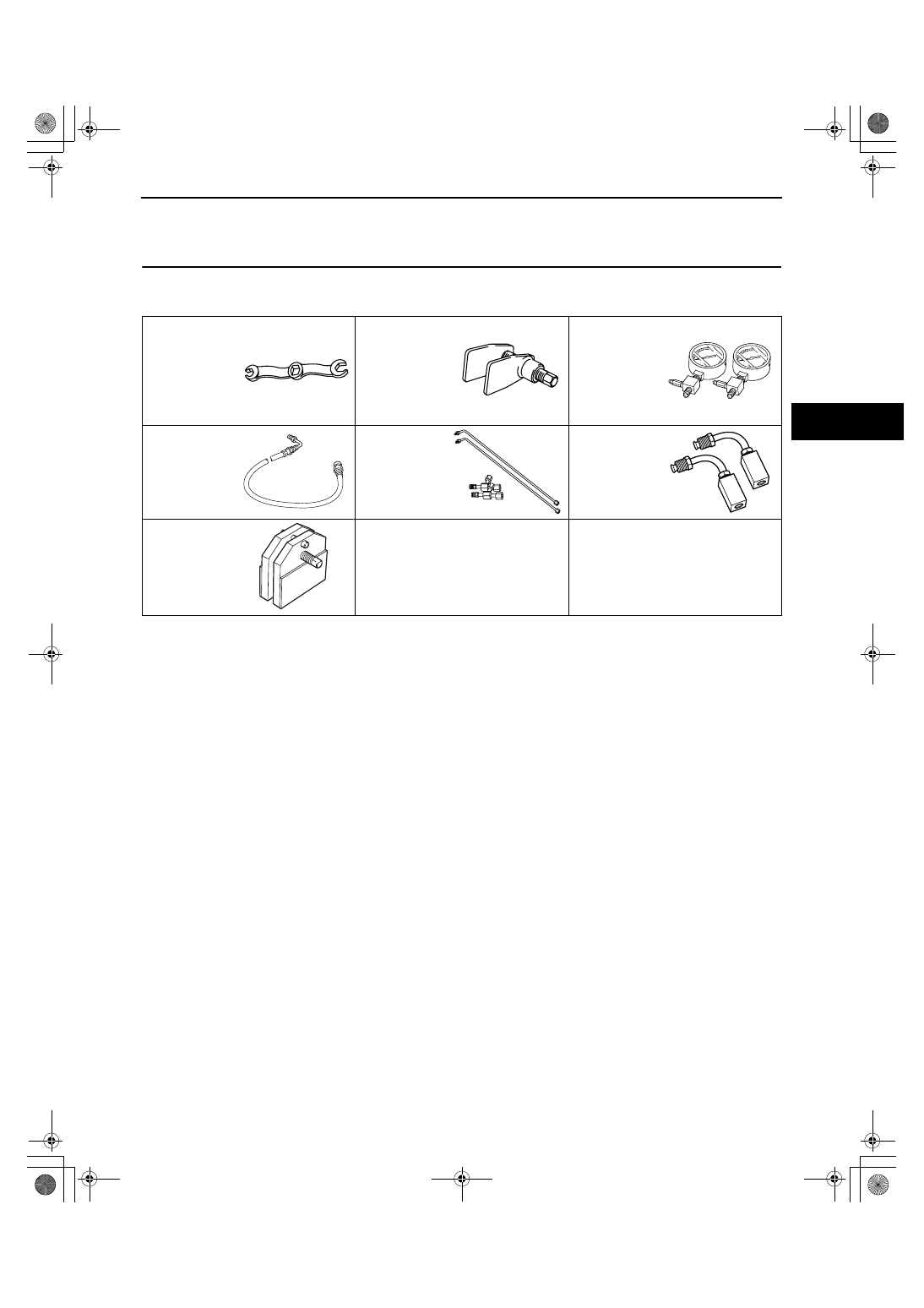

BRAKES SST

id046000800100

End Of Sie

49 0259 770B

Flare nut
wrench

49 0221 600C

Disc brake
expand tool

49 U043 004A

Oil pressure
gauge
(Part of 49
U043 0A0A)

49 U043 006

Hose
(Part of 49
U043 0A0A)

49 U043 005

Joint
(Part of 49
U043 0A0A)

49 N043 001

Adapter

49 T033 001A

Disc brake
piston stopper

— —

1871-1U-06B(04-60).fm  1 ページ  2006年3月15日 水曜日 午前11時17分
