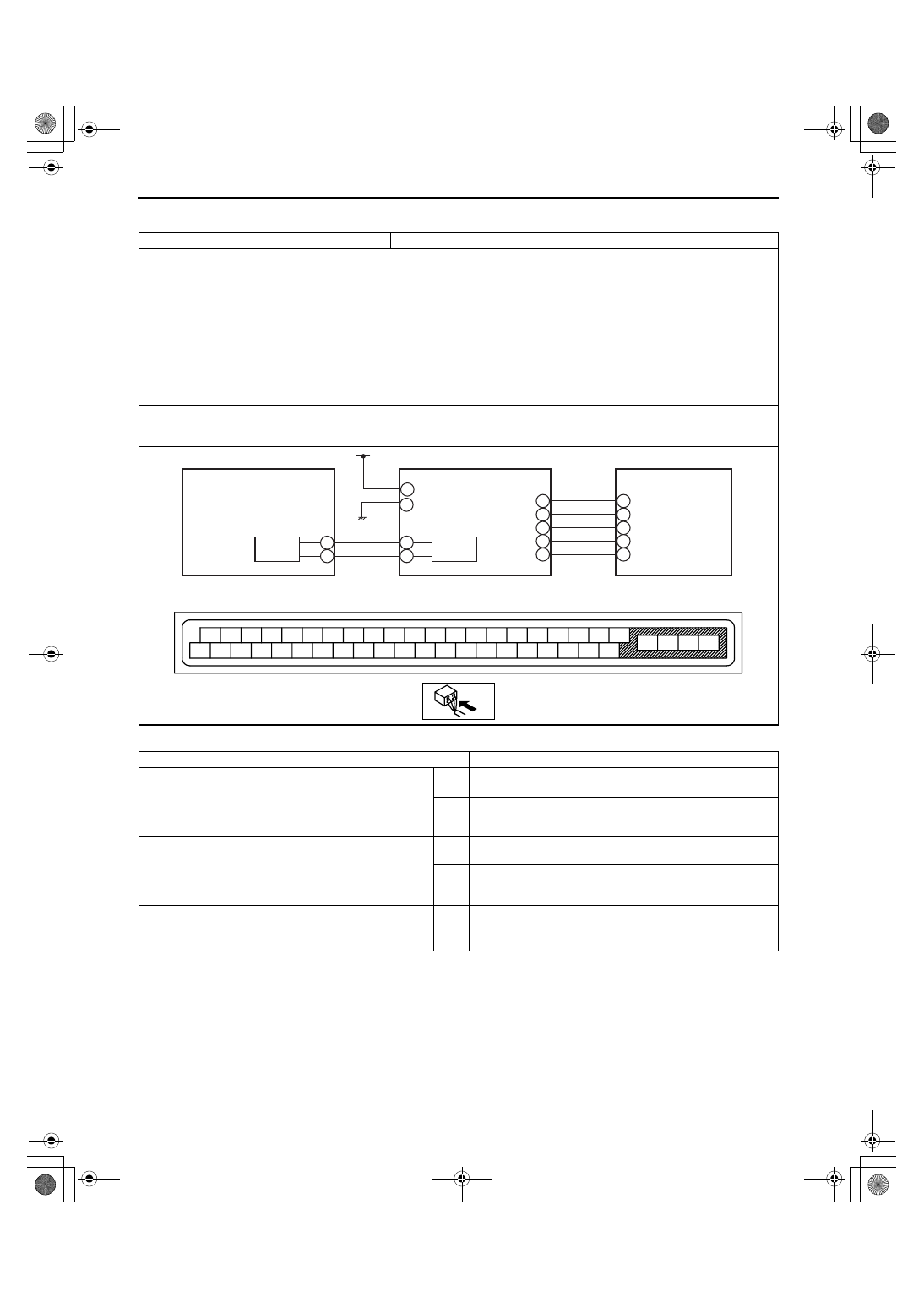

ON-BOARD DIAGNOSTIC

04-02–27

04-02

End Of Sie

DTC C1288, C1290, C1953

id040200801800

Diagnostic procedure

End Of Sie

INSPECT TEST SIGNAL FOR SHORT TO
GROUND

• Turn the ignition switch off.

• Inspect for continuity between DSC HU/CM

terminal AB (harness-side) and ground.

• Is there continuity?

Yes

Repair or replace the wiring harness for short to ground
between DSC HU/CM terminal AB and combined sensor
terminal C, then go to Step 12.

Go to the next step.

INSPECT COMBINED SENSOR

• Inspect the combined sensor.

(See 04-15-16 COMBINED SENSOR
INSPECTION.)

• Is the combined sensor normal?

Yes

Go to the next step.

Replace the combined sensor, then go to the next step.
(See 04-15-15 COMBINED SENSOR REMOVAL/
INSTALLATION.)

VERIFY DTC TROUBLESHOOTING
COMPLETED.

• Clear the DTC from the memory.

(See 04-02-3 ON-BOARD DIAGNOSIS.)

• Are the same DTCs present?

Yes

Replace the DSC HU/CM, then go to the next step.
(See 04-15-6 DSC HU/CM REMOVAL/INSTALLATION.)

Go to the next step.

VERIFY AFTER REPAIR PROCEDURE.

• Are any other DTCs present?

Yes

Go to the applicable DTC inspection.
(See 04-02-3 ON-BOARD DIAGNOSIS.)

DTC troubleshooting completed.

STEP

INSPECTION

ACTION

DTC

C1288, C1290, C1953

Brake fluid pressure sensor system

DETECTION

CONDITION

• C1288

— The pressure from the brake fluid pressure sensor when the system starts up is not within

specification.

• C1290

— The standard brake fluid pressure calculated in the DSC HU/CM when not braking exceeds the

specification.

• C1953

— The output voltage from the brake fluid pressure sensor is not within specification.

POSSIBLE

CAUSE

• Open or short circuit in the brake fluid pressure sensor circuit in the DSC HU/CM

• Malfunction in the brake fluid pressure sensor

STEP

INSPECTION

ACTION

VERIFY NO ABNORMALITY ON BRAKE
FLUID PRESSURE SENSOR

• Clear the DTCs from the memory.

(See 04-02-3 ON-BOARD DIAGNOSIS.)

• Start the engine and drive the vehicle at 10

km/h {6.2 mph} or more.

• Are the same DTCs present?

Yes

Replace the DSC HU/CM, then go to the next step.
(See 04-15-6 DSC HU/CM REMOVAL/INSTALLATION.)

Go to the next step.

VERIFY THAT NO OTHER DTCS ARE
PRESENT

• Are any other DTCs output?

Yes

Go to the applicable DTC inspection.
(See 04-02-3 ON-BOARD DIAGNOSIS.)

DTC troubleshooting completed.
