ALL WHEEL DRIVE (AWD)

03-19–3

03-19

End Of Sie

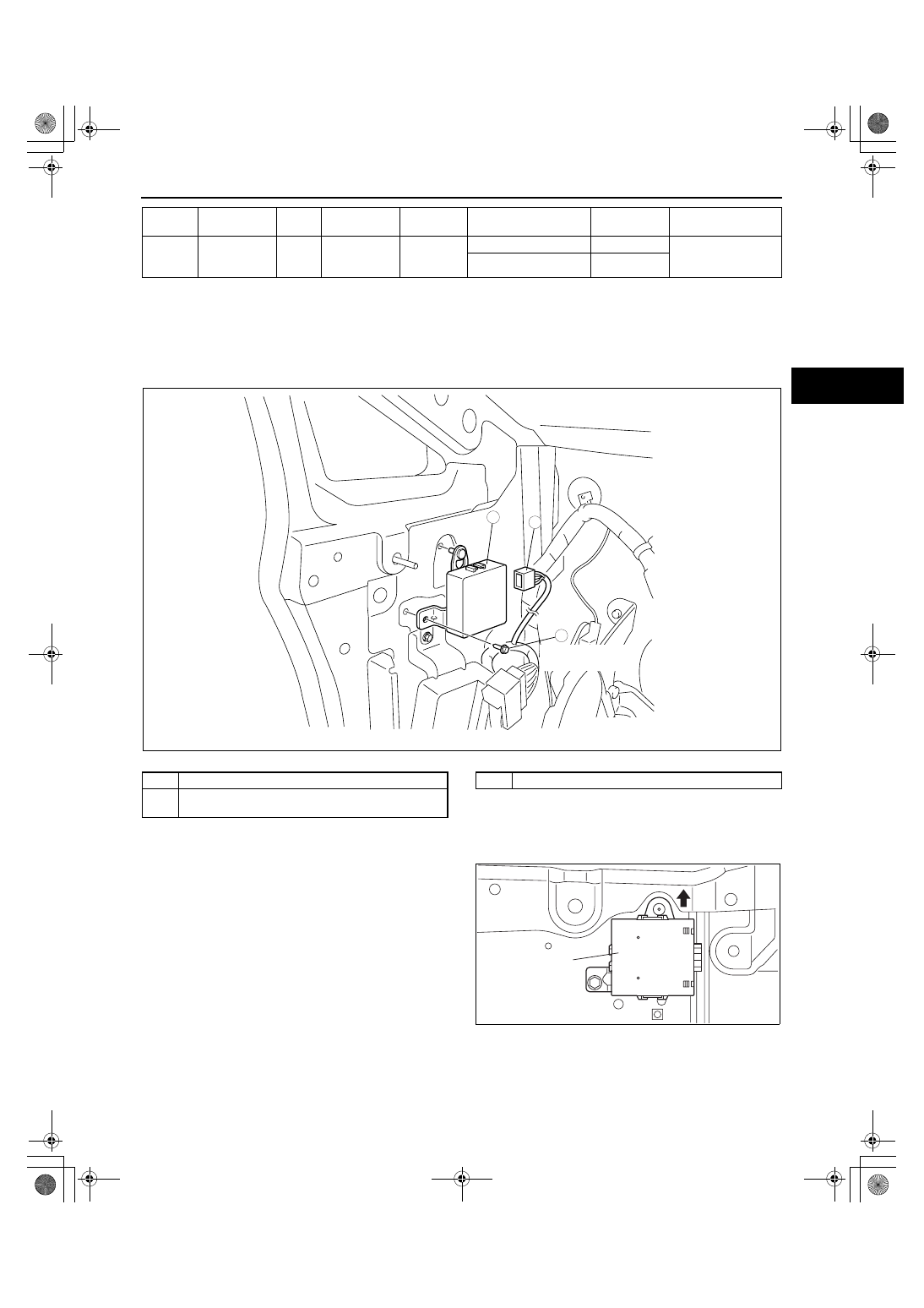

AWD CONTROL MODULE REMOVAL/INSTALLATION

id031900800300

1. Disconnect the negative battery cable.
2. Remove the lower panel (Driver’s side). (See 09-17-9 LOWER PANEL REMOVAL/INSTALLATION.)
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.

AWD CM Removal Note

1. Push up the AWD CM slightly, and remove it.

End Of Sie

WM: COUPLING COMPONENT

AWD solenoid
(-)

Output AWD solenoid

Voltage

Ignition key ON

B+

• AWD solenoid

• Inspect related

harness

Ignition key OFF

1.0 or below

Terminal

Signal

Input/

output

Connected

Measuring

item

Test condition

Voltage (V)/

Continuity

Inspection location

in case of failure

N·m { kgf· cm, in·lbf}

8.8—12.7
{90—129 , 78—112}

acxuuw00001972

Bolt

AWD CM
(See 03-19-3 AWD CM Removal Note.)

Connector

AWD CM

acxuuw00001973

1871-1U-06B(03-19).fm 3 ページ２００６年３月１５日　水曜日　午前１１時９分

ALL WHEEL DRIVE (AWD)

03-19–4

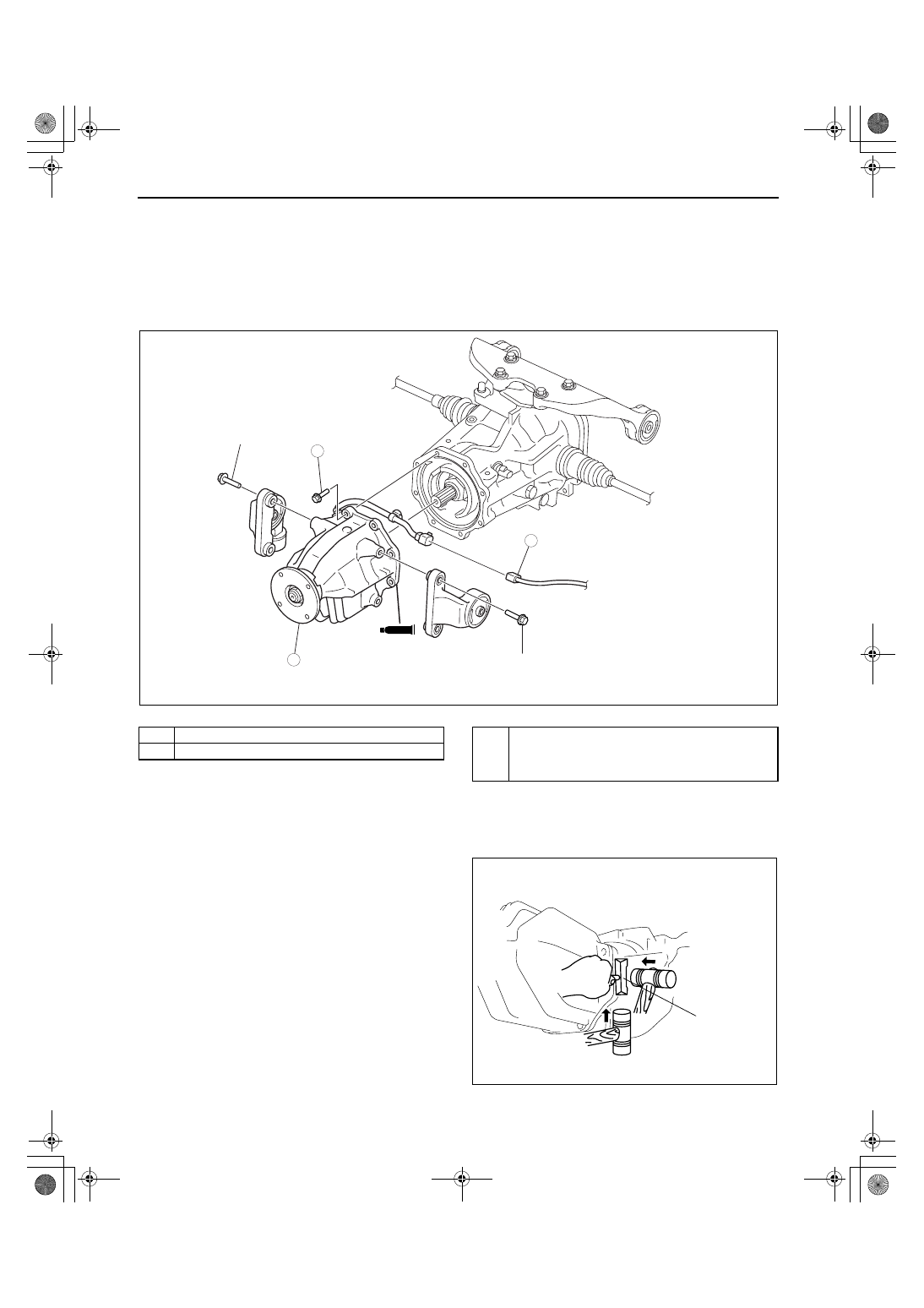

COUPLING COMPONENT REMOVAL/INSTALLATION

id031900800400

1. Drain the rear differential oil into a container.
2. Remove the main silencer and middle pipe. (See 01-15-2 EXHAUST SYSTEM REMOVAL/INSTALLATION[L3

WITH TC].)

3. Remove the propeller shaft. (See 03-15-3 PROPELLER SHAFT REMOVAL/INSTALLATION.)
4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
6. Add rear differential oil. (See 03-14-2 DIFFERENTIAL OIL REPLACEMENT.)

Coupling Component Removal Note

1. Support the coupling unit with a transmission jack.
2. Cut away the coupling unit using an oil pan seal

cutter.

SEALANT

N·m {kgf·m, ft·lbf}

75.5—102
{7.70—10.4,
55.7—75.2}

22.6—26.4
{2.31—2.69,
16.7—19.4}

acxuuw00001974

AWD solenoid connector

Bolt

Coupling component
(See 03-19-4 Coupling Component Removal Note)
(See 03-19-5 Coupling Component Installation
Note)

OIL PAN
SEAL CUTTER

acxuuw00001441

1871-1U-06B(03-19).fm 4 ページ２００６年３月１５日　水曜日　午前１１時９分

ALL WHEEL DRIVE (AWD)

03-19–5

03-19

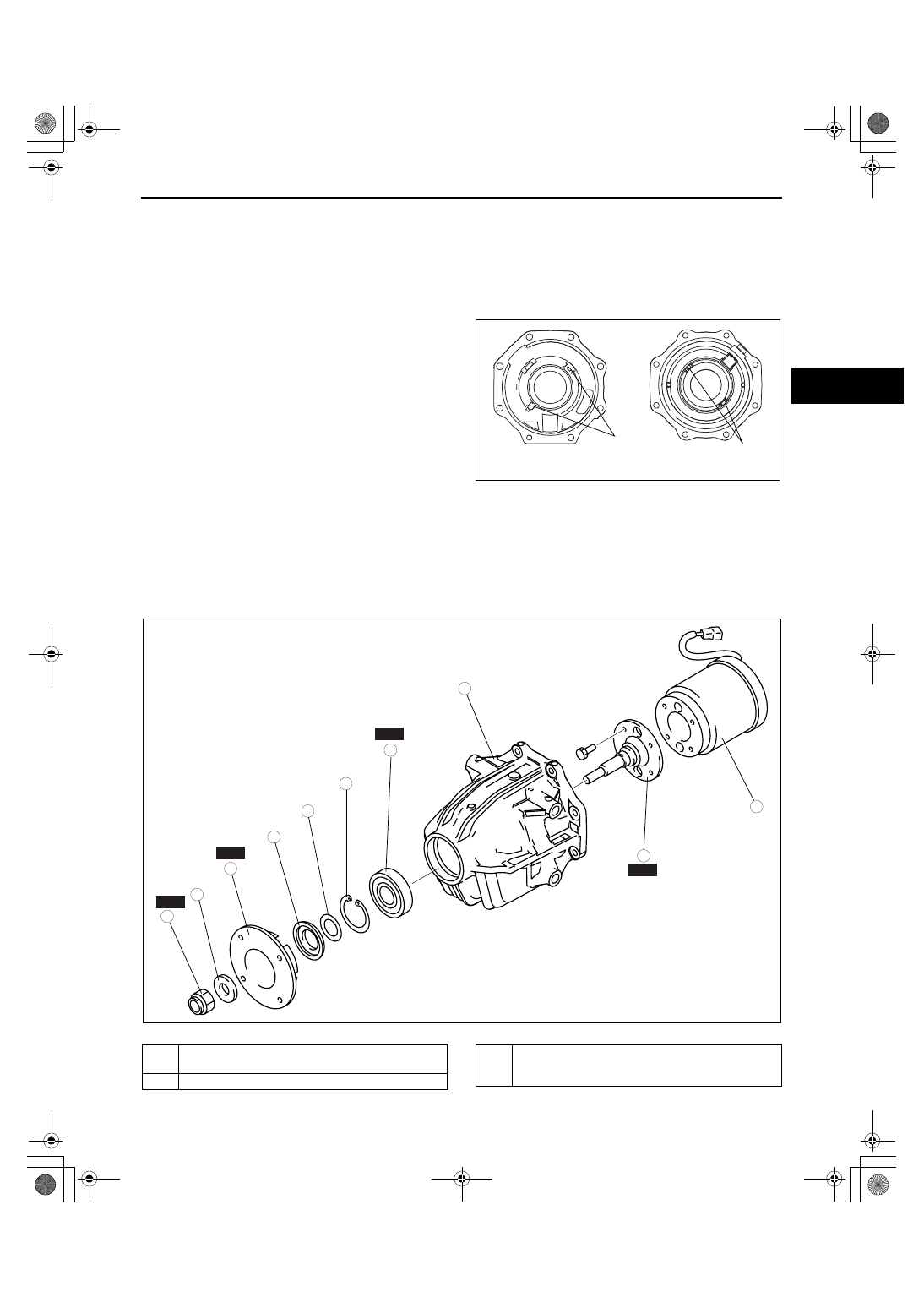

Coupling Component Installation Note

Note

• Clean away the old sealant before applying the new sealant.

• Install the coupling unit within 10 min after applying sealant.

• Allow the sealant to set at least 30 min after installation before filling the differential with the specified oil.

1. Apply sealant to the coupling case surface that contacts the rear differential case.
2. Install the coupling unit to the rear differential so

that the two tabs on the coupling unit engage the
rear differential grooves (two locations).

Tightening torque

22.6— 26.4 N·m {2.4— 2.6 kgf·m, 16.7— 19.4

ft·lbf}

End Of Sie

COUPLING COMPONENT DISASSEMBLY

id031900800500

Warning

• The engine stand is equipped with a self-lock mechanism, however, if the coupling unit is in a

tilted condition, the self-lock mechanism could become inoperative. If the coupling unit
unexpectedly rotates it could cause injury, therefore do not maintain the coupling unit in a tilted
condition. When turning the coupling unit, grasp the rotation handle firmly.

GROOVE

REAR DIFFERENTIAL

COUPLING UNIT

TAB

acxuuw00001442

SST

acxuuw00001443

Locknut
(See 03-19-6 Locknut Disassembly Note)

Washer

Companion flange
(See 03-19-6 Companion Flange Disassembly
Note)

1871-1U-06B(03-19).fm 5 ページ２００６年３月１５日　水曜日　午前１１時９分

ALL WHEEL DRIVE (AWD)

03-19–6

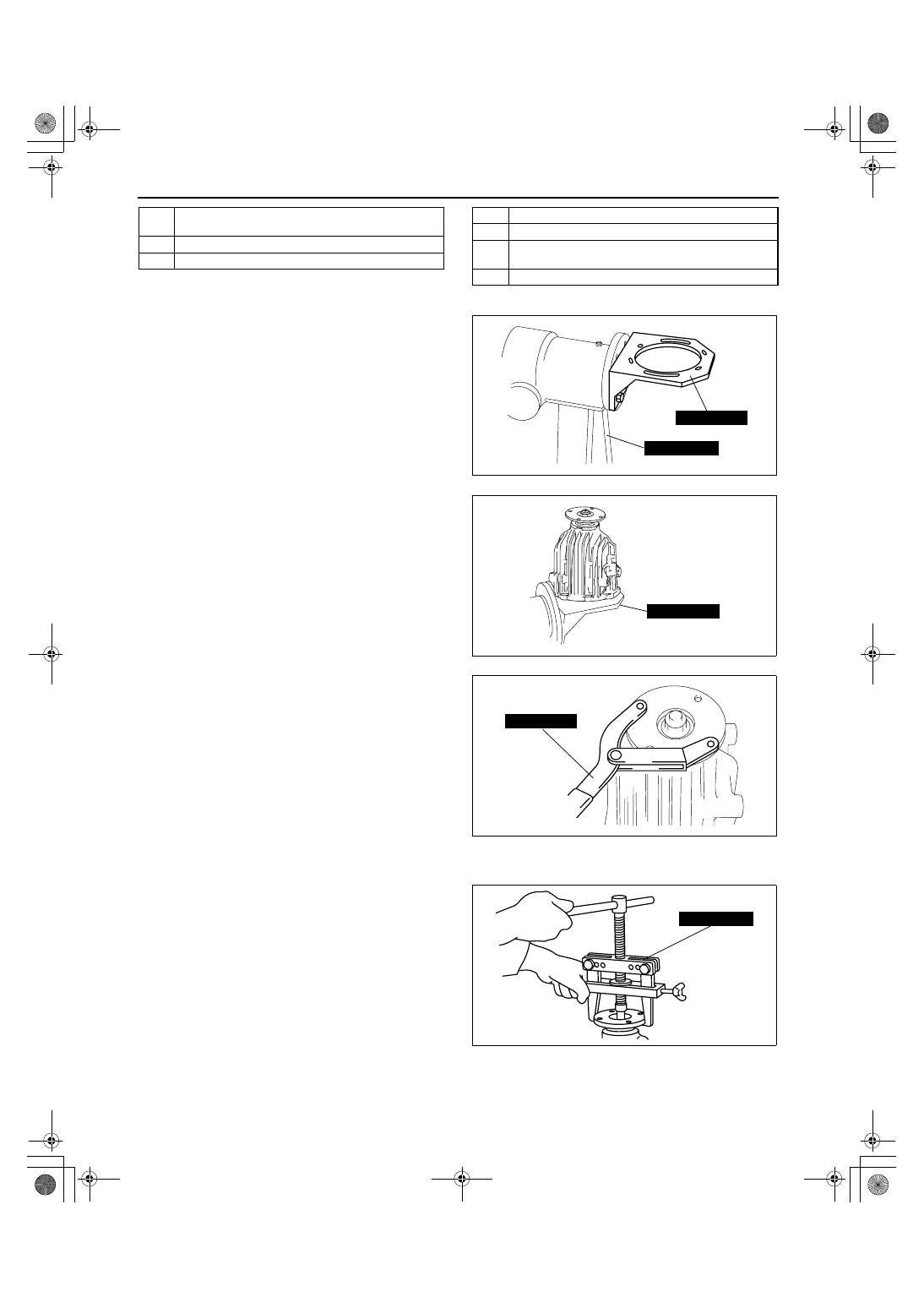

Locknut Disassembly Note

1. Assemble the SSTs to the engine stand.

2. Install the coupling unit to the SSTs as shown.

3. Secure the companion flange using the SST, and

remove the locknut.

Companion Flange Disassembly Note

1. Remove the companion flange using the SST.

Output shaft
(See 03-19-7 Output Shaft Disassembly Note)

Coupling component

Oil seal

Shim

Snap ring

Bearing
(See 03-19-7 Bearing Disassembly Note)

Coupling case

49 L027 0A2

49 0107 680A

acxuuw00001444

49 L027 0A2

acxuuw00002359

49 S120 710

acxuuw00001446

49 0839 425C

acxuuw00002356

1871-1U-06B(03-19).fm 6 ページ２００６年３月１５日　水曜日　午前１１時９分
