Mazda CX 7. Manual - part 177





REAR AXLE

03-12–1

03-12

03-12

REAR AXLE

REAR AXLE LOCATION INDEX . . . . . . .  03-12–1
REAR WHEEL HUB BOLT

REPLACEMENT  . . . . . . . . . . . . . . . . . .  03-12–2

WHEEL HUB COMPONENT

 INSPECTION  . . . . . . . . . . . . . . . . . . . .  03-12–2

Wheel Bearing Excessive Play

Inspection. . . . . . . . . . . . . . . . . . . . . .  03-12–2

WHEEL HUB COMPONENT

 REMOVAL/INSTALLATION[2WD]. . . . . 03-12–3

Brake Caliper Component

Removal Note . . . . . . . . . . . . . . . . . . . 03-12–4

Wheel Hub Bolt Removal Note . . . . . . . 03-12–4
Wheel Hub Bolt Installation Note  . . . . . 03-12–4

WHEEL HUB COMPONENT

REMOVAL/INSTALLATION[AWD] . . . . . 03-12–5

End of Toc

WM: REAR AXLE

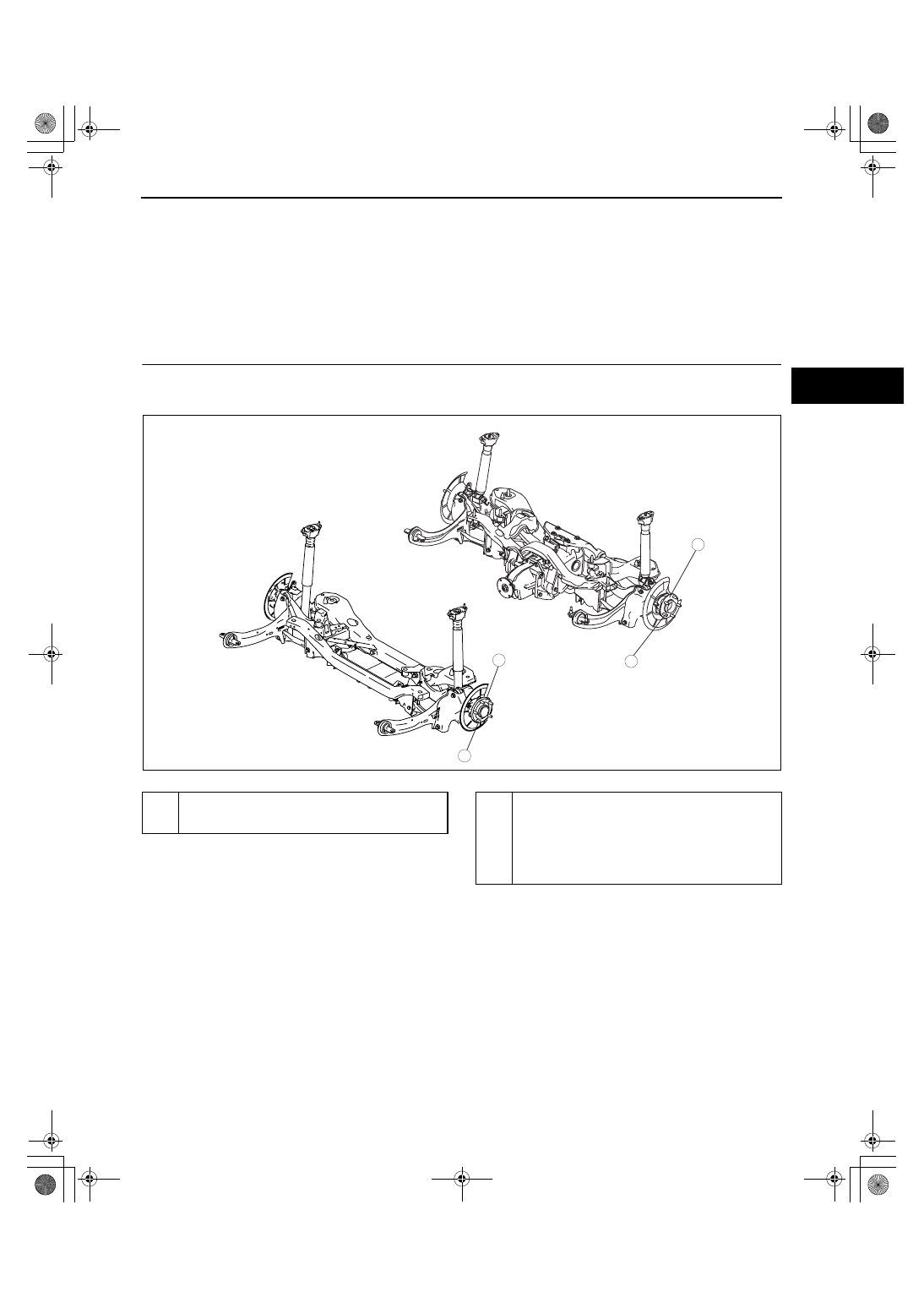

REAR AXLE LOCATION INDEX

id031200800100

.

End Of Sie

1

1

2WD

AWD

2

2

acxuuw00001132

1

Wheel hub bolt
(See 03-12-2 REAR WHEEL HUB BOLT
REPLACEMENT.)

2

Wheel hub component
(See 03-12-2 WHEEL HUB COMPONENT
INSPECTION.)
(See 03-12-3 WHEEL HUB COMPONENT
REMOVAL/INSTALLATION[2WD].)
(See 03-12-5 WHEEL HUB COMPONENT
REMOVAL/INSTALLATION[AWD].)

1871-1U-06B(03-12).fm  1 ページ  2006年3月15日 水曜日 午前11時5分

REAR AXLE

03-12–2

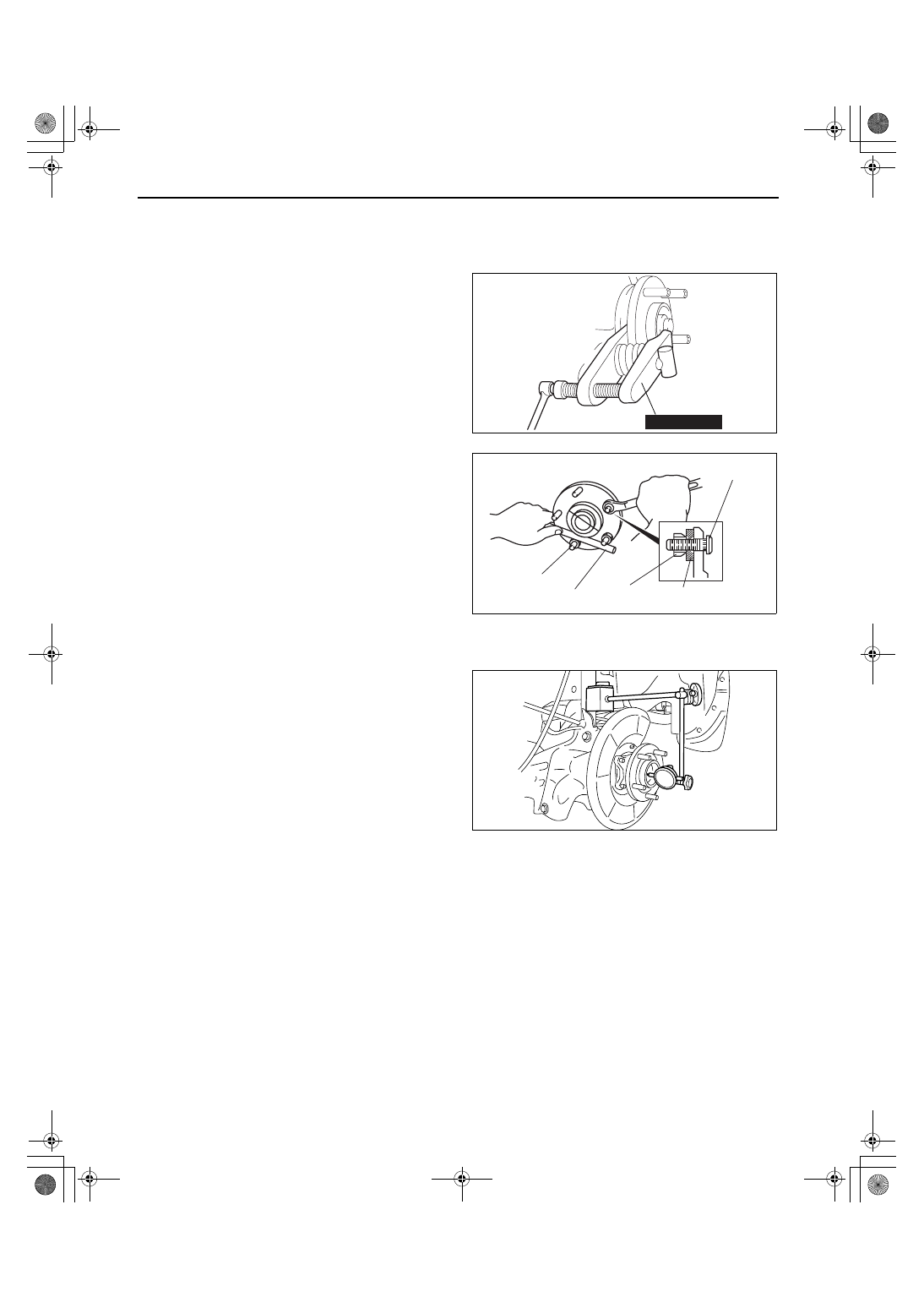

REAR WHEEL HUB BOLT REPLACEMENT

id031200800200

1. Remove the brake calliper component and suspend it out of the way using a cable.
2. Remove the disc plate.
3. Remove the parking brake shoe.
4. Remove the wheel hub bolt using the SST as

shown in the figure.

5. Place a new wheel hub bolt in the wheel hub.

6. Install the wheel hub by placing a proper sized

washer on the hub, and tightening the nut as
shown in the figure.

End Of Sie

WHEEL HUB COMPONENT INSPECTION

id031200800300

Wheel Bearing Excessive Play Inspection

1. Install the magnetic base and dial gauge as

shown in the figure and measure the wheel
bearing axial excessive play.

• If it exceeds the maximum specification,

replace the wheel hub component.

Rear wheel bearing maximum play

0.05 mm {0.002 in}

End Of Sie

49 T028  3A0

acxuuw00001133

WHEEL NUT

WHEEL NUT

BRASS BAR

WASHER

HUB BOLT

acxuuw00001134

B3E0312W002

1871-1U-06B(03-12).fm  2 ページ  2006年3月15日 水曜日 午前11時5分

REAR AXLE

03-12–3

03-12

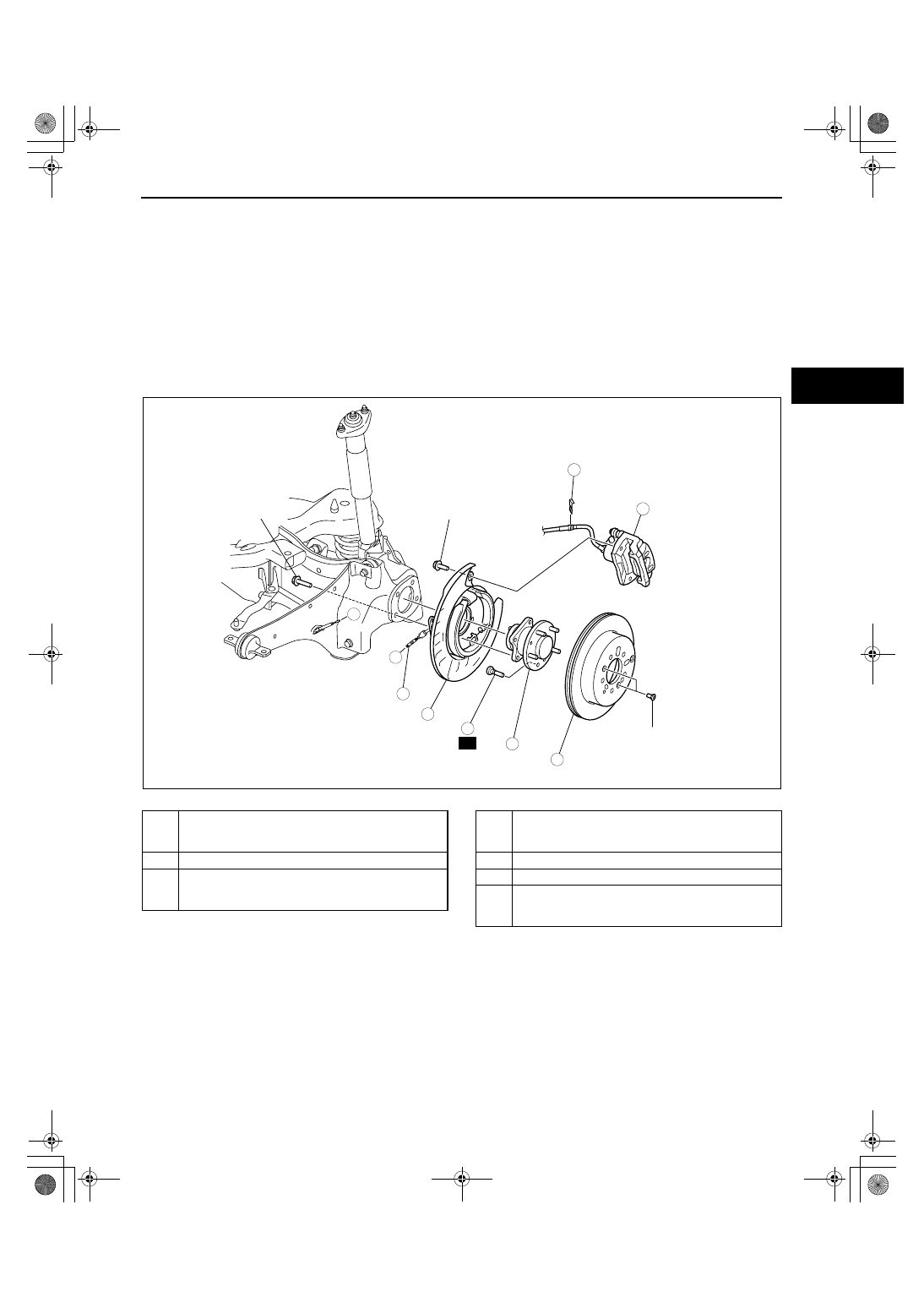

WHEEL HUB COMPONENT REMOVAL/INSTALLATION[2WD]

id0312008004a1

Caution

• Performing the following procedures without first removing the ABS wheel-speed sensor may

possibly cause an open circuit in the wiring harness if it is pulled by mistake. Before performing
the following procedures, disconnect the ABS wheel-speed sensor connector (body side) and fix
the wiring harness to an appropriate place where it will not be pulled by mistake while servicing
the vehicle.

1. Remove the rear ABS wheel-speed sensor. (See 04-15-13 REAR ABS WHEEL-SPEED SENSOR REMOVAL/

INSTALLATION[2WD].)

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.

.

78.4—101.9
{8.00—10.39,
57.83—75.15}

98—120
{10.0—12.2,
72.3—88.5}

R

7

5

4

1

3

2

6

N·m {kgf·m, ft·lbf}

9.8—14.7 N·m
{100—149 kgf·cm,
87—130 in·lbf}

A

A

acxuuw00001943

1

Parking brake end cable
(See 04-12-3 PARKING BRAKE REMOVAL/
INSTALLATION[2WD].)

2

Brake hose clip

3

Brake caliper component
 (See 03-12-4 Brake Caliper Component Removal
Note.)

4

Disc plate
(See 04-11-22 REAR BRAKE (DISC) REMOVAL/
INSTALLATION

5

Wheel hub component

6

Parking brake component

7

Wheel hub bolt
(See 03-12-4 Wheel Hub Bolt Removal Note.)
(See 03-12-4 Wheel Hub Bolt Installation Note.)

1871-1U-06B(03-12).fm  3 ページ  2006年3月15日 水曜日 午前11時5分

REAR AXLE

03-12–4

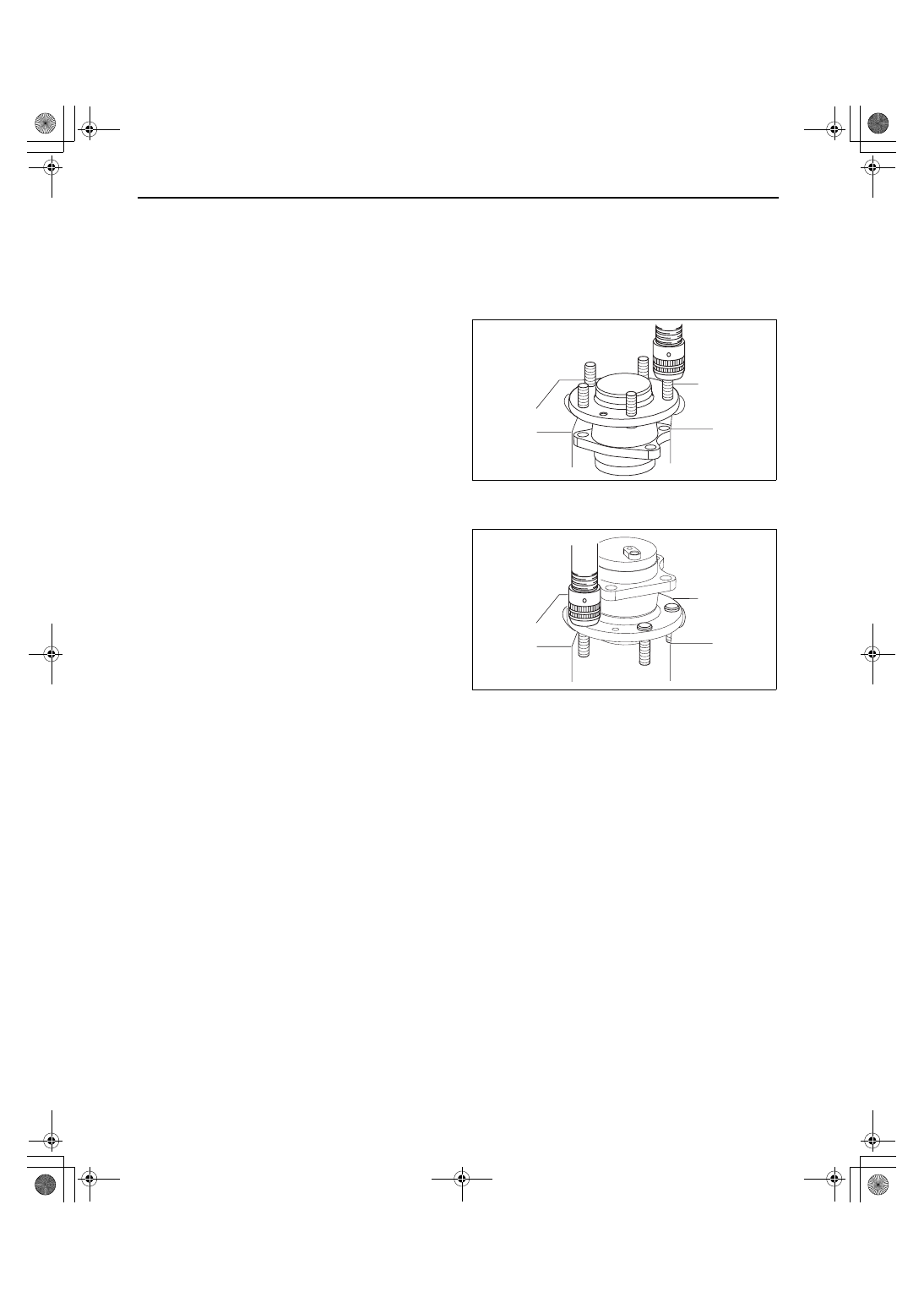

Brake Caliper Component Removal Note

1. Remove the brake caliper component from the trailing link and suspend it out of the way using a cable.

Wheel Hub Bolt Removal Note

Note

• The wheel hub bolts do not need to be removed unless they are being replaced.

1. Remove the wheel hub bolt using a press.

Wheel Hub Bolt Installation Note

1. Install the new wheel hub bolt using a press.

End Of Sie

acxuuw00001145

acxuuw00001146
