Mazda CX 7. Manual - part 171





SERVICE TOOLS

02-60–1

02-60

02-60

SERVICE TOOLS

SUSPENSION SST . . . . . . . . . . . . . . . . .  02-60–1

End of Toc

WM: SUSPENSION

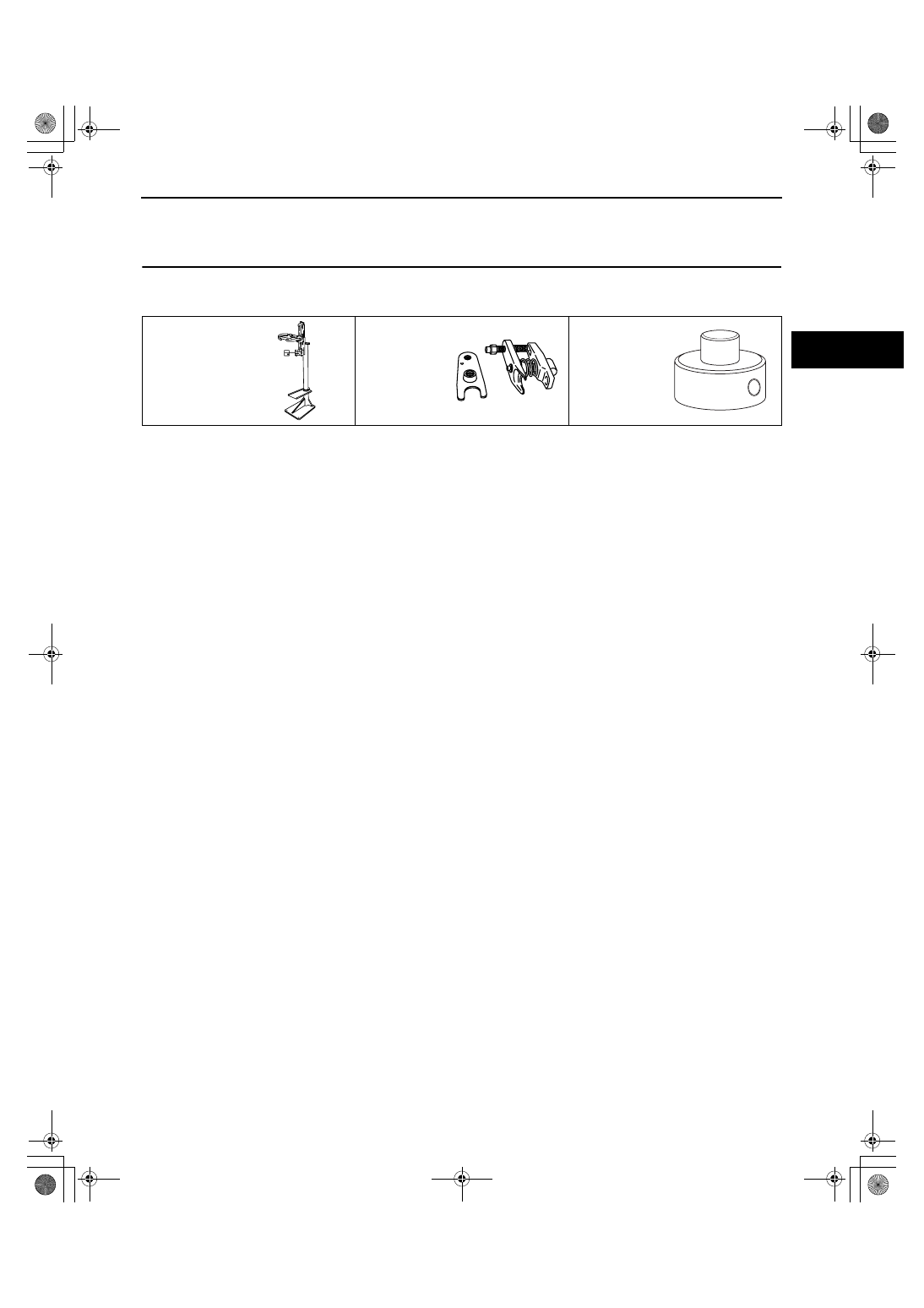

SUSPENSION SST

id026000800100

End Of Sie

49 T034 1A0

Coil spring
compressor set

49 T028 3A0

Ball Joint Puller
set

49 FT01 389

Preload adapter

1871-1U-06B(02-60).fm  1 ページ  2006年3月15日 水曜日 午前11時2分

03-02–1

03

DRIVELINE/AXLE

SECTION

03-02

Toc of SCT

ON-BOARD DIAGNOSTIC  . . . . 03-02
SYMPTOM

TROUBLESHOOTING  . . . . . . 03-03

GENERAL PROCEDURES . . . . 03-10
FRONT AXLE  . . . . . . . . . . . . . . 03-11
REAR AXLE  . . . . . . . . . . . . . . . 03-12
DRIVE SHAFT . . . . . . . . . . . . . . 03-13

DIFFERENTIAL  . . . . . . . . . . . .  03-14
PROPELLER SHAFT . . . . . . . .  03-15
TRANSFER  . . . . . . . . . . . . . . .  03-16
ALL WHEEL DRIVE (AWD) . . .  03-19
TECHNICAL DATA . . . . . . . . . .  03-50
SERVICE TOOLS . . . . . . . . . . .  03-60

Toc of SCT

03-02

ON-BOARD DIAGNOSTIC

ELECTRONIC AWD CONTROL

SYSTEM WIRING DIAGRAM . . . . . . . . . 03-02–1

ELECTRONIC AWD CONTROL

SYSTEM ON-BOARD DIAGNOSIS . . . . 03-02–2

Reading DTCs Procedure . . . . . . . . . . . 03-02–2

Clearing DTCs Procedures  . . . . . . . . .  03-02–2
DTC Table  . . . . . . . . . . . . . . . . . . . . . .  03-02–2

DTC P1887. . . . . . . . . . . . . . . . . . . . . . . .  03-02–3
DTC P1888. . . . . . . . . . . . . . . . . . . . . . . .  03-02–5

End of Toc

WM: DIFFERENTIAL (FF/FR)

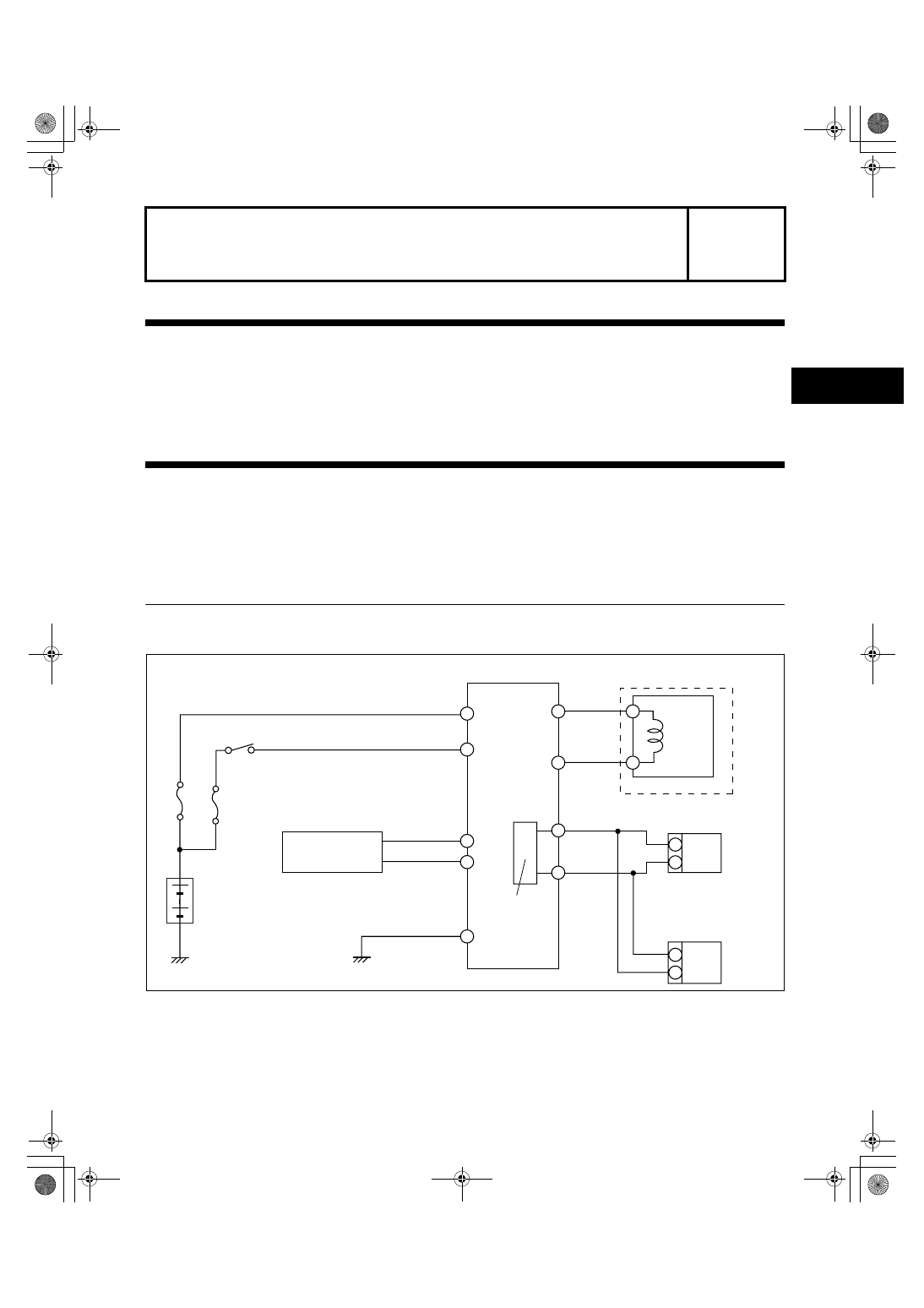

ELECTRONIC AWD CONTROL SYSTEM WIRING DIAGRAM

id030200800100

End Of Sie

N

BATTERY

IGNITION SWITCH

DIFFERENTIAL OIL
TEMPERATURE
SENSOR

AWD CM

ELECTRONIC CONTROL
COUPLING

AWD SOLENOID

OTHER SYSTEMS
(TCM, DSC HU/CM,
INSTRUMENT
CLUSTER ETC.)

PCM

CAN_H

CAN_L

CAN DRIVER

K

I

A

C

H

G

P

O

acxuuw00002222

1871-1U-06B(03-02).fm  1 ページ  2006年3月15日 水曜日 午前11時3分

ON-BOARD DIAGNOSTIC

03-02–2

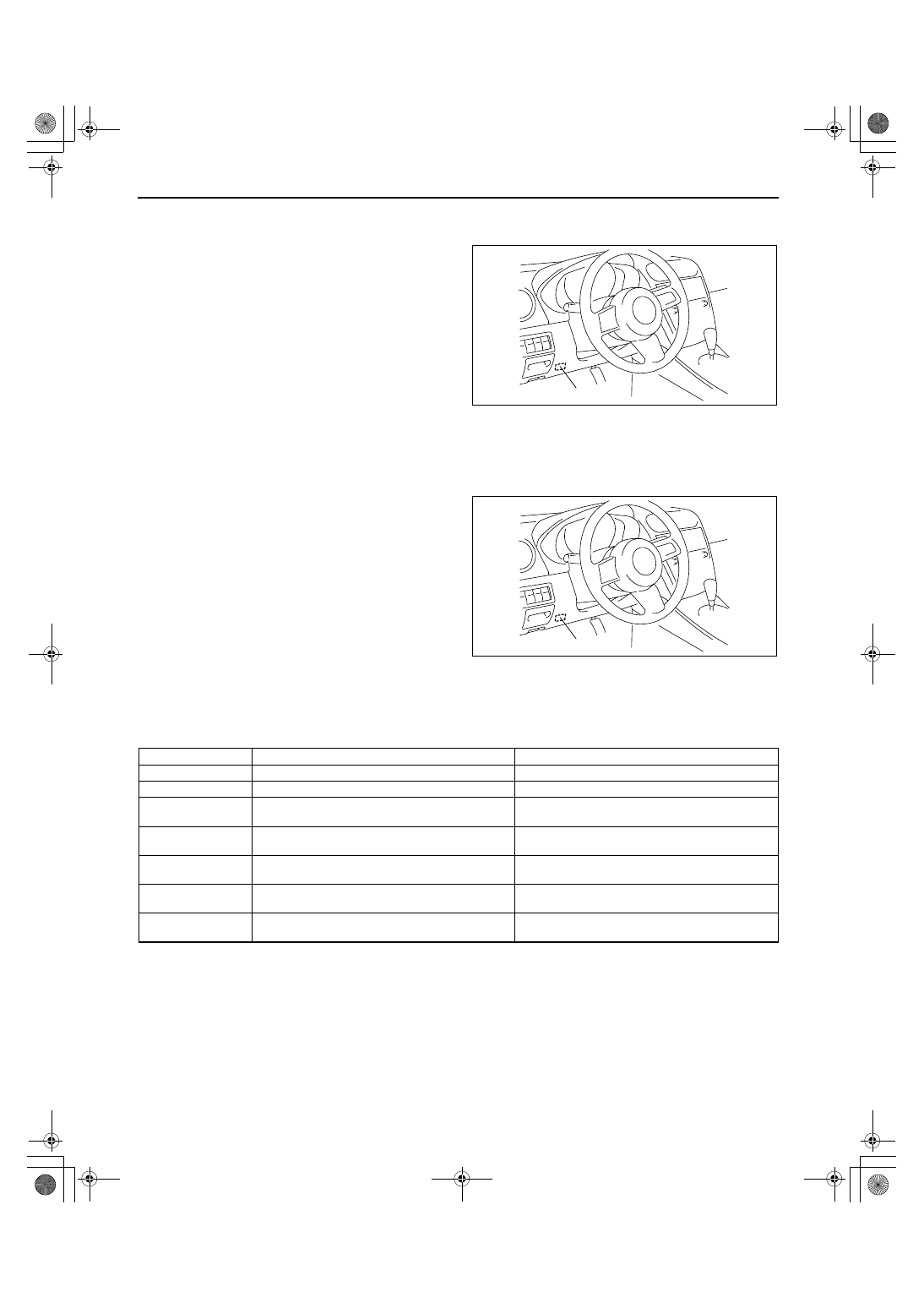

ELECTRONIC AWD CONTROL SYSTEM ON-BOARD DIAGNOSIS

id030200800200

Reading DTCs Procedure

1. Connect the M-MDS to the DLC-2 connector.
2. After the vehicle is identified, select the following

items from the initialization screen of the M-MDS.

• When using the IDS (notebook PC)

1. Select the “Toolbox” tab.
2. Select “Self Test”.
3. Select “Module”.
4. Select “4WD”.

• When using the PDS (pocket PC)

1. Select “Module Tests”.
2. Select “4WD”.
3. Select “Self Test”.

3. Verify the DTC according to the directions on the

screen.

• If any DTCs are displayed, perform troubleshooting according to the corresponding DTC inspection.

4. After completion of repairs, clear all DTCs stored in the AWD CM. (See 03-02-2 Clearing DTCs Procedures)

Clearing DTCs Procedures

1. Connect the M-MDS to the DLC-2 connector.
2. After the vehicle is identified, select the following

items from the initialization screen of the M-MDS.

• When using the IDS (notebook PC)

1. Select the “Toolbox” tab.
2. Select “Self Test”.
3. Select “Module”.
4. Select “4WD”.

• When using the PDS (pocket PC)

1. Select “Module Tests”.
2. Select “4WD”.
3. Select “Self Test”.

3. Verify the DTC according to the directions on the

screen.

4. Press the clear button on the DTC screen to clear the DTC.
5. Verify that no DTCs are displayed.

DTC Table

End Of Sie

DLC-2

acxuuw00001063

DLC-2

acxuuw00001063

DTC

Diagnosis system component

Page

P1887

AWD solenoid circuit

(See 03-02-3 DTC P1887)

P1888

Differential oil temperature sensor circuit

(See 03-02-5 DTC P1888)

U0073

CAN system communication error

(See 09-02D-7 DTC TABLE[MULTIPLEX
COMMUNICATION SYSTEM])

U0100

Communication error to PCM

(See 09-02D-7 DTC TABLE[MULTIPLEX
COMMUNICATION SYSTEM])

U0101

Communication error to TCM

(See 09-02D-7 DTC TABLE[MULTIPLEX
COMMUNICATION SYSTEM])

U0121

Communication error to DSC HU/CM

(See 09-02D-7 DTC TABLE[MULTIPLEX
COMMUNICATION SYSTEM])

U0155

Communication error to instrument cluster

(See 09-02D-7 DTC TABLE[MULTIPLEX
COMMUNICATION SYSTEM])

1871-1U-06B(03-02).fm  2 ページ  2006年3月15日 水曜日 午前11時3分
