ON-BOARD DIAGNOSTIC [L3 WITH TC]

01-02–207

01-02

End Of Sie

DTC P2119[L3 WITH TC]

id010239811600

Diagnostic procedure

5

VERIFY INTERMITTENT MALFUNCTION AT TP
SENSOR NO.2 CIRCUIT

• Perform the INTERMITTENT

TROUBLESHOOTING procedure to TP sensor
No.2 related harnesses and connectors.
 (See01-03-76 INTERMITTENT CONCERN
TROUBLESHOOTING[L3 WITH TC].)

• Is there any malfunction

Yes

Repair or replace malfunctioning part, according to
inspection result, the go to Step 7.

No

Go to the next step.

6

INSPECT TP SENSOR

• Inspect the TP sensor.

• Is the TP sensor normal?

Yes

Go to the next step.

No

Replace the throttle body, then go to nest step.

7

VERIFY TROUBLESHOOTING OF DTC P2108
COMPLETED

• Make sure to reconnect all disconnected

connectors.

• Clear the DTC from the PCM memory using

the M-MDS.

• Turn ignition switch to the ON position (Engine

off).

• Is the PENDING CODE for this DTC present?

Yes

Replace the PCM, then go to the next step.
 (See01-40-6 PCM REMOVAL/INSTALLATION[L3 WITH
TC].)

No

Go to the next step.

8

VERIFY AFTER REPAIR PROCEDURE

• Perform the “After Repair Procedure”.

 (See01-02-10 AFTER REPAIR
PROCEDURE[L3 WITH TC].)

• Are any DTCs present?

Yes

Go to the applicable DTC inspection.
 (See01-02-13 DTC TABLE[L3 WITH TC].)

No

Troubleshooting completed.

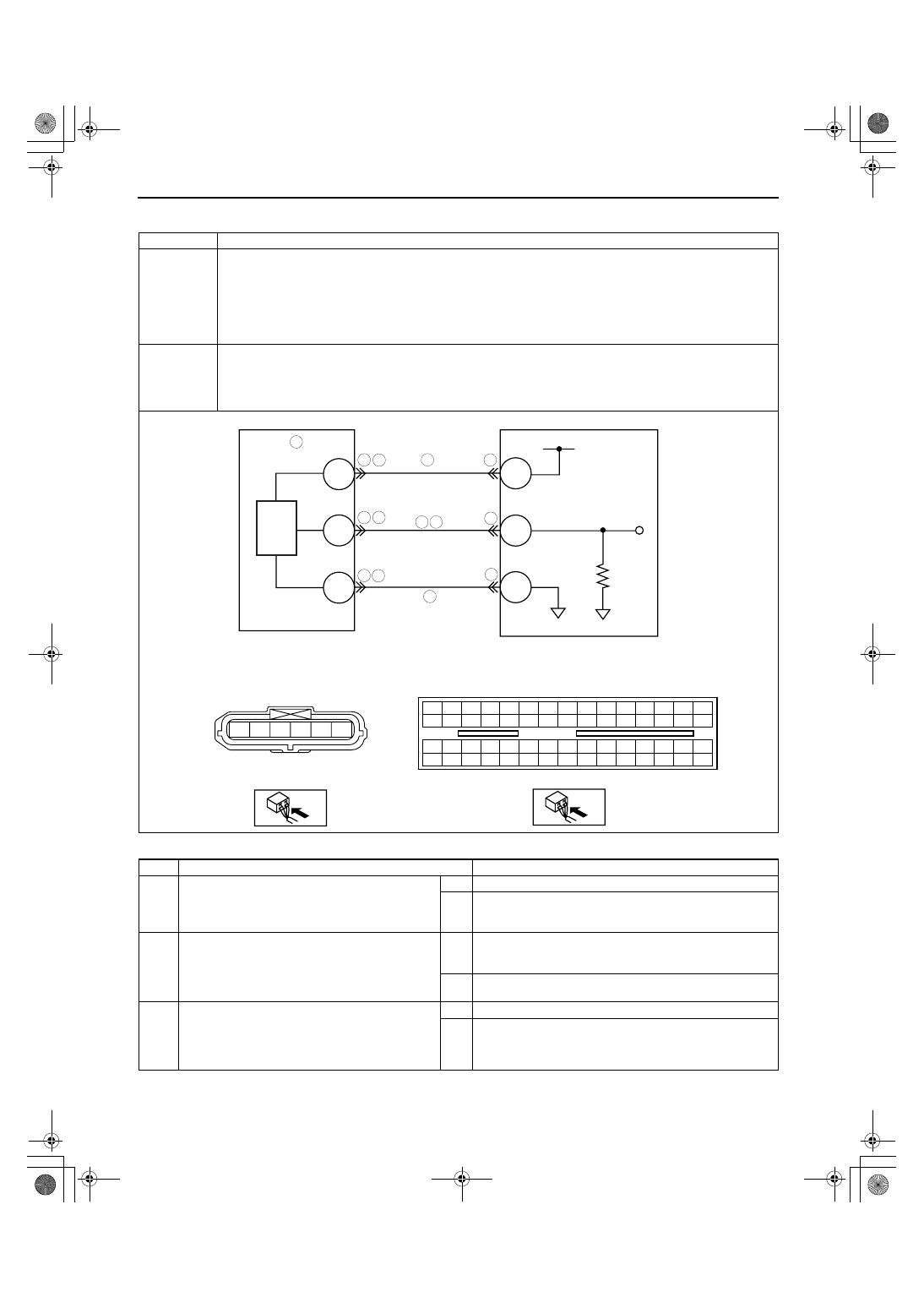

STEP

INSPECTION

ACTION

DTC P2119

Throttle actuator control throttle body range/performance problem

DETECTION

CONDITION

• The PCM compares the TP with the default TP when the ignition switch is off. If the TP is higher than the

default TP, the PCM determines that there is a throttle actuator control throttle body range/performance
problem.

Diagnostic support note

• This is a continuous monitor (CCM).

• The MIL illuminates if the PCM detects the above malfunctioning condition in the first drive cycles.

• FREEZE FRAME DATA is available.

• DTCs are stored in the PCM memory.

POSSIBLE

CAUSE

• Throttle actuator malfunction

• Throttle valve malfunction

• PCM malfunction

STEP

INSPECTION

ACTION

1

VERIFY FREEZE FRAME DATA HAS BEEN
RECORDED

• Has the FREEZE FRAME DATA been

recorded?

Yes

Go to the next step.

No

Record the FREEZE FRAME DATA on the repair order,
then go to the next step.

2

VERIFY RELATED REPAIR INFORMATION
AVAILABILITY

• Verify related Service Bulletins and/or on-line

repair information availability.

• Is any related repair information available?

Yes

Perform the repair or diagnosis according to the available
repair information.

• If the vehicle is not repaired, go to the next step.

No

Go to the next step.

3

INSPECT THROTTLE ACTUATOR

• Inspect the throttle actuator.

(See01-13-12 THROTTLE ACTUATOR
INSPECTION[L3 WITH TC].)

• Is there any malfunction?

Yes

Replace the throttle body, then go to Step 5.
(See01-13-5 INTAKE AIR SYSTEM REMOVAL/
INSTALLATION[L3 WITH TC].)

No

Go to the next step.

4

INSPECT TP SENSOR

• Inspect the TP sensor.

(See01-13-12 THROTTLE ACTUATOR
INSPECTION[L3 WITH TC].)

• Is there any malfunction?

Yes

Replace the TP sensor, then go to the next step.
(See01-13-5 INTAKE AIR SYSTEM REMOVAL/
INSTALLATION[L3 WITH TC].)

No

Go to the next step.

1871-1U-06B(01-02).fm  207 ページ  2006年3月15日 水曜日 午前10時32分

ON-BOARD DIAGNOSTIC [L3 WITH TC]

01-02–208

End Of Sie

DTC P2122[L3 WITH TC]

id010239811700

5

VERIFY TROUBLESHOOTING OF DTC P2119
COMPLETED

• Make sure to reconnect all disconnected

connectors.

• Clear the DTC from the PCM memory using

the M-MDS.

• Turn the ignition switch to the ON position

(Engine off), then off.

• Is the PENDING CODE for this DTC present?

Yes

Replace the PCM, then go to the next step.
(See01-40-6 PCM REMOVAL/INSTALLATION[L3 WITH
TC].)

No

Go to the next step.

6

VERIFY AFTER REPAIR PROCEDURE

• Perform the “AFTER REPAIR PROCEDURE”.

(See01-02-10 AFTER REPAIR
PROCEDURE[L3 WITH TC].)

• Are any DTCs present?

Yes

Go to the applicable DTC inspection.
(See01-02-13 DTC TABLE[L3 WITH TC].)

No

DTC troubleshooting completed.

STEP

INSPECTION

ACTION

DTC P2122

Accelerator pedal position (APP) sensor No.1 circuit low input

DETECTION

CONDITION

• The PCM monitors the APS No.1 signal. If the PCM detects that the APP sensor No.1 voltage is below 0.2

V, the PCM determines that the APP sensor No.1 circuit has a malfunction.

Diagnostic support note

• This is a continuous monitor (CCM).

• MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.

• FREEZE FRAME DATA is available.

• DTCs are stored in the PCM memory.

POSSIBLE

CAUSE

• APP sensor malfunction

• Connector or terminal malfunction

• Open circuit between APP sensor terminal F and PCM terminal 1Y

• Short to ground circuit between APP sensor terminal F and PCM terminal 1Y

• Open circuit between APP sensor terminal D and PCM terminal 1Q

• Short to ground between APP sensor terminal D and PCM terminal 1Q

D

E

F

D

F

E

PCM

APP SENSOR

WIRING HARNESS SIDE CONNECTOR

APP SENSOR

3

4

5

6

3

7

1Q

1Y

1U

PCM

WIRING HARNESS SIDE CONNECTOR

1BE 1BA 1AW 1AS 1AO 1AK 1AG 1AC 1Y 1U 1Q 1M

1E

1A

1I

1BH 1BD 1AZ 1AV 1AR 1AN 1AJ 1AF 1AB 1X

1T

1P

1H

1D

1L

1BG 1BC 1AY 1AU 1AQ 1AM 1AI 1AE 1AA 1W 1S 1O

1G

1C

1K

1BF 1BB 1AX 1AT 1AP 1AL 1AH 1AD 1Z

1V

1R 1N

1F

1B

1J

8

1871-1U-06B(01-02).fm  208 ページ  2006年3月15日 水曜日 午前10時32分

ON-BOARD DIAGNOSTIC [L3 WITH TC]

01-02–209

01-02

Diagnostic procedure

End Of Sie

STEP

INSPECTION

ACTION

1

VERIFY FREEZE FRAME DATA HAS BEEN
RECORDED

• Has the FREEZE FRAME DATA been

recorded?

Yes

Go to the next step.

No

Record FREEZE FRAME DATA on the repair order, then go
to the next step.

2

VERIFY RELATED REPAIR INFORMATION
AVAILABILITY

• Check for related Service Bulletins and/or on-

line repair information availability.

• Is any related repair information available?

Yes

Perform the repair or diagnosis according to the available
repair information.

• If the vehicle is not repaired, go to the next step.

No

Go to the next step.

3

CLASSIFY APP SENSOR OR HARNESS
MALFUNCTION

• Connect the M-MDS.

• Access the APP1 PID.

• Disconnect the throttle body connector.

• Connect a jumper wire between APP sensor

terminals D and F (harness-side).

• Is the PID approx. 100%?

Yes

Go to the next step.

No

Go to step 5.

4

INSPECT APP SENSOR

• Perform the APP sensor inspection.

 (See01-40-33 ACCELERATOR PEDAL
POSITION (APP) SENSOR INSPECTION[L3
WITH TC].)

• Is the APP sensor normal?

Yes

Inspect for poor APP sensor connector terminal D
connection. Repair or replace if necessary, then go to Step
9.

No

Replace the APP sensor, then go to Step 9.

5

INSPECT POWER SUPPLY CIRCUIT VOLTAGE
AT APP SENSOR CONNECTOR

• Turn ignition switch to the ON position (Engine

off).

• Measure the voltage at APP sensor terminal D

(harness-side).

• Is the voltage within 4.5— 5.5 V?

Yes

Go to the next step.

No

Repair or replace open circuit between APP sensor
connector terminal D and PCM connector terminal 1Q
(harness-side).
Then, then go to Step 9.

6

VERIFY APP1 SIGNAL CIRCUIT FOR SHORT
TO GROUND

• Inspect continuity between APP sensor

terminal D and body ground.

• Is this continuity?

Yes

Repair or replace the suspected wiring harness, then go to
the next step.

No

Go to the next step.

7

VERIFY APP1 SIGNAL CIRCUIT FOR OPEN
CIRCUIT

• Turn the ignition switch to off.

• Inspect continuity between APP sensor

terminal F (harness-side) and PCM terminal 1Y
(harness-side).

• Is there continuity?

Yes

Go to the next step.

No

Repair or replace the suspected wiring harness, then go to
Step 9.

8

VERIFY APP1 SIGNAL CIRCUIT FOR SHORT
TO GROUND

• Inspect for continuity between APP sensor

terminal F (harness-side) and body ground.

• Is there continuity?

Yes

Repair or replace the suspected wiring harness, then go to
the next step.

No

Go to the next step.

9

VERIFY TROUBLESHOOTING OF DTC P2122
COMPLETED

• Make sure to reconnect all disconnected

connectors.

• Turn ignition switch to the ON position (Engine

off).

• Clear the DTC from the PCM memory using

the M-MDS.

• Start the engine and warm it up completely.

• Is the same DTC present?

Yes

Replace the PCM, then go to the next step.
 (See01-40-6 PCM REMOVAL/INSTALLATION[L3 WITH
TC].)

No

Go to the next step.

10

VERIFY AFTER REPAIR PROCEDURE

• Perform the “After Repair Procedure”.

 (See01-14-4 AFTER REPAIR
PROCEDURE[L3 WITH TC].)

• Are any DTCs present?

Yes

Go to the applicable DTC inspection.
 (See01-02-13 DTC TABLE[L3 WITH TC].)

No

Troubleshooting completed.

1871-1U-06B(01-02).fm  209 ページ  2006年3月15日 水曜日 午前10時32分

ON-BOARD DIAGNOSTIC [L3 WITH TC]

01-02–210

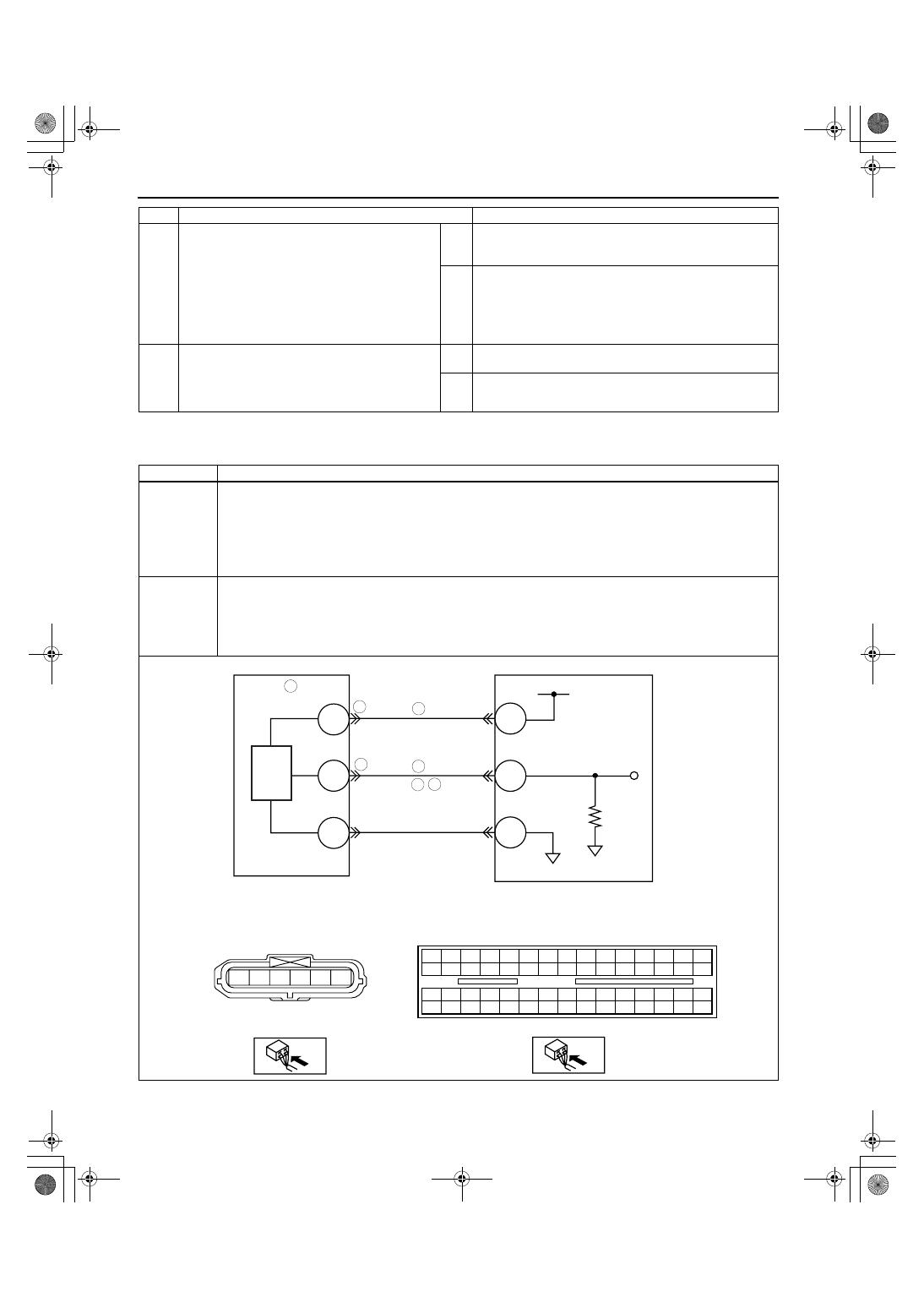

DTC P2123[L3 WITH TC]

id010239811800

Diagnostic procedure

DTC P2123

Accelerator pedal position (APP) sensor No.1 circuit high input

DETECTION

CONDITION

• The PCM monitors the APP sensor No.1 signal. If the PCM detects that the APP sensor No.1 voltage is

above 4.5 V, the PCM determines that the APP sensor No.1 circuit has a malfunction.

Diagnostic support note

• This is a continuous monitor (CCM).

• MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.

• FREEZE FRAME DATA is available.

• DTCs are stored in the PCM memory.

POSSIBLE

CAUSE

• APP sensor malfunction

• Connector or terminal malfunction

• Open circuit between APP sensor terminal E and PCM terminal 1U

• Open circuit between APP sensor terminal F and PCM terminal 1Y

• Short to power supply circuit between APP sensor terminal F and PCM terminal 1Y

STEP

INSPECTION

ACTION

1

VERIFY FREEZE FRAME DATA HAS BEEN
RECORDED

• Has the FREEZE FRAME DATA been

recorded?

Yes

Go to the next step.

No

Record FREEZE FRAME DATA on the repair order, then go
to the next step.

2

VERIFY RELATED REPAIR INFORMATION
AVAILABILITY

• Check for related Service Bulletins and/or on-

line repair information availability.

• Is any related repair information available?

Yes

Perform the repair or diagnosis according to the available
repair information.

• If the vehicle is not repaired, go to the next step.

No

Go to the next step.

3

INSPECT APP SENSOR CONNECTOR

• Turn the ignition switch to off.

• Verify that the APP sensor connector is

connected securely.

• Is the connector normal?

Yes

Go to the next step.

No

Connect the connector securely, then go to Step 10.

PCM

APP SENSOR

3

7

3

3

4

8

5

4

4

8

8

6

9

D

F

E

1Q

1Y

1U

D

E

F

APP SENSOR

WIRING HARNESS SIDE CONNECTOR

PCM

WIRING HARNESS SIDE CONNECTOR

1BE 1BA 1AW 1AS 1AO 1AK 1AG 1AC 1Y 1U 1Q 1M

1E

1A

1I

1BH 1BD 1AZ 1AV 1AR 1AN 1AJ 1AF 1AB 1X

1T

1P

1H

1D

1L

1BG 1BC 1AY 1AU 1AQ 1AM 1AI 1AE 1AA 1W 1S 1O

1G

1C

1K

1BF 1BB 1AX 1AT 1AP 1AL 1AH 1AD 1Z

1V

1R 1N

1F

1B

1J

9

1871-1U-06B(01-02).fm  210 ページ  2006年3月15日 水曜日 午前10時32分















Content   ..  61  62  63  64   ..
