Adjustment Data

MAZDA - Xedos 6 - 2.0i V6 24V - KF

Engine (general)

Item

Units

Values

Engine code



KF

Capacity

(cc)

1995

Idle speed

(rpm)

670 ±30



Valve clearance

Hydraulic





Compression pressure

Normal

(bar)

15

Minimum

(bar)

11.0

Oil pressure

(bar / rpm)

2.0/1000

Fuel system (make & type)



Mazda VRIS

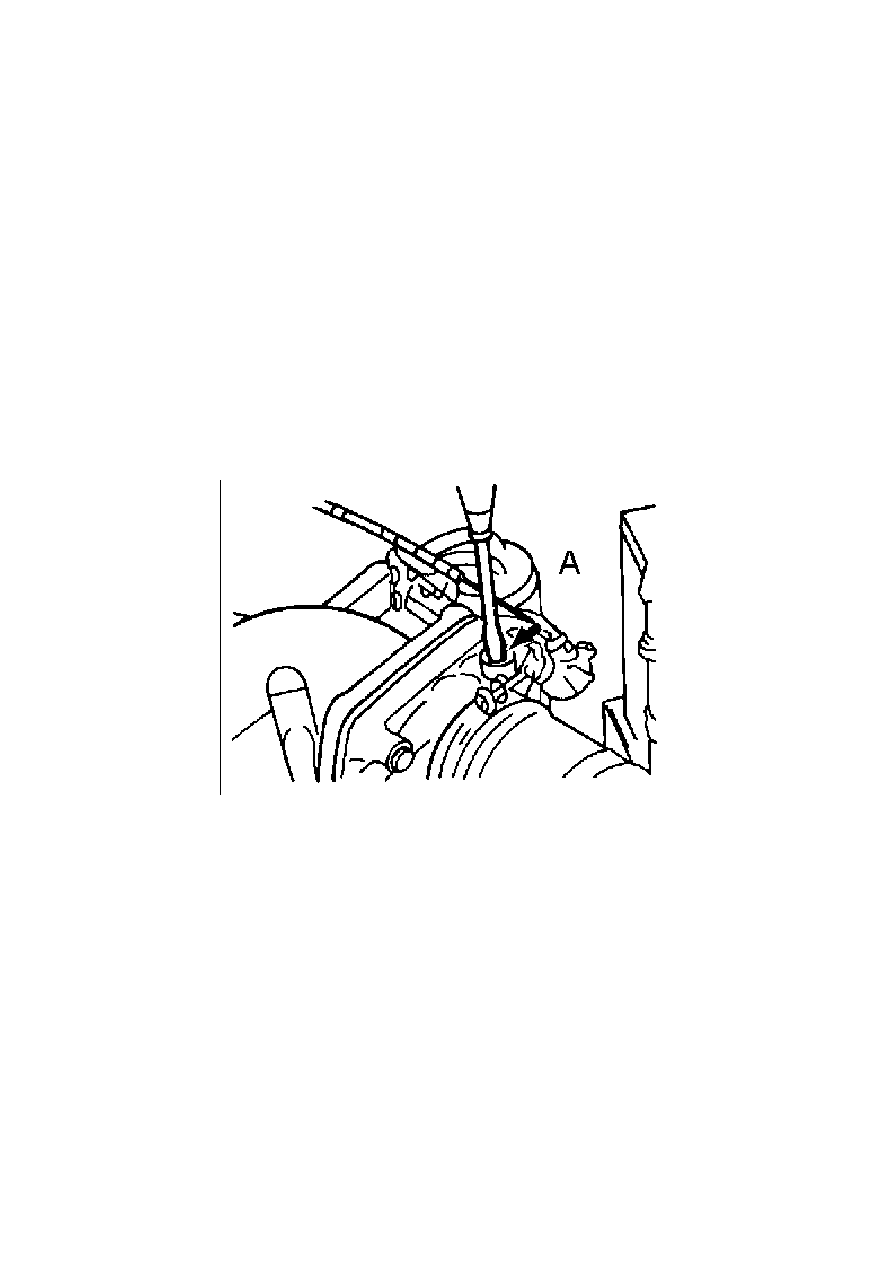

Adjustment screws (A = idle speed B = CO)



A

Firing order

1-2-3-4-5-6



10 ± 1/670

Timing stroboscopic (before TDC)

(° / rpm)

Ignition-coil resistance, primary

(ohms)

0.81 - 0.99

Ignition-coil resistance, secondary

(ohms)

10500 - 15000

NGK BKR6E-11

Spark plugs (make & type)



ChampionRC9YCC4

Spark-plug gap

(mm)

1.0 - 1.1

Fuel-pump pressure

6.2

(bar)

Injection pressure / system pressure

(bar)

2.8

CO exhaust gas

(%)

< 0.5

CO2

(%)

> 12

HC

(ppm)

100

O2

(%)

0.1 - 0.5

Lambda



0.97 - 1.03

Lambda change (Delta Lambda)



0.03

Oil temperature during test

(°C)

60

Fast-idle speed

2500-2800

(rpm)

CO at fast-idle speed

(%)

< 0.3

Cooling system

Item

Units

Values

Cap pressure

(bar)

0.75 - 1.05

Thermostat opens at

(°C)

80 - 84

Fan on at

(°C)

100

Electrical

Item

Units

Values

Battery

(Ah)

48

Alternator

90

(A)

Brakes

Item

Units

Values

Disc thickness, front, min.

(mm)

22.0

Disc thickness, rear, min.

(mm)

8.0

Steering and wheel alignment

Item

Units

Values

Toe-in, front

(°)

0° 17' ± 17'

Camber, front

(°)

-0° 15' ± 45'

Castor, front

(°)

2° 45' ± 45'

K.P.I., front

(°)

14° 50'

Toe-in, rear

0° 17' ± 17'

(°)

Camber, rear

(°)

-0° 62' ± 45'

Wheels and tyres

Item

Units

Values

Tyre size



195/60R15

Front tyre pressure

2.0

(bar)

Rear tyre pressure

(bar)

2.0

Capacities

Item

Units

Values

Engine sump, incl. filter

(l)

4.2



Manual transmission

Gearbox refill

(l)

2.7

Automatic transmission



Gearbox refill

(l)

6.8

Cooling system

(l)

7.5

Air-conditioner refrigerant

700

(g)

Air-conditioner compressor oil

(ml)

175

Torque settings

Item

Units

Values

Cylinder head



Stage 1

23 - 26

(Nm)

Stage 2

(°)

90°

Stage 3

(°)

90°

Front hub

(Nm)

236 - 318

Rear hub

177 - 235

(Nm)

Wheel nuts

(Nm)

89 - 117

Spark plugs

(Nm)

15 - 22

© Copyright, Wessels + Mьller AG

System description

Optional driver's airbag.
Airbag location identified by the inscription 'SRS'.
Front crash sensors mounted separately.
With airbag: SRS control module mounted separately.
1994

: Pyrotechnic pretensioners fitted as standard on front seat belts.

Without airbag: Pyrotechnic pretensioner control module mounted separately.

Special attention

To prevent personal injury, expansion area of all airbags MUST remain clear.
Steering wheel spiral cable has limited rotary movement.
Centralise steering before disconnecting steering column. To prevent damage, ensure steering wheel and spiral cable DO
NOT rotate before or during reassembly.
With airbag: Pyrotechnic pretensioners are electrically triggered by SRS control module.
Without airbag: Pyrotechnic pretensioners are electrically triggered by pyrotechnic pretensioner control module.

SRS warning lamp

Operation

Switch ignition ON.
SRS warning lamp illuminates.
If warning lamp does not illuminate: Suspect SRS warning lamp.
Lamp extinguishes after approximately 6 seconds.
If not: Suspect wiring or SRS control module.
If warning lamp flashes:
3 flashes: Suspect supply voltage open circuit.
4 flashes: Suspect safing sensor.
5 flashes: Suspect crash sensor.
6 flashes: Suspect driver's airbag or spiral cable.
9 flashes: Suspect crash sensor/SRS control module wiring.
10 flashes: Suspect SRS control module.

Disarm the system

When

Fascia/instrument panel removal or replacement.
Front seat belt removal or replacement.
Repair work around SRS components, especially airbags and pretensioners.
SRS component removal or replacement.
Steering wheel/column repair or replacement.
Welding operations.

How

Ensure ignition switched OFF.
Disconnect battery earth lead. Make sure accidental reconnection is not possible.
Disconnect spiral cable.
Disconnect pyrotechnic pretensioners.

Arm the system

Manufacturer: Mazda

Model: Xedos 6 (CA) 2,0

Engine code: KF

Output: 103 (140) 6000

Tuned for: R-Cat

Year: 1995-00

© Autodata Limited 2004
