ABBREVIATIONS , OUTLINE

ABBREVIATIONS

A6E470102000T01

End Of Sie

OUTLINE OF CONSTRUCTION

A6E470201008T01

•

Adoption of a DLI system eliminates the distributor.

End Of Sie

FEATURES

A6E470201008T02

Improved marketability and durability

•

Iridium spark plug has been adopted.

Improved reliability

•

Coaxial-reduction type starter has been adopted.

Reduced size and system simplification

•

Regulatorless generator with built in power transistor has been adopted.

End Of Sie

SPECIFICATIONS

A6E470201008T03

*: Intensely hot area

End Of Sie

ABBREVIATIONS

B+

Battery positive voltage

DLI

Distributorless Ignition

OUTLINE

Item

Engine type

L8

LF

L3

Battery

Type and
capacity
(5-hour rate)

European spec.

50D20L (40), 75D26L (52)

50D20L (40),

80D26L (55)

GCC spec.

46B24LS (36)

46B24LS (36),

75D26L (52)*

46B24LS (36)

Voltage

(V)

12

Generator

Output

(V-A)

12-90

Regulated
voltage

Controlled by PCM

Self-diagnosis function

Ignition
system

Type

DLI (Distributorless Ignition)

Spark advance

Electronic

Firing order

1—3—4—2

Spark plug

Type

NGK

ITR6F-13

Starter

Type

Coaxial reduction

Output (kW)

1.0

1.4

OUTLINE

G–3

G

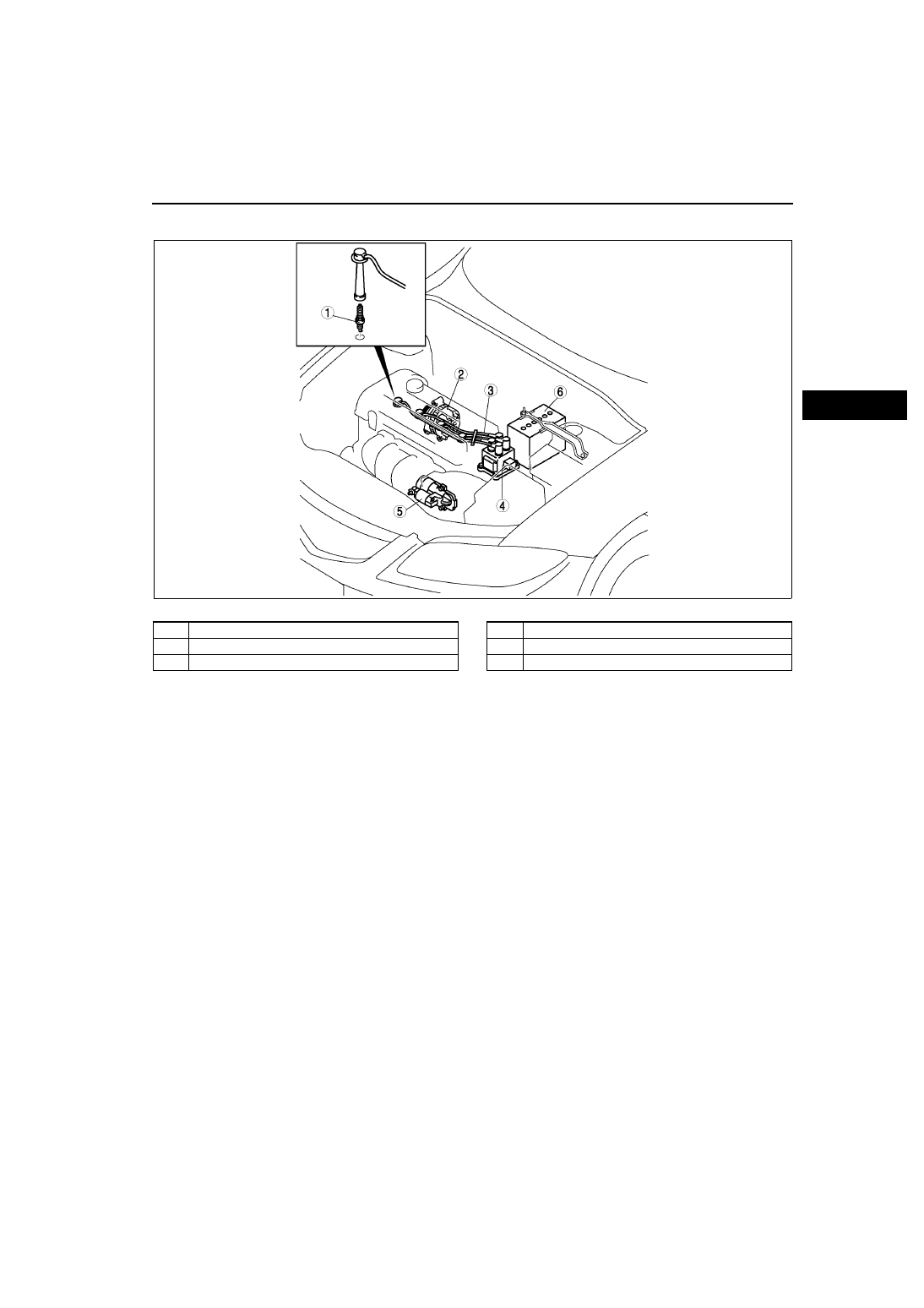

STRUCTURAL VIEW

A6E470201008T04

.

End Of Sie

AME4702N001

1

Spark plug

2

Generator

3

High-tension lead

4

Ignition coil

5

Starter

6

Battery

G–4

CHARGING SYSTEM

GENERATOR

A6E471001008T02

Structure

•

The voltage regulator has been eliminated, and generator control is carried out by the PCM.

•

A Generator duct made of plastic and generator heat insulator made of iron have been adopted to protect the
generator from the exhaust manifold heat.

.

.

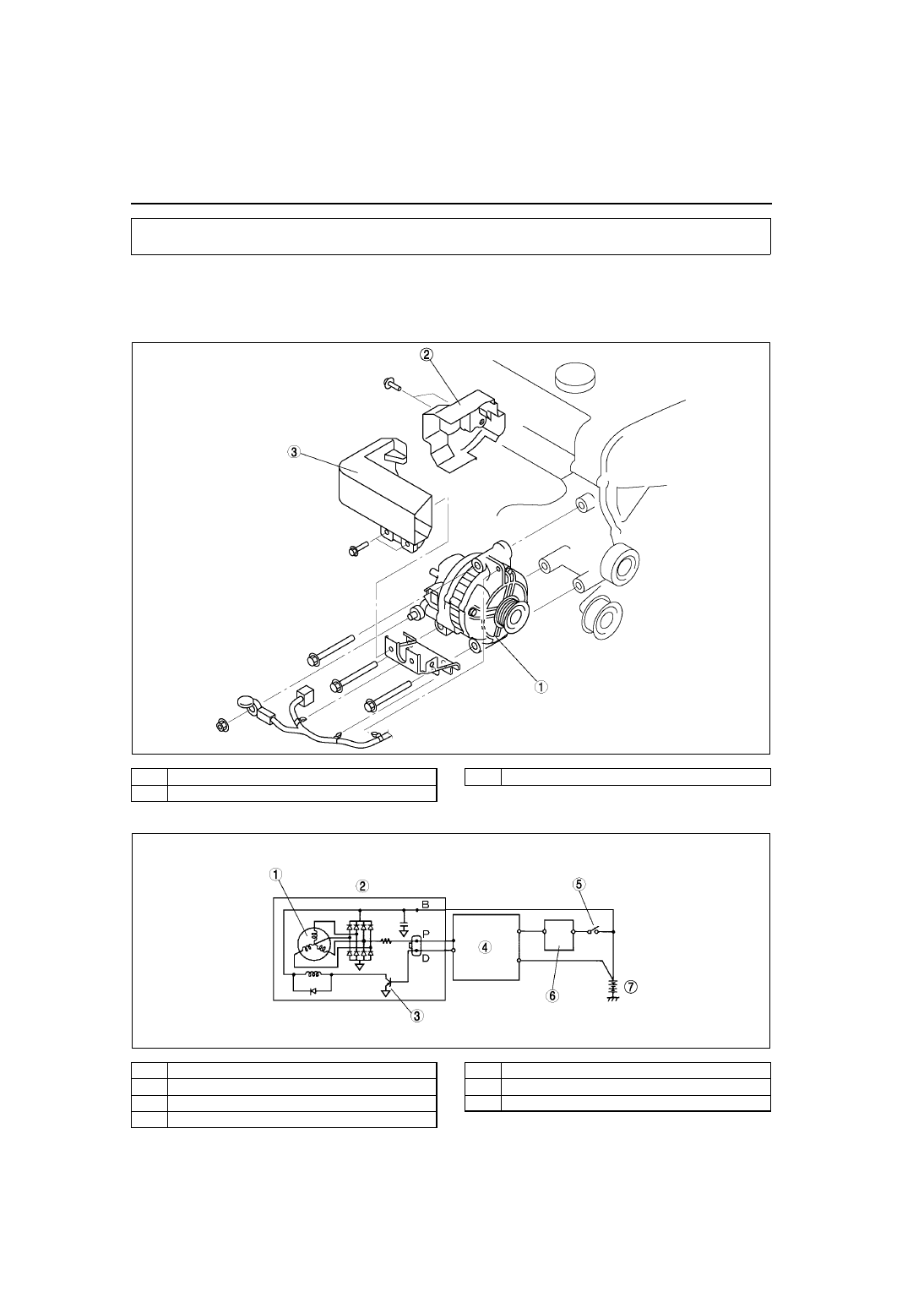

CHARGING SYSTEM

AME4710N001

1

Generator

2

Generator heat insulator

3

Generator duct

AME4710N002

1

Stator coil

2

Generator

3

Power transistor

4

PCM

5

Ignition switch

6

Generator warning light

7

Battery

IGNITION SYSTEM

G–5

G

End Of Sie

IGNITION COIL

A6E471201008T04

Structure

•

The ignition coil contains two coils. They are for cylinder numbers 1 and 4, and cylinder numbers 2 and 3
respective.(Matched pairs)

•

The two secondary terminals contain the secondary coils positive and negative terminals. The closed circuit of
secondary coils is formed through the high-tension leads, two spark plugs and the cylinder head. Due to this,
one coil ignites two cylinders simultaneously.

•

The firing timing of the coil is controlled by the PCM due to built-in ignition system. (Section F)

.

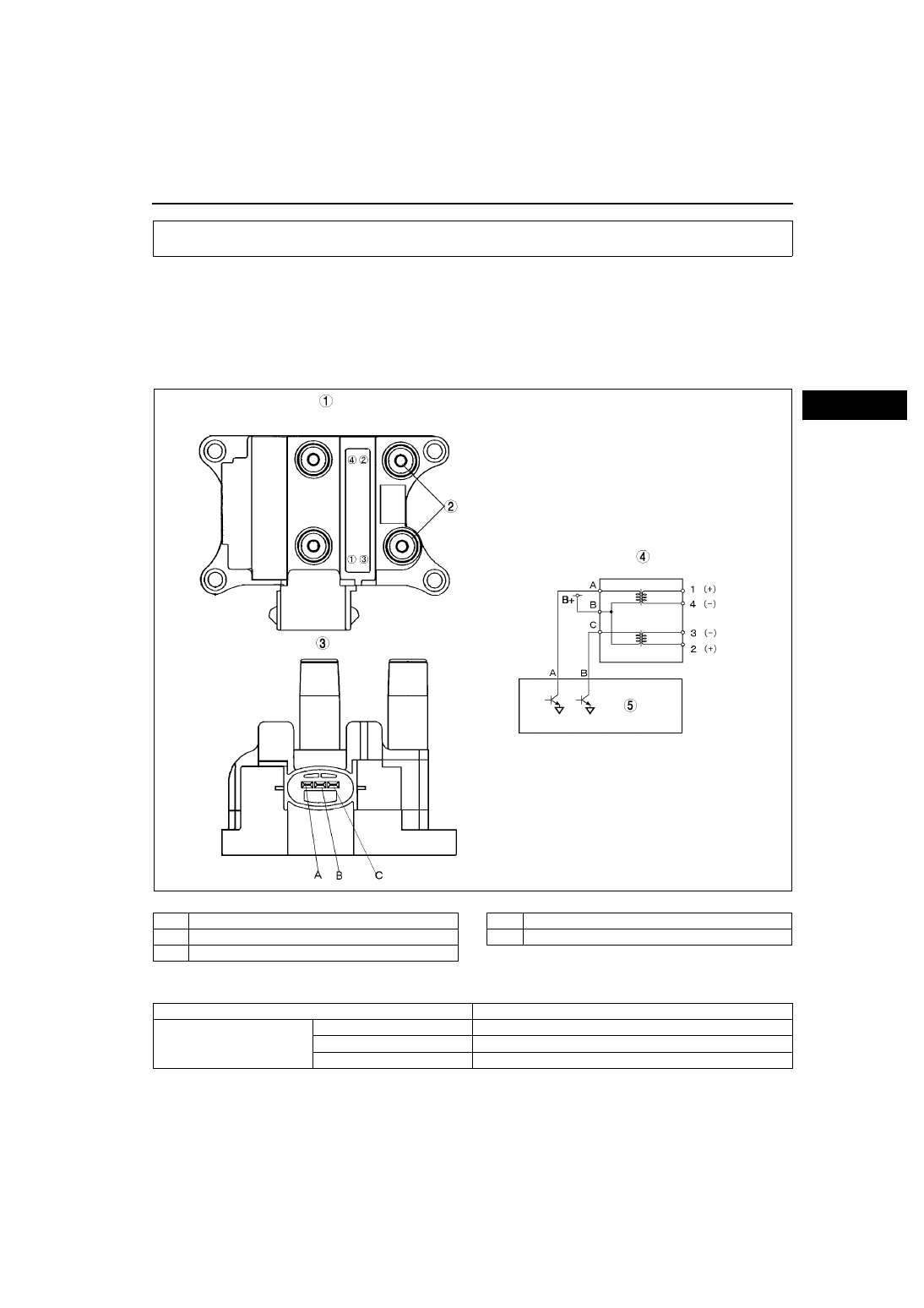

Terminal layout

End Of Sie

IGNITION SYSTEM

AME4712N001

1

Ignition coil upper surface figure

2

Two secondary terminals

3

Ignition coil side view

4

Ignition coil

5

PCM

Terminal

Signal

3 terminals

A

Ignition coil control signal 2 (No.1, No.4)

B

Power supply

C

Ignition coil control signal 1 (No.2, No.3)
