VALVE MECHANISM

B–33

B

End Of Sie

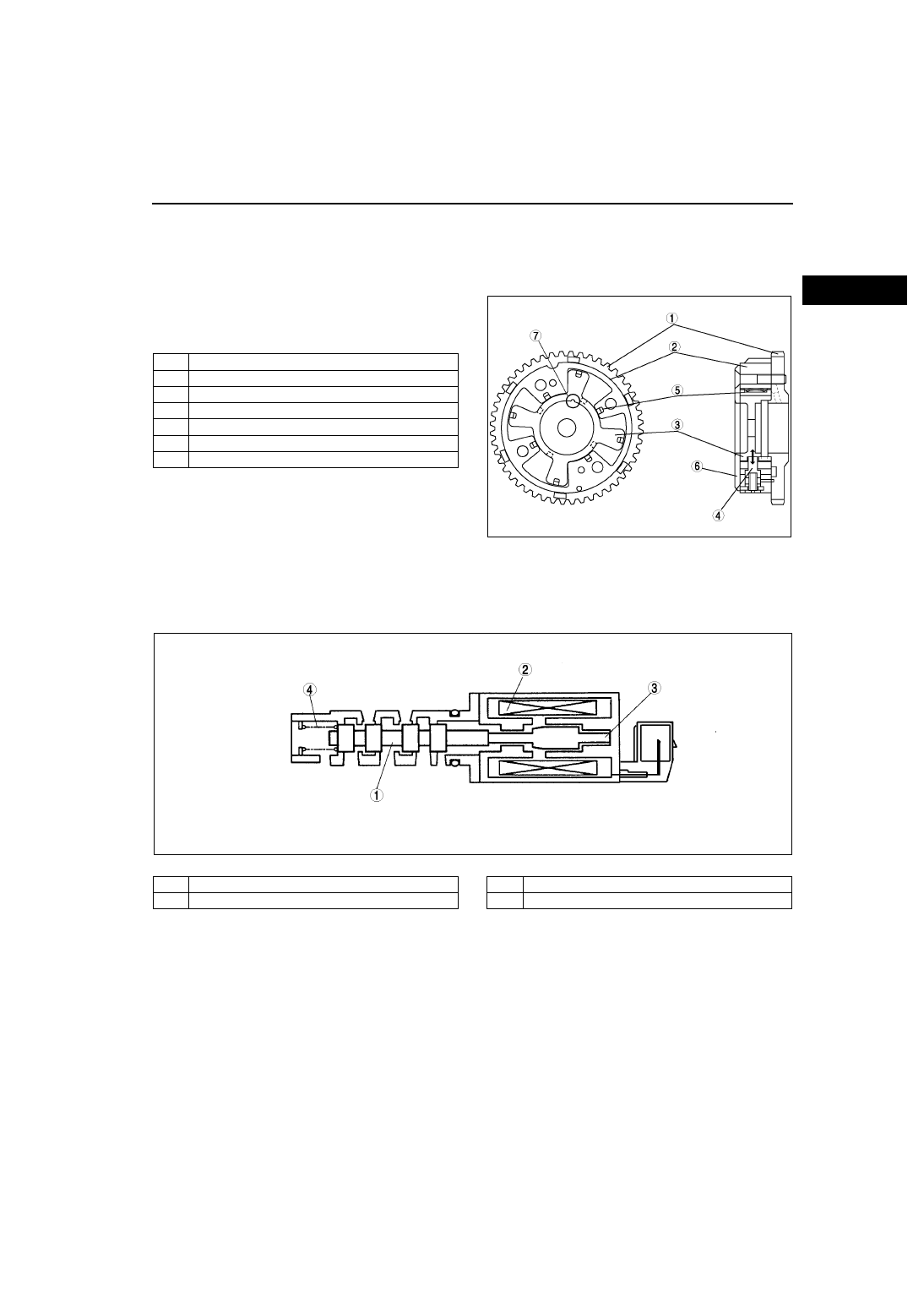

VARIABLE VALVE TIMING ACTUATOR

A6E221112111T05

•

The variable valve timing actuator consists of the following: a housing case integrated to the camshaft
sprocket, a cover, a camshaft integrated rotor, and a stopper pin that retains the rotor and case when the
engine stops. Also, the rotor has a chip seal that seals the valve timing advance chamber and the valve timing
retard chamber.

•

The cover and rotor of the variable valve timing
actuator are notched, and are used as alignment
marks when inspecting the variable valve timing
actuator.

.

End Of Sie

OIL CONTROL VALVE (OCV)

A6E221112111T06

•

The oil control valve (OCV) consists of a spool valve that switches the passages for engine oil, a coil that
moves the spool valve, a plunger, and a return spring.

.

End Of Sie

1

Camshaft sprocket

2

Case

3

Rotor

4

Stopper pin

5

Tip seal

6

Cover

7

Notch

AME2224N600

AME2211N012

1

Spool valve

2

Coil

3

Plunger

4

Return spring

D–1

D

D

LUBRICATION SYSTEM

ABBREVIATIONS ..................................................D-2

ABBREVIATIONS ................................................D-2

OUTLINE ................................................................D-2

OUTLINE OF CONSTRUCTION..........................D-2
FEATURES ..........................................................D-2
SPECIFICATIONS ...............................................D-2

LUBRICATION SYSTEM........................................D-3

STRUCTURAL VIEW...........................................D-3
LUBRICATION FLOW DIAGRAM ........................D-4
OIL PUMP ............................................................D-7
OIL PAN ...............................................................D-9
OIL STRAINER ..................................................D-10
OIL FILTER ........................................................D-10
OIL JET VALVE .................................................D-12

D–2

ABBREVIATIONS, OUTLINE

ABBREVIATIONS

A6E330102000T01

End Of Sie

OUTLINE OF CONSTRUCTION

A6E330201003T01

•

The lubrication system is a forced-fed type that uses a full-flow filter.

•

An environment-friendly oil filter, designed so that only the internal oil filter (rather than entire assemly) need to
be replaced, has been adopted.

End Of Sie

FEATURES

A6E330201003T02

Reduced weight

•

Aluminum alloy oil pan has been adopted.

•

Plastic oil strainer has been adopted.

•

Resin oil filter cover has been adopted.

Reduced vibration and noise

•

An oil pan made from laminated damping steel has been adopted.

•

The oil pan upper block is tightened with main bearing cap.

Improved lubrication and reliability

•

The following have been adopted.
— Trochoid gear type oil pump
— Water-cooled type oil cooler (LF and L3 engine models)
— Oil jet valve

End Of Sie

SPECIFICATIONS

A6E330201003T03

*

: Always verify the oil level with the dipsticks since the engine oil capacity differs according to dipstick

specifications. (See Mazda6 Workshop Manual 1730-1*-02C Section D.)

ABBREVIATIONS

OCV

Oil control valve

OUTLINE

Item

Engine

L8

LF

L3 *

Lubrication system

Force-fed type

Oil cooler

—

Water-cooled

Oil pressure

(kPa {kgf/cm

2

, psi}

[rpm])

234—521 {2.39—5.31, 33.9—75.5}

[3,000]

395—649

{4.03—6.61,

57.3—94.1}

[3,000]

Oil pump

Type

Trochoid gear type

Relief pressure

500—600

 {5.09—6.11, 72.6—87.0}

(kPa {kgf/cm

2

, psi})

Oil filter

Type

Full-flow, paper element

Bypass pressure

80—120 {0.9—1.2, 12.8—17.0}

(kPa {kgf/cm

2

, psi})

Oil capacity
(Approximate
quantity)

Total (Dry engine)

4.6 {4.8, 4.0}

Dipstick A: 4.2 {4.4, 3.7}
Dipstick B: 5.1 {5.4, 4.5}

(L {US qt, lmp qt})

Oil replacement

3.9 {4.0, 3.4}

Dipstick A: 3.1 {3.3, 2.7}
Dipstick B: 4.0 {4.2, 3.5}

(L {US qt, lmp qt})

Oil and oil filter
replacement

4.3 {4.5, 3.8}

Dipstick A: 3.5 {3.7, 3.1}
Dipstick B: 4.4 {4.6, 3.9}

(L {US qt, lmp qt})

OUTLINE , LUBRICATION SYSTEM

D–3

D

Recommended Engine oil

End Of Sie

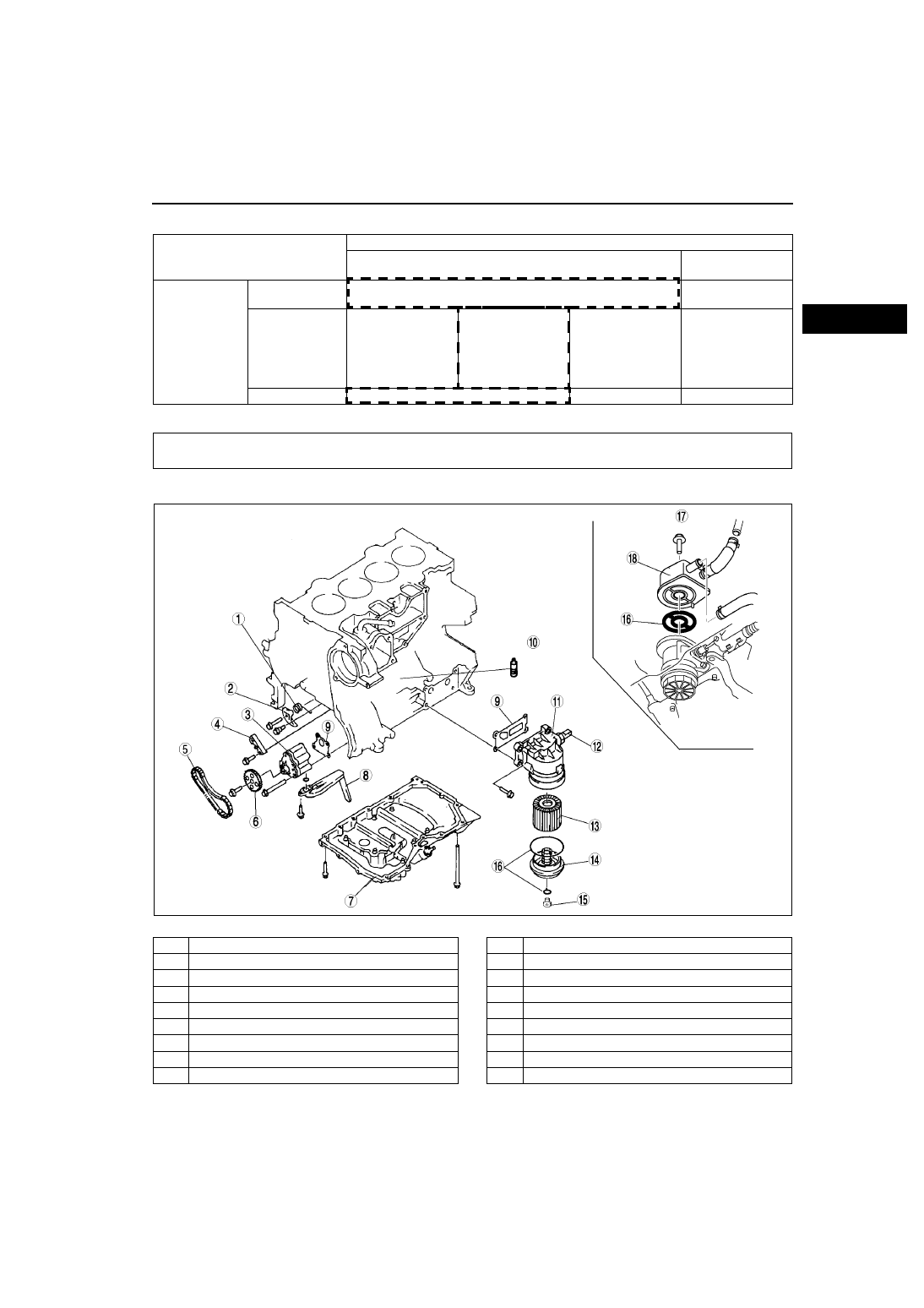

STRUCTURAL VIEW

A6E333001003T01

.

End Of Sie

Item

Market

European countries

Except European

countries

Engine oil

Grade

API SL

ACEA A3

API SG, SH, SJ, SL

ILSAC GF-2, GF-3

Viscosity (SAE)

5W-30

10W-40

5W-20

40, 30, 20,

20W-20, 10W-30,
10W-40, 10W-50,
20W-40, 15W-40,
20W-50, 15W-50,

5W-20, 5W-30

Remarks

Mazda genuine Dexelia oil e.g.

—

—

LUBRICATION SYSTEM

AME3300N001

1

Chain tensioner spring

2

Chain tensioner

3

Oil pump

4

Chain guide

5

Oil pump driven chain

6

Oil pump sprocket

7

Oil pan

8

Oil strainer

9

Gasket

10

Oil jet valve

11

Oil filter adapter

12

Oil pressure switch

13

Oil filter

14

Oil filter cover

15

Oil filter drain plug

16

O ring

17

LF and L3 engine models

18

Oil cooler
