Mazda Protege 5. Manual - part 339





LIGHTING SYSTEMS

09–18–9

09–18

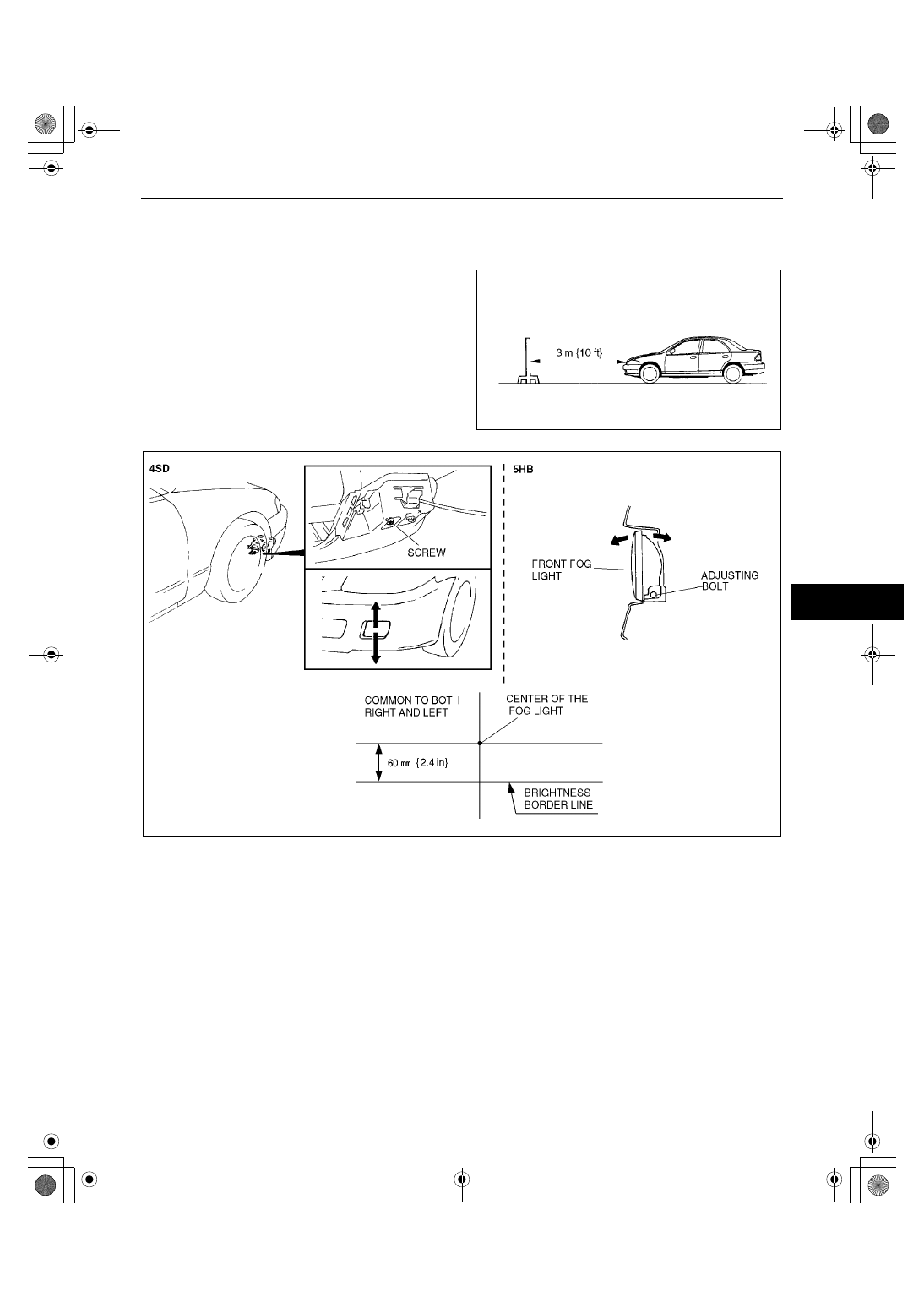

FRONT FOG LIGHT ADJUSTMENT

A3U091851680W02

1. Adjust the tire air pressure to the specification.
2. Position the unloaded vehicle on a flat, level surface.
3. Seat one person in the driver’s seat.
4. Position the vehicle 3 m {10 ft} in front of a white

screen.

5. While adjusting one fog light, mask the other.
6. Start the engine to charge the battery.
7. Turn the front fog light on.
8. Peel off the mud guard.
9. Loosen the screw or bolts for the aim adjustment.

10. Move the front fog light in the direction of the

arrows indicated in the figure and adjust the
center of the front fog light to the position.

11. Tighten the front fog light adjusting screw or bolts.

End Of Sie

Z3U0918W006

A3U0918W111

1712-1U-01G(09-18).fm  9 ページ  2001年6月29日 金曜日 午後12時57分

LIGHTING SYSTEMS

09–18–10

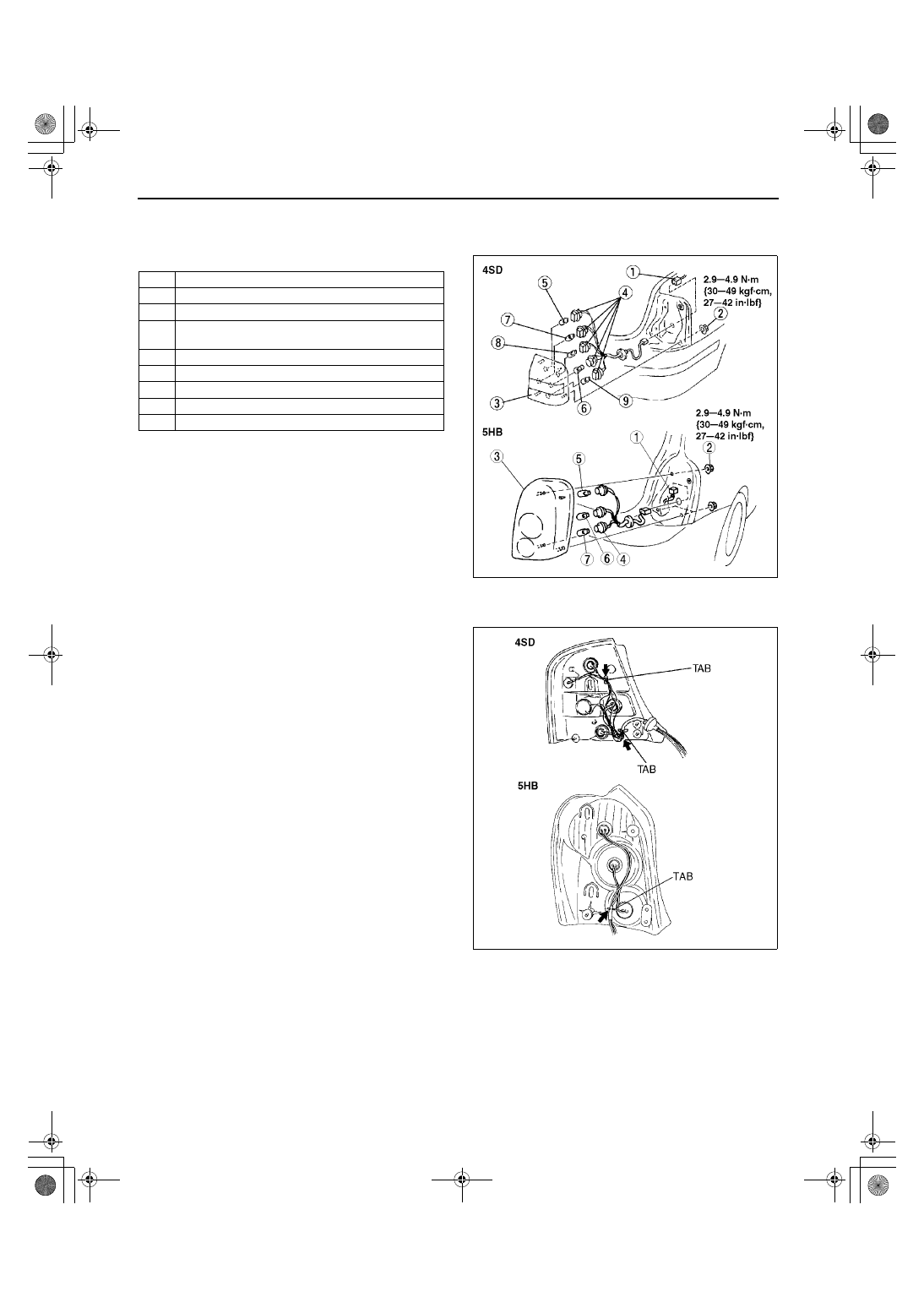

REAR COMBINATION LIGHT REMOVAL/INSTALLATION

A3U091851150W01

1. Disconnect the negative battery cable.
2. Remove the trunk side trim. (See 09–17–15 TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

Socket Installation Note

1. Hook the harness as shown in the figure.

End Of Sie

1

Connector

2

Nut

3

Rear combination light

4

Socket
(See 09–18–10 Socket Installation Note)

5

Brake light/taillight bulb

6

Rear turn light bulb

7

Back-up light bulb

8

Rear side marker light bulb (4SD)

9

Taillight bulb (4SD)

A3U0918W107

A3U0918W106

1712-1U-01G(09-18).fm  10 ページ  2001年6月29日 金曜日 午後12時57分

LIGHTING SYSTEMS

09–18–11

09–18

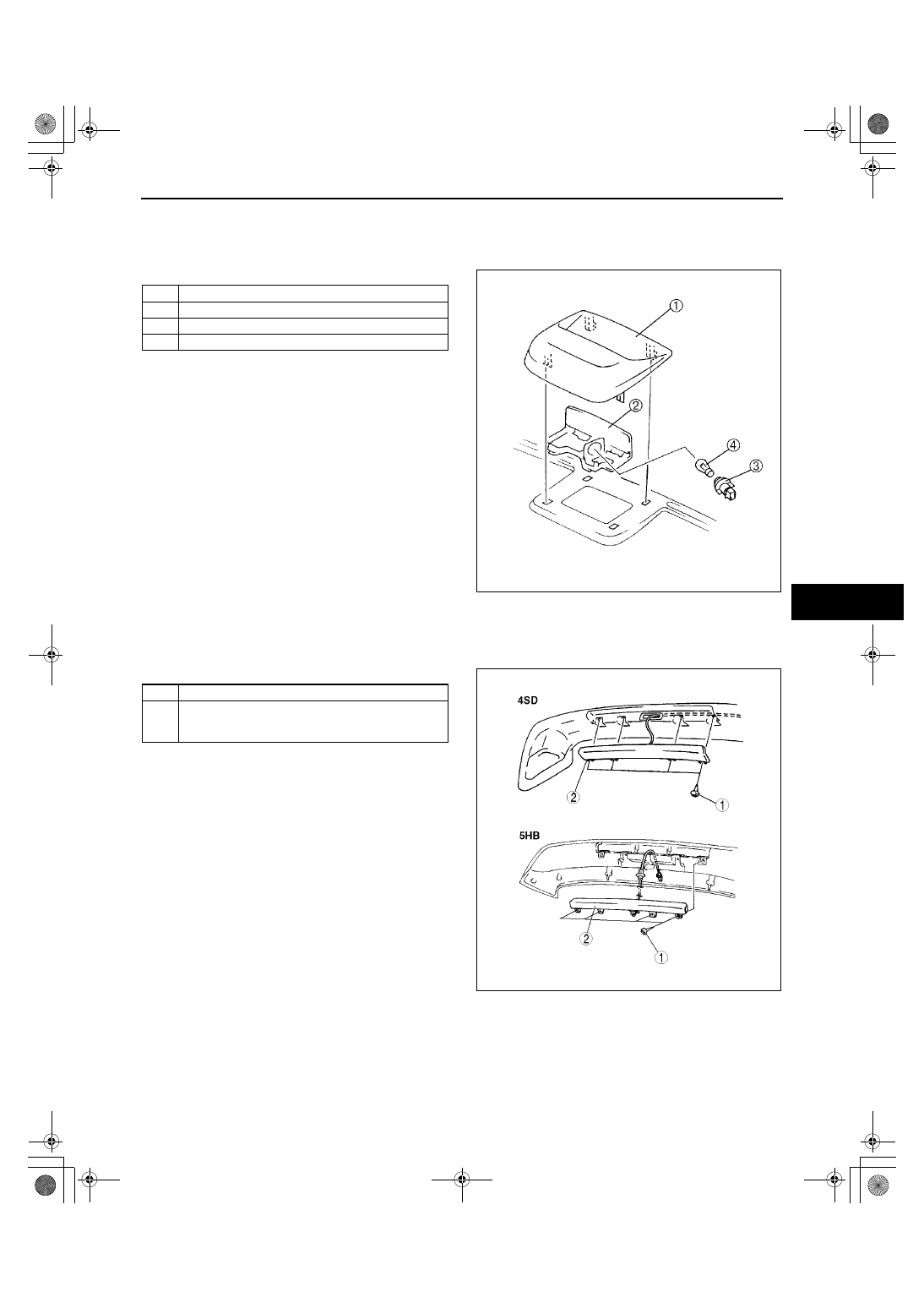

HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION

A3U091851580W01

In-Vehicle Type

1. Disconnect the negative battery cable.
2. Remove the rear package trim. (See 09–17–12 REAR PACKAGE TRIM REMOVAL/INSTALLATION.)
3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

Rear Spoiler Type

1. Disconnect the negative battery cable.
2. Remove the rear spoiler. (See 09–16–8 REAR SPOILER REMOVAL/INSTALLATION.)
3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

1

High-mount brake light

2

Lens

3

Socket

4

High-mount brake light bulb

Y3U918WAM

1

Screw

2

High-mount brake light
(See 09–18–12 High-mount brake light removal
note (4SD))

A3U0918W102

1712-1U-01G(09-18).fm  11 ページ  2001年6月29日 金曜日 午後12時57分

LIGHTING SYSTEMS

09–18–12

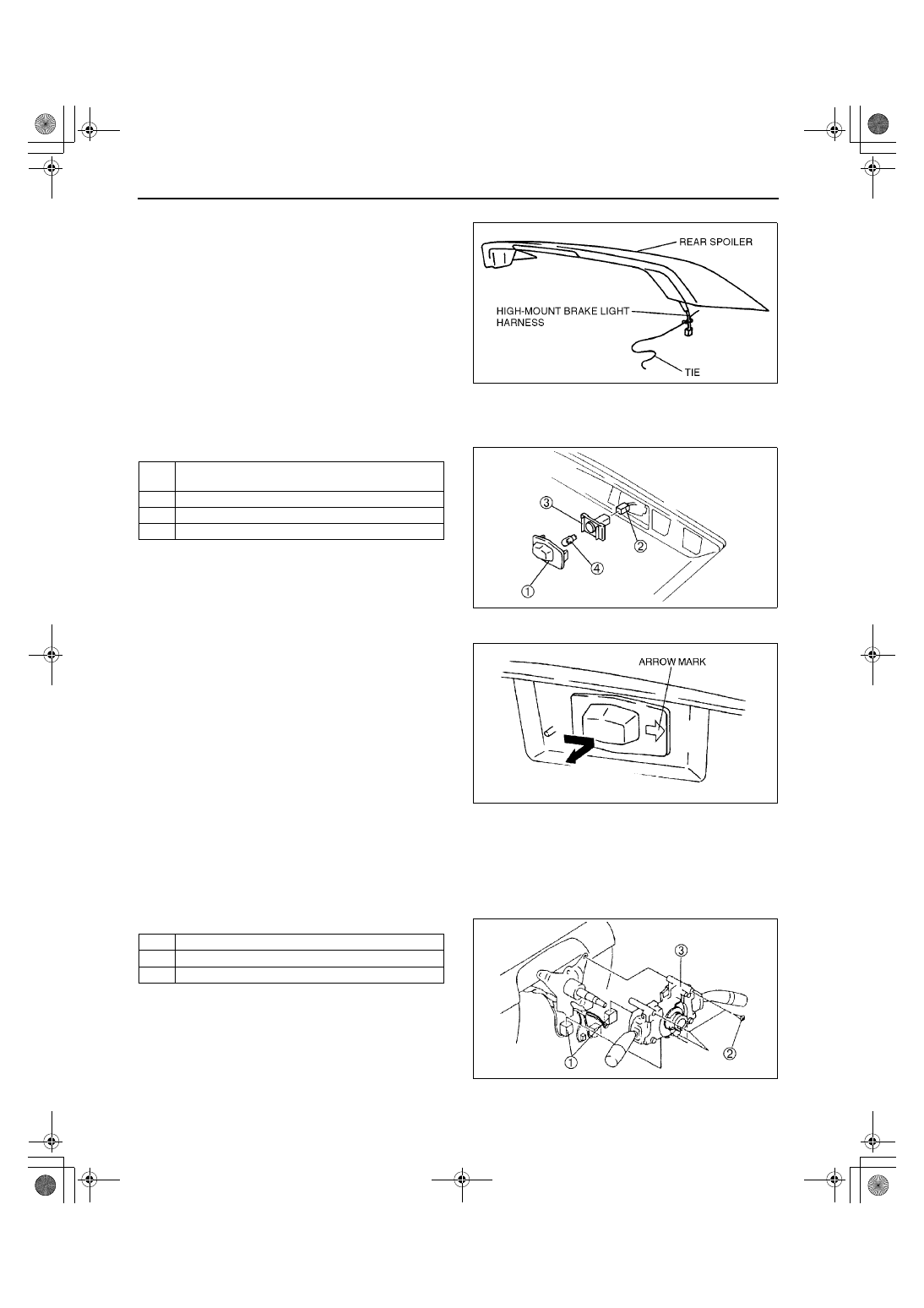

High-mount brake light removal note (4SD)

1. Tie a string to the end of the connector of the

high-mount brake light beforehand so that the
connector can be passed easily through the rear
spoiler during installation.

End Of Sie

LICENSE PLATE LIGHT REMOVAL/INSTALLATION

A3U091851270W01

1. Disconnect the negative battery cable.
2. Remove the rear finisher. (See 09–16–3 REAR FINISHER REMOVAL/INSTALLATION.)
3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

License Plate Light Removal Note

1. Slide the license plate light to the arrow mark and

remove it.

End Of Sie

COMBINATION SWITCH REMOVAL/INSTALLATION

A3U091866120W01

1. Disconnect the negative battery cable.
2. Remove the driver-side air bag module. (See 08–10–5 DRIVER-SIDE AIR BAG MODULE REMOVAL/

INSTALLATION.)

3. Remove the steering wheel. (See 06–12–6 STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)
4. Remove the column cover. (See 09–17–5 COLUMN COVER REMOVAL/INSTALLATION.)
5. Remove the clock spring. (See 08–10–9 CLOCK SPRING REMOVAL/INSTALLATION.)
6. Remove in the order indicated in the table.

7. Install in the reverse order of removal.

End Of Sie

Y3U918WAJ

1

License plate light
(See 09–18–12 License Plate Light Removal Note)

2

Connector

3

Socket

4

License plate light bulb

X3U918WA7

X3U918WA8

1

Connector

2

Screw

3

Combination switch

X3U918WA9

1712-1U-01G(09-18).fm  12 ページ  2001年6月29日 金曜日 午後12時57分
